Canare

This is a Special Order Item

75? LOW LOSS COAXIAL CABLE

Product Code: CA-L-5CFB-B1R

Brand
Canare
RRP $440.00


Unit of Measure
EACH



Unspecified
Technical Specifications
Brands Canare
Bulk Cable Type Coax
  • Details
  • Downloads

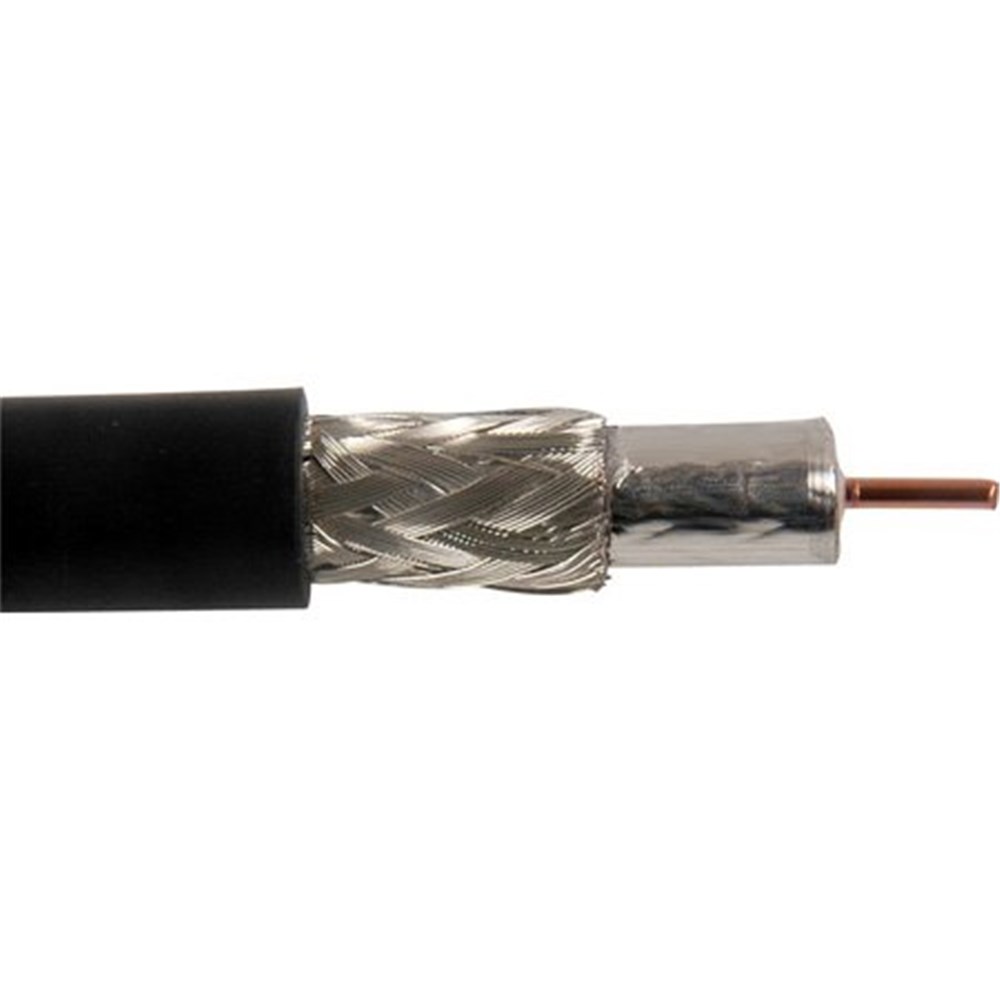

75 ohm Digital Video Coaxial Cable (L-CFB Series) L-5CFB Black 100 Meters

Canare 75 ohm precision digital video cables, offers the professional Broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards.

  • HD-Serial Digital Video.
  • Satellite Head Ends.
  • HDTV Upgrades.
  • Broadband Facilities.
  • SMPTE 259M, 292M,424M.
  • Solid Copper Center Conductor.
  • Foam PE Dielectric.
  • Tinned Copper Braid + 100% Foil Shield.
  • Dielectric strips away clean from Conductor.
  • Precision Coax 100% Sweep Tested.

Model

Length
(m)

Wt.
Std. Lng.
100m
(kgs)

Nominal
O.D.
(mm)

Cond. Material

AWG

Cond. O.D.
(mm)
Dielectric
Insulation
Type*
Insulation O.D.
(mm)
Shield
Material
Coverage
Cond.
D.C.R.
(ohm/100m)
Shield
D.C.R.
(ohm/100m)

Nom. Cap.
@1KHz

(pF/m)

Nom.
Imp.

ohm

Velocity
of
Prop.
Serial Digital
Transmission
Lengths
@ 270 Mb/s
L-5CFB 100 7.3 7.7 Bare Copper
#18
1.05 Foam PE 4.9 AL Foil 100%
TAC Braid >93%
<2.3 <0.7 55 75 79% 940 ft min.
1,210 ft max
