Canare

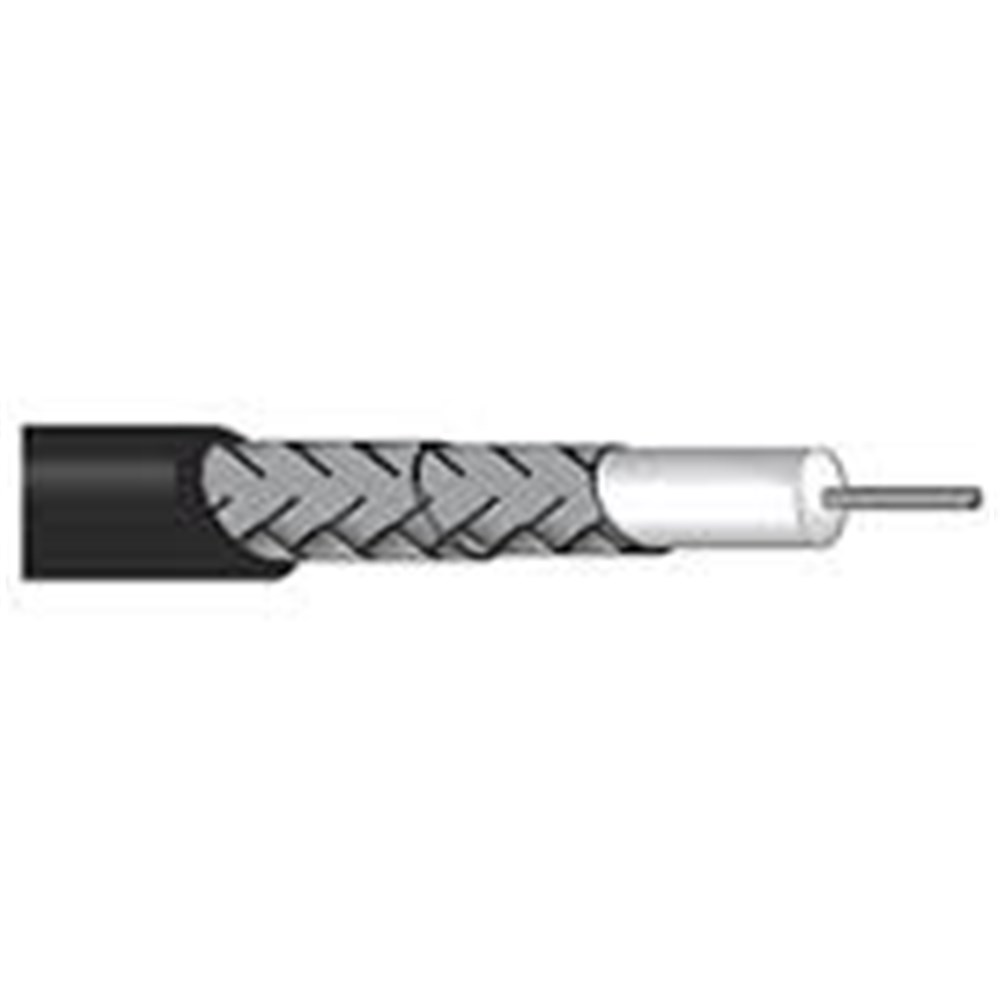

L-2.5CHWS coax cable on cardboard drum 100m black

Product Code: CA-L-2.5CHWS-B1R

Brand
Canare
RRP $390.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Coax
  • Details
  • Downloads
75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Foamed / Foamed PE Insulation)

L-4.5CHWS, L-2.5CHWS
L-CHWS Series
●  Flexible and durable: Best suited to mobile HD application.
●  Designed for withstanding repeated bending.
●  Stranded center conductor.
●  High-density double-braided shield.
●  Highly-foamed insulation.

Note: Cable stripper TS100E cannot be used.

MECHANICAL SPECIFICATIONS
Model Std. Lng.


ft.
(m)		 Nom.
O.D.

in
(mm)		 Wt
Std. Lng.

lbs
(kgs)/100m		 Inner Cond
Conductor
Comp.
(AWG)
Q'ty/mm		 Inner
Cond
O.D.
in.
(mm)		 Insulation
O.D.

in.
(mm)
L-4.5CHWS 328
(100)

656
(200)		 0.280
(7.2)		 14.55
(6.6)		 (18)
7/0.34A		 0.04
(1.02)		 0.17
(4.57)
L-2.5CHWS 0.165
(4.2)		 7.5
(3.2)		 (24)
7/0.20A		 0.02
(0.60)		 0.102
(2.6)

(contd.) MECHANICAL SPECIFICATIONS
Model Outer Conductors
Shield Coverage
 & Comp.		 Inner
Cond.
Resistance
ohm/mile
(ohm/km)		 Outer
Cond.
Resistance
ohm/mile
(ohm/km)		 Static
 Capacity


(pF/m)		 Characteristic
Impendence


ohm		 Attenuation


dB/100m(328ft)
750MHz)
L-4.5CHWS 0.10A/8/24(93% or more)
0.10A/9/24(95% or more)		 39.95
(32.70)		 10.88
(16.9)		 53 75 22.8
L-2.5CHWS 0.10A/8/16(95% or more)
0.10A/9/16(94% or more)		 - - 53 75 37.4

Jacket: PVC dielectric strength: 1000V AC/min.
