Amplifiers

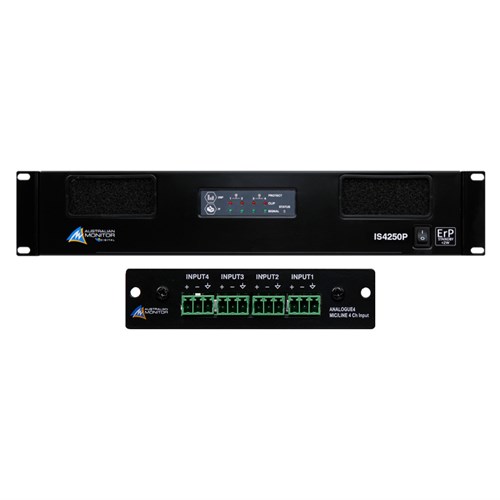

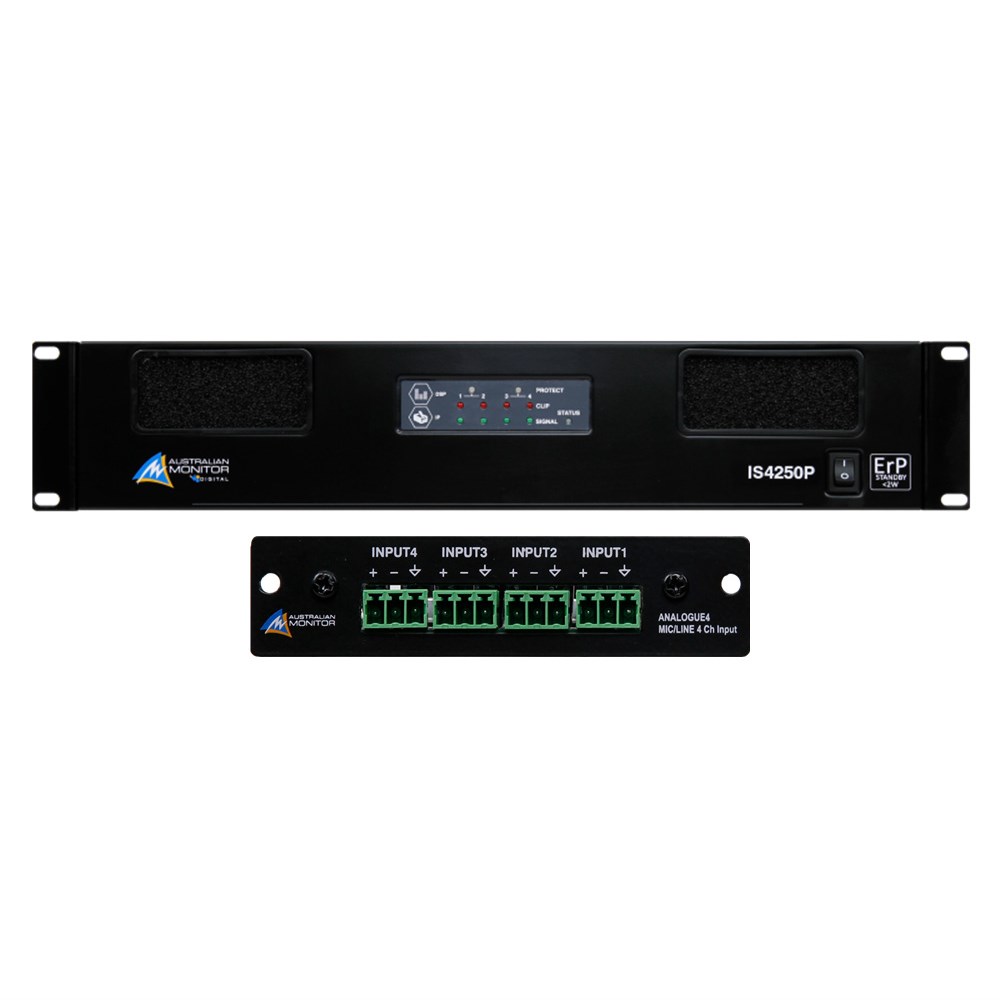

IS4250P with ANALOGUE4 Module Not Installed Australian Monitor

Product Code: AJ-IS4250P-AKIT

Brand
Australian Monitor
RRP $3,798.00


Unit of Measure
EACH


5 Year
Kit Components
Code
Item
Qty
AJ-ANALOGUE4
Is Series 4 Ch Analog Card ANALOGUE4 Australian Monitor
1.0
AJ-IS4250P
Is Series Dsp Pwr Amp 4 X 250W IS4250P Australian Monitor
1.0
Technical Specifications
Brands Australian Monitor
Channel count 4
  • Details
  • Downloads

IS4250P

4 x 250W Power Amplifier

Ethernet, DSP, Dante® Support

The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.

The ISP also features an embedded User Interface which can be accessed from any device supporting an HTML5 compliant web browser.

Configuration Options:
  • IS4250P - 4 inbuilt line level inputs
  • IS4250P + DM4x4 - 4 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
  • IS4250P + ANALOGUE4 - 4 inbuilt line level inputs plus expansion slot of 4 line level inputs

  • 4 x 250W power amplifier
  • 4 ohm, 70V and 100V output options
  • Class D topology
  • Ethernet Control
  • Embedded user interface accessible using any HTML5 web browser
  • Full DSP - Input Matrix, Filters, Parametric Ex, Compressor / limiter, Delay, Mute, Inversion
  • 4 software configurable general purposes input/outputs
  • ErP(1275/2008/EC) Low Power Standby (<2W)
  • Dante® Support using DM4x4 Expansion Card
  • Analogue Expansion Card option. ANALOGUE 4

Specifications
  • Output Power per Channel: 250W
  • Frequency Response: 75Hz - 16kHz
  • Output Channels: 4
  • THD+N: < 0.02% (-3dB)
  • Output Mode: 4 Ohm-70V-100V
  • Signal to Noise Ratio: > 100dB
  • Input Voltage: 100-240Vac 50-60Hz
  • Input Sensitivity: 1Vrms
  • Mounting: 2RU
  • Cooling: Fan-assisted
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 389mm x 89mm Shipping Dimensions
    • (W x D x H) 546mm x 491mm x 197mm
  • Net Weight: 16.0 Kg
  • Shipping Weight: 18.6 Kg
  • GTIN EAN: 9323383020009


ANALOGUE CARD

Optional 4 Input, analogue input card for IS series power amplifiers. Suitable for

  • IS2120P 2 x 120W
  • IS2250P 2 x 250W
  • IS4120P 4 x 120W
  • IS4250P 4 x 250W

Analogue Expansion Card

4 Line Level Inputs

Analogue expansion card for use with the IS series of power amplifiers.

Provides 4 line level inputs channels which can be routed to any amplifier output channel.

Note: The expansion inputs are in addition to the inbuilt analogue inputs of the 2 and 4 channel products.

Product Documents

No documents available
