Amplifiers

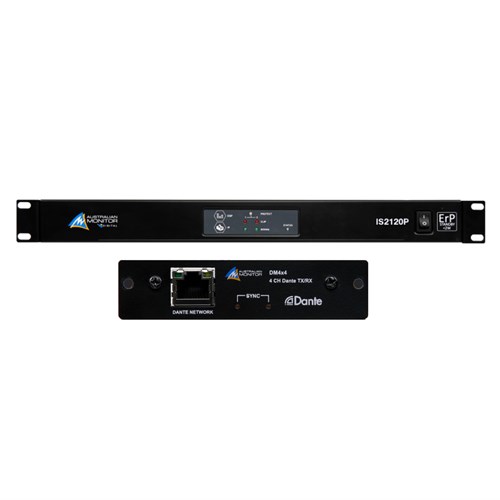

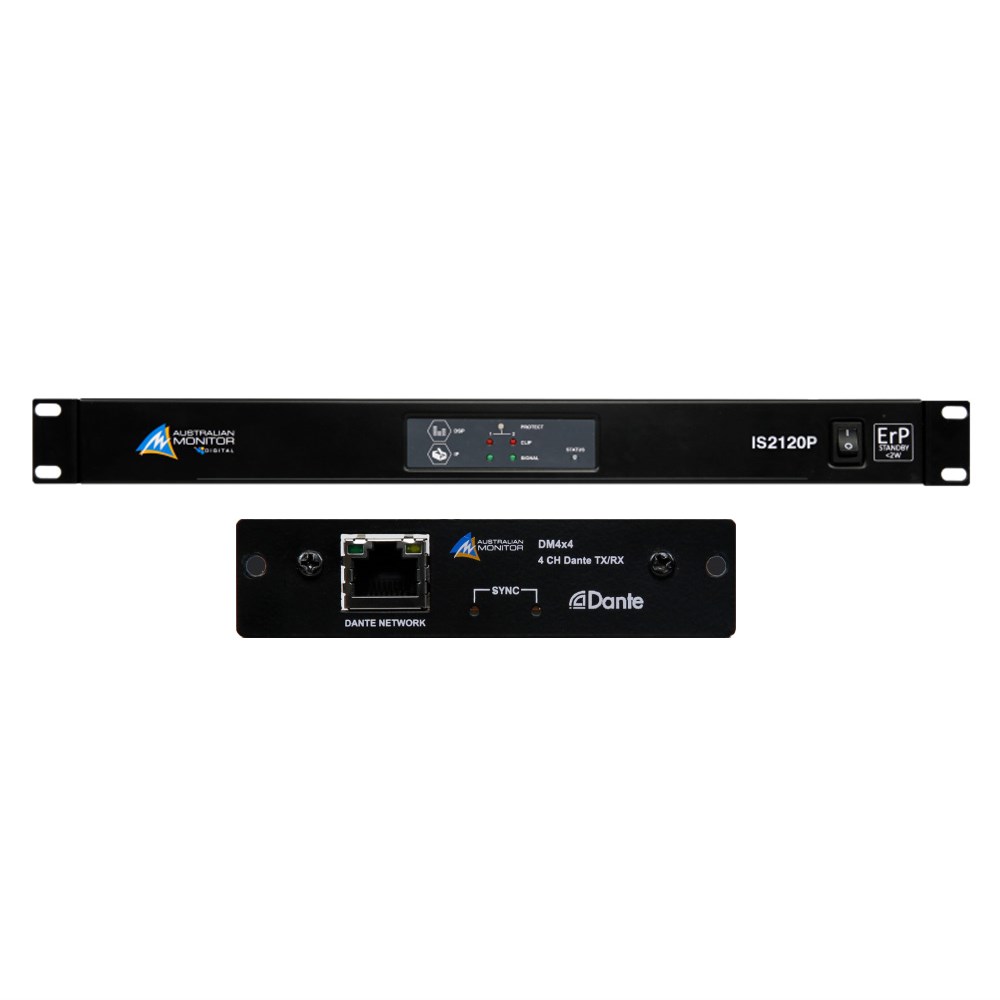

IS2120P with DM4X4 Module Not Installed Australian Monitor

Product Code: AJ-IS2120P-DKIT

Brand
Australian Monitor
RRP $2,468.00


Unit of Measure
EACH


5 Year
Kit Components
Code
Item
Qty
AJ-DM4X4
Is Series 4 X 4 Dante Card DM4X4 Australian Monitor
1.0
AJ-IS2120P
Is Series Dsp Pwr Amp 2 X 120W IS2120P Australian Monitor
1.0
Technical Specifications
Brands Australian Monitor
Channel count 2
  • Details
  • Downloads

IS2120P


2 x 120W Power Amplifier

Ethernet, DSP, Dante® Support

The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.

The ISP also features an embedded User Interface which can be accessed from any device supporting an HTML5 compliant web browser.
Configuration Options:
  • IS2120P - 2 inbuilt line level inputs
  • IS2120P + DM4x4 - 2 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
  • IS2120P + ANALOGUE4 - 2 inbuilt line level inputs plus expansion slot of 4 line level inputs

  • 2 x 120W amplifier
  • 4 ohm, 70V and 100V output options
  • Class D topology
  • Ethernet Control
  • Embedded user interface accessible using any HTML5 web browser
  • Full DSP - Input Matrix, Filters, Parametric Ex, Compressor / limiter, Delay, Mute, Inversion
  • 4 software configurable general purposes input/outputs
  • ErP(1275/2008/EC) Low Power Standby (<2W)
  • Dante® Support using DM4x4 Expansion Card
  • Analogue expansion card option. ANALOGUE 4

SPECIFICATIONS

  • Output Power per Channel: 120W
  • Frequency Response: 75Hz - 16kHz
  • Output Channels: 2
  • THD+N: < 0.05% (-3dB)
  • Output Mode: 4 Ohm-70V-100V
  • Signal to Noise Ratio: > 100dB
  • Input Voltage: 100-240Vac 50-60Hz
  • Input Sensitivity: 1Vrms
  • Mounting: 1RU
  • Cooling: Fan-assisted
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 325mm x 44.5mm Shipping Dimensions
    • (W x D x H) 525mm x 425mm x 120mm
  • Net Weight: 7.2 Kg
  • Shipping Weight: 9.8 Kg
  • GTIN EAN: 9323383019973


DM4X4

Dante® Expansion Card
4 Input, 4 Output

Optional 4 Input, 4 output Dante® transceiver card for IS series power amplifiers. Suitable for

  • IS2120P 2 x 120W
  • IS2250P 2 x 250W
  • IS4120P 4 x 120W
  • IS4250P 4 x 250W

Dante® expansion card for use with the IS series of power amplifiers.

Provides 4 inputs channels from a Dante network which can be routed to any amplifier output channel.

In addition, 4 Dante® outputs channels are available to route any analogue inputs back on to the network.

Product Documents

No documents available
