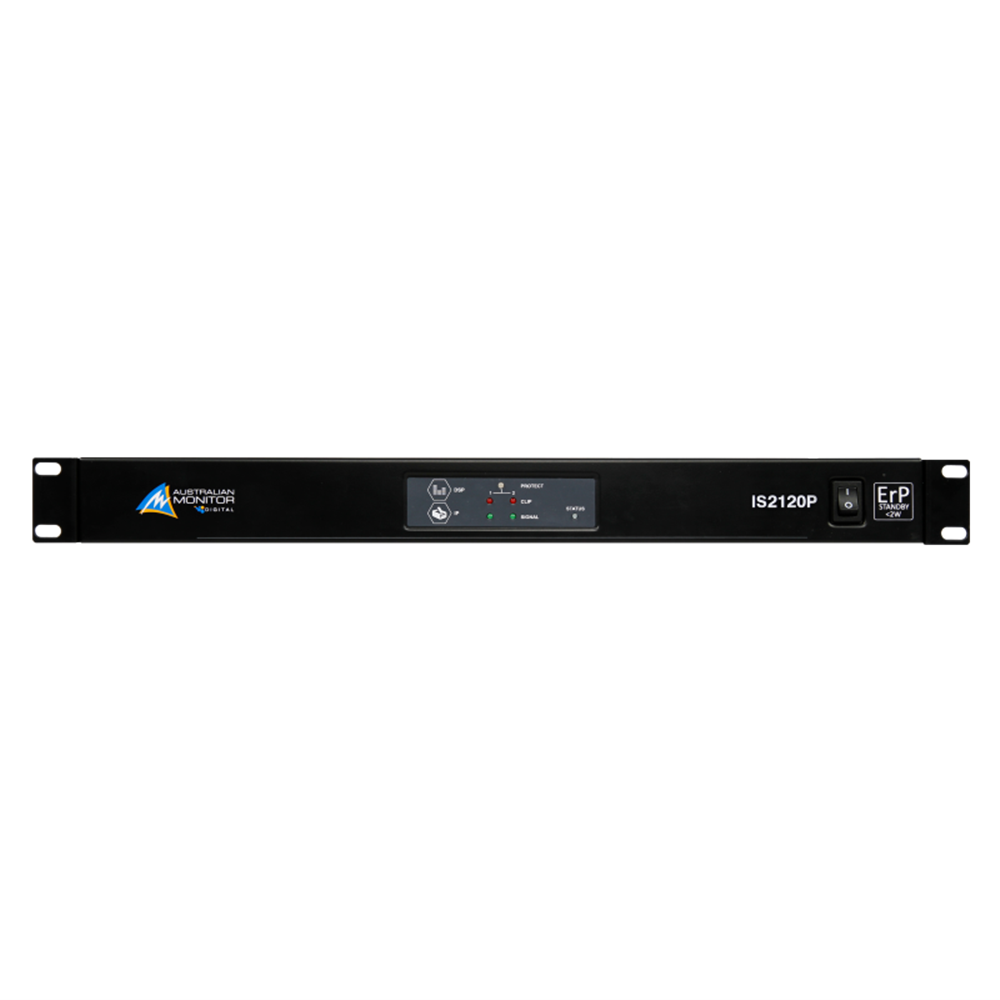

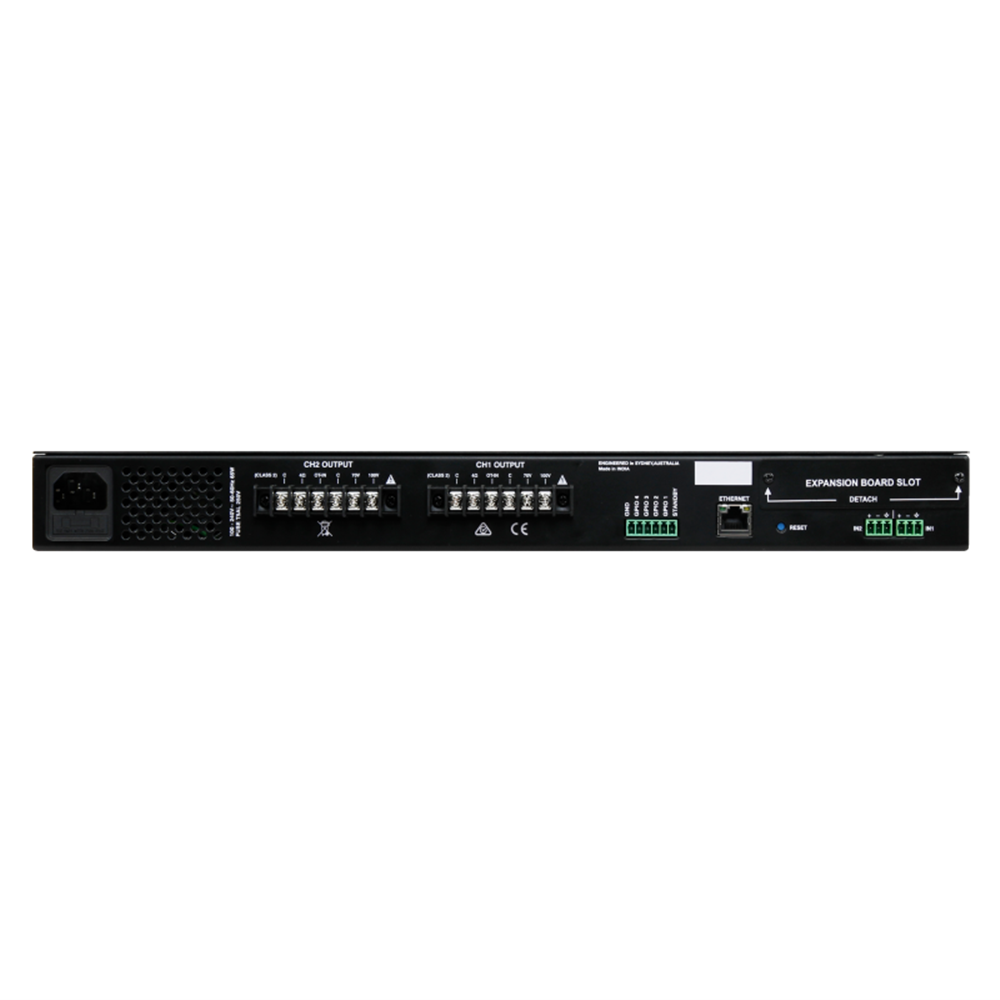

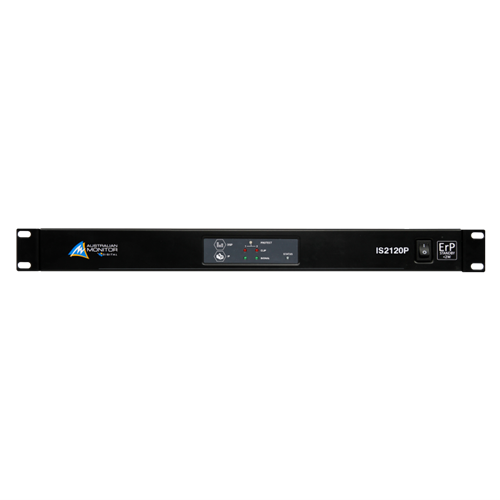

IS2120P

2 x 120W Power Amplifier

Ethernet, DSP, Dante® Support

The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.

The ISP also features an embedded User Interface which can be accessed from any device supporting an HTML5 compliant web browser.
Configuration Options:

• IS2120P - 2 inbuilt line level inputs
• IS2120P + DM4x4 - 2 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
• IS2120P + ANALOGUE4 - 2 inbuilt line level inputs plus expansion slot of 4 line level inputs

• 2 x 120W amplifier
• 4 ohm, 70V and 100V output options
• Class D topology
• Ethernet Control
• Embedded user interface accessible using any HTML5 web browser
• Full DSP - Input Matrix, Filters, Parametric Ex, Compressor / limiter, Delay, Mute, Inversion
• 4 software configurable general purposes input/outputs
• ErP(1275/2008/EC) Low Power Standby (<2W)
• Dante® Support using DM4x4 Expansion Card
• Analogue expansion card option. ANALOGUE 4

Specifications

• Output Power per Channel: 120W
• Frequency Response: 75Hz - 16kHz
• Output Channels: 2
• THD+N: < 0.05% (-3dB)
• Output Mode: 4 Ohm-70V-100V
• Signal to Noise Ratio: > 100dB
• Input Voltage: 100-240Vac 50-60Hz
• Input Sensitivity: 1Vrms
• Mounting: 1RU
• Cooling: Fan-assisted
• Warranty: 5 years
• Product Dimensions:
  • (W x D x H) 483mm x 325mm x 44.5mm Shipping Dimensions
  • (W x D x H) 525mm x 425mm x 120mm
• Net Weight: 7.2 Kg
• Shipping Weight: 9.8 Kg
• GTIN EAN: 9323383019973
