JTS Professional Microphones

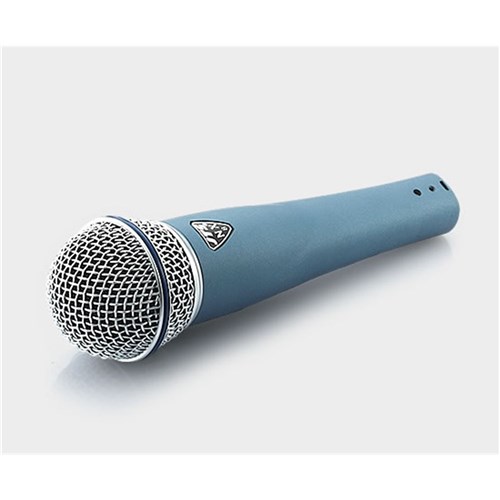

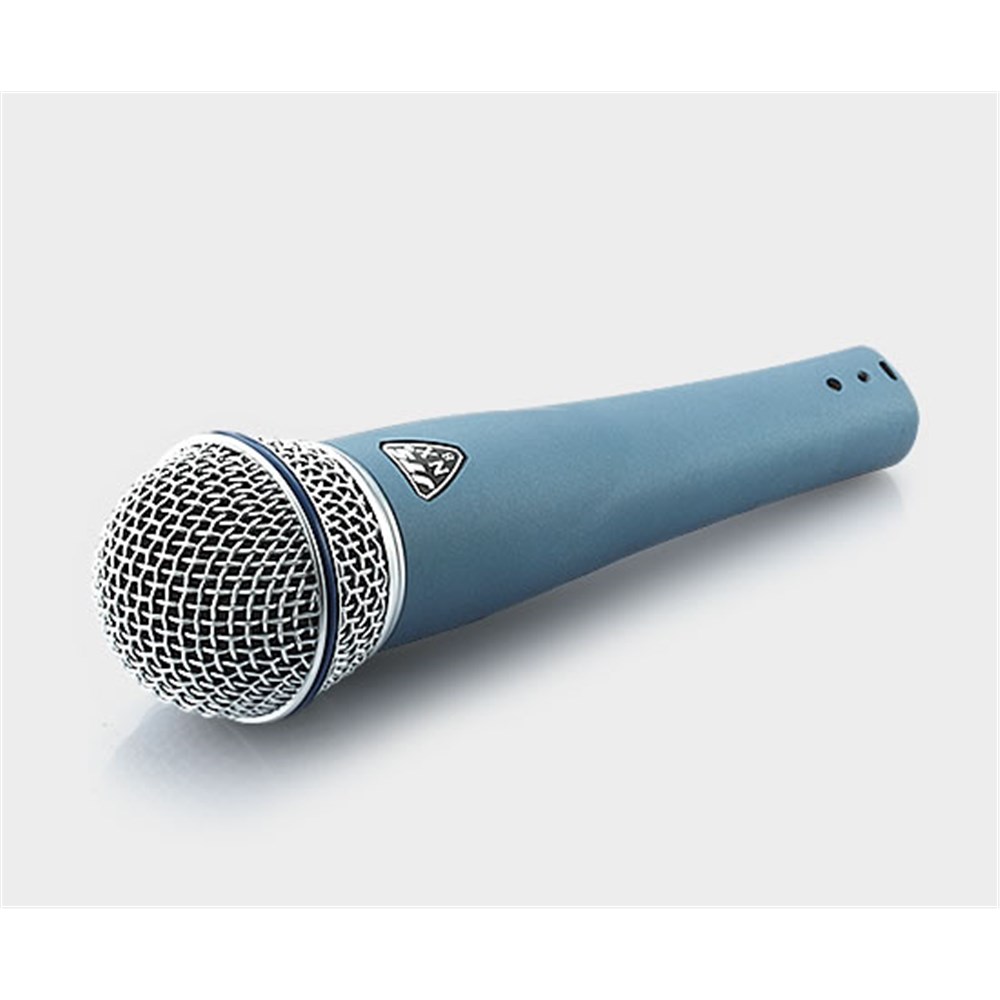

Handheld dynamic mic for vocals

Product Code: JP-NX8

Brand
JTS
RRP $169.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

NX-8


Based on the success of X-series performance microphones NX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened grille make NX-8/NX-8S one of the most rugged mics in the professional microphone industry.



SPECIFICATIONS


Type

  • Moving Coil Dynamic

Frequency Response

  • 50~16,500 Hz

Polar Pattern

  • Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

  • -72dB*(0.25mV)*0dB=1V/μbar

Impedance

  • 600Ω

Phasing

  • Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

  • Three-pin professional audio connector (male XLR type)

Case.

  • Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight

  • 245 grams (8.6 oz)

Product Documents

No documents available
