NC5FD-LX-B

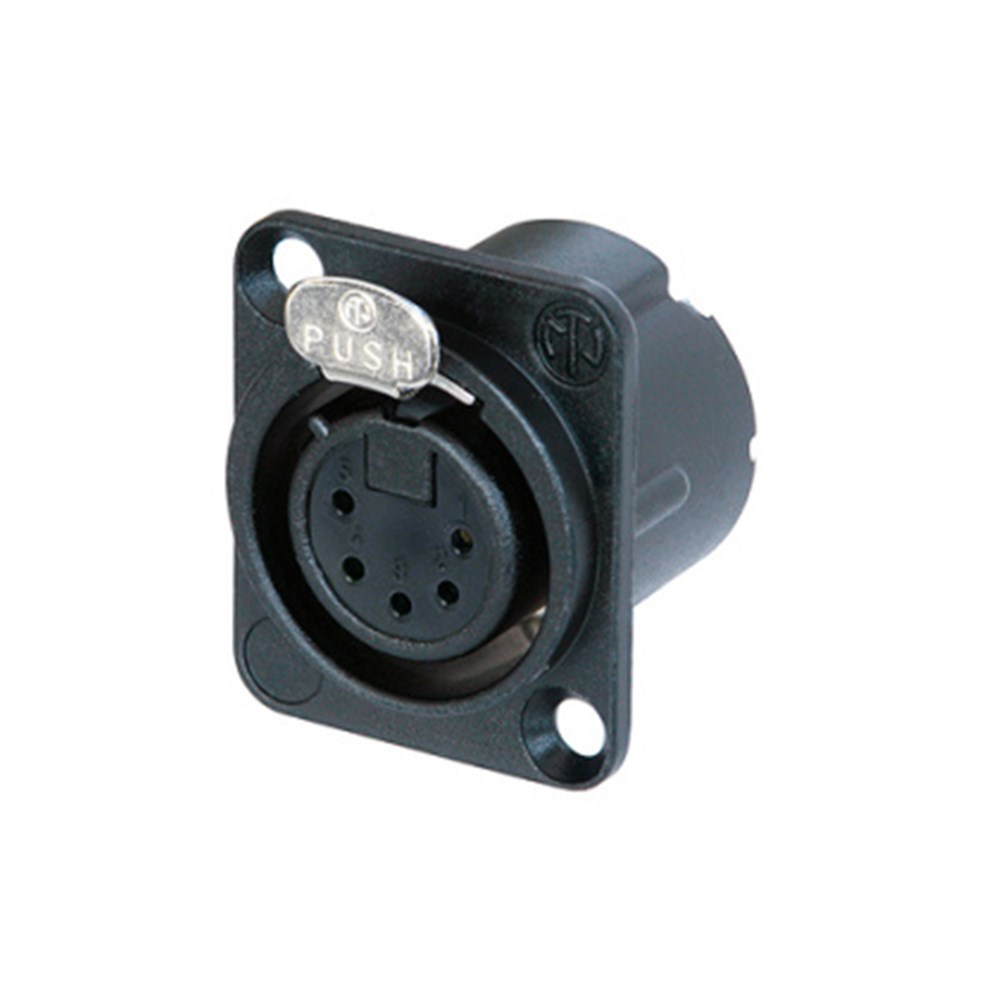

5 pole female receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Features & Benefits

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions
