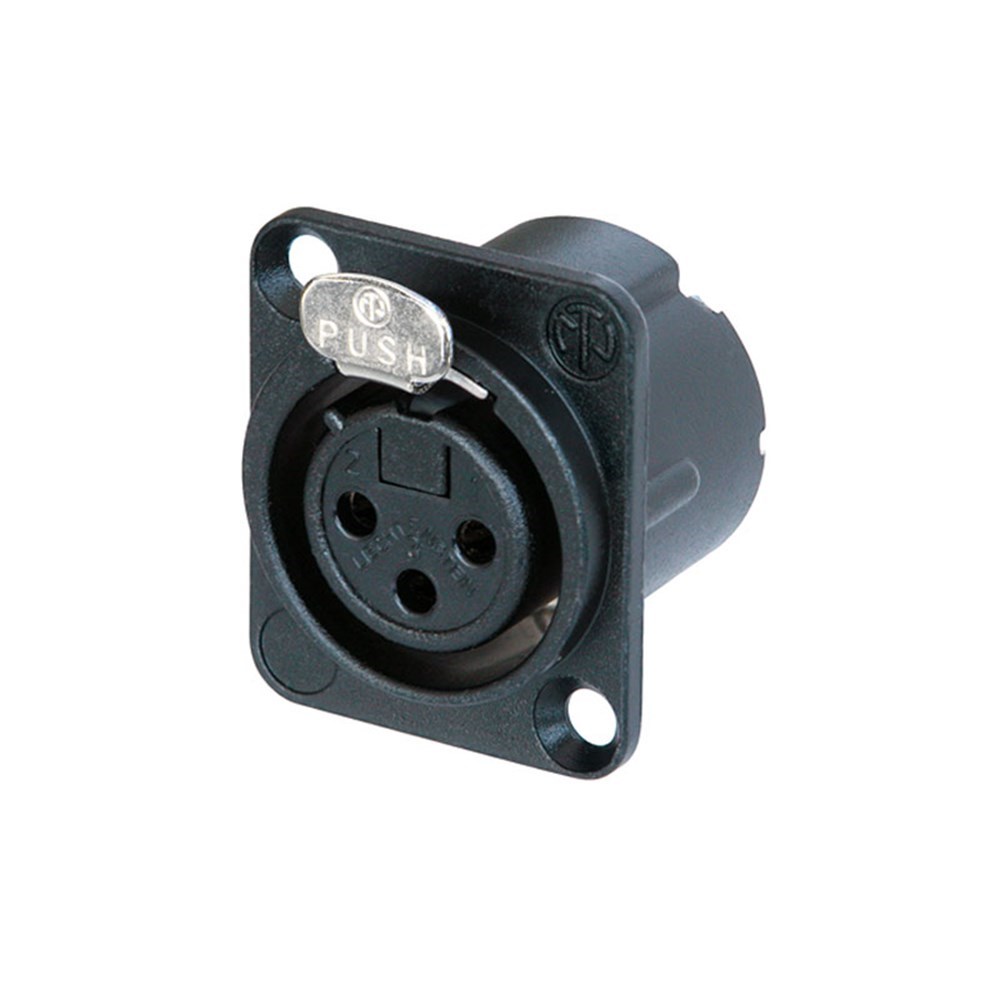

NC3FD-LX-BAG

3 pole female receptacle, solder cups, black metal housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features & Benefits

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions

Specifications

Product

Title

• NC3FD-LX-BAG

Connection Type

• XLR

Gender

• female

Electrical

Capacitance between contacts

• ≤ 4 pF

Contact resistance

• ≤ 5 mΩ

Dielectric strength

• 1,5 kVdc

Insulation resistance

• > 10 GΩ (initial)

Rated current per contact

• 16 A

Rated voltage

• < 50 V

Mechanical

Insertion force

• ≤ 20 N

Withdrawal force

• ≤ 20 N

Lifetime

• > 1000 mating cycles

Wiresize

• max. 2.5 mm²

Wiresize

• max. 14 AWG

Wiring

• Solder contacts

Locking device

• Latch lock

Chassis shape

• D

Material

Contact plating

• 2 µm Ag over 2 µm Ni

Contacts

• Bronze (CuSn6)

Insert

• Polyamide (PA 6.6 30 % GR)

Locking element

• Steel Ck67

Shell

• Zinc diecast (ZnAl4Cu1)

Shell plating

• Black chromium

Environmental

Flammability

• UL 94 HB

Standard compliance

• IEC 61076-2-103

Protection class

• IP 40

Solderability

• Complies with IEC 68-2-20

Temperature range

• -30 °C to +80 °C
