Extender set 100m 4K UHD 4:2:0 60Hz HDBaseT POH,USB 2.0,Audio pass, RS232

Product Code: WY-EX100H2

Brand
Wyrestorm
RRP $1,539.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads

4K/60 4:2:0 HDR Extender with USB 2.0, Audio Passthrough & PoH


SKU: EX-100-H2

The EX-100-H2 uses the powerful HDBaseT 2.0 chipset to send along 4K, USB, PoH and HD audio up to 100m/328ft with a single Cat 6 cable. This extender hosts the perfect combination of features to give you the tools you need to set up your next conference or presentation. With separate audio lanes, you’re free to send audio independently to overlay your presentation.

With data transfers in mind, the EX-100-H2 is equipped with the fastest USB hardware HDBaseT is currently capable of; USB 2.0 and up to 190Mbps, which is everything you need to set up HD webcams, smart whiteboards, transfer data and so much more!

HDBASET SPEC 2.0
Featuring the powerful Class C HDBaseT chipset, UHD video & audio, USB, RS-232 and PoH are sent and distributed losslessly over distances of 100m/328ft.

USB 2.0 PASSTHROUGH
Equipped with the HDBaseT 2.0 spec, the EX-100-H2 not only provides KVM functionality for extension of keyboard/mouse or touchscreen, but also transfers the highest data rate that HDBaseT has to offer of 190Mbps, for webcams, white boards and USB data drives.

BIDIRECTIONAL AUDIO LANE
Two separate audio feeds can also be sent bidirectionally, thanks to a dedicated audio pass-through that allows 2ch analog to be sent and received at either end completely independent of the HDMI signal.

Power Over HDBaseT
A standard feature in most WyreStorm extenders, simply power the transmitter side of the extender and the receiver will power over the category cable. Reducing points of failure and making installation easier.


Features

  • Supports the latest UHD resolutions including HDR10, HDR 10+, HLG and Dolby Vision formats
  • Extend 4K@60Hz (4:2:0) content up to 100/328ft meters using Cat6a cabling or higher
  • USB data transfers of up to 190Mbps for webcams and peripherals
  • High-speed USB 2.0 pass-through up to 100 meters/328ft
  • Supports full CEC passthrough via TV remote to control connected AV equipment such as AVR volume or menu navigation
  • PoH allows the transmitter to power the receiver over category cable
  • Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)

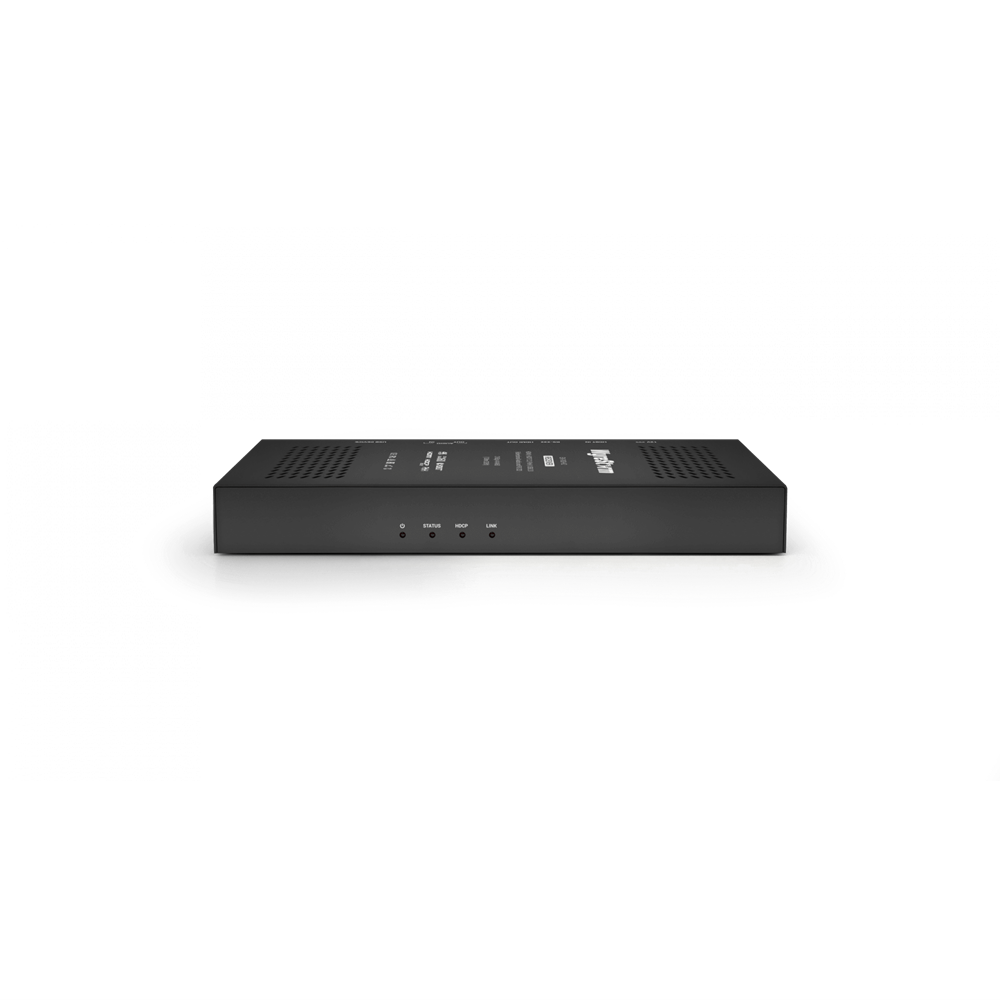

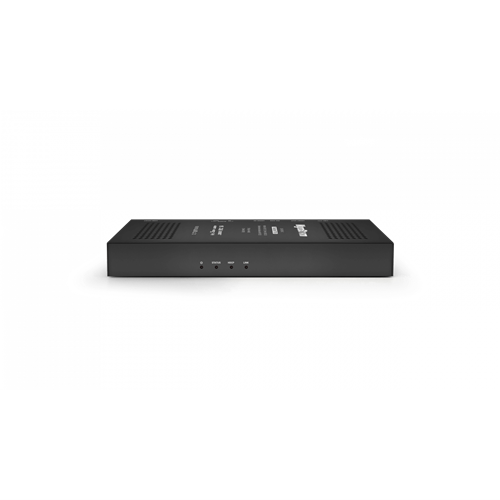

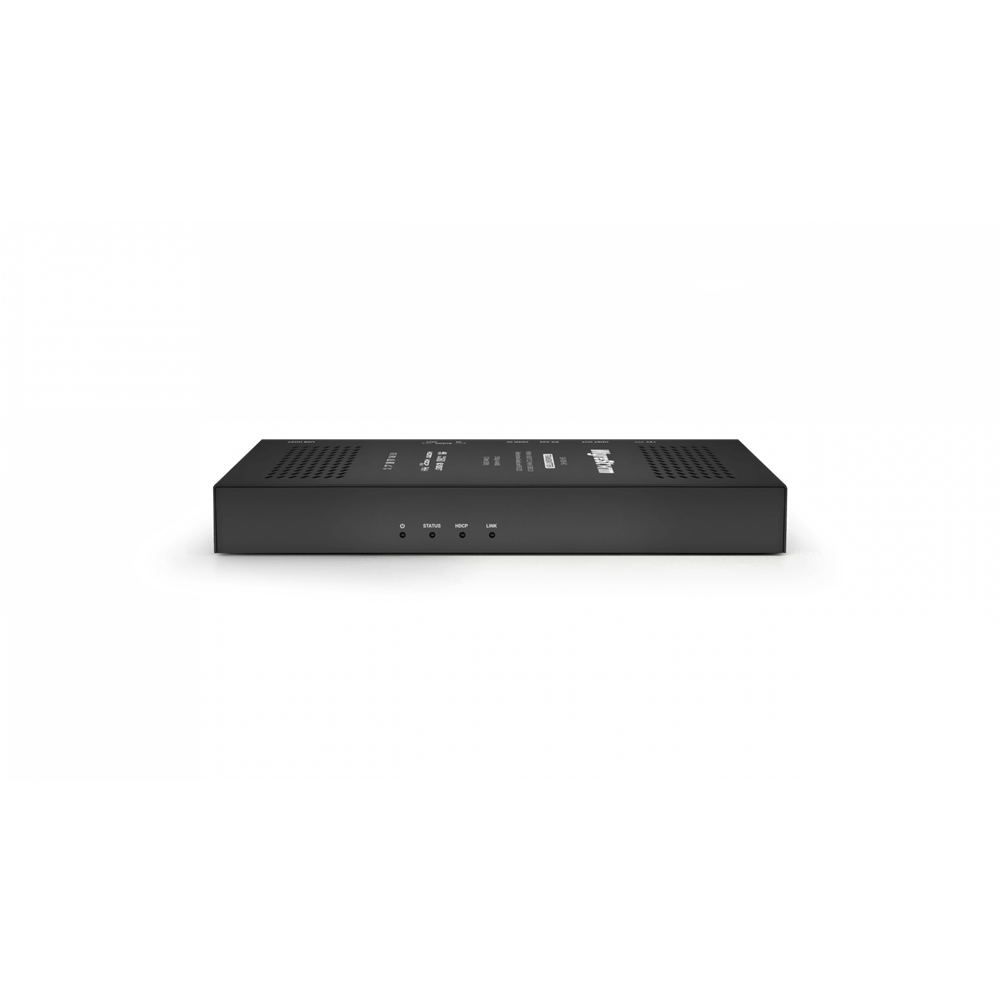

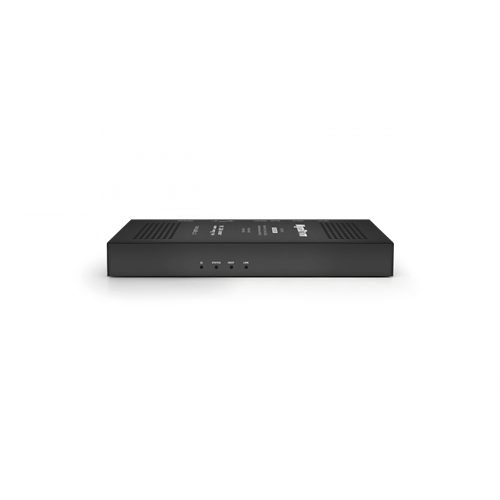

  • LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and transmission link
  • Locking DC power jacks
  • 12v DC PSU with US, UK, EU & AU Power cables included
  • Mounting brackets included

Specifications

AUDIO AND VIDEO

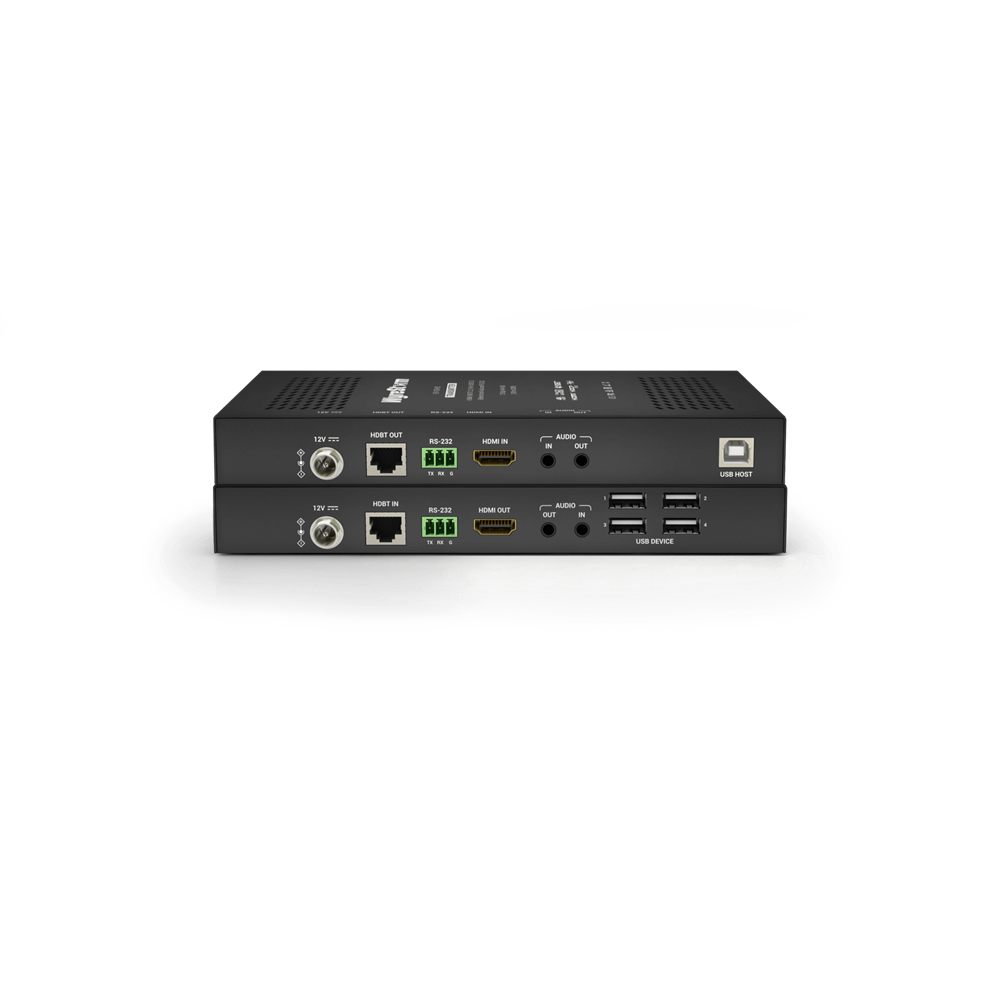

  • Inputs
    • Transmitter
      • 1x HDMI In: 19-pin type A
      • 1 x Audio in: 3.5mm (1/8in) TRS Stereo
    • Receiver
      • 1 x HDBT in: 8-pin RJ45 Female
      • 1 x Audio in: 3.5mm (1/8in) TRS Stereo
  • Outputs
    • Transmitter
      • 1x HDBT Out: 8-pin RJ-45 Female
      • 1x Audio Out: 3.5mm (1/8in) TRS Stereo
    • Receiver
      • 1x HDMI Out: 19-pin type A
      • 1x Audio out: 3.5mm (1/8in) TRS Stereo
  • Output Video Encoding:    HDBaseT Class C
  • Encoding Data Rate:    10.2Gbps
  • End to End Latency:    10μs (microseconds)
  • Audio Formats:    2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos
  • Video Resolutions (Max)
  • Video Resolution HDMI Cat6 Cat6a/7
    1920x1080p @60Hz 12bit 7m/23ft 70m/230ft 100m/328ft
    3840x2160p @30Hz 8bit 4:4:4 15m/49ft 70m/230ft 100m/328ft
    3840x2160p @30Hz 12bit 4:2:2 HDR 5m/16ft 70m/230ft 100m/328ft
    3840x2160p @30Hz 8bit 4:4:4 HDR 7m/23ft 70m/230ft 100m/328ft
  • Supported Standards:    DCI | RGB | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock:    340MHz
COMMUNICATION AND CONTROL
  • HDMI:    HDMI | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included)
  • HDBaseT:    HDMI | HDCP 2.2 | EDID | Line Audio | 1-way PoH (TX powers RX) | Bidirectional RS-232 | CEEC
  • RS-232:    1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
  • USB:
    • 1x Type B (host | 4x Type A (device)
    • Maximum uplink speed: 190Mbps
POWER
  • Power Supply:    12V DC 2A
  • Max Power Consumption:    12W
ENVIRONMENTAL
  • Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
  • Storage Temperature:    -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
  • Maximum BTU:    41 BTU/hr
DIMENSIONS & WEIGHT
  • Rack Units/Wall Box:    <1U
  • Height:    21mm/0.83in
  • Width:    250mm/9.84in
  • Depth:    90.2mm/3.55in
  • Weight:    0.9kg/1.98lbs
REGULATORY
  • Safety and Emission:    CE | FCC | RoHS | RCM | EAC
