Signal Processing

This is a Special Order Item

Barix Exstreamer M400 SynApps Only

Product Code: BX-BAR20209294

Brand
Barix
RRP $840.00


Unit of Measure
EACH



2 Year
Technical Specifications
Brands Barix
Product type Streamer
  • Details
  • Downloads

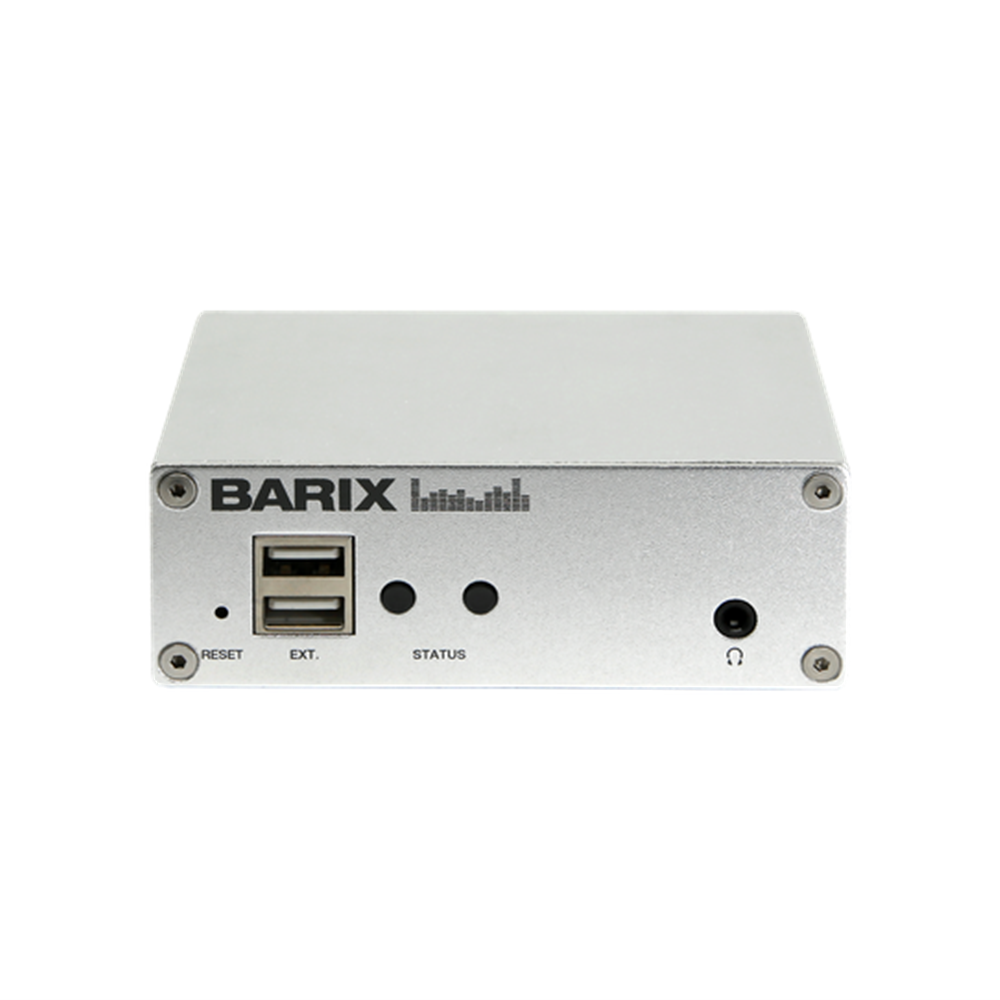

EXSTREAMER M400 (synapps only)


Multiformat IP Audio Decoder
The Exstreamer M400 feeds your PA and turns it into a rich Audio over IP system. A wide variety of audio environments, such as SIP, InformaCast and Syn-Apps and are supported. Note that the InformaCast version includes a one off licence fee. The InformaCast version of the Exstreamer M400 is the BX-BAR20209298.

Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTPS and S/RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command.

Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to one of the five priority settings, therefore eliminating the need for an audio matrix device. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.


Specifications

OPERATION SYSTEM:

  • Embedded Linux based on Yocto

NETWORK INTERFACES:

  • 1 x Ethernet (RJ45) Interface
  • IPv4, IPv6 capable
  • 10/100 fdx/hdx, auto negotiation

PROTOCOLS:

  • TCP/IP, UDP, RTP, SIP, CGI, HTTP, DHCP
  • Syn-Apps Revolution compatibility
  • For InformaCast see BX-BAR20209298.

AUDIO INTERFACE:

  • Balanced mono Line level output on screw terminal
  • connectors
  • Headphone connector on the front panel

AUDIO FORMATS:

  • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
  • AAC-HE (AAC, AAC plus, AAC plus V2)
  • PCM linear 16bit @44.1 kHz
  • 711
  • Opus, WAV, OGG Vorbis

RS-232 INTERFACE:

  • Serial Port

CPU / MEMORY:

  • Barix IPAM400 Processor Module
  • Quad-Core ARM Cortex™ -A7
  • 2GB DDR3 SDRAM
  • 16MB SPI Flash
  • 8GB SD-Card Flash
 USER INTERFACE
  • Flexa portal for configuration
  • 2 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button

POWER REQUIREMENTS:

  • 5VDC, 10W Male connector: 5.5 x 2.1 mm  (positive polarity)
  • MTBF: > 200’000h
  • MEASUREMENT: 7mm (4.25x1.5x3.1 inch
  • WEIGHT: 250g
  • WARRANTY: Two years
