Es Series Pwr Amp 1 X 120 Watt ES120P Australian Monitor

Product Code: AJ-ES120P

Brand
Australian Monitor
RRP $799.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Australian Monitor
Channel count 1
  • Details
  • Downloads

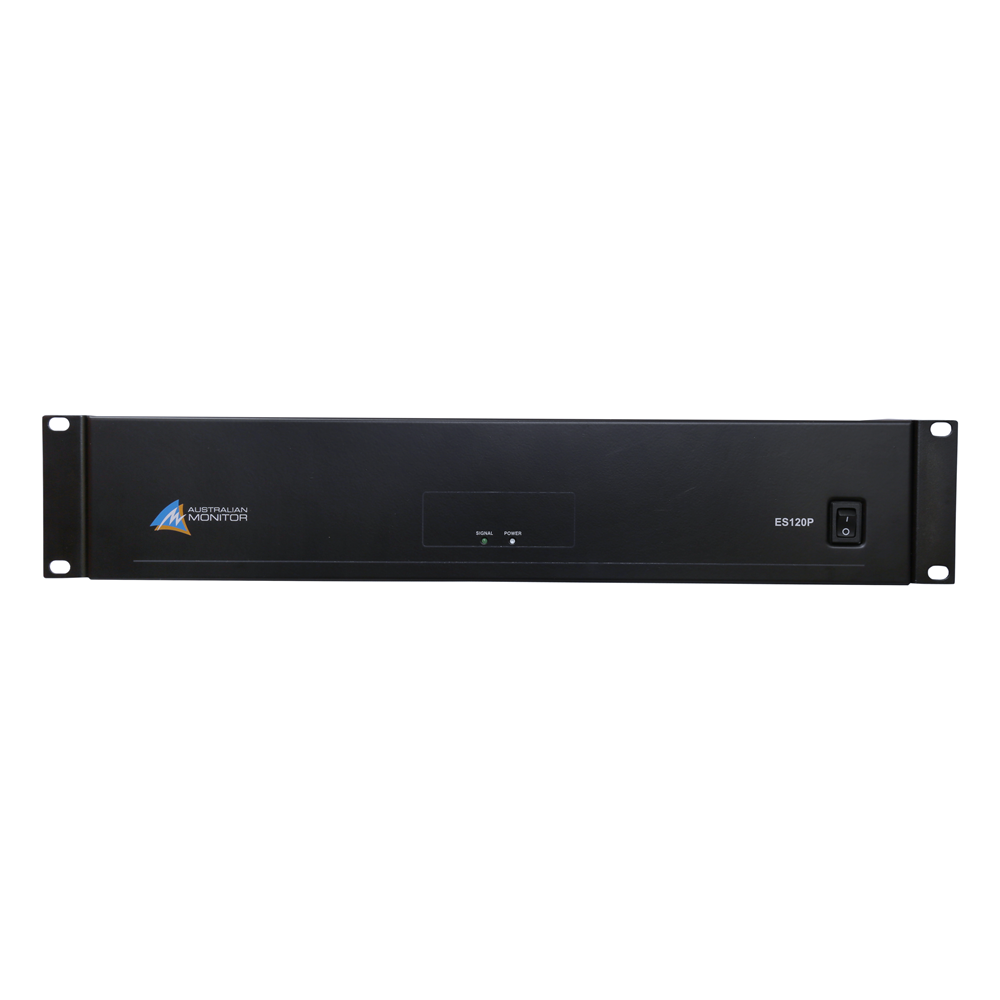

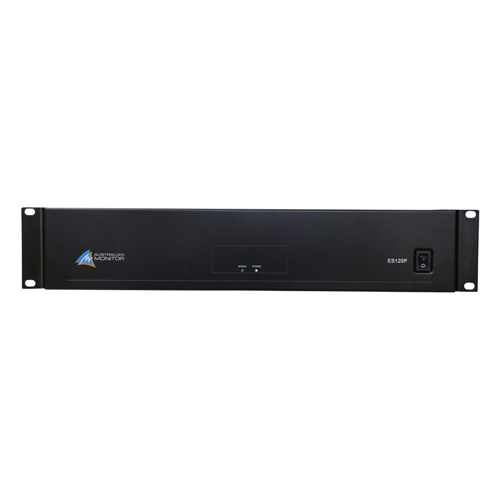

ES120P


120W Power Amplifier

Cost Effective, Basic Features

The ES120P power amplifier delivers 120 watts at 100 volt or 4 ohm in a 2 RU package.

The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.

  • 120W power amplifier
  • 4 ohm and 100 volt output options
  • Rear panel volume control
  • Balanced input and thru out
  • Fan cooled
  • 2 RU

Specifications

  • Output Power per Channel: 120W
  • Frequency Response: 55Hz - 20kHz
  • Output Channels: 1
  • THD+N: < 0.2% (-3dB)
  • Output Mode: 4 Ohm-100V
  • Signal to Noise Ratio: > 85dB
  • Input Voltage: 230Vac 50-60Hz
  • Input Sensitivity: 160mVrms
  • Mounting: 2RU
  • Cooling: Fan-assisted
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 293mm x 88mm Shipping Dimensions
    • (W x D x H) 541mm x 396mm x 156mm
  • Net Weight: 6.8 Kg
  • Shipping Weight: 9.1 Kg
  • GTIN EAN: 9323383020078
