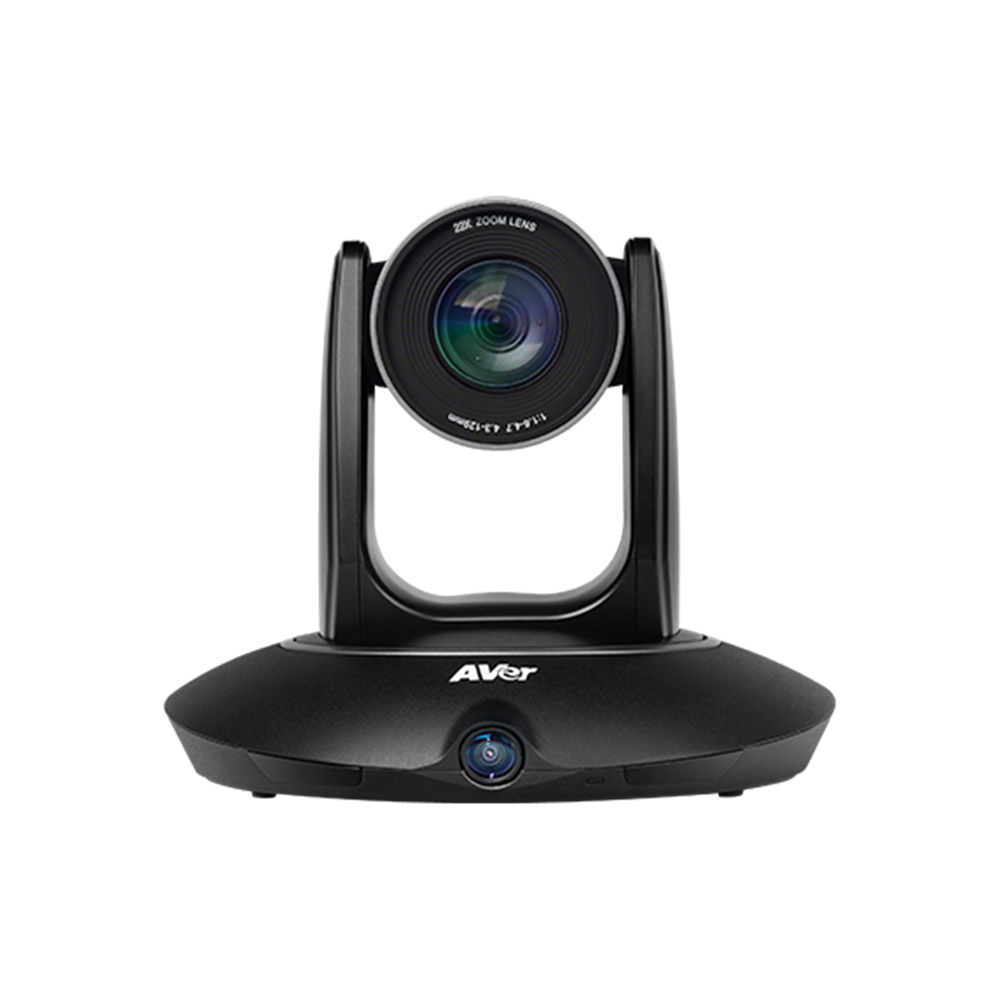

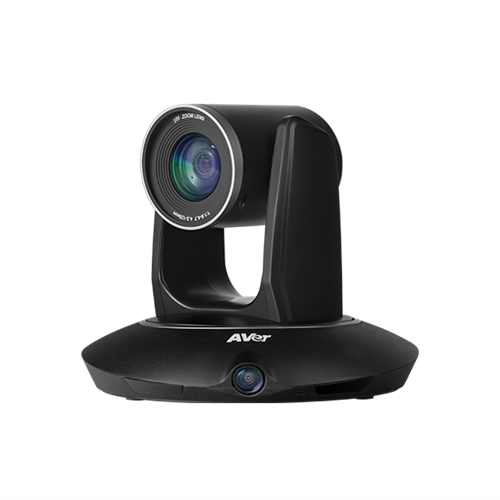

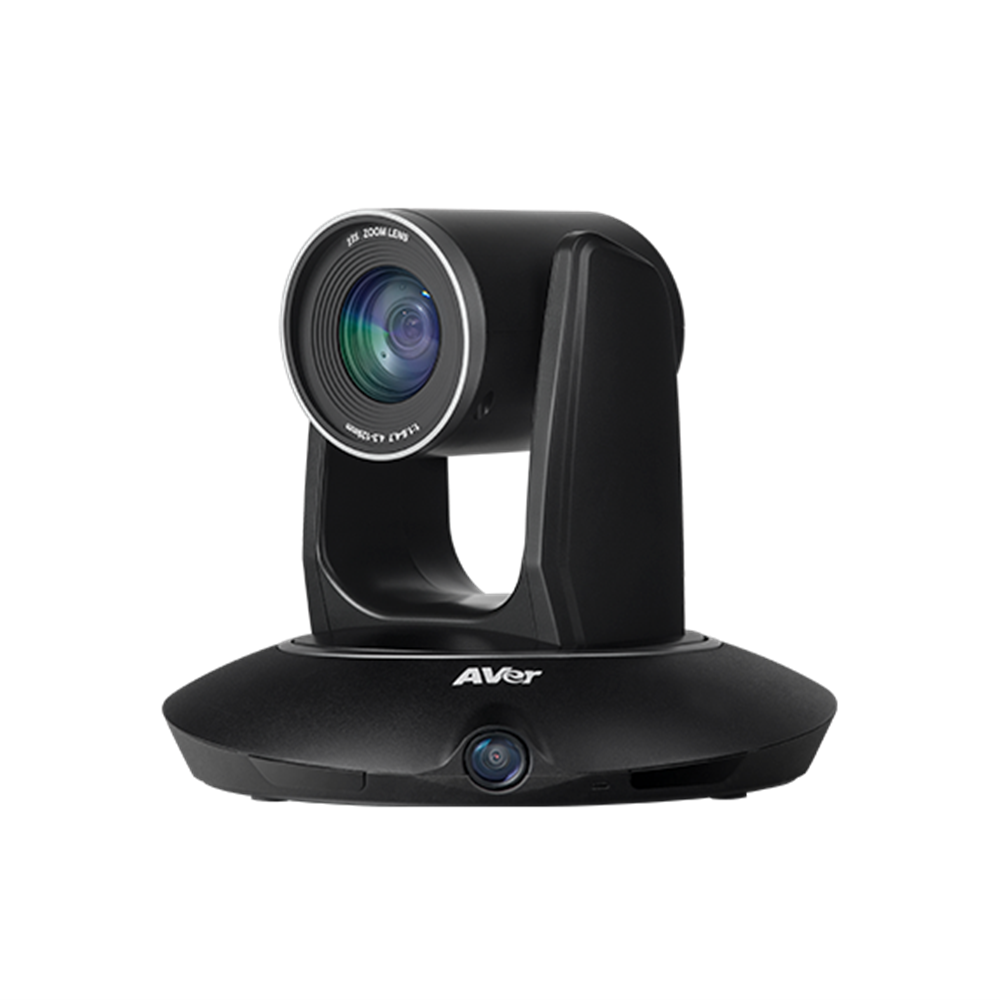

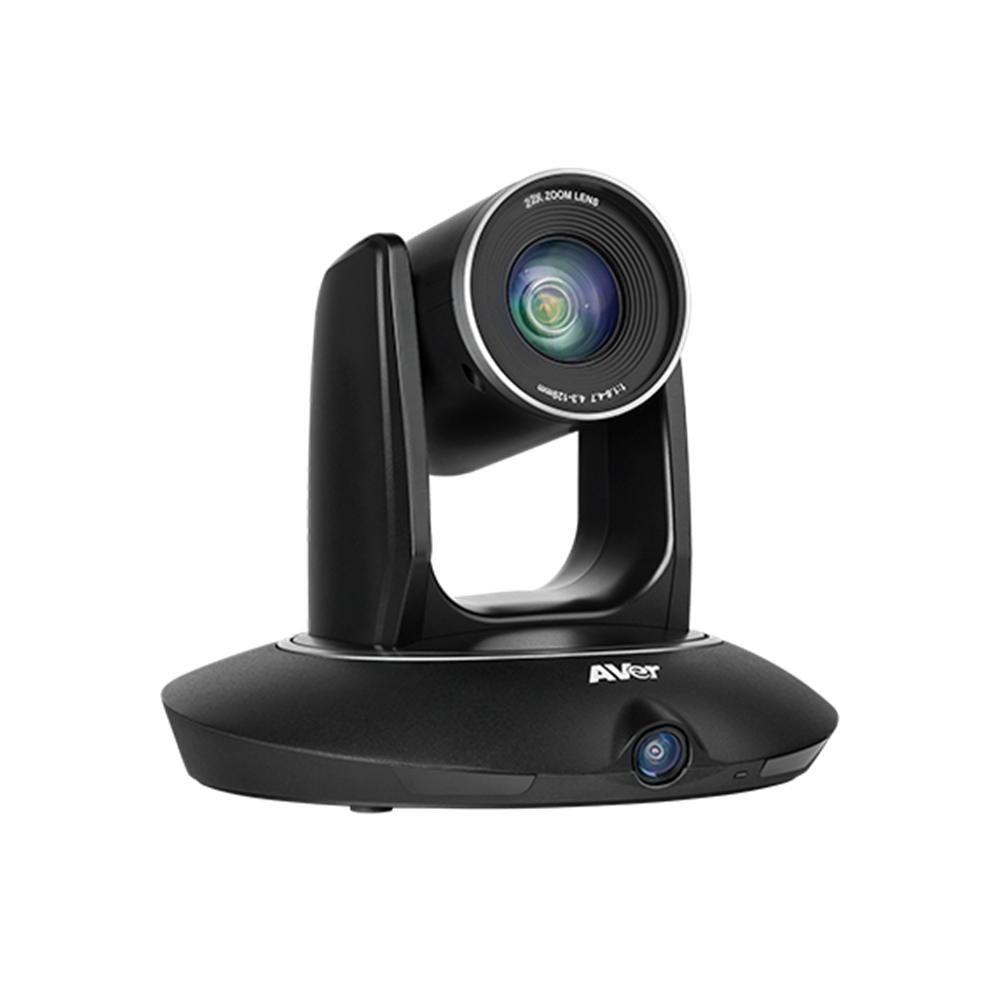

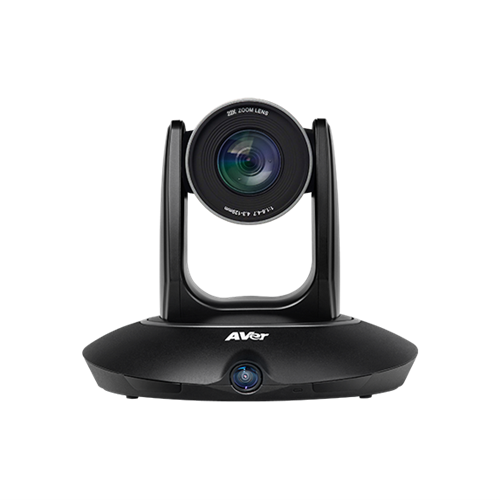

Entry Pro Tracking Camera PTC115+

Product Code: AF-PTC115+

Brand
Aver
RRP $6,109.00


Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Native Resolution 1080p
  • Details
  • Downloads

PTC115+


Make Tracking More Intelligent

Dual Lens Auto Tracking Camera
The PTC115+ equips 22X optical zoom and 120° panoramic FOV that provides Full HD 1080p video resolution. Perfectly suited to meet the needs of governmental institutions, educational organizations, and enterprises, the PTC115+ is the affordable solution for courses and lectures, keynote speeches, and employee trainings. Share more with your audience through real-time streaming; with no operator required and easy-to-use user interface, you can reduce costs and achieve limitless distance learning.

  • 22X Optical Zoom
  • 120° FOV
  • 3 Tracking Modes
  • Multi-Presenter Detection
  • USB / IP / HDMI / 3G-SDI
  • Full HD 1080p

USB Connectivity Rocks!

Are you ready to experience plug-and-play video streaming? New USB connectivity for the PTC115+ allows you to shift from audience mode to presenter mode during a video conferencing session. Also, unparalleled UVC and UAC protocols make these cameras compatible with popular streaming and broadcasting software so you can go live anytime.

Up to 22X Optical Zoom

Featuring a PTZ camera with a 22X optical zoom, the PTC115+ sports a 350° pan and 120° tilt radius that are ideal for classrooms or meeting spaces. Precisely track the moving presenter and distinctly display important details with full HD 1080p 60fps video and a powerful remote autofocus function. Capture the full classroom experience with the most realistic and dynamic image quality.

No Extra Devices Needed

Exclusive algorithms enable the PTC115+ to automatically track a presenter’s face and movements. Speakers are free to walk around the classroom without wearing any accessories to give guidance and solve problems for students, ensuring a quality education. Without need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on easily building zero-distance interactive teaching.

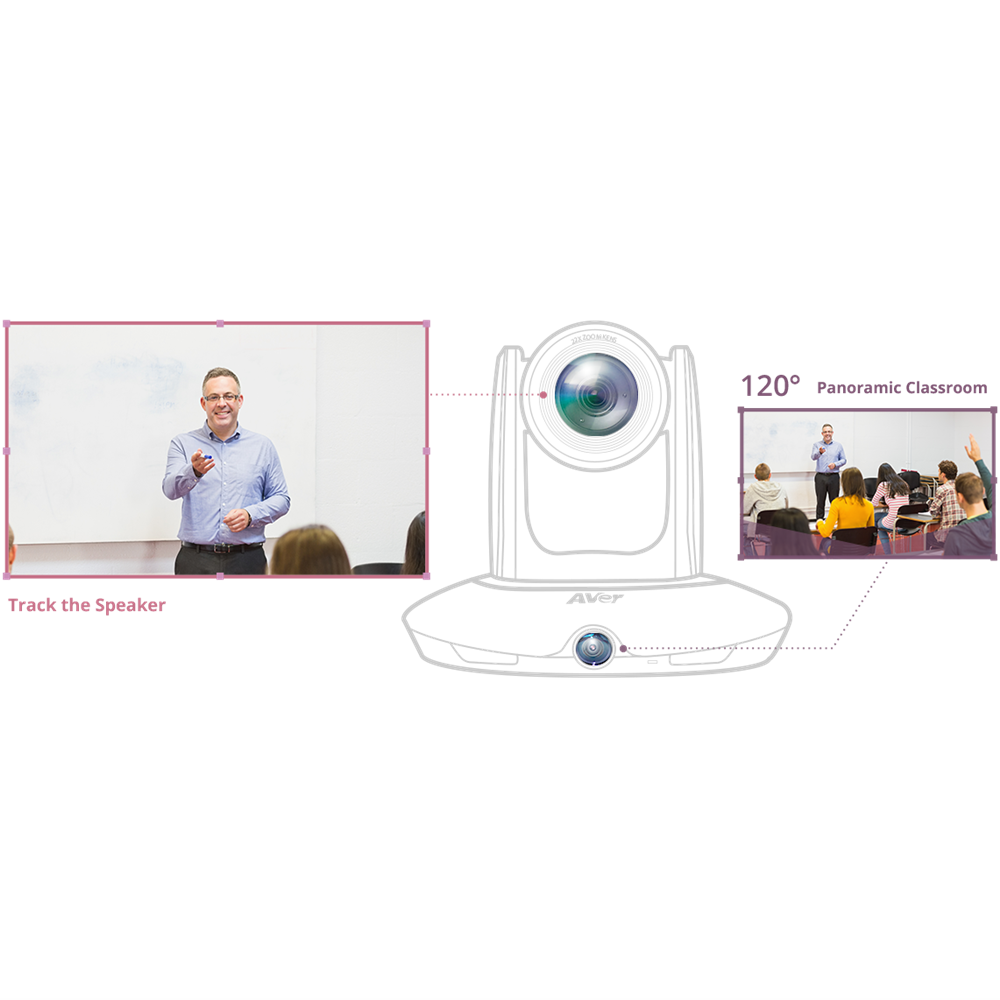

Dual Lens Design

The dual lens design integrates a PTZ camera with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the classroom. Clearly present every detail, and never miss a teachable moment.

Multi-Presenter Detection

Multi-Presenter Detection accurately tracks when there are two or more people in the effective area. This feature allows teachers to conduct group discussions, quiz contests, interactive games, and more. Use one camera to capture every detail of every learning situation.

*Multi-Presenter Detection only works in Wide Area Tracking and Stage Tracking modes.

Wide Area Tracking

With advanced targeting algorithms, the PTC115+’s Wide Area Tracking enables to track your target everywhere. The PTC115+ provides extremely high accuracy tracking that is widely recognized as a performance leader in the auto tracking market. With fluid and accurate tracking your target has the freedom to leave the stage to interact with crowds or students all while being continuously captured, even if obscured by people or objects. The PTC115+ lets you master your recording and capture every brilliant moment.

Stage Tracking

Get high-quality, hands-free video streaming and recording with Stage Tracking. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic, professional-looking video.

Segment Tracking

Segment Tracking enhances your ability to capture content on multiple displays. Create up to 4 Content Zones to perfectly capture the content on display rather than the presenter.


Specifications

Camera

  • Image sensor: 1/2.8" 1080p Exmor CMOS
  • Effective Picture Elements: 2 Megapixels
  • Output Resolutions: Auto, 1080p/60, 1080p/50, 1080p/30, 1080i/60, 1080i/50, 720p/60
  • Minimum Illumination: 0.47 Lux (IRE50, F1.6, 60fps); 0.23 Lux (IRE50, F1.6, 30fps)
  • S/N Ratio: >50dB
  • Gain: Auto, Manual
  • TV Line: 900 (Center), 600 (Corner)
  • Shutter Speed: 1/5 to 1/32,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS)
  • White Balance: Auto, Manual
  • Optical Zoom: 22X
  • Digital Zoom: 12X
  • Sensor Zoom: 1X
  • Viewing Angles:
    • DFOV : 73° (Wide) to 4.9° (Tele)
    • HFOV : 65° (Wide) to 4.3° (Tele)
    • VFOV : 38° (Wide) to 2.4° (Tele)
  • Focal length: f = 4.3 mm (Wide) to 64.5 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) to 4.2 (Tele)
  • Minimum Working Distance: 0.1 m (Wide), 1.2 m (Tele)
  • Pan / Tilt Angles:
    • Pan: ±175°
    • Tilt: +90°/-30°
  • Pan / Tilt Speed (Manual):
    • Pan: 2° to 50°/sec
    • Tilt: 2° to 50°/sec
  • Preset Speed:
    • Pan: 160°/sec
    • Tilt: 160°/sec
  • Preset Positions: 10 (IR), 256 (RS-232)
  • Camera Control - Interfaces: RS-232 (DIN8)/IP
  • Camera Control - Protocols:
    • VISCA (RS-232/IP)
    • PELCO-D & PELCO-P (RS-232)
    • CGI (IP)
  • Image Processing: Noise Reduction
  • Power Frequencies: Auto, 50 Hz, 60 Hz

Panoramic Camera (Full View)

  • Image Sensor: 1/2.8" 60fps low lux CMOS sensor
  • Effective Picture Elements: 2 Megapixels
  • Output Resolutions: auto, 1080p/60, 1080p/30, 720p/60
  • Focal Length: 2.12 mm
  • White Balance: Auto
  • Exposure Control: Auto
  • Viewing Angles:
    • DFOV = 120°
    • HFOV = 110°
    • VFOV = 74°

AI Auto Tracking Functions

  • Tracking Modes: Wide Area, Stage, Segment

Audio

  • Channels:
    • 1ch Mono (RTSP)
    • 2ch Stereo (HDMI/UAC)
  • Codecs:
    • AAC-LC (48K)
    • G.711 (8K)
  • Sample Rates: 48/8 KHz

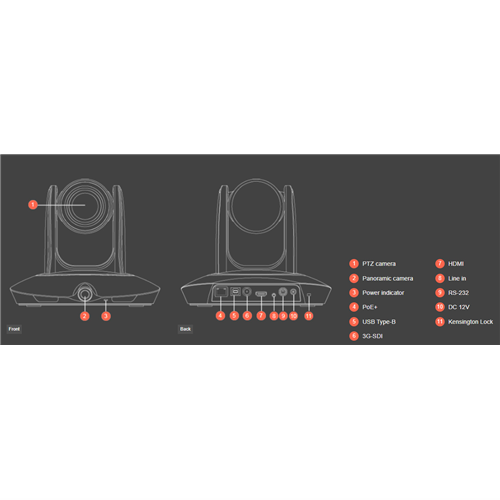

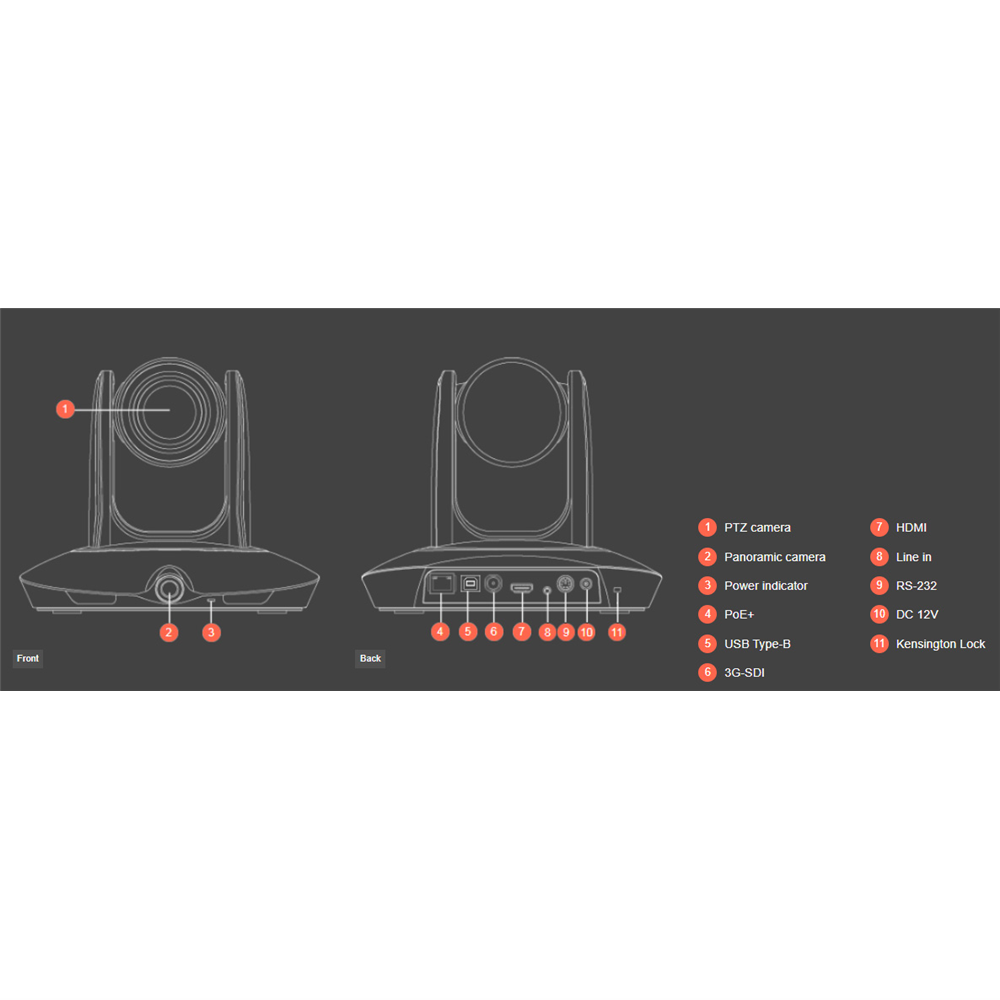

Interface

  • Video Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Outputs: HDMI, IP, USB
  • Audio Inputs: Line in

General

  • Power Requirement: AC 110–220V to DC 12V/5A
  • Power Consumption: 24W
  • PoE: PoE+
  • Dimensions (W x H x D): 202 x 178 x 210 mm
  • Net Weight: 1.75 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: N/A
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions:
    • Temperature: 0°C to 40°C
    • Humidity: 20% to 80%
  • Storage Conditions:
    • Temperature: -20°C to 60°C
    • Humidity: 20% to 95%

IP Streaming

  • Resolution: 1080p 60fps (Dual Stream)
  • Network Video Compress Formats: H.264, MJPEG
  • Maximum Frame Rate: 1080p 60fps (Dual Stream)
  • Bit-Rate Control Modes: CBR
  • Bit-Rate Range Setting: 512 Kbps to 6 Mbps
  • Network Interface: 10/100/1000Base-T
  • Multi-stream Capability:
    • 3 (2 for RTSP, 1 for Web Page)
    • 1080p 60fps (max.)
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA Over IP, ONVIF
  • NDI®|HX Capability: N/A

USB

  • Connector: USB 2.0
  • Video Formats: MJPEG, YUY2
  • Maximum Video Resolution: 1080p
  • USB Video Class: UVC1.1
  • USB Audio Class: UAC1.0

Web UI

  • Live Video Preview: Yes
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera/Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search and Configuration Tool: Supports Windows® 7 or later
  • PTZ Management: Supports Windows® 7 or later
  • PTZ Control Panel: Supports iPadOS® 11 or later
  • CaptureShare:
    • Supports Windows® 7 or later
    • Supports macOS® 10.14 or later

Warranty

  • Camera: 3 Years
  • Accessories: 1 Year

Package Contents

  • Remote Control
  • Power Adapter
  • Power Cord
  • Quick Start Guide

Optional Accessories

  • AVer CL01 PTZ Camera Controller
  • L-Type Wall Mount
  • D-Type Ceiling Mount
