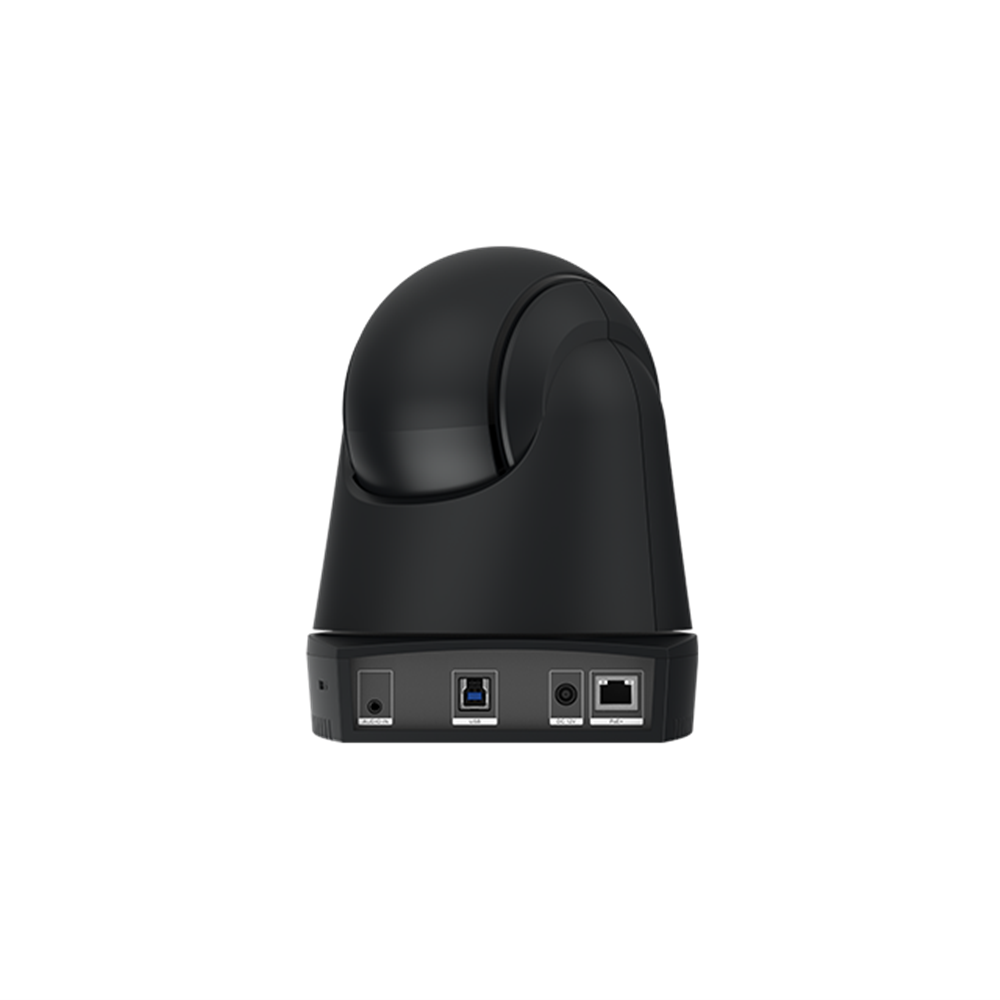

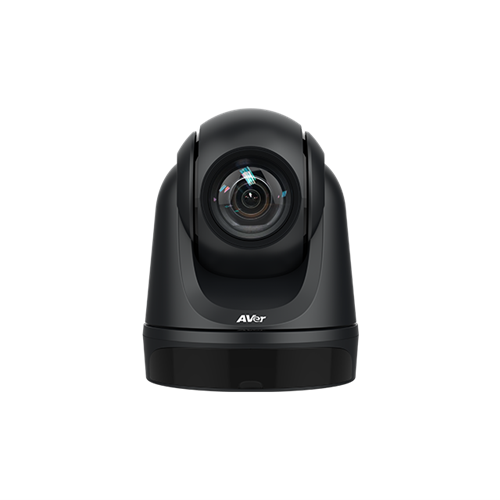

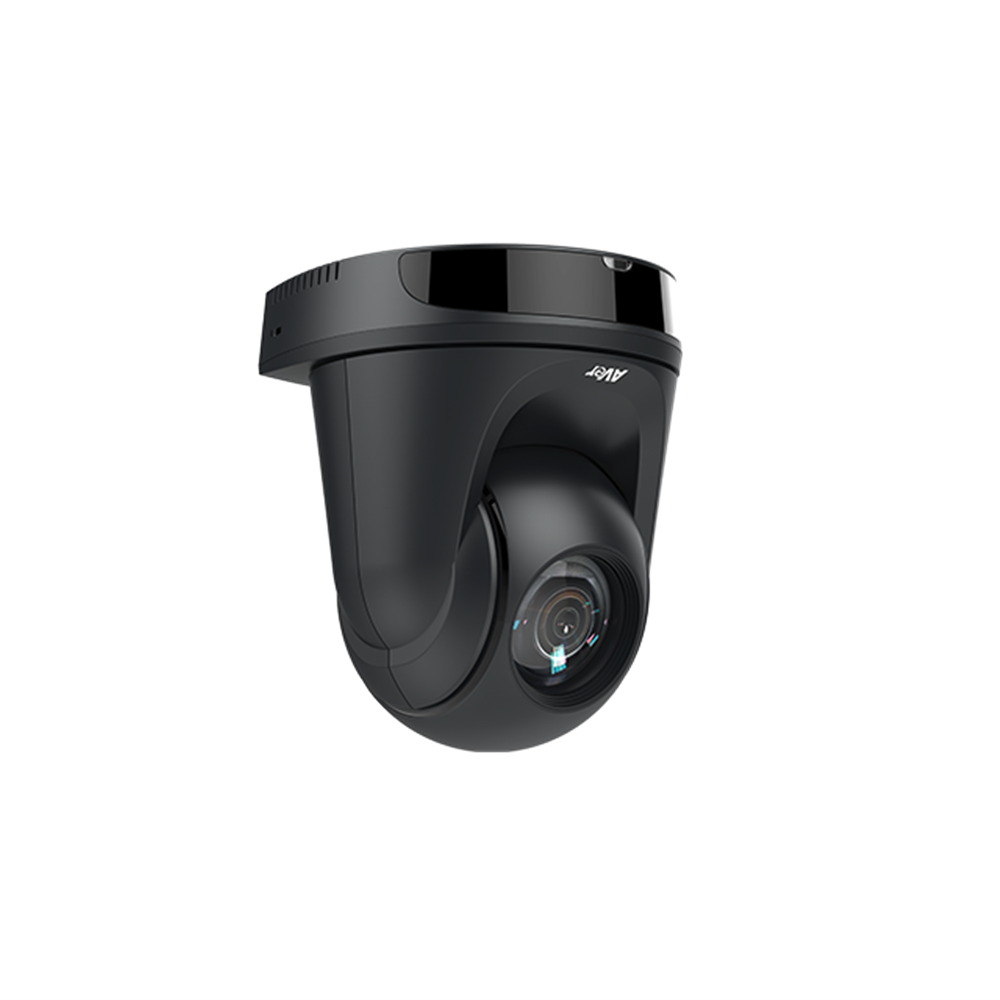

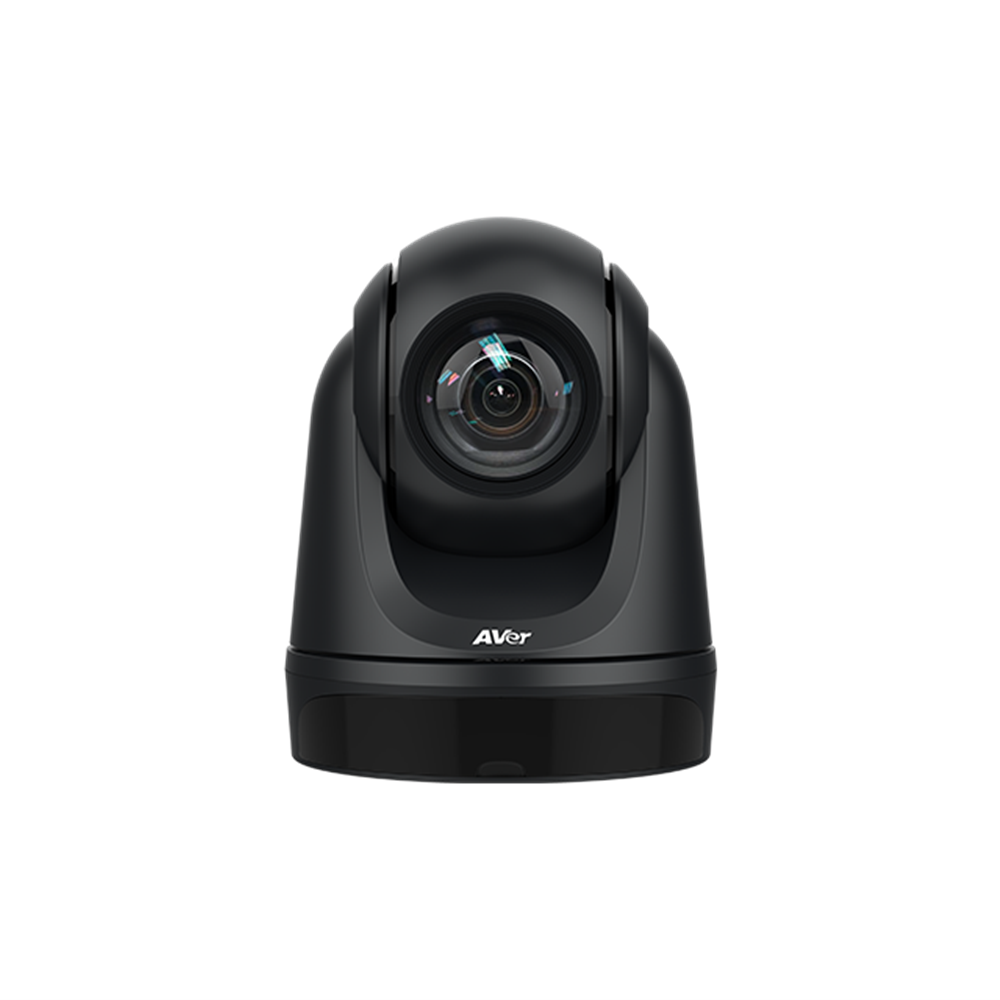

DL30 Boost Your Distance Learning with Auto Tracking

Distance Learning Tracking Camera

When distance learning and hybrid classrooms are the new normal, the AVer DL30 is a must-have solution for online education. With the DL30 connected to a laptop, you can present freely onstage while livestreaming so students can learn no matter where they are. Teachers don’t need to be camera shy anymore—they can just be themselves and teach how they want thanks to the DL30 tracking camera!

• Distance Learning
• Hybrid Classroom
• Full HD 1080p Resolution
• 12X Optical Zoom
• Human Detection
• Presenter Mode
• Zone Mode
• IP / USB Outputs

Specifications

• Image sensor: 1/2.8" 1080p Low Lux CMOS
• Effective Picture Elements: 2 Megapixels
• Output Resolution: 1080p/60 (IP Streaming & USB)
• Minimum Illumination: 0.5 Lux (IRE50, F1.6, 30fps)
• S/N Ratio: > 50 dB
• Gain: Auto, Manual
• TV Line: 800 (Center), 600 (Corner)
• Shutter Speed:
  • 1/4 to 1/10,000 sec (60 Hz)
  • 1/3 to 1/10,000 sec (50 Hz)
• Exposure Control: Auto, Manual, WDR
• WDR: Yes
• White Balance: Auto, Manual
• Optical Zoom: 12X
• Digital Zoom: 2X
• Viewing Angles:
  • DFOV : 84.1° (Wide) to 7.8° (Tele)
  • HFOV : 76.5° (Wide) to 6.8° (Tele)
  • VFOV : 47.3° (Wide) to 3.8° (Tele)
• Focal length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5 m (Tele)
• Pan / Tilt Angles: Pan : ±170°, Tilt : ±90°
• Pan / Tilt Speed (Manual):
  • Pan: 1° to 90°/sec
  • Tilt: 7.85° to 45°/sec:
• Preset Speed: Pan : 200° / sec, Tilt : 200° / sec
• Preset Positions: 10 (IR), 256 (IP & USB)
• Camera Control - Interface: IP, USB
• Camera Control - Protocol: VISCA (IP), CGI (IP), USB
• Image Processing: Noise Reduction (2D/3D), Flip, Mirror, WDR
• Power Frequency: 50Hz / 60Hz

• Tracking Mode: Presenter Mode, Zone Mode

• Channels: 2ch (Stereo)
• Codecs: AAC, PCM
• Sample Rate: AAC (48/32/16/8 KHz), PCM (48 KHz)

• Video Outputs: IP, USB
• Audio Outputs: IP, USB
• Audio Inputs: Mic in, Line in

• Power Requirement: AC 110–220V to DC 12V/2A
• Power Consumption: 12W
• PoE: PoE+
• Dimensions (W x H x D): 158.8 x 200.0 x 162.2 mm
• Net Weight: 1.62 (±0.1) kg
• Application: Indoor
• Tally Lamp: N/A
• Security: Kensington slot
• Remote Control: Infrared
• Operating Condition:
  • Temperature: 0°C to 40°C
  • Humidity: 20% to 80%
• Storage Condition:
  • Temperature: -20°C to 60°C
  • Humidity: 20% to 95%

• Resolution: 1080p 60fps
• Network Video Compress Format: H.264, MJPEG (Web Page)
• Network Audio Compression Formats: AAC
• Sample Rates: 48, 32, 16, 8 KHz
• Maximum Frame Rate: 1080p 60fps
• Bit-rate Control Modes: VBR, CBR
• Range of Bit-rate setting: 512 Kbps to 32 Mbps
• Network Interface: 10/100 Base-T
• Multi-stream Capability:
  • 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
  • 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
• Network Protocol: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
• NDI®|HX Capability: N/A

• Connector: USB 3.1 Gen 1 Type-B
• Video Format: MJPEG, YUY2
• Maximum Video Resolution: 1080p
• USB Video Class (UVC): UVC1.1
• USB Audio Class (UAC): UAC1.0

• Live Video Preview: Yes
• Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
• Camera / Image Adjustment: Exposure / White Balance / Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

• IP Search and Configuration Tool: Supports Windows® 7 or later
• PTZ Management: Supports Windows® 7 or later
• PTZ Control Panel: Supports iPadOS® 9 or later
• CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

• Camera: 3 Years
• Accessories: 1 Year
• Package Contents: Camera, Remote Control, Power Adapter, Power Cord, USB Cable, Cable Ties (x4), Cable Fixing Plate (x1), M2 x 4mm Screws (x2), 1/4"-20L 7.5mm Screw (x1), Quick Start Guide
• Optional Accessories: "Wall Mount Kit (Brackets (x2), M4 x 8mm Screws (x2), 1/4"-20L 7.5mm Screw (x1), Wall Mount Kit Installation Guide), Ceiling Mount Kit (Brackets (x2), M3 x 6mm Screws (x3), 1/4"-20L 7.5mm Screws (x3), Ceiling Mount Kit Installation Guide)"
