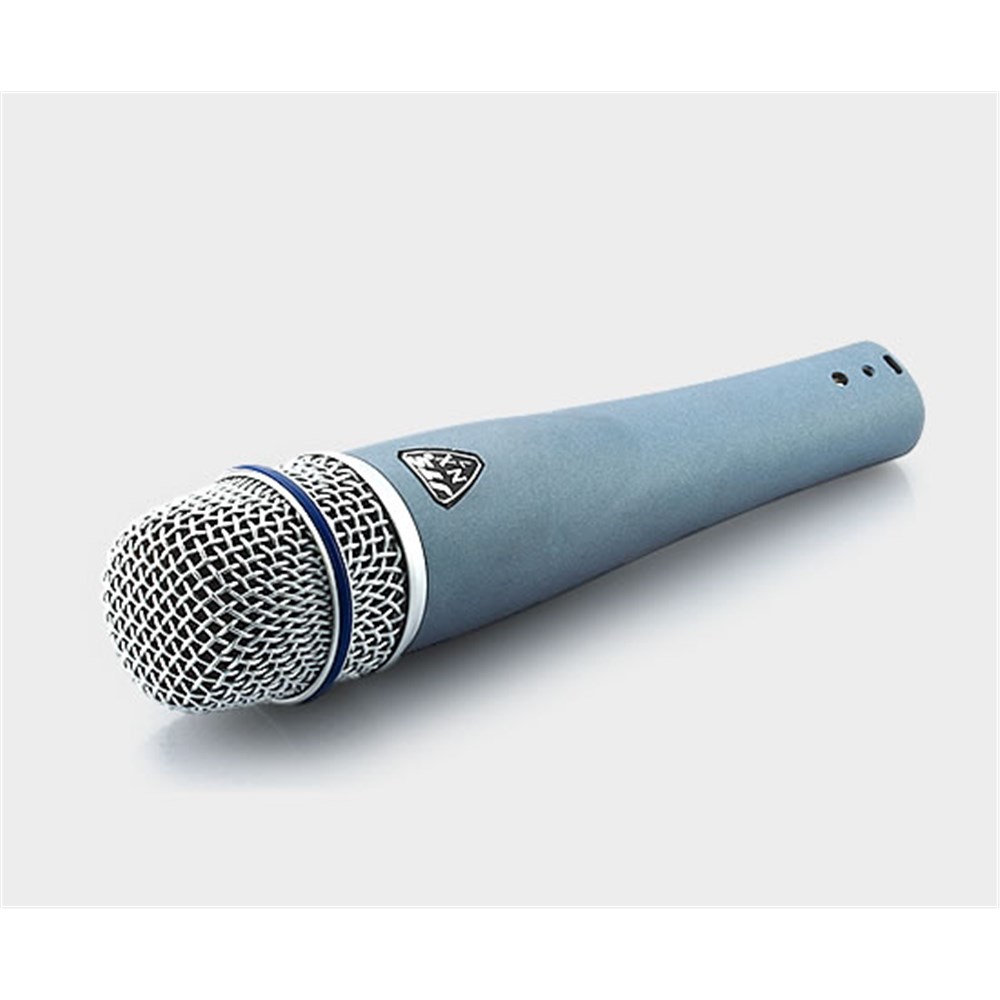

NX-7

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal, drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.

SPECIFICATIONS

Type

• Moving Coil Dynamic

Frequency Response

• 50~16,500 Hz

Polar Pattern

• Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz)

• -72dB*(0.25mV)*0dB=1V/μbar

Impedance

• 600Ω

Phasing

• Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

• Three-pin professional audio connector (male XLR type)

Case

• Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight

• 235 grams (8.3 oz)
