TR535

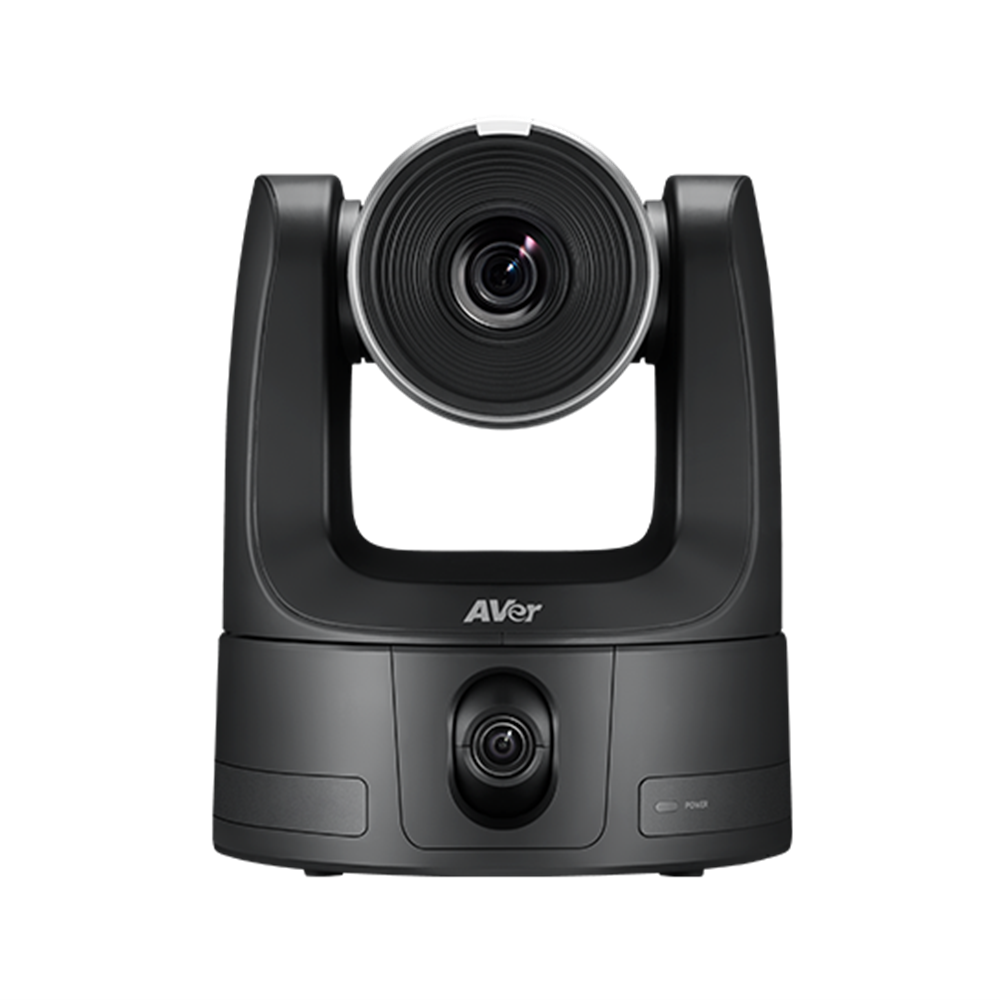

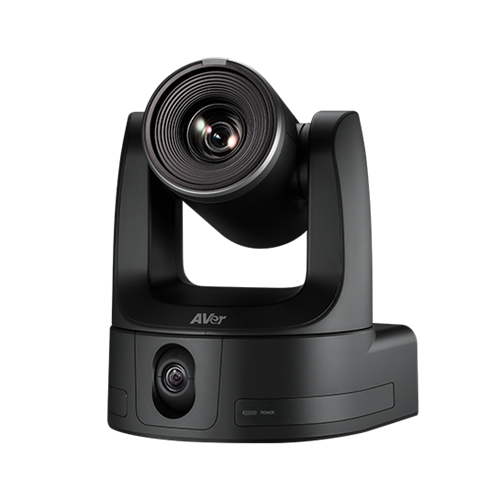

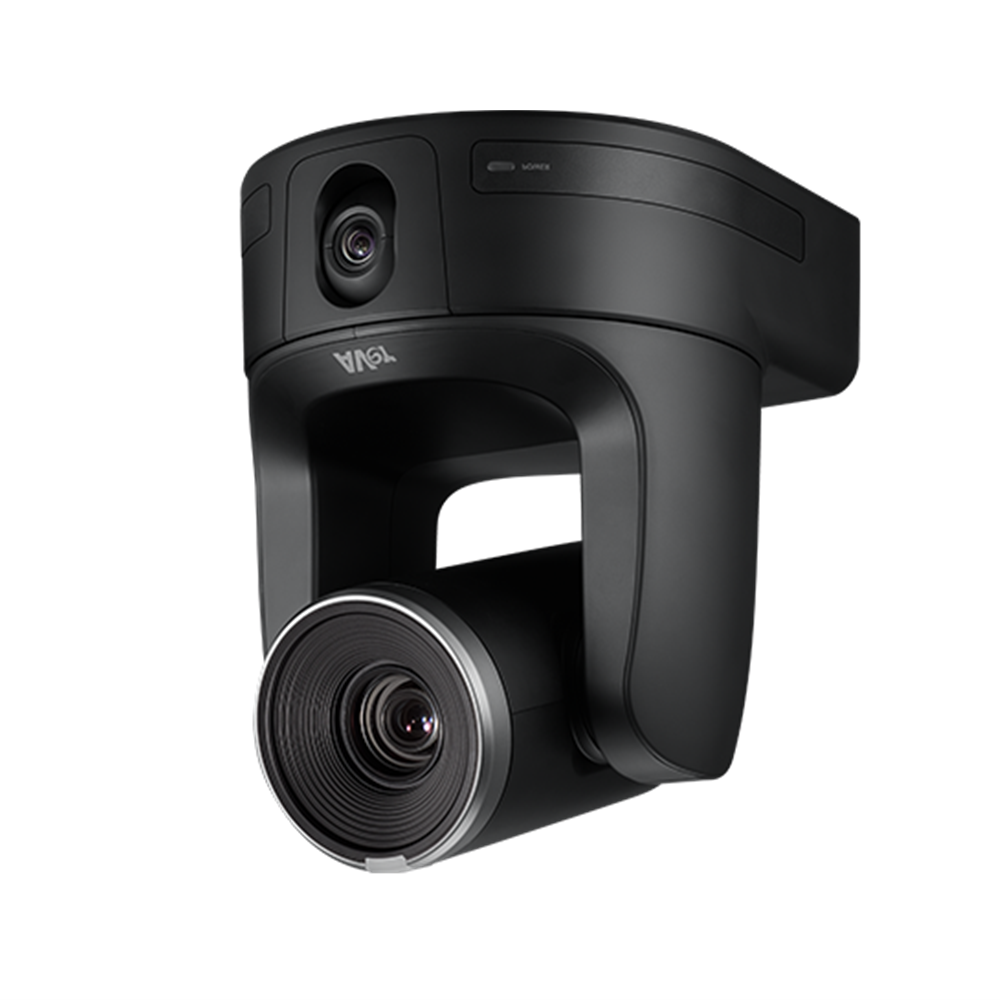

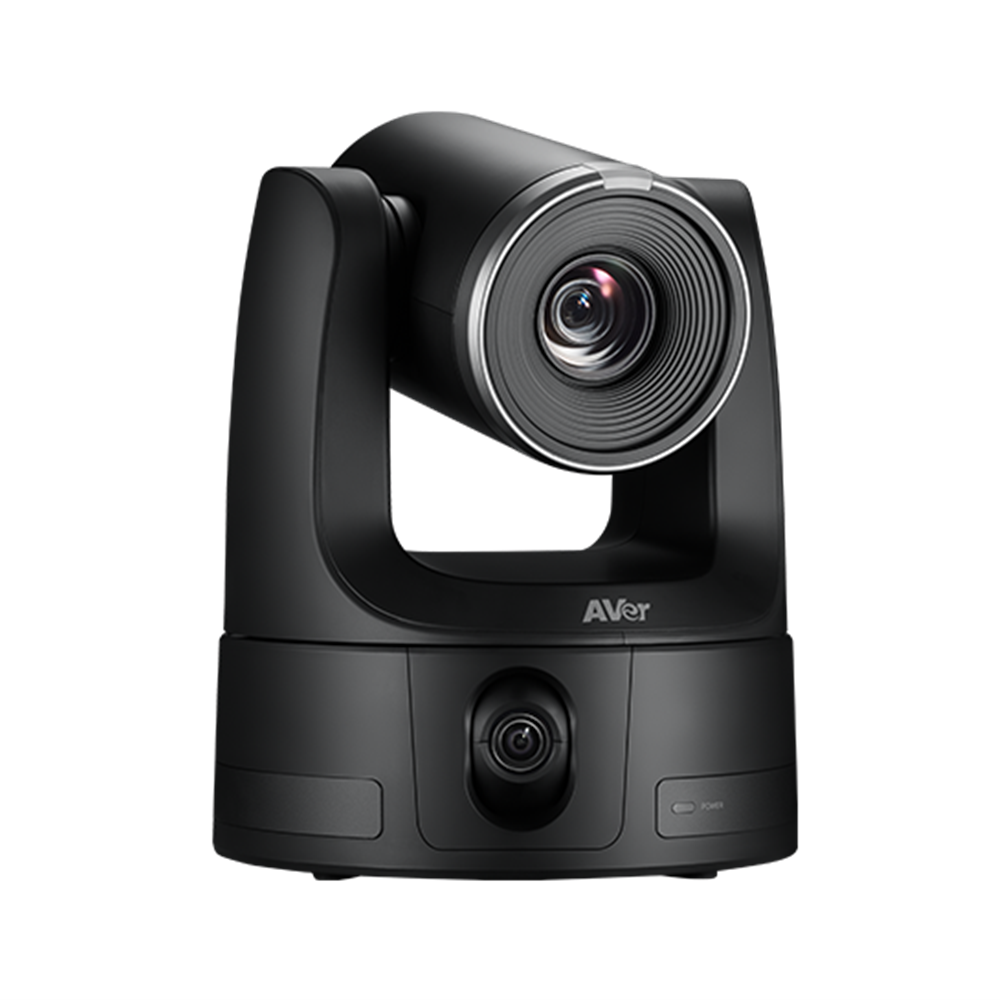

Dual Lens Auto Tracking Camera
Enter the future of streaming excellence with AVer’s TR535, featuring AI auto tracking capabilities for diverse applications. The TR535 offers a stellar 30X zoom and a sweeping wide-angle view. The wide-angle lens captures the whole scene while the 4K PTZ camera zooms in for close-ups, ensuring complete coverage. Fueled by four advanced AI-driven tracking modes, the TR535 delivers unparalleled precision for broadcasting, streaming, and recording environments.

• Dual Lens Design
• 4K Ultra HD Resolution
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Human Detection AI
• Voice Tracking*

Specifications

PTZ Camera

• Image Sensor: 1/2.8” 4K Sony Exmor CMOS
• Effective Picture Elements: 8 Megapixels
• Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
• S/N Ratio: ≥ 50 dB
• Gain: Auto, Manual
• TV Lines: 1600 (Center)
• Shutter Speed: 1/1 to 1/10,000 sec
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance: Auto, Manual, ATW, One Push, Indoor, Outdoor
• Optical Zoom: 30X
• Digital Zoom: 1X
• Total Zoom: 30X
• Viewing Angles:
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length: f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance:
  • 0.1 m (Wide)
  • 1.2 m (Tele)
• Pan / Tilt Angles:
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual):
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed:
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions:
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control - Interfaces:
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control - Protocols:
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF
• Image Processing:
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies: 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor: 1/2.8” 4K Sony Low Lux CMOS
• Effective Picture Elements: 8 Megapixels
• Output Resolutions: 4K/30
• Focal Length: 2.22 mm
• White Balance: Auto
• Exposure: Auto
• Viewing Angles:
  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°
• Pan / Tilt Angles: Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes:
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode: Sleep Mode

Audio

• Channels: 2ch Stereo
• Codecs: AAC-LC (48 K)
• Sample Rates: 48 KHz

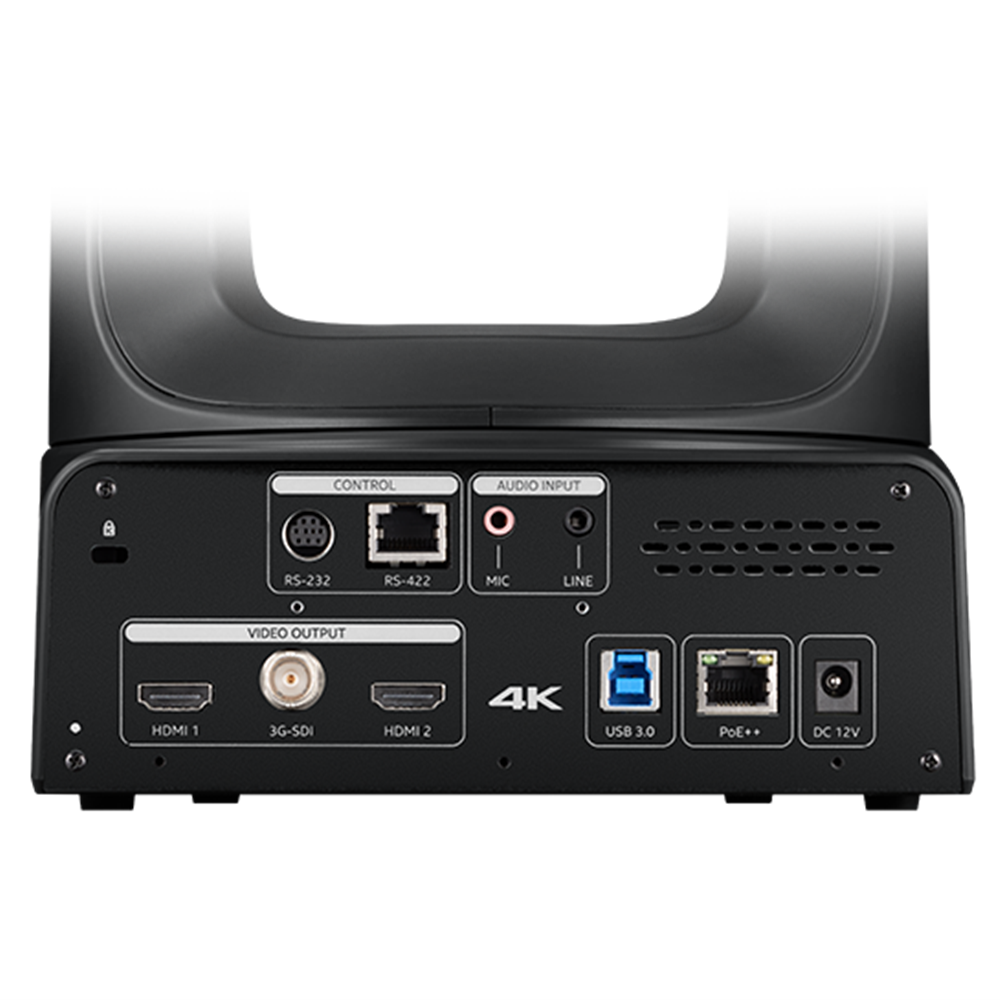

Interface

• Video Outputs: 3G-SDI, HDMI x 2, IP, USB
• Audio Outputs: 3G-SDI, HDMI x 2, IP, USB
• Audio Inputs: MIC in, Line in

General

• Power Requirement: AC 100 - 240V to DC 12V/5A
• Power Consumption: 29W
• PoE: PoE++
• Dimensions (W x H x D): 202.5 x 250.7 x 218.5 mm
• Net Weight: 3.6 (±0.1) kg
• Application: Indoor
• Tally Lamp: Yes
• Security: Kensington Slot
• Remote Control: Infrared
• Operating Conditions:
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions:
  • Temperature : -20 °C to +60 °C
  • Humidity: 20% to 95%
• Sustainability:
  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution: 4K 60fps
• Network Video Compress Formats: H.264, H.265, MJPEG
• Network Audio Compress Formats: AAC-LC (48 K)
• Maximum Frame Rate: 2160p 60fps
• Bit-Rate Control Modes: VBR, CBR (selectable)
• Range of Bit-Rate Setting: 512 Kbps to 64 Mbps
• Network Interface: 10 / 100 / 1000 / 2500 Base-T
• Multi-Stream Capability:
  • 7
  • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
  • 1080p 60fps: 3G-SDI
• Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI ® High Bandwidth: N/A
• NDI ® HX2: N/A
• NDI ® Genlock: N/A
• NDI ® Embedded Bridge: N/A

USB

• Connector: USB 3.2 Gen 1
• Video Formats: MJPEG, YUY2
• Audio Format: PCM
• Maximum Video Resolution: 2160p
• USB Video Class (UVC): UVC 1.1
• USB Audio Class (UAC): UAC 1.0

Web UI

• Live Video Preview: Yes
• Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment: Exposure, White Balance, Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool: Support Windows® 7 or later
• PTZ Management: Support Windows® 7 or later
• PTZ Control Panel: Supports iOS & iPadOS® 9 or later
• PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
• OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
• CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

• Package Contents: Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4'-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Wall Mount
