Renkus Heinz

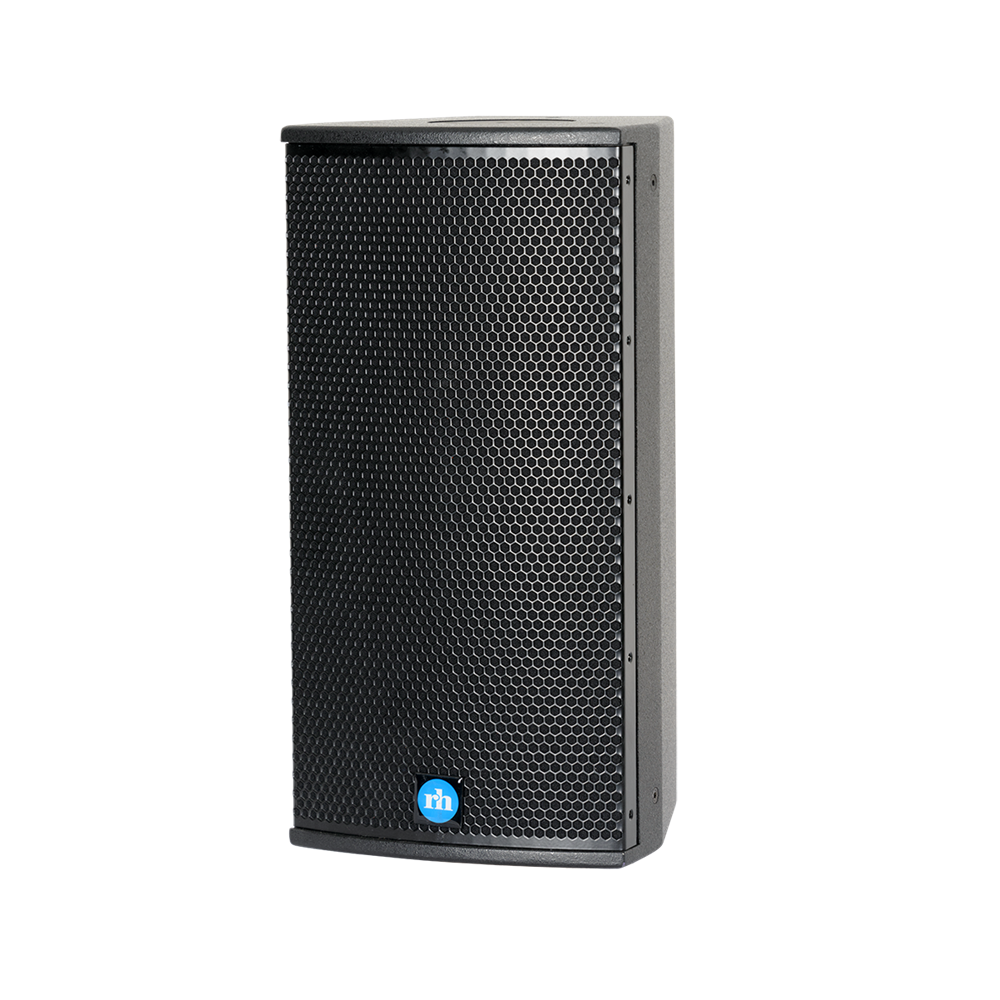

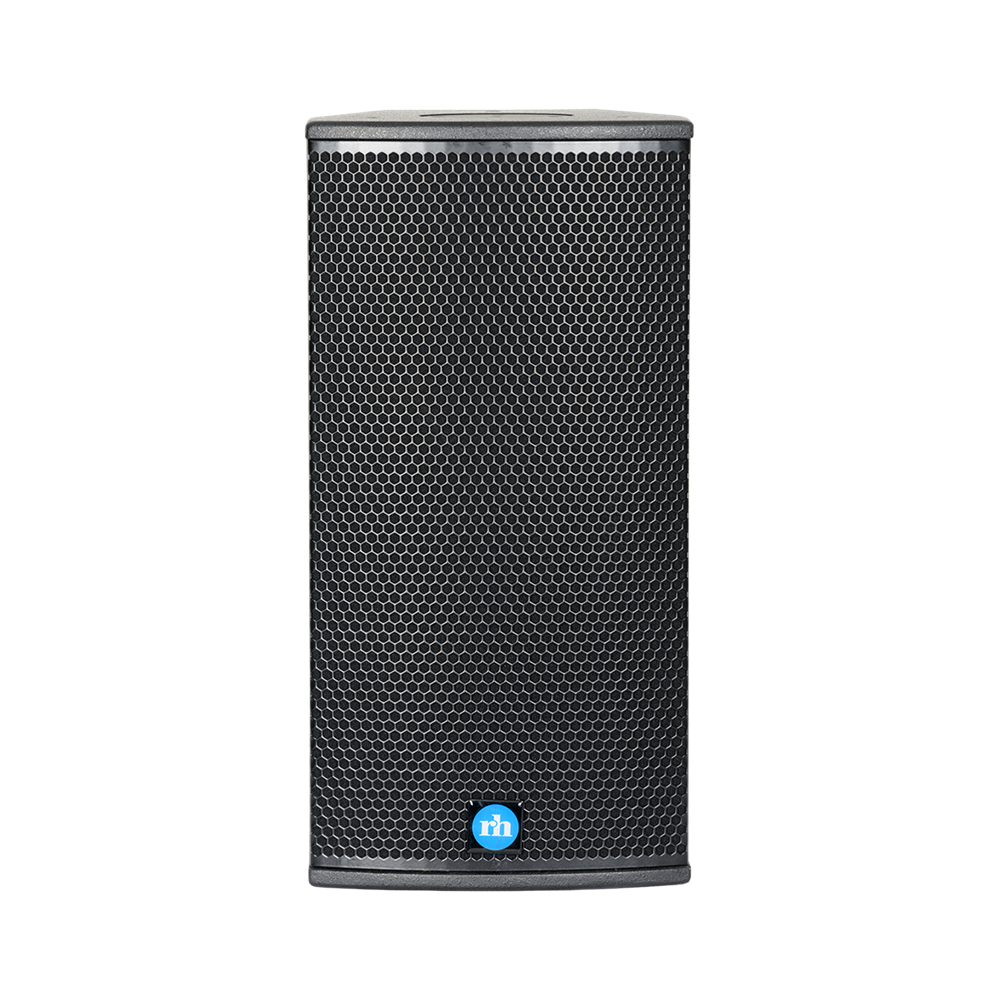

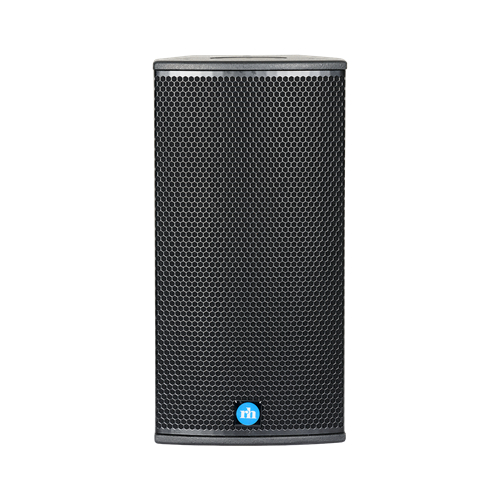

CX81 Compact Two-Way Complex Conic Loudspeaker Systems

Product Code: RH-CX81-B

Brand
Renkus Heinz
$1,600.00 inc GST
RRP $1,600.00

In Stock at Supplier
Increase value Decrease value
Unit of Measure
EACH


5 Year
Technical Specifications
Brands Renkus Heinz
  • Details
  • Downloads
  • Ordering
8-inch Heavy Duty Woofer + 1-inch titanium HF driver

Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

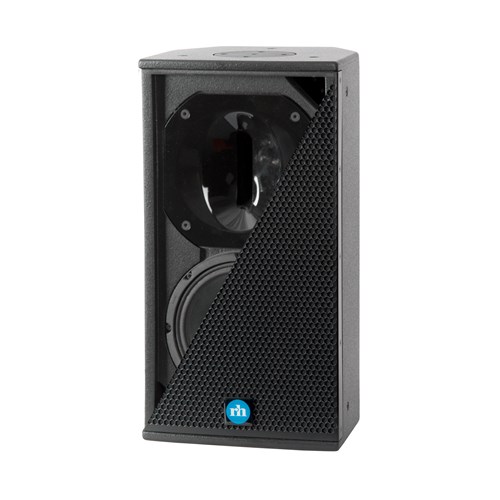

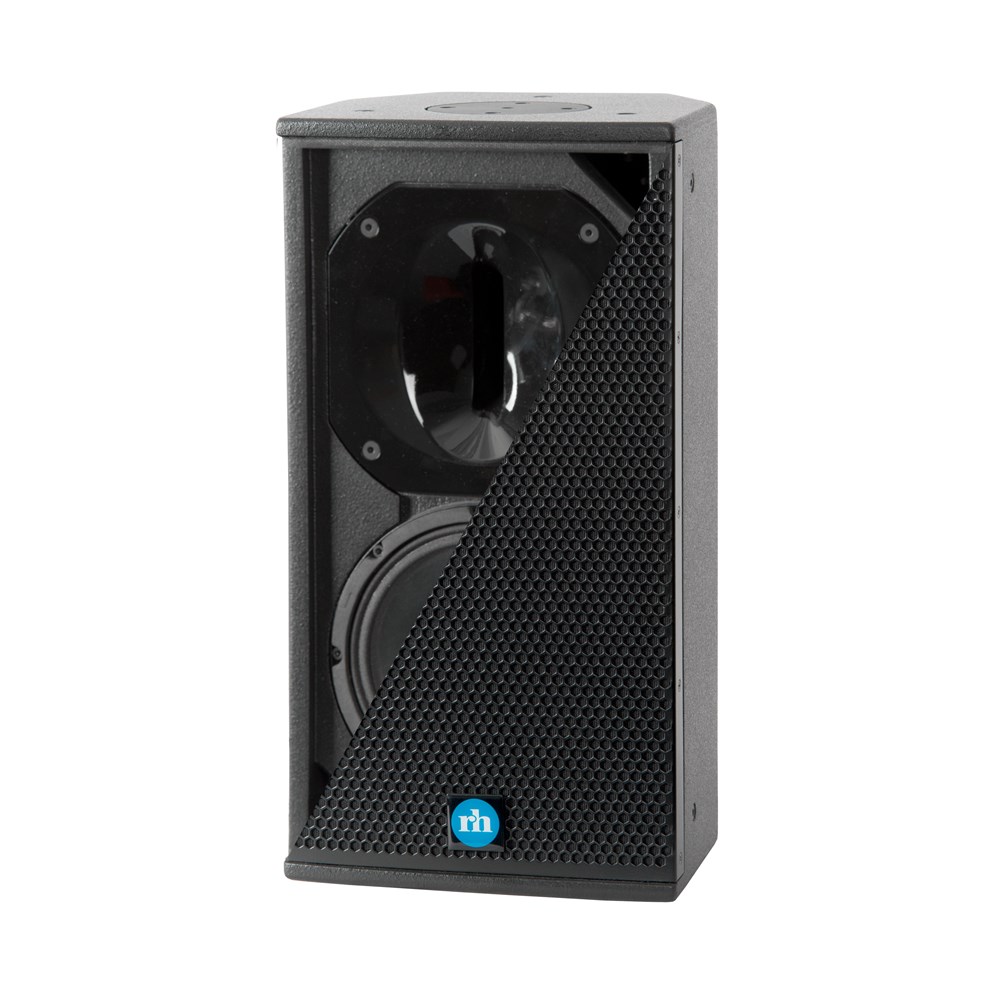

The CX81 features an 8-inch heavy duty woofer and a 1-inch titanium HF driver

Key Features

• High Volume Output, Small Enclosures
70 Hz to 20 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.

• Exclusive 120° x 60° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.

• 1.4-inch Extended Range Titanium HF Driver
High-Frequency compression driver features a 1.4″ Voice-Coil and 1″ Exit that provides smooth, low distortion high frequency performance to 20 kHz and beyond.

• Heavy-Duty 8-inch Woofer
Easily handles 250 Watts of program power.

Technical Information

Sensitivity:

CX81

96 dB (1W/1m)

Max SPL:

CX81

123 dB peak

Dispersion:

CX81

120° x 60°, rotatable complex conic horn, (90° x 60° complex conic horn available for purchase)

Freq. Response:

CX81

± 3 dB, 90 Hz to 20 kHz

HF Driver:

CX81

1″ Titanium driver, model SSD1445-16; 20 W AES

LF Driver:

CX81

8″ woofer, model SSL8-20; 1″ VC; 125 W AES @ 16 Ohms

Enclosure:

CX81

Poplar Ply, perforated metal grille

Finish:

CX81

Black or White Paint

Power:

CX81

125 W AES @ 16 Ohms
250 W Pgm @ 16 Ohms

Connectors:

CX81

Screw terminals & looping 4-pin Neutrik SpeakOn style connectors

Hardware:

CX81

12-point Universal Mounting Hardware (Metric M6 threads)
M10 U-bracket attachment points

Dimensions:

CX81

21″ H x 10-5/16″ W x 10-1/2″ D
262 mm H x 533 mm W x 267 mm D

Weight:

CX81

25 Lbs / 11.3 kg, Net

Product Documents
