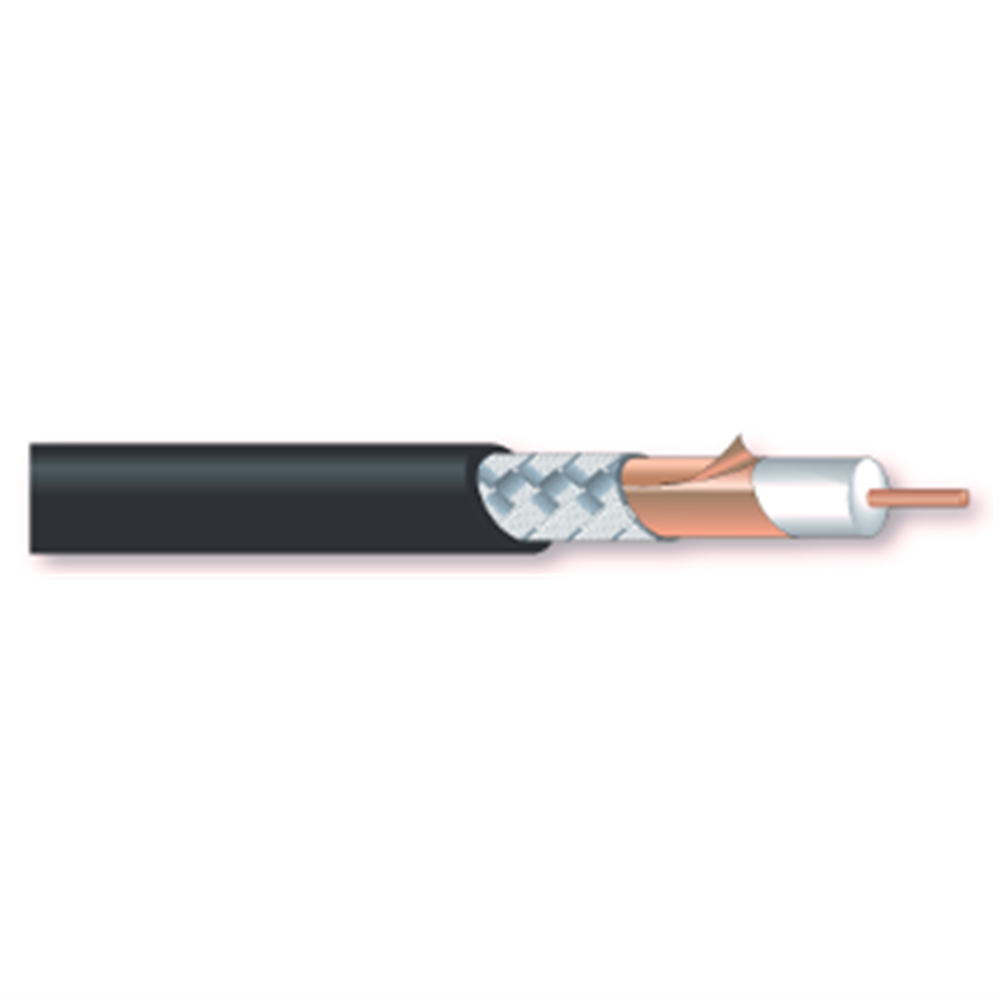

75 ohm Digital Video Coaxial Cable Ultra Low Loss Coax (12G-SDI) (L-5.5CUHD)

Name: 75 ohm Digital Video Coaxial Cable Ultra Low Loss Coax (12G-SDI)
Price: 511 NZD

75 ohm Digital Video Coaxial Cable Ultra Low Loss Coax (12G-SDI)

Model Number

L-5.5CUHD

Specially designed for 12G-SDI
Max. transmission distance of UHD over single link able to reach 100m or longer*.
Excellent results in demanding tests.
Copper foil and high-density tinned copper braided shielding
Highly-foamed multi-layer PE insulation
Flame resistance UL 1666 Riser

* Depending on receiving equipment.

Model	Standard Length (m)	Nominal O.D. in. (mm)	Weight lbs (kgs)/100m	Inner Cond Conductor Comp. (AWG) Q'ty/mm	Inner Cond O.D. in. (mm)	Insulation O.D. in. (mm)
L-5.5CUHD	100M	0.303 (7.7)	15.65 (7.1)	(16) 1/1.35A	0.053 (1.35)	0.219 (5.55)
Model (contd.)	Outer Conductors Shield Coverage & Comp.	Inner Cond. Resistance ohm/km	Outer Cond. Resistance ohm/km	Static Capacity (pF/m)	Characteristic Impendence ohm	Attenuation dB/100m(328ft) @6GHz
L-5.5CUHD (contd.)	Copper Laminated Tape + 0.12TA/8/24 (91%)	12.8	10.3	52	75	39.1

Brands	Canare
Bulk Cable Type	Coax
