Acoustic panels

Clarity Room Kit

Z900 0102 09 (RA-CLARITY-PT)

Brand
Primeacoustics
RRP $2,005.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Primacoustic
  • Details
  • Downloads

Clarity
Acoustic Room Kit

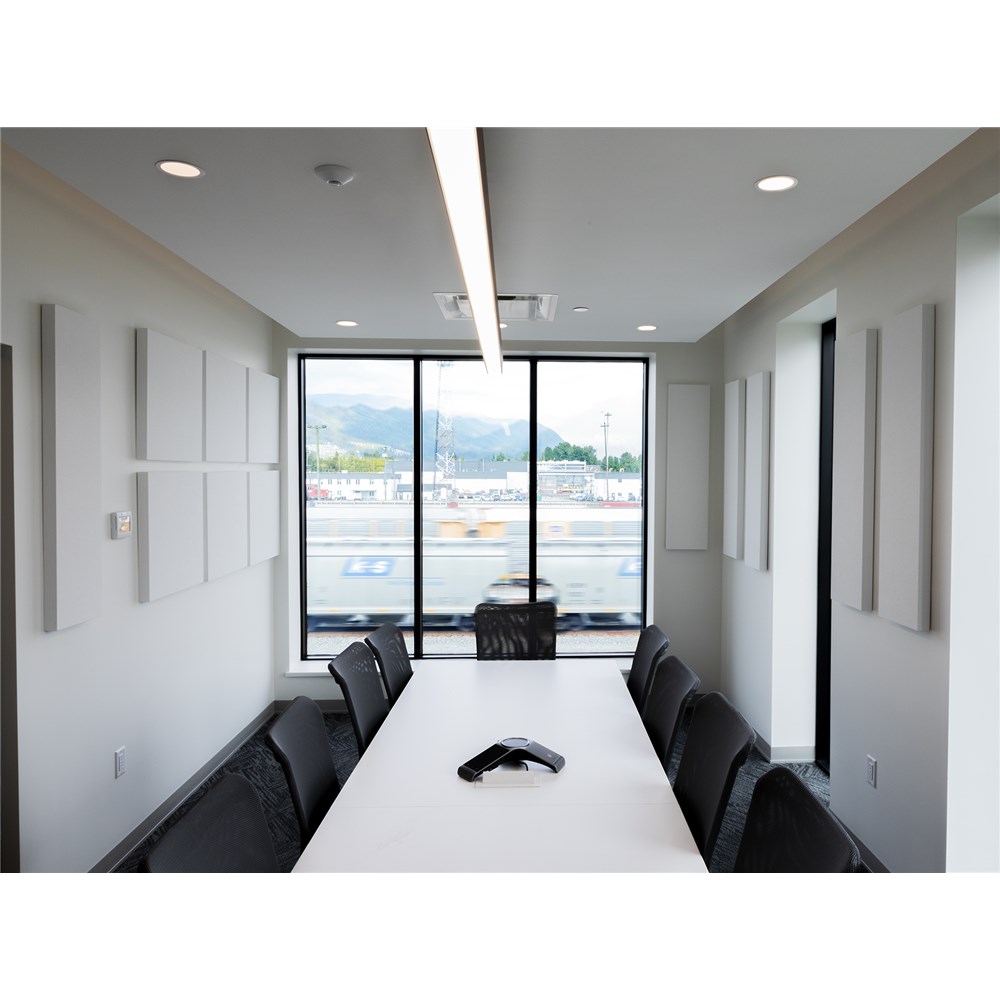

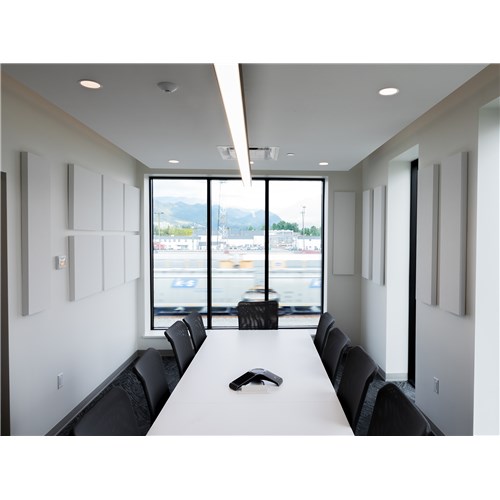

  • Ideal for office boardrooms, home and shared offices
  • For rooms up to 11m2
  • White panels are paintable/printable for branding, design and aesthetics
  • Includes easy-mount hardware

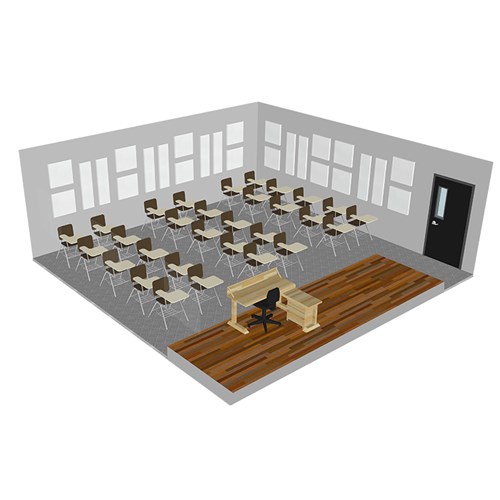

The Clarity Room kit has been designed to treat rooms up to 11m2 and can be used in multiples to treat larger rooms for a variety of purposes. This kit is ideally suited for an office boardroom or home office, collaborative spaces and shared offices.

Primacoustic paintable panels are made from high-density 6lb per cubic foot (96 kg/m³) glass wool, offering nearly five times greater absorption than many low cost foam alternatives. This means that you get more absorption with less panels, while assuring an even absorption curve throughout the frequency range.

These panels are coated with a breathable latex finish in Absolute White that can be left white or painted any colour you need. You also have the ability to print on these panels using commercial flatbed UV printers, which is great for branding, design and aesthetics.

The purpose of this kit is to provide absorption that will fade into the background while bringing your conversations and message into focus. The panels included in the kit have been assembled to easily create designs or patterns or blend into the walls depending on the needs of the space and designer.

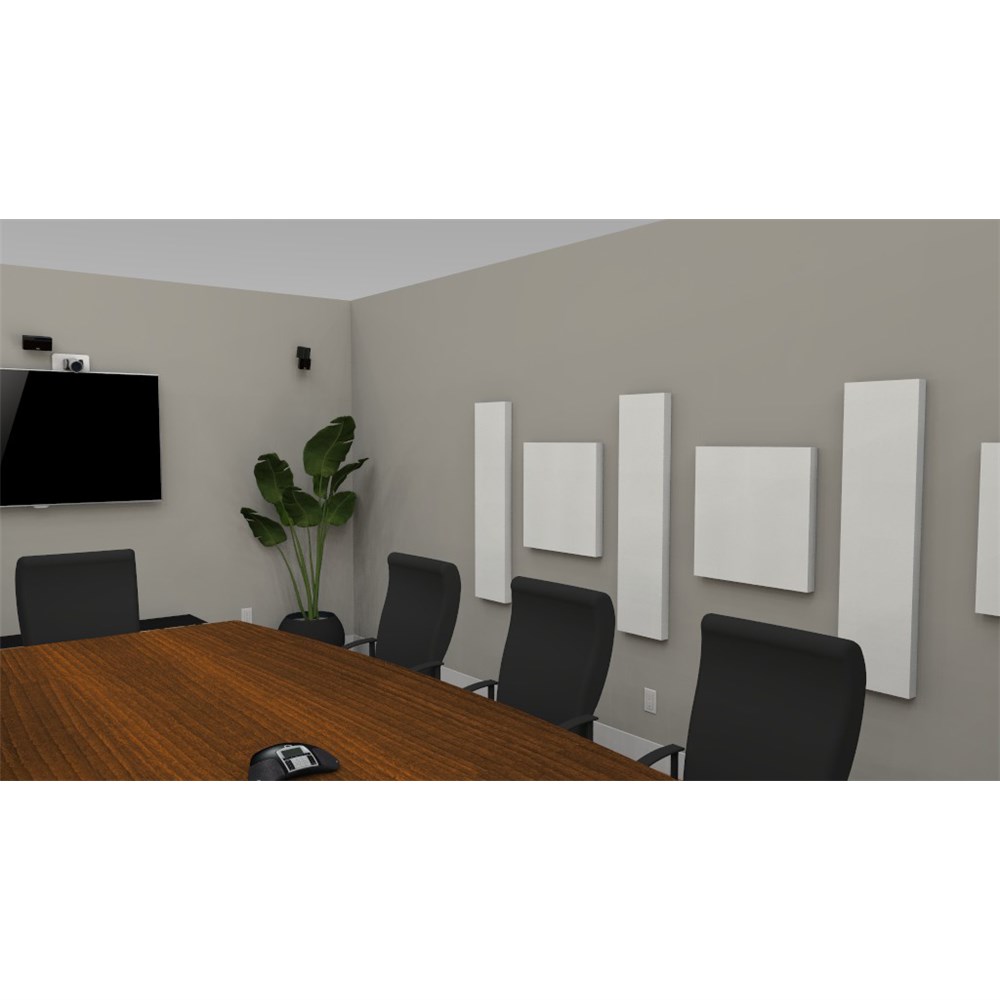

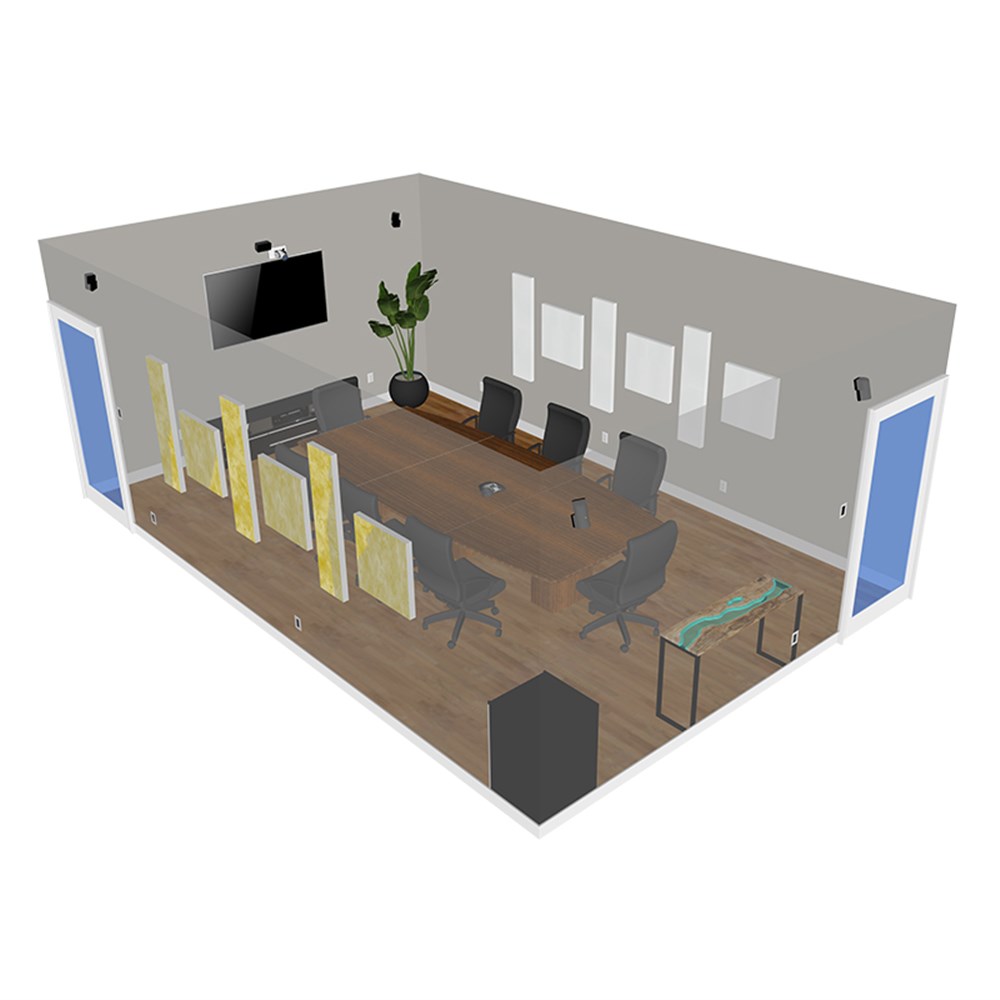

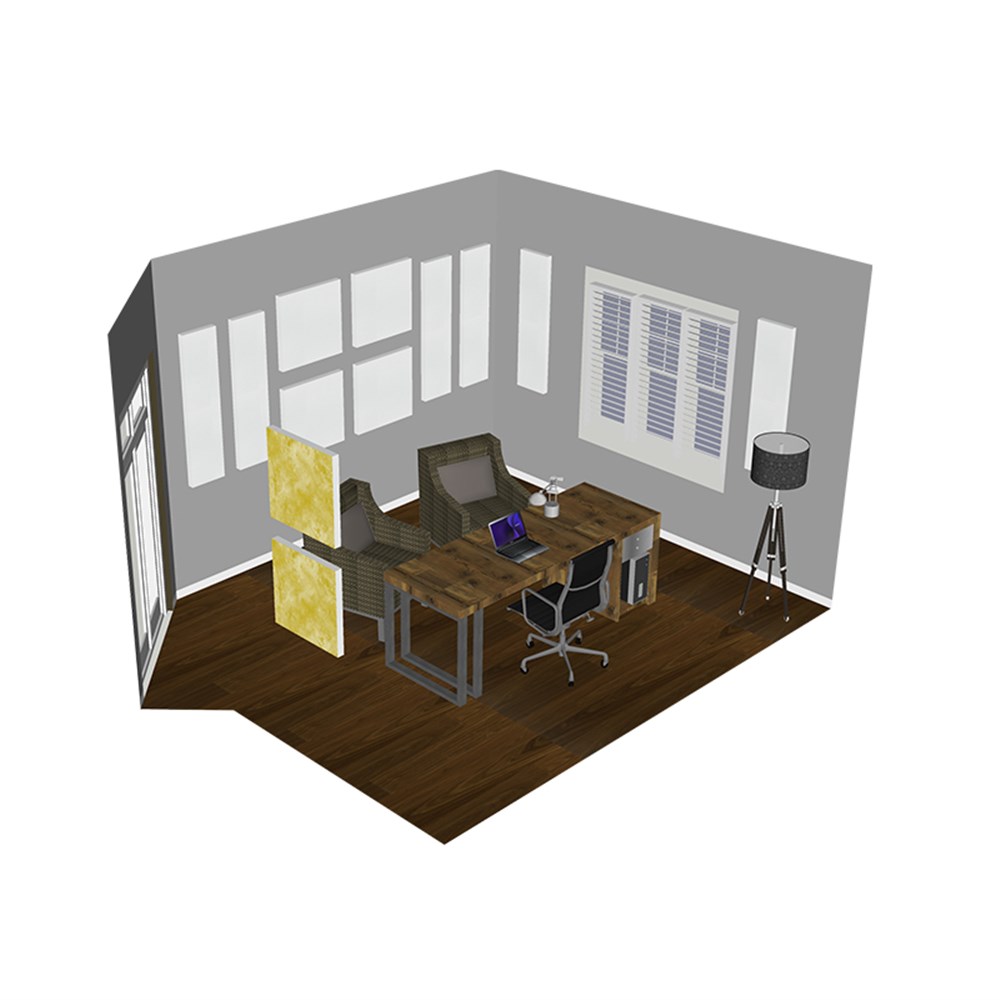

Absorption works best when it is placed within the space that our ears occupy as it will affect and have the most impact on what you hear and how it sounds. The best way to use this kit is to spread out the panels evenly on all four walls. Placement of the panels should take into account the purpose of the room and how it is typically arranged and used to have the greatest overall effect.

Product Options


Clarity

For rooms up to 11m2
Color options: Paintable

Z900-0102-09

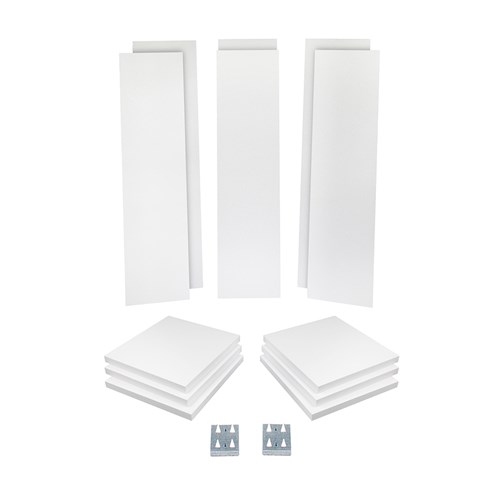

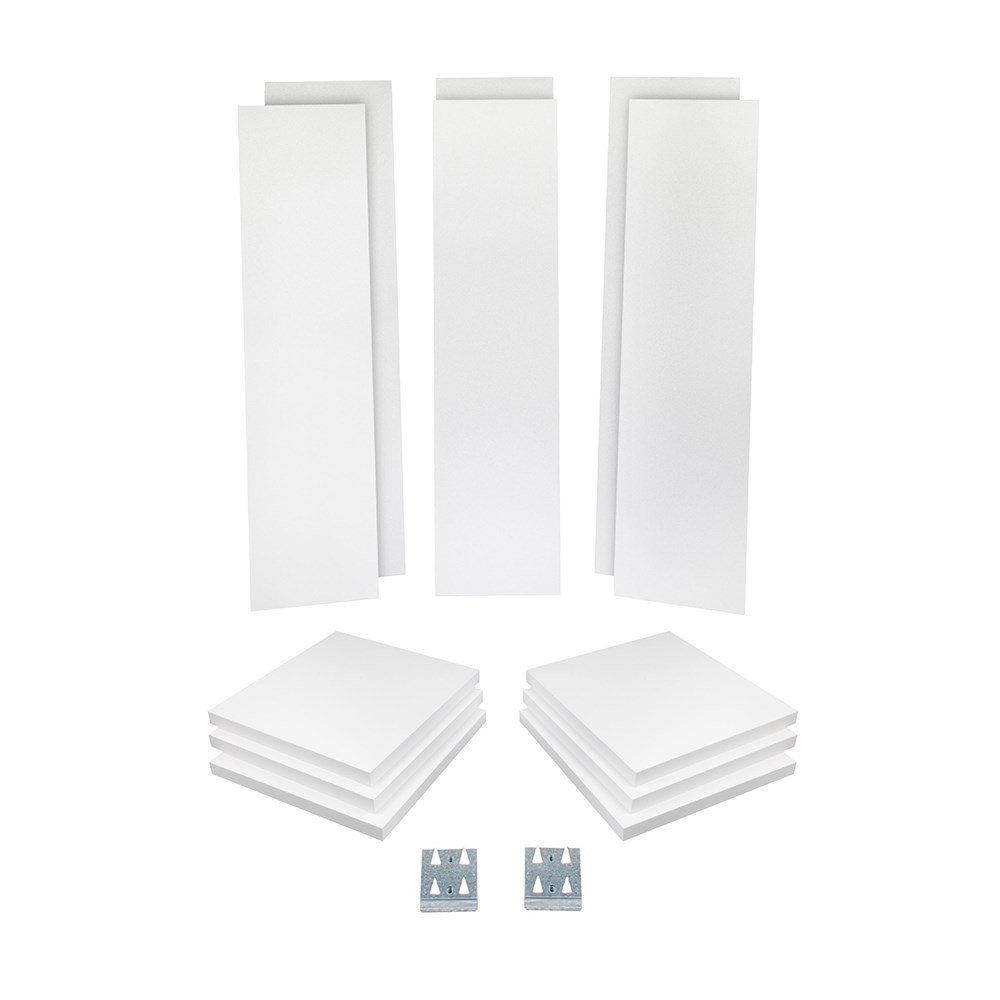

  Control Cube Control Columns
Qty 6 6
Size 24″ x 24″ x 2″
(609 x 609 x 51mm)
12″ x 48″ x 2″
(305 x 1219mm x 51mm)

Edge Square Square
Hardware 30 Push-On Impalers and Drywall anchors included.


Absorption coefficients





Frequency - HZ 100Hz 125Hz 160Hz 200Hz 250Hz 315Hz 400Hz 500Hz 630Hz 800Hz 1kHz 2kHz 3kHz 4kHz 5kHz
 Raw Panel 0.27 0.32 0.50 0.68 0.87 1.03 1.10 1.10 1.12 1.04 1.04 0.96 0.94 0.96 0.91
 Light Spray 0.42 0.48 0.56 0.79 0.89 1.02 1.08 1.12 1.15 1.12 1.10 1.01 0.98 0.92 0.91
 Rolled Paint 0.76 0.74 0.50 0.54 0.58 0.70 0.75 0.66 0.60 0.53 0.45 0.28 0.25 0.19 0.17
