QFC5CS

Ceiling Speaker
10W 5 inch coaxial

The all new QuickFit coaxial series of ceiling speakers features 3 new models, each model comprises a 2 way coaxial driver producing high SPL and intelligibility. The frameless grills provide a modern sleek look sure to please end users, consultants and architects alike. If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

The QFC5CS, QFC6CS and QFC8CS series of QuickFit ceiling speakers are the perfect choice for situations demanding high intelligibility and SPL. Recommended for function rooms, school halls, retail spaces, boardrooms, place of worship, RSL’s, clubs, rubs, Restaurants and many other commercial applications. Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

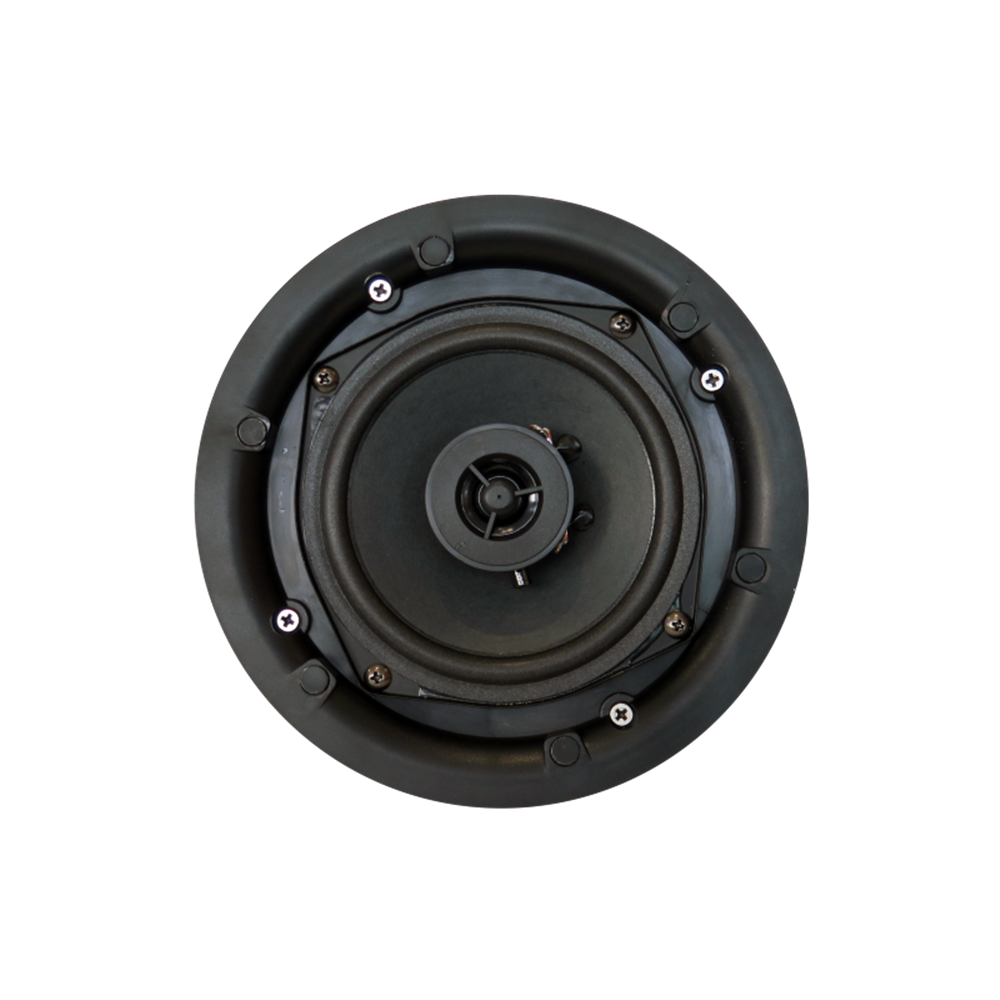

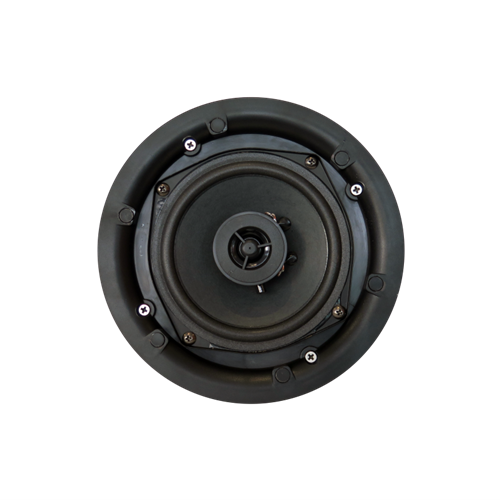

• 5 inch coaxial high powered driver

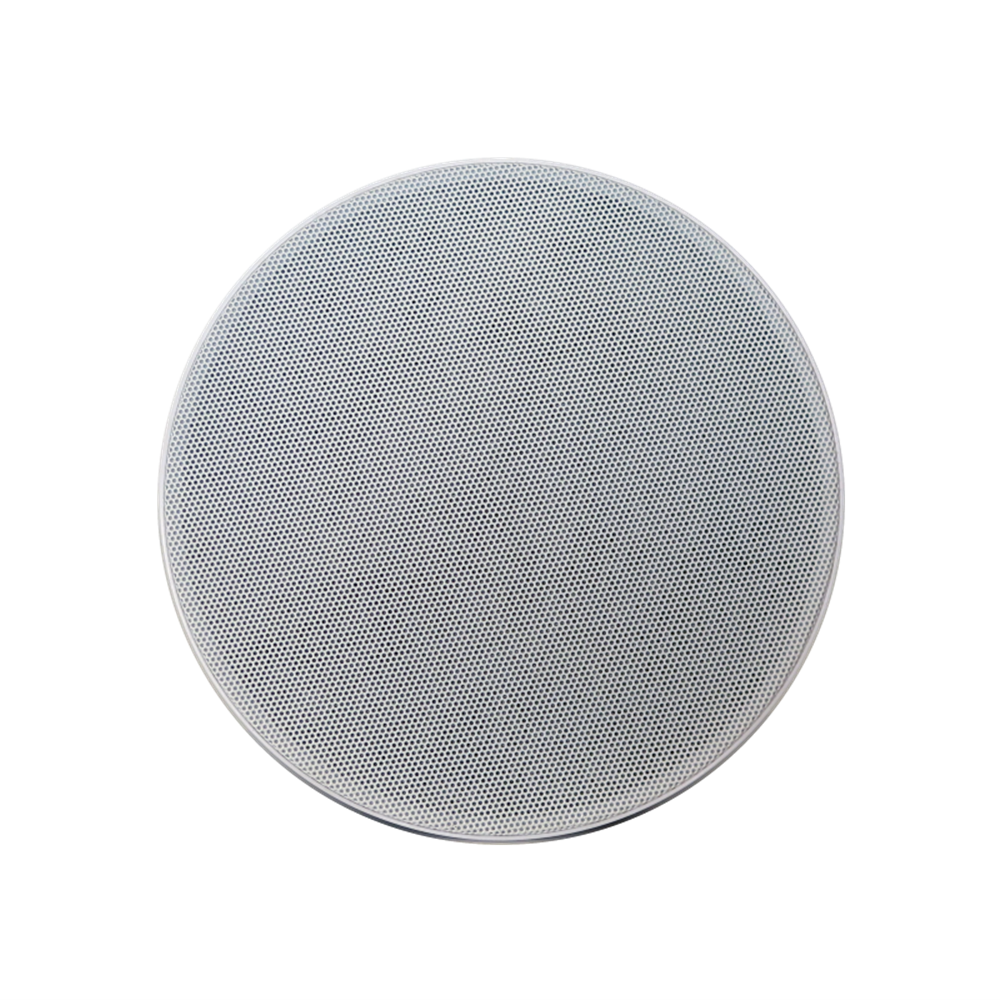

• QuickFit white frameless powder coated steel grill
• 1.25, 2.5, 5, 10 watt taps @ 100V

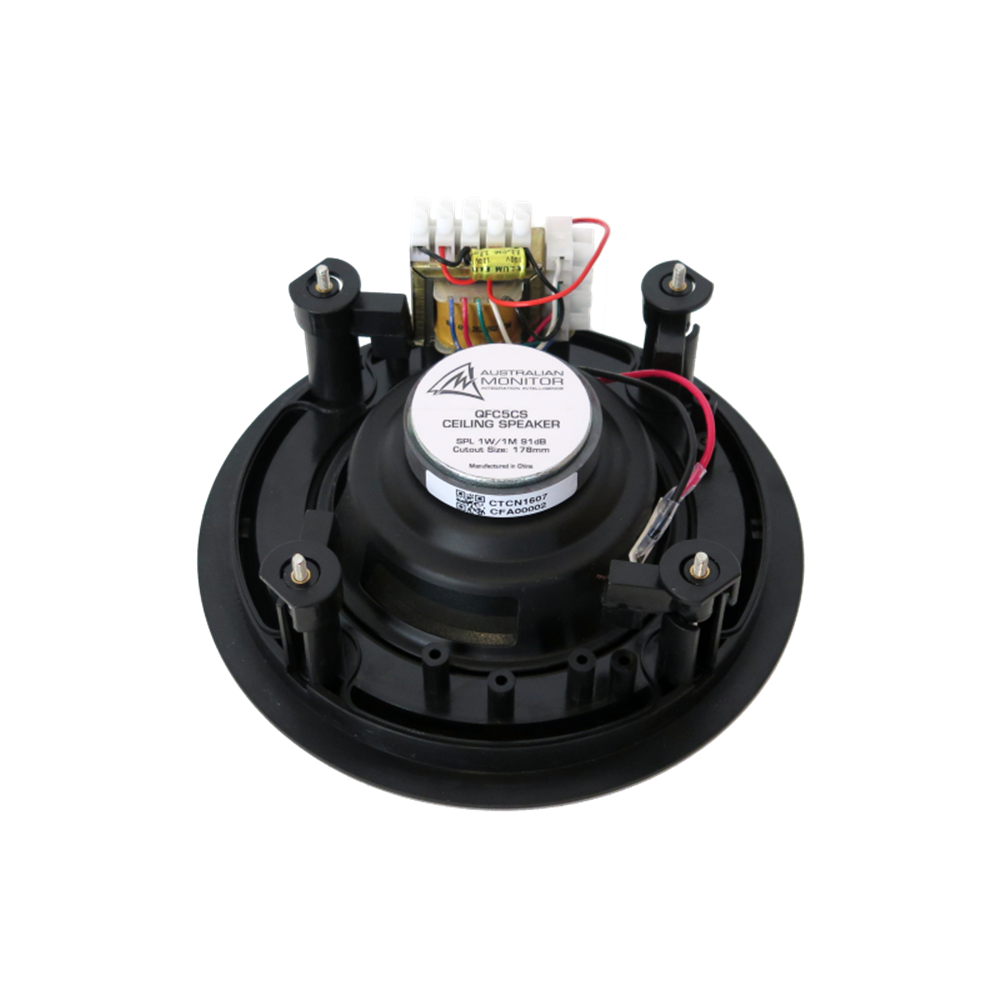

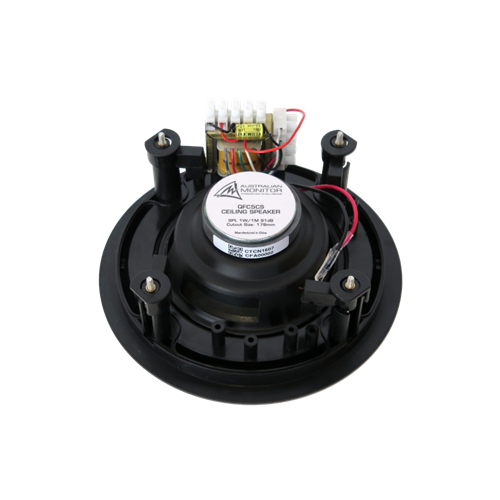

• Evac. capacitor as standard

Specifications

• Form Factor: Ceiling
• Max Continuous Power: 10W
• Tappings: 10W-5W-2.5W-1.25W-0.65W
• Max Program Power: 20W
• IP Rating: No
• Max Peak Power: 40W
• EASE Model: Yes
• SPL 1W/1m: 91dB
• Powered: Passive
• Max SPL RMS: 101dB
• Driver Diameter: 5" & 25mm
• Max SPL Peak: 107dB
• Colour: White (RAL 9010)
• Frequency Response (-3dB): 80Hz - 20kHz
• Warranty: 5 years
• Dispersion: 100deg
• Product Dimensions: (W x D x H) 205mm x 72mm
• Shipping Dimensions: (W x D x H) 90mm x 210mm x 210mm
• Net Weight: 0.9 Kg
• Shipping Weight: 1.1 Kg
• GTIN EAN: 9323383019416
