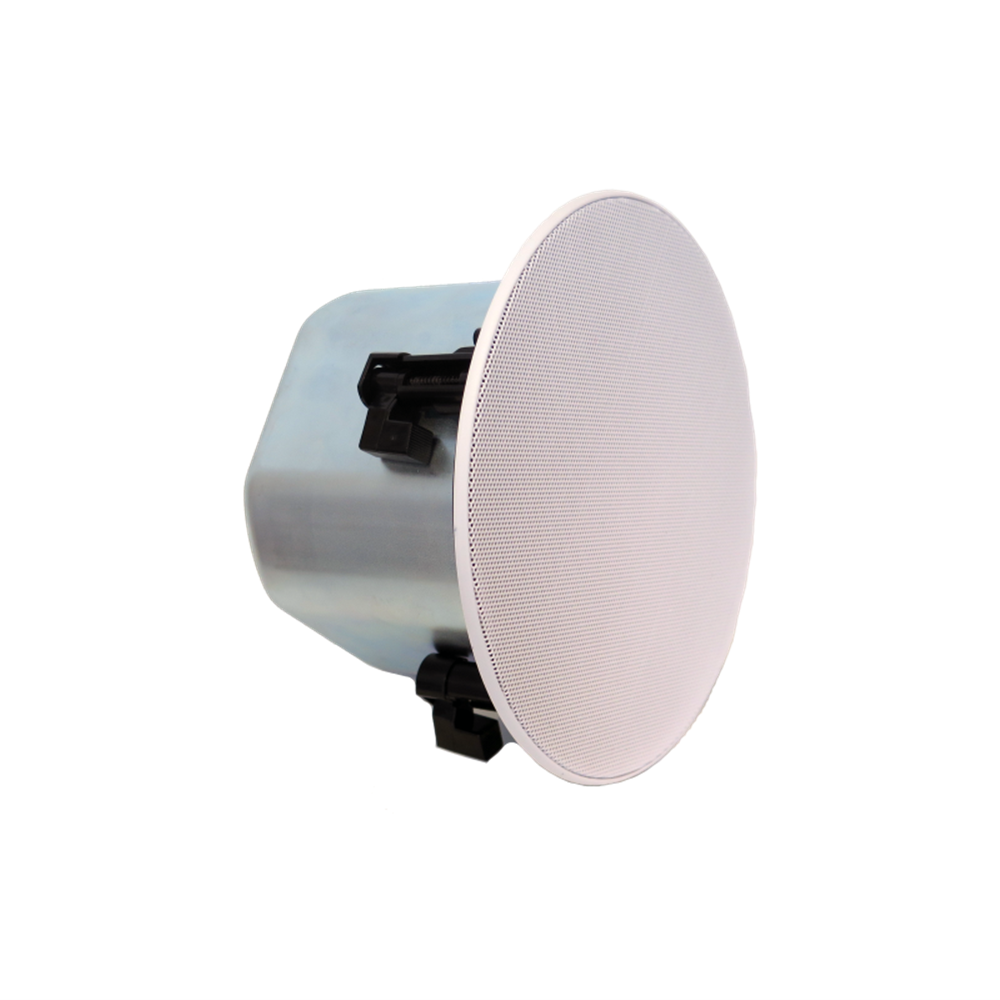

QF20CS

Ceiling Speaker

20W sealed back can

When you need more power and solid bass response the QuickFit premium coaxial series of ceiling speakers are sure to exceed expectations. This premium series features two way coaxial drivers producing high SPL and detailed audio reproduction. The frameless magnetic grills allows easy removal of the grill for tapping changes and quick installation. Porting through the front baffle improves bass response and ensures detailed bass definition. The sealed back-can provides isolation in the ceiling space ensuring spill in the ceiling cavity is kept to a minimum.

If you require a black ceiling speaker it’s as easy as changing the grill. A black grill for each model can be purchased separately as an accessory.

EASE® GLL files simulation files are available for QuickFit ceiling speakers. EASE® is a registered trademark of AFMG Technologies GmbH

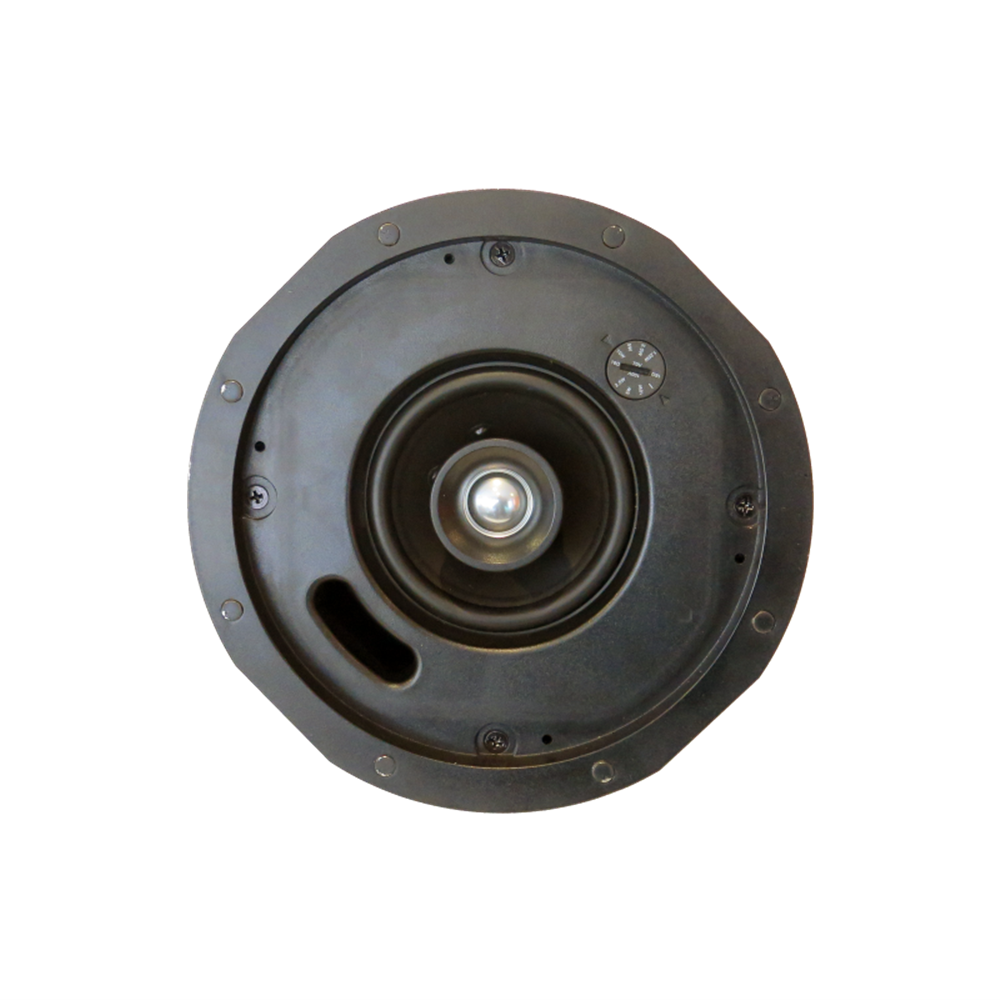

• 4 inch & 20mm coaxial high powered driver

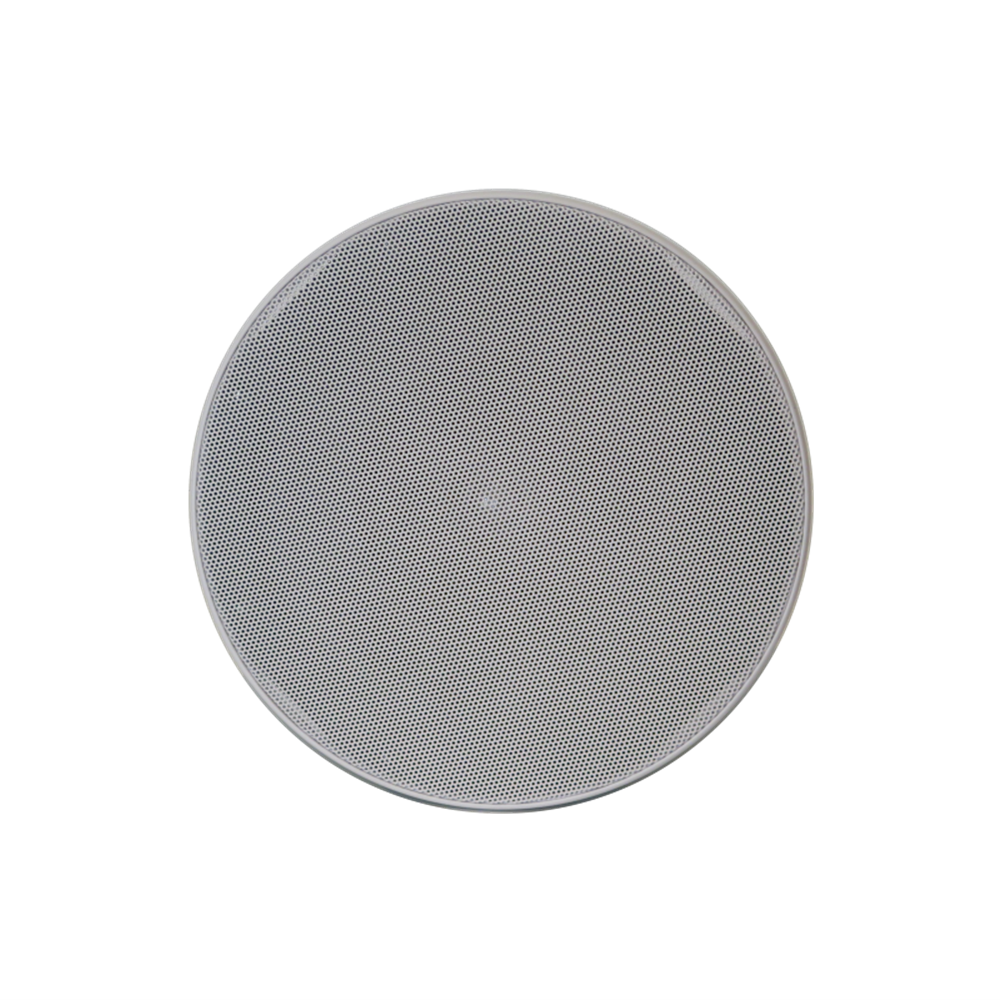

• QuickFit white frameless powder coated steel grill

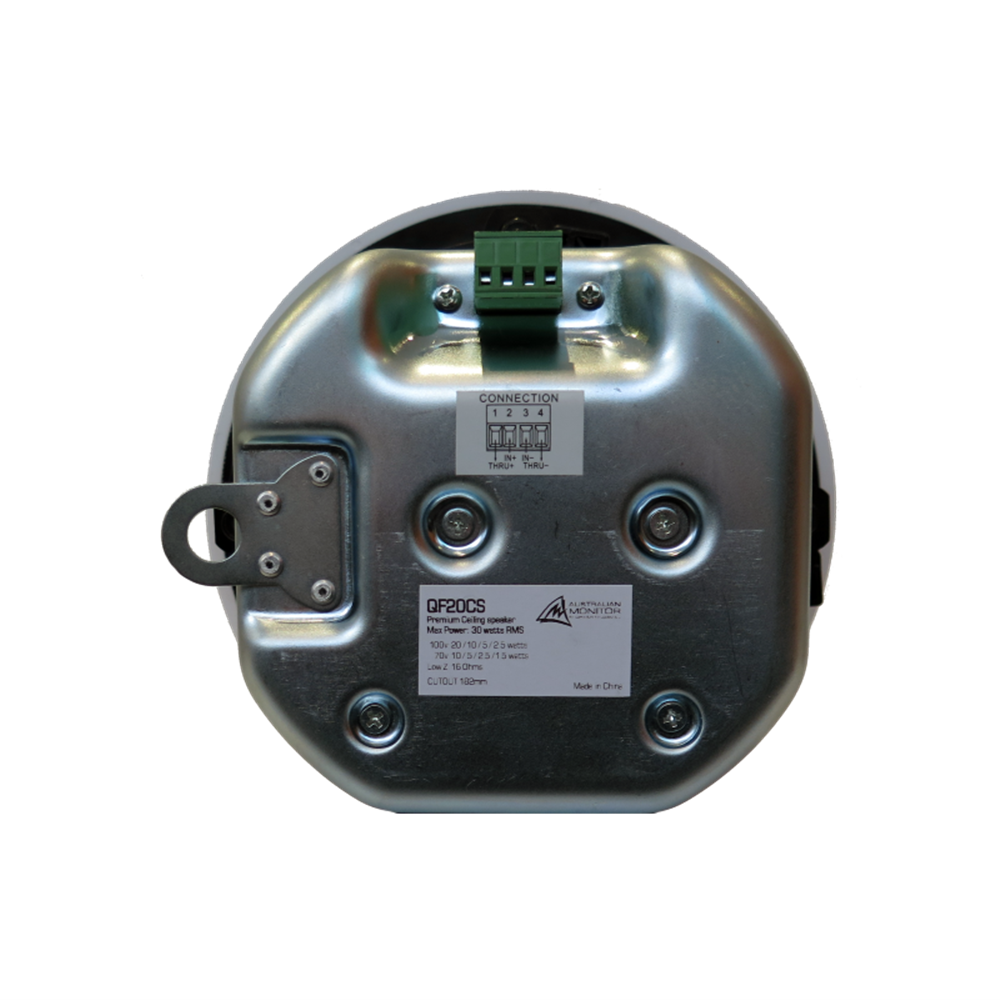

• Sealed steel back can
• 2.5, 5, 10, 20 watt taps @ 100V
• 30 Watts @ 16 Ohms
• Tile Bridge optional (AM20CSTB)

Specification

• Form Factor: Ceiling
• Max Continuous Power: 30W
• Tappings: 20W-10W-5W-2.5W-1.75W
• Max Program Power: 60W
• IP Rating: No
• Max Peak Power: 90W
• EASE Model: Yes
• SPL 1W/1m: 89dB
• Powered: Passive
• Max SPL RMS: 102dB
• Driver Diameter: 4.5" & 20mm
• Max SPL Peak: 108dB
• Colour: White
• Frequency Response (-3dB): 110Hz - 20kHz
• Warranty: 5 years
• Dispersion: 130deg
• Product Dimensions: (W x D x H) 218mm x 125mm
• Shipping Dimensions: (W x D x H) 248mm x 244mm x 115mm
• Net Weight: 2.15 Kg
• Shipping Weight: 3.5 Kg
• GTIN EAN: 9323383019485
