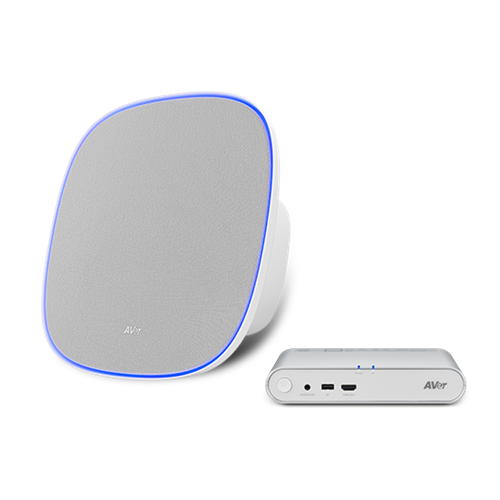

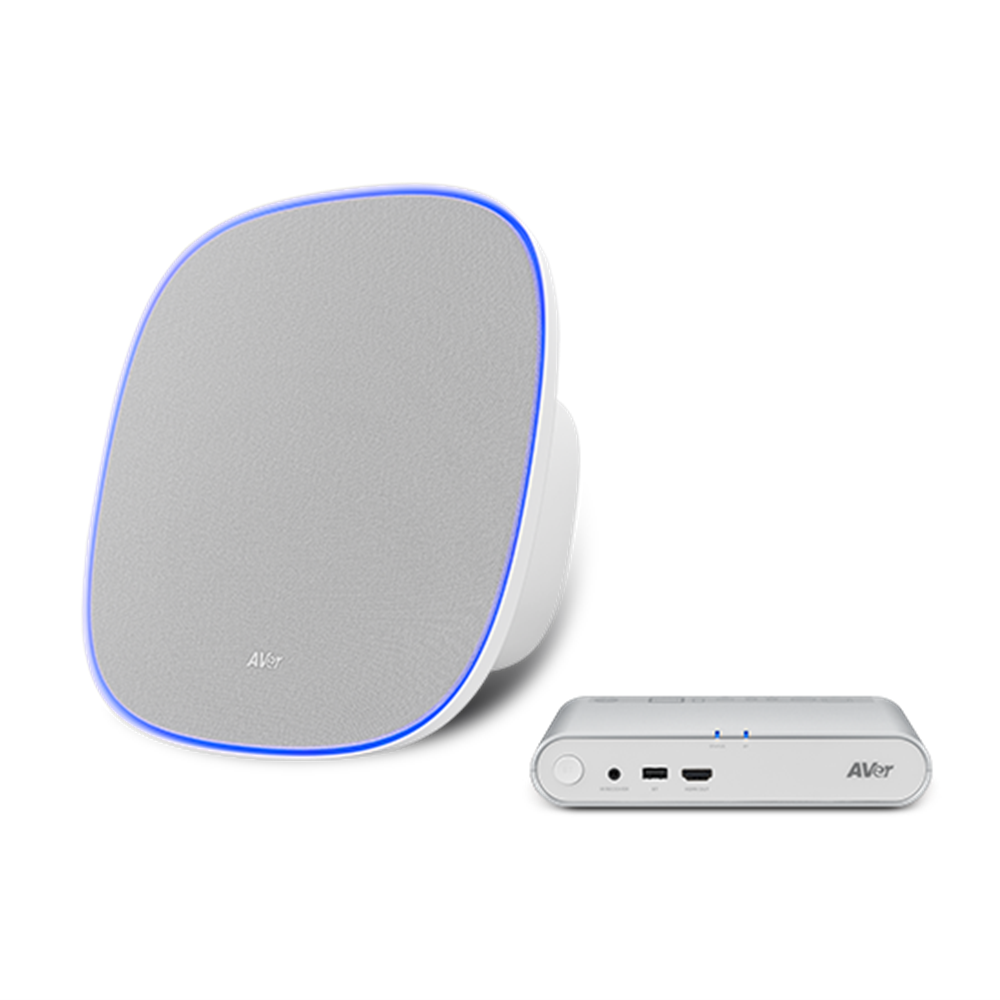

FONE700
Ceiling Speakerphone System for Rooms of Any Size

Take Conferencing Audio to New Heights

Ceiling Speakerphone System for Rooms of Any Size
Elevate your conference experience with the AVer FONE700, the perfect ceiling speakerphone system. With its cutting-edge technology, the FONE700 allows for seamless integration of our suite of audio-visual products, ensuring the highest-quality sound and picture to meet your conference needs. This includes connecting two cameras, a display, an external speaker, and Bluetooth devices, creating a truly unified AV hub for your conference needs.

• Speakphone Extension Solutios
• Ceiling-Mounted Design
• True-to-Life Audio
• Driver-Free Plug-n-Play
• Integration Hub
• Configuration Through PTZ App2
• Intuitive Web UI

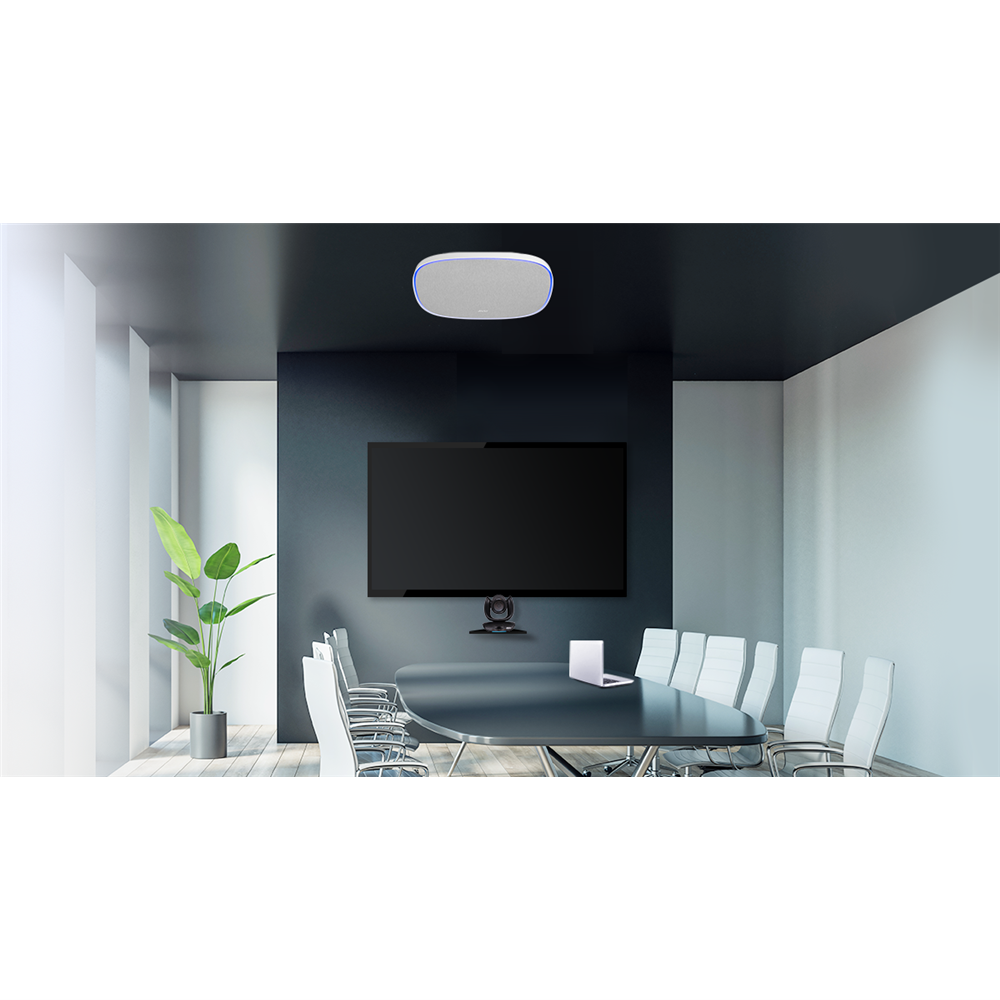

Transform Any Space into a Pro Conference Room

The FONE700 takes any room pro in seconds. It connects with just one cable, eliminating tangled wires and complex configurations. No tech expertise needed - simply plug in and go. No technical expertise is required - simply connect and experience a seamless conferencing upgrade.

Focus on the Conversation, Not the Setup
The FONE700 connects in seconds, letting you focus on the conversation, not the equipment. Intuitive controls and seamless device integration keep the meeting flowing, maximizing your efficiency and fostering effortless collaboration. Let you focus on what matters most important.

Single Cable, Diverse Configuration
The FONE700 requires just one RJ45 cable for both power and internet. It supports up to four speakerphones with a maximum range of 40 meters, enabling optimal adaptability for different-sized conference rooms.

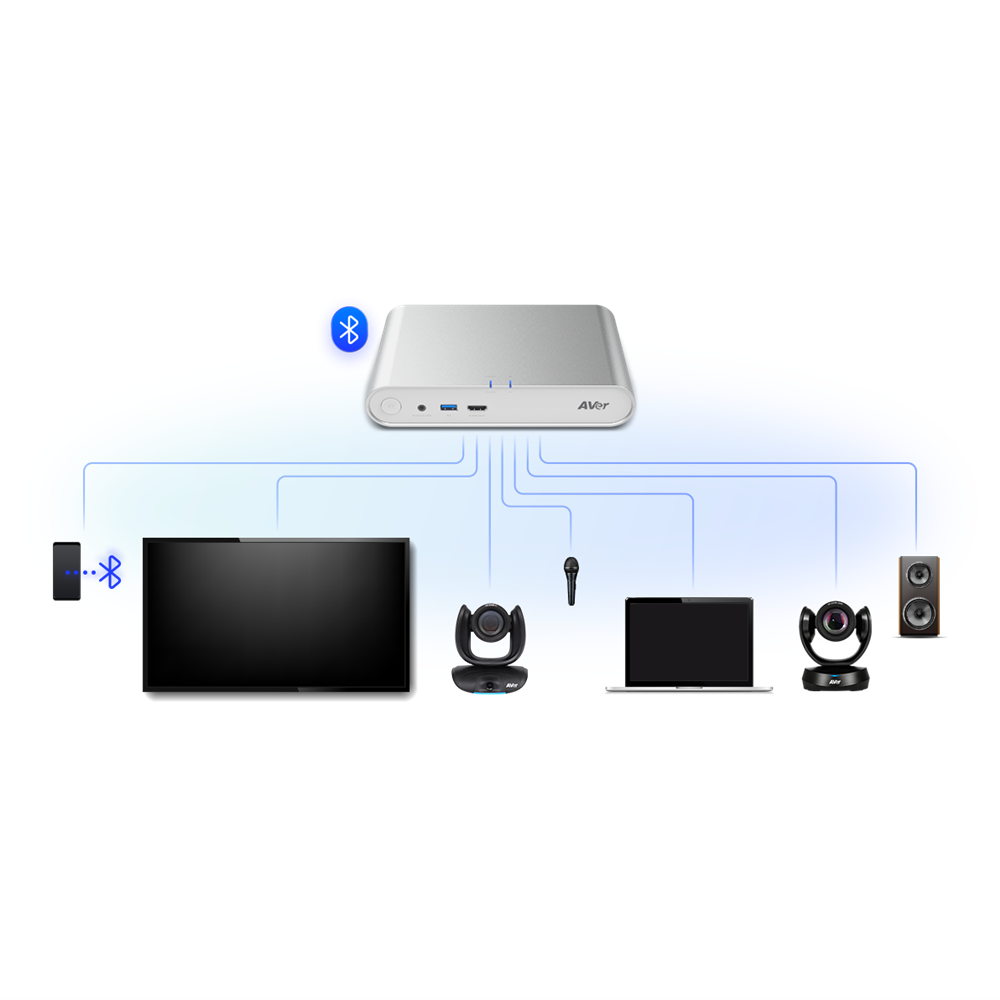

Seamless Integration with Numerous Devices
The FONE700 connectivity hub enables seamless integration of our full suite of audio-visual products, including external speakers and cameras, as well as external devices such as monitors and Bluetooth equipment.

Specifications

FONE700 System (Hub + Speakerphone)

• Full duplex acoustic system for optimal meeting experience
• One cable daisy chain up to 4 speakerphones for flexible installation
• Versatile connectivity for video conferencing integration
• Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
  • Acoustic echo cancellation (AEC)
  • Advanced noise reduction (NR)
  • Automatic gain control (AGC)
  • Double-talk detection
  • De-reverberation
  • AI noise suppression
  • Voice fencing
  • *Via future firmware update/additional setting required

FONE700 Speakerphone

• 3 units directional + 18 units omnidirectional microphones
• Acoustic pickup angle: 360 degrees per unit
• Acoustic pickup range*: up to 3.5 m radius per unit
• Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m
• Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)
• *Optimal performance varies depending on acoustic treatment of meeting room

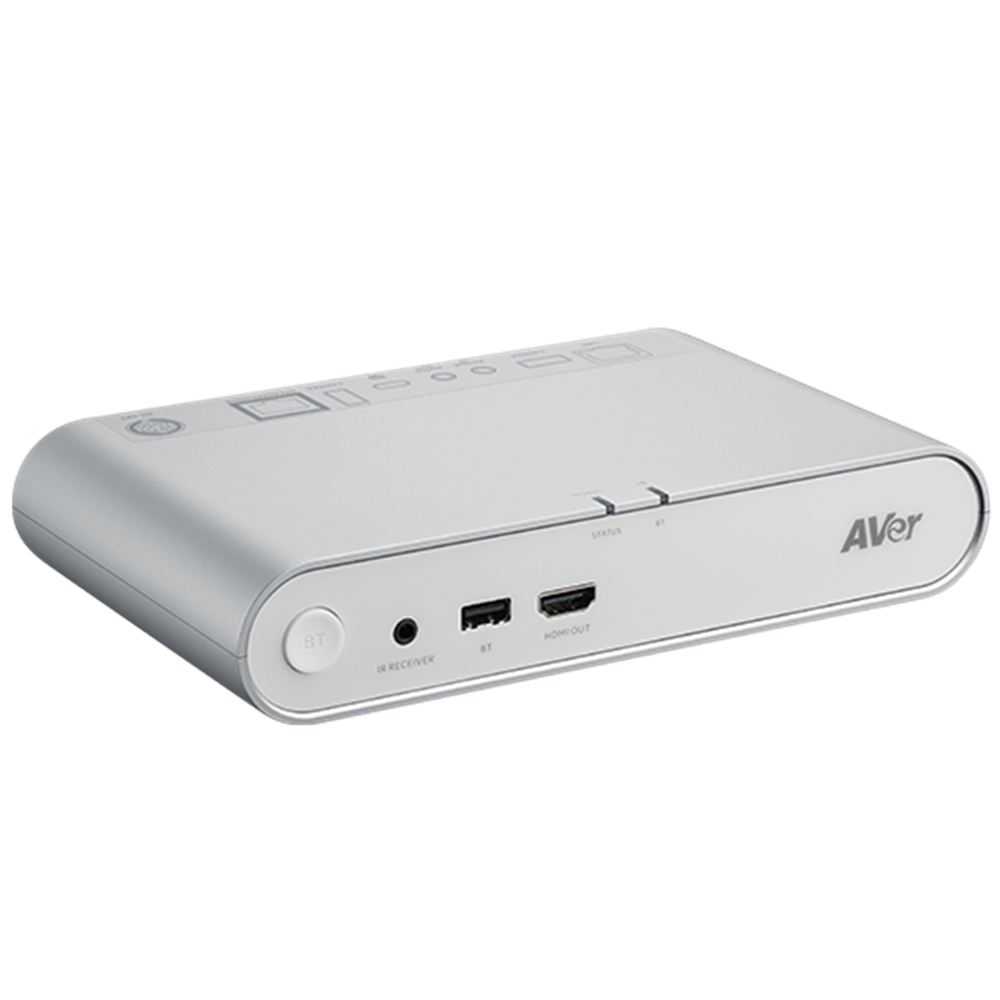

FONE700 Hub

• Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
• One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
• Integration for video conferencing with versatile connections for:*
  • USB 3.0 type-C port for PC connection
  • USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
  • USB 2.0 type-A port for BT dongle connection
  • Speakerphone port for AVer proprietary daisy-chained technology
  • LAN port for remote control and AVer Virtual Audio technology
  • 4K HDMI output (for USB to display output from connected PC)
  • 3.5 mm line-out jack for external speaker or hearing aid system
  • 3.5 mm phone-in jack for phone calls or external microphone input
  • *Settings configured in PTZApp 2 or via web browser

Connection

• USB with USB Audio Class (UAC) 1.0
• RJ45 with AVer proprietary Virtual Audio (IP streaming)

Control

• USB Plug and Play: Video conference software with mute/unmute, volume up/down
• PTZApp 2 for advanced settings and AVer Virtual Audio streaming
• Web browser for advanced remote settings

Security

• Safety tether attachment points on speakerphone
• Kensington slot on Hub

Power Supply

• AC 100 V to 240 V, 50/60 Hz
• Consumption: 48 V, 3.75 A

PTZApp 2 Value-added AVer Free Software for Meeting Collaboration

• Auto/manual firmware upgrades
• Acoustic settings
• Operating status diagnosis
• AVer proprietary Virtual Audio streaming technology

System Requirements for PTZApp 2

• Operating system
  • Windows® 7/10/11 or later
  • Mac OS X v10.14 or later
• Processor: 3.2 GHz Intel® Core™ i5-4460 or later
• Memory: 4 GB RAM

Environmental Data

• Operating temperature: 0°C to 40°C
• Operating humidity: 20% to 80%
• Storage temperature: -20°C to 60°C
• Storage humidity: 20% to 80%

Dimensions

• Package dimensions: 39.2 x 39.2 x 24 cm
• Package weight: 7.83 kg
• Hub: 21 x 12.5 x 4 cm/1.06 kg
• Speakerphone: 37 x 37 x 16.5 cm/3.31 kg

Package Contents

• FONE700 Ceiling Speakerphone
• FONE700 Hub
• Power adapter (48 V/3.75 A)
• Power cable
• RJ45 cable (10 m)
• USB-C 2.0 cable (5 m)
• Hub wall mount bracket with screws
• Mount drill template
• Quick Start Guide

Optional Accessories

• Ceiling Speakerphone with 10 m cable supplied (for daisy chain)
• RJ45 cable (10/20 m)
• Ceiling mount kit
• BT dongle
• IR Receiver cable

Compatible Applications

• Software supports UAC connections, e.g., Zoom, Zoom Rooms, Microsoft Teams, Microsoft Teams Rooms, Google Meet, etc
