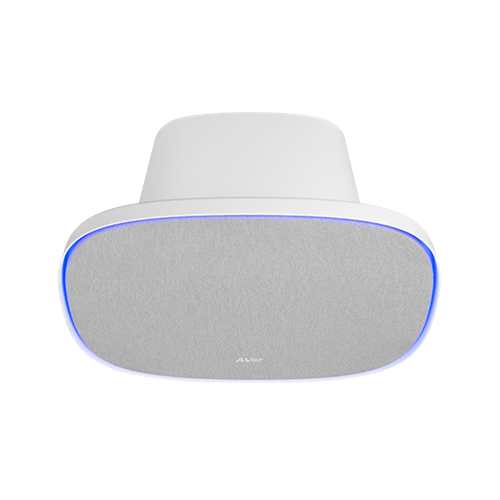

FONE700
Ceiling Speakerphone System for Rooms of Any Size

Take Conferencing Audio to New Heights

Ceiling Speakerphone System for Rooms of Any Size
Elevate your conference experience with the AVer FONE700, the perfect ceiling speakerphone system. With its cutting-edge technology, the FONE700 allows for seamless integration of our suite of audio-visual products, ensuring the highest-quality sound and picture to meet your conference needs. This includes connecting two cameras, a display, an external speaker, and Bluetooth devices, creating a truly unified AV hub for your conference needs.

• Speakphone Extension Solutios

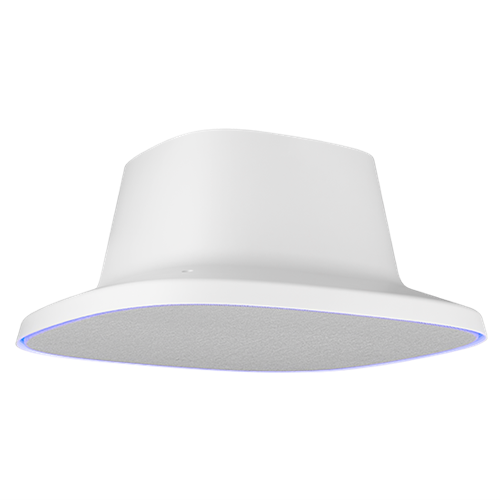

• Ceiling-Mounted Design
• True-to-Life Audio
• Driver-Free Plug-n-Play
• Integration Hub
• Configuration Through PTZ App2
• Intuitive Web UI

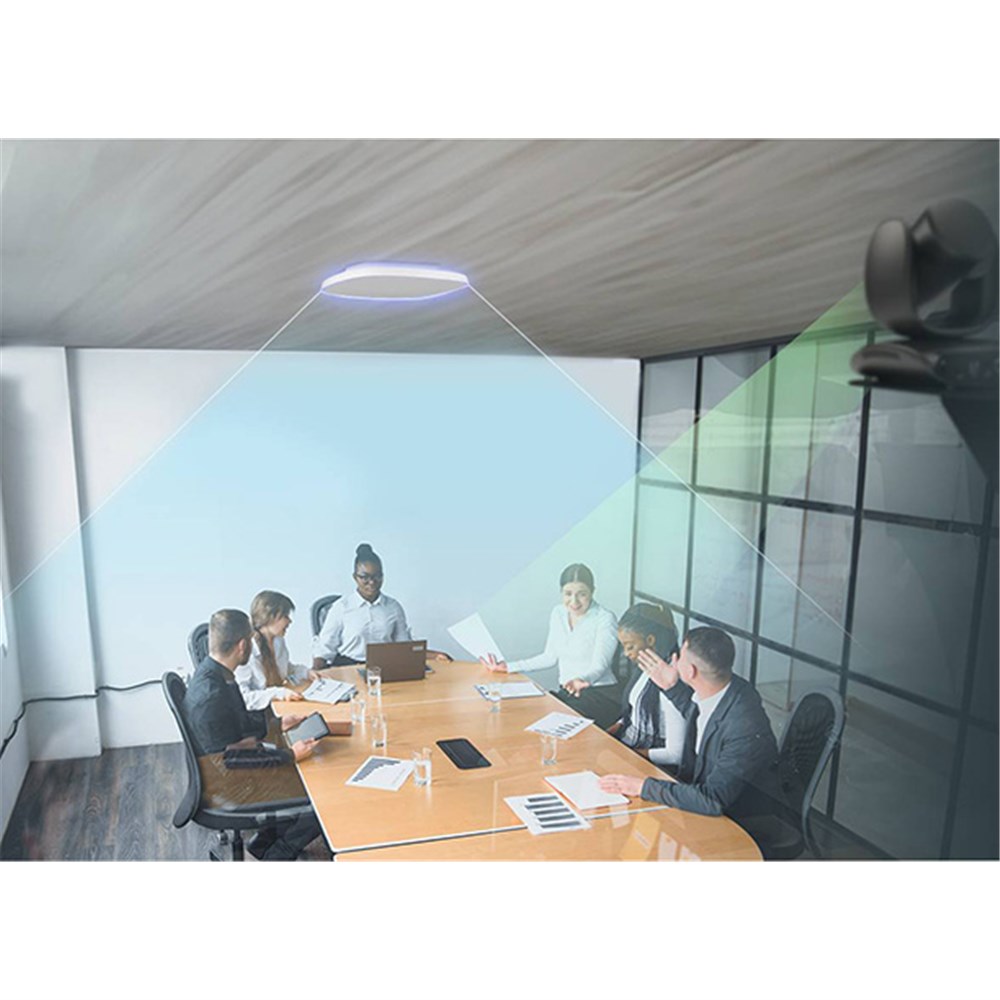

Transform Any Space into a Pro Conference Room

The FONE700 takes any room pro in seconds. It connects with just one cable, eliminating tangled wires and complex configurations. No tech expertise needed - simply plug in and go. No technical expertise is required - simply connect and experience a seamless conferencing upgrade.

Focus on the Conversation, Not the Setup
The FONE700 connects in seconds, letting you focus on the conversation, not the equipment. Intuitive controls and seamless device integration keep the meeting flowing, maximizing your efficiency and fostering effortless collaboration. Let you focus on what matters most important.

Single Cable, Diverse Configuration
The FONE700 requires just one RJ45 cable for both power and internet. It supports up to four speakerphones with a maximum range of 40 meters, enabling optimal adaptability for different-sized conference rooms.

Seamless Integration with Numerous Devices
The FONE700 connectivity hub enables seamless integration of our full suite of audio-visual products, including external speakers and cameras, as well as external devices such as monitors and Bluetooth equipment.

Specifications

FONE700 System (Hub + Speakerphone)

• Full duplex acoustic system for optimal meeting experience
• One cable daisy chain up to 4 speakerphones for flexible installation
• Versatile connectivity for video conferencing integration
• Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup
  • Acoustic echo cancellation (AEC)
  • Advanced noise reduction (NR)
  • Automatic gain control (AGC)
  • Double-talk detection
  • De-reverberation
  • AI noise suppression
  • Voice fencing
  • *Via future firmware update/additional setting required

FONE700 Speakerphone

• 3 units directional + 18 units omnidirectional microphones
• Acoustic pickup angle: 360 degrees per unit
• Acoustic pickup range*: up to 3.5 m radius per unit
• Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m
• Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)
• *Optimal performance varies depending on acoustic treatment of meeting room

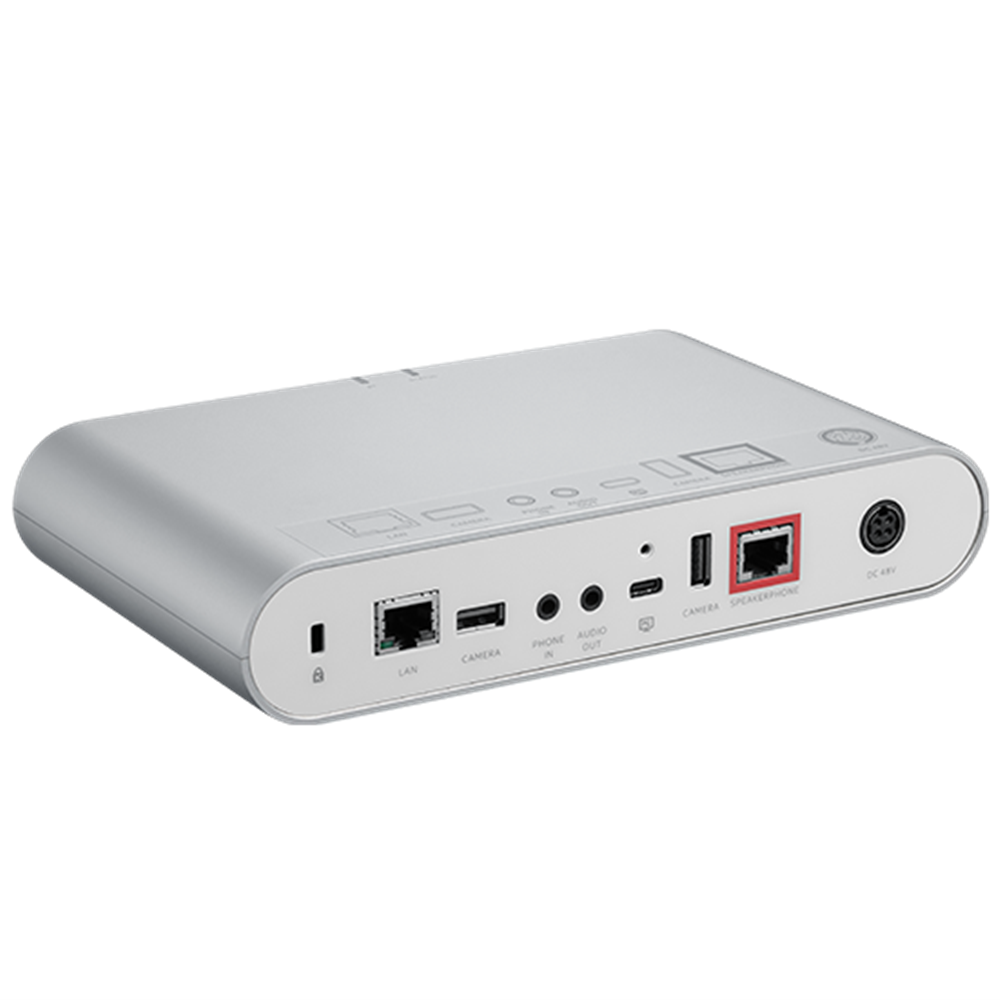

FONE700 Hub

• Acoustic DSP Hub for speakerphone, expandable up to 3 additional units
• One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required
• Integration for video conferencing with versatile connections for:*
  • USB 3.0 type-C port for PC connection
  • USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected
  • USB 2.0 type-A port for BT dongle connection
  • Speakerphone port for AVer proprietary daisy-chained technology
  • LAN port for remote control and AVer Virtual Audio technology
  • 4K HDMI output (for USB to display output from connected PC)
  • 3.5 mm line-out jack for external speaker or hearing aid system
  • 3.5 mm phone-in jack for phone calls or external microphone input
  • *Settings configured in PTZApp 2 or via web browser

Connection

• USB with USB Audio Class (UAC) 1.0
• RJ45 with AVer proprietary Virtual Audio (IP streaming)

Control

• USB Plug and Play: Video conference software with mute/unmute, volume up/down
• PTZApp 2 for advanced settings and AVer Virtual Audio streaming
• Web browser for advanced remote settings

Security

• Safety tether attachment points on speakerphone
• Kensington slot on Hub

Power Supply

• AC 100 V to 240 V, 50/60 Hz
• Consumption: 48 V, 3.75 A

PTZApp 2 Value-added AVer Free Software for Meeting Collaboration

• Auto/manual firmware upgrades
• Acoustic settings
• Operating status diagnosis
• AVer proprietary Virtual Audio streaming technology

System Requirements for PTZApp 2

• Operating system
  • Windows® 7/10/11 or later
  • Mac OS X v10.14 or later
• Processor: 3.2 GHz Intel® Core™ i5-4460 or later
• Memory: 4 GB RAM

Environmental Data

• Operating temperature: 0°C to 40°C
• Operating humidity: 20% to 80%
• Storage temperature: -20°C to 60°C
• Storage humidity: 20% to 80%

Dimensions

• Package dimensions: 39.2 x 39.2 x 24 cm
• Package weight: 7.83 kg
• Hub: 21 x 12.5 x 4 cm/1.06 kg
• Speakerphone: 37 x 37 x 16.5 cm/3.31 kg

Package Contents

• FONE700 Ceiling Speakerphone
• FONE700 Hub
• Power adapter (48 V/3.75 A)
• Power cable
• RJ45 cable (10 m)
• USB-C 2.0 cable (5 m)
• Hub wall mount bracket with screws
• Mount drill template
• Quick Start Guide

Optional Accessories

• Ceiling Speakerphone with 10 m cable supplied (for daisy chain)
• RJ45 cable (10/20 m)
• Ceiling mount kit
• BT dongle
• IR Receiver cable

Compatible Applications

• Software supports UAC connections, e.g., Zoom, Zoom Rooms, Microsoft Teams, Microsoft Teams Rooms, Google Meet, etc

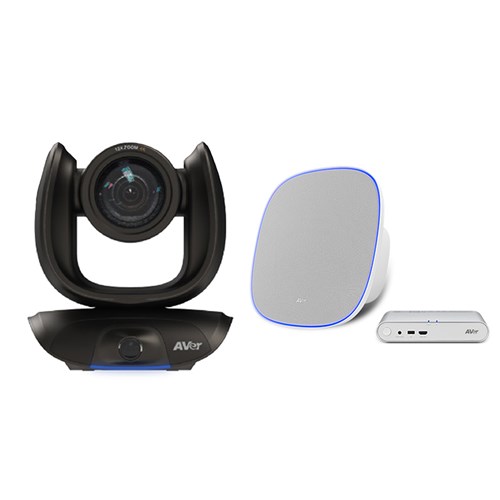

AVer CAM550

4K Dual lens PTZ Conferencing Camera

Product Specifications

Dual Camera

PTZ optical zoom lens

• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 24X Zoom*: 12X optical; 2X digital zoom
• Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
• Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• AE, white balance: auto, manual override via PTZApp 2
• True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions*
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS232

Secondary fixed lens (AI lens)

• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

Features

• Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
• Preset framing tracks both preset area and speaker*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• HDMI Picture in Picture (PIP) function
• Smart gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
• Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link** function

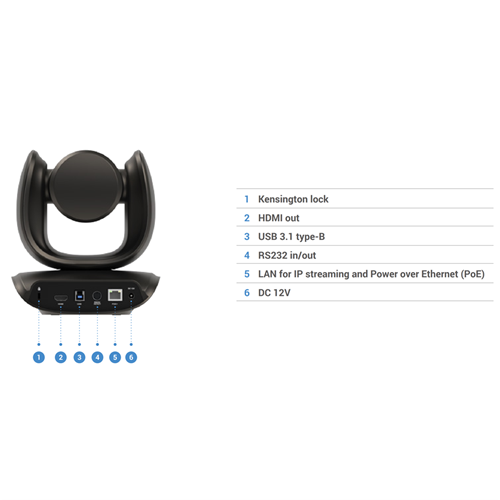

Connectivity

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI

• HDMI 1.3: 1080p 30fps/ 60fps
• PoE+: 802.3at

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264, H.265
• Network protocol: RTSP, RTMP

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

Control

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• PTZApp 2

Power Supply

• AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
• PoE+: 802.3 at

Free Applications for Meeting Collaboration (For Windows® and Mac® computers)

• EZManager 2: Camera Central Management Software
  • Remotely group FW/SW upgrades, control the camera, and manage settings
• PTZApp 2: Camera Settings Software
  • Smart gallery/Virtual USB streaming/Preset Link
  • View live video, participant metrics, and meeting-interval information
  • Enable Skype for Business far-end control
  • Upgrade firmware automatically/manually
  • Control the camera
  • Set parameters and adjust the camera image
  • View operation status, diagnose issues
• EZLive: Broadcasting Software
  • Multi-camera real-time streaming, annotating, image capturing, and video recording

Environment Data

• Operation temperature: 0 to 40°C
• Operation humidity: 20% to 80%
• Storage temperature: -20 to 60°C
• Storage humidity: 20% to 80%

Dimensions

• Package dimensions: 253(L)*253(W)*271(H) mm
• Package weight: 4.8KG
• Camera: 170.8 (L) X 190.5 (H) X 173 (D) mm/ 2.1kg
• Remote control: 200 x 50 x 121mm/90g

Package Contents

• CAM550 unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-B to type-A cable (3m)
• Remote control
• Mini DIN9 to mini DIN8 RS232 adapter cable
• HDMI cable (3 m)
• Wall mount bracket and screws
• QR code card
• Tripod screw
• Drill paper

Optional Accessories

• Mini DIN8 to D-Sub9 cable
• Ceiling mount*
• Foldable TV mount
• USB2.0 type-B to type-A cable (5 m)
• USB 3.1 Extension Cable (10 m/20 m/30 m)

Security and Mount

• Kensington lock
• 1/4” tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount
• Optional ceiling mount

System Requirements

• Windows® 7/10
• MacOS X 10.7 or later
• Google Chromebook™ version 29.0.1547.70 or higher

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

• Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
