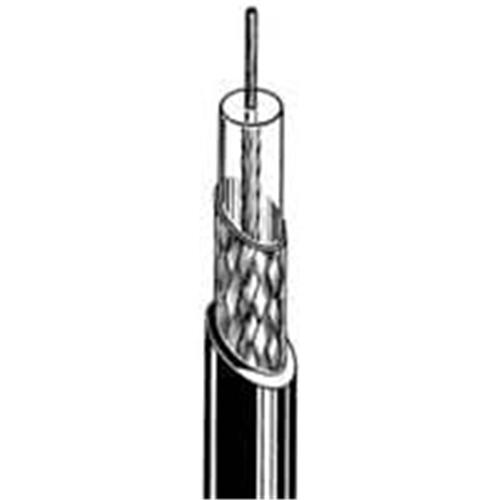

CABLE VIDEO MINI COAX RED100

Product Code: CA-L-3C2VS-R

Brand
Canare
RRP $250.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Coax
  • Details
  • Downloads
Our thinnest 75 ohm coax is both lightweight and super flexible, an ideal choice for all short run inter-rack wiring. This is the same cable type being used inside our RGB component video cable V-1.5C series.

?  Broadcast Transmission.
?  Analog and Digital.
?  Inter-Rack Wiring.
?  Video Patch Cords.
?  Flexible Center Conductor: Stranded Bare Copper.
?  Dielectric strips away clean from Conductor.
?  Tightly Woven Braid Shield.
?  Stays Flexible even in Sub-Zero Weather.
MECHANICAL SPECIFICATIONS
Model Std. Lng.


ft.
(m)		 Nom.
O.D.

in
(mm)		 Wt
Std. Lng.

lbs
(kgs)/100m		 Inner Cond
Conductor
Comp.
(AWG)
Q'ty/mm		 Inner
Cond
O.D.
in.
(mm		 Insulation
O.D.

in.
(mm)
*L-1.5C2VS 328
(100)

656
(200)

500
(153)		 0.11
(2.9)		 2.87
(1.3)		 (31)
7/0.09A		 0.01
(0.27)		 0.06
(1.6)
L-3C2VS 0.22
(5.5)		 9.92
(4.5)		 (25)
7/0.18A		 0.02
(0.54)		 0.12
(3.10)
LV-61S 0.24
(6.1)		 11.02
(5.0)		 (24)
7/0.20A		 0.02
(0.60)		 0.14
(3.6)
L-5C2VS 0.29
(7.4)		 14.99
(6.8)		 (22)
7/0.26A		 0.03
(0.78)		 0.18
(4.8)
L-3C2V 0.21
(5.4)		 9.47
(4.3)		 (25)
1/0.50A		 0.02
(0.50)		 0.12
(3.1)
L-5C2V 0.29
(7.4)		 15.87
(7.2)		 (21)
1/0.80A		 0.03
(0.80)		 0.19
(4.9)
LV-77S 0.30
(7.7)		 19.84
(9.0)		 (22)
7/0.26A		 0.03
(0.78)		 0.19
(4.8)

(contd.) MECHANICAL SPECIFICATIONS
Model Outer Conductors
Shield Coverage
 & Comp.		 Inner
Cond.
Resistance
ohm/mile
(ohm/km)		 Outer
Cond.
Resistance
ohm/mile
(ohm/km)		 Static
 Capacity

(pF/m)		 Characteristic
Impendence
ohm		 Attenuation
dB/100m(328ft)
10MHz)
*L-1.5C2VS 0.10A/5/16
(94% or more)		 26.04
(41.9)		 1.99
(3.2)		 69 75 8.7
L-3C2VS 0.12A/7/16
(94% or more)		 6.52
(10.5)		 1.18
(1.9)		 67 75 4.5
LV-61S 0.12A/6/24
(95% or more)		 5.28
(8.5)		 0.80
(1.3)		 67 75 3.8
L-5C2VS 0.12A/7/24
(93% or more)		 3.10
(5.0)		 0.74
(1.2)		 67 75 2.9
L-3C2V 0.14TA/5/24
(97% or more)		 5.78
(9.3)		 0.74
(1.2)		 67 75 4.1
L-5C2V 0.14TA/7/24
(94% or more)		 2.24
(3.6)		 0.49
(0.8)		 67 75 2.5
LV-77S 0.12A/7/24(92% or more)
0.12A/8/24(95% or more)		 3.10
(5.0)		 0.34
(0.55)		 67 75 3.4
