Cables and Connectors

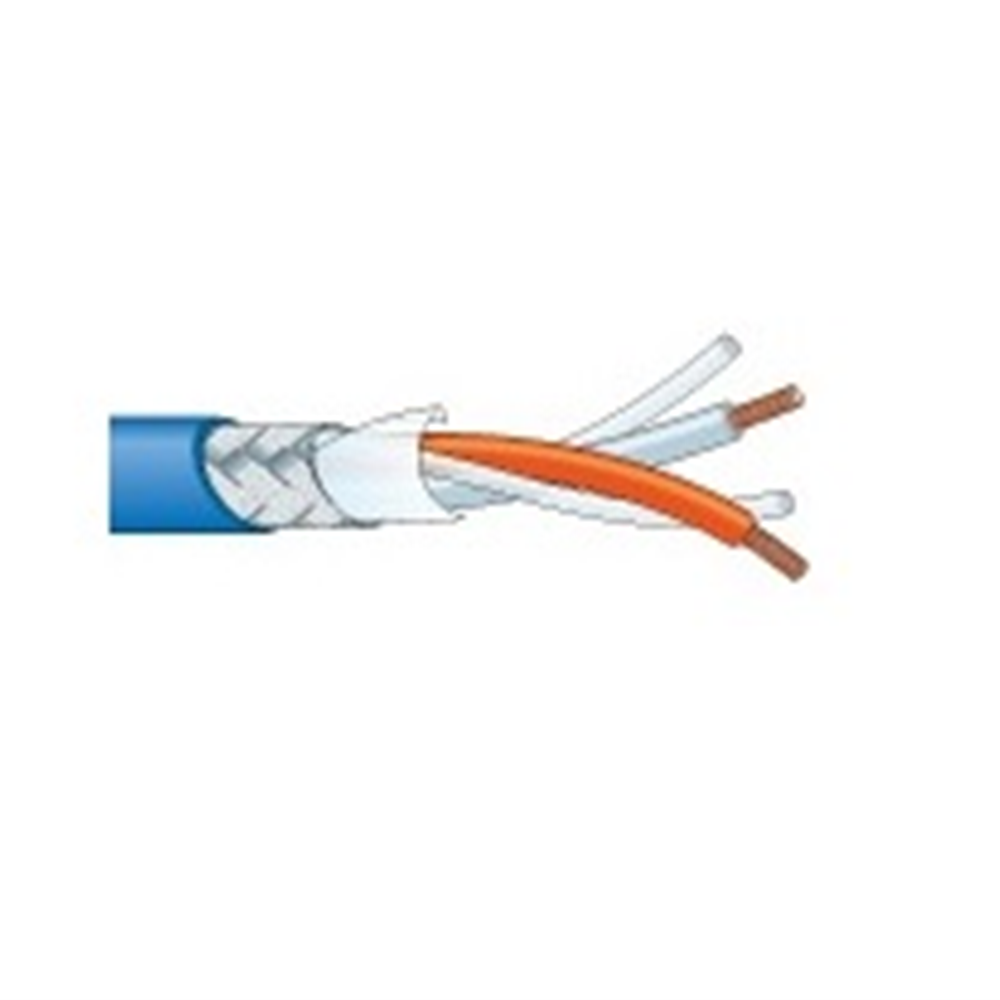

DA206 AES cable blue 100m

Product Code: CA-DA206-BL100

Brand
Canare
RRP $820.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type 2 Core
  • Details
  • Downloads

Large OD for longest cable runs. Robust construction makes this cable a good choice for all Digital Pro Audio field recording. Maximum recommended AES/EBU Length: 1,180ft (360meters). Jacket color: BLUE.

?  AES/EBU Digital Audio.
?  Audio Rack Wiring.
?  Post Productions.
?  Twisted Pairs with Braid Shield.
?  Special PE Filter Rods maintain constant 110 ohm impedance.


MECHANICAL SPECIFICATIONS
Model Std.
Lng.

ft.
(m)		 Wt.
Std. Lng.

lbs.
(kgs)		 Nom.
O.D.

in.
(mm)		 PVC
Jacket
Nom.
Thick.
in.
(mm)		 Brittle
Point

F°
(C°)		 No.
of
Cond.		 Insul.
Type*
Thick

mil		 Cond-AWG
(Qty./mil)
Cross Sec.
Area
mm²		 Pitch
of
Quad
in.
(mm)		 Shield
Cover-
age
DA206 328
(100)

656
(200)		 17
(8)

35
(16)		 .287
(7.3)
.035
(0.9)
 -56
(-49)		 2
ORG
WHT		 IPE
30.3		 AC-#20
(7/12.60)
0.56		 - >95%
Braid
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.

ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.

ohm/1000ft
(ohm/100m)		 Shield
D.C.R.

ohm/1000ft
(ohm/100m)		 Nom.
Cap.
***
pF/ft
(pF/m)		 Nom.
Cap.
†
pF/ft
(pF/m)		 Nom.
Imp.

ohm		 Nom.
Atten.
@3MHz

dB/100m		 Group
Delay
Time
nS/ft
(nS/m)
DA206 <10.1
(<3.3)		 <4.3
(<1.4)		 14.6
(48)		 22.3
(73)		 110 2.2 -
***Capacitance between conductors.
†Capacitance between conductors to shield.
COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
DA206 - - [+] - - - - - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, "- -"=n/a
