Cables and Connectors

Product Code: CA-BCP-B25HW

Brand
Canare
RRP $10.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Connector Type BNC
  • Details
  • Downloads

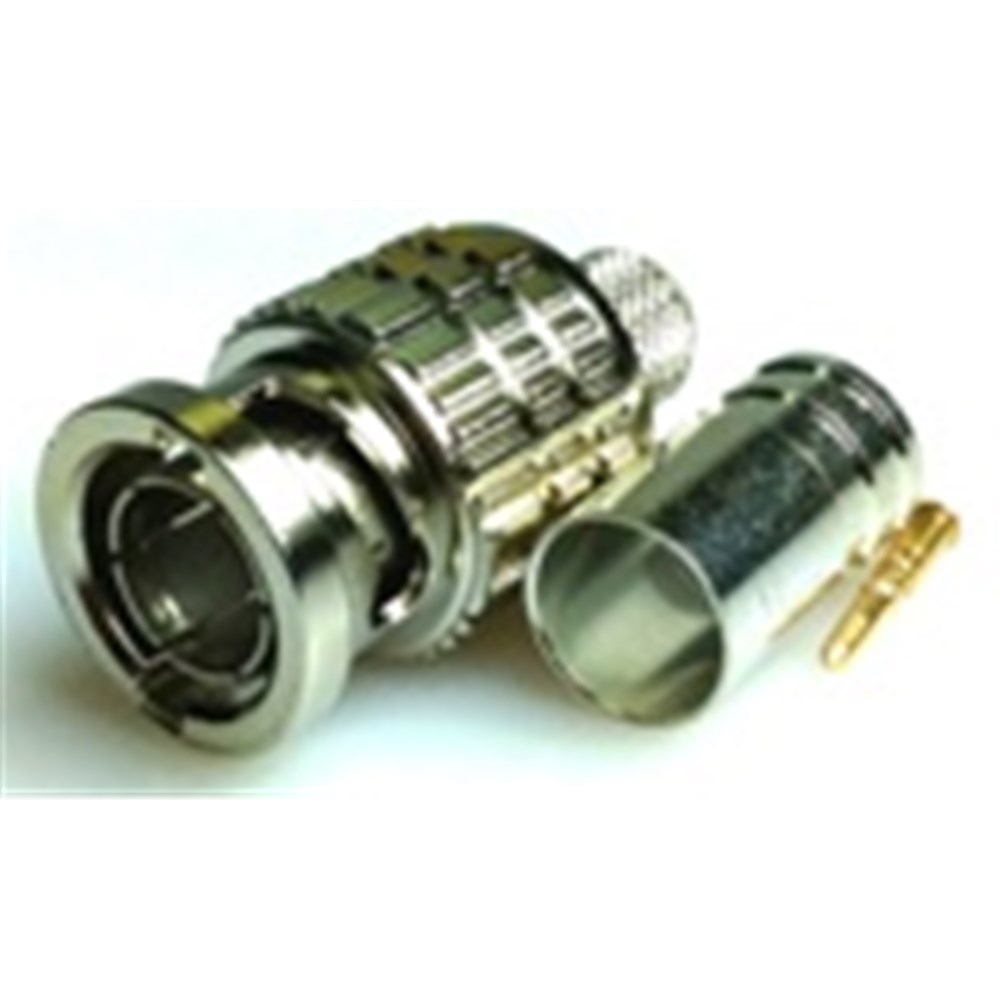

75 ohm BNC Crimp Plugs (Straight Type)

BCP-B Series
●  SMPTE 424M & 292M Compliant.
●  Serial Digital Video.
●  HDTV Upgrades.
●  NTSC Analog.
●  Test Equipment.
●  Satellite Headends.
●  TELCOM.
●  True 75 ohm construction Crimp Pin & Sleeve.
●  High performance of 1.1 or less VSWR up to 3GHz.
●  Elongated Body for better finger grip.
●  Position mark on body allows the connector fit to be checked easily.
●  Superior cable pull strength.
●  Gold plated center pins 'snap' into place.
●  Connector Body has been die-cast, achieving a lower price with higher performance.
●  Easy Assembly using Canare Strip & Crimp Tools.

75 ohm BNC Connector, Straight Plug
Product Listings
Model Cable Boot Crimp Die Crimp Pin Sleeve
BCP-B25HD L-2.5CHD CB02 TCD-35CA B11015E BN7129
BCP-B26 1855A CB02 TCD-35CA B11014E BN7029C
BCP-B25HW L-2.5CHWS CB02 TCD-35CA B11015E BN7143
BCP-B3F L-3CFB CB03 TCD-35CA B11015E BN7003A
BCP-B31F L-3CFW CB04  TCD-4C
TCD-451CA		 B11015E BN7015A
BCP-B4F L-4CHD
L-4CFB
1505A		 CB04 TCD-4C
TCD-451CA		 B11016E BN7015A
BCP-B45HW L-4.5CHWS
1694F		 CB05A TCD-35CA B11020D BN7016
BCP-B53 L-4.5CHD
1694A		 CB05A TCD-35CA B11020D BN7046
BCP-B5F L-5CFB CB05A TCD-5CF B11020D B75004A
BCP-B51F L-5CFW CB05A TCD-5CF B11020D B75004A


























Specifications
Items BCP-B Series

Return Loss (0-3GHz)

26dB or greater

Pull Strength

BCP-B53: 245N
for
L-4.5CHD, 1694A

Coupling Sleeve

Zinc Alloy Die Casting

Center Pin

Gold Plating

Weight

BCP-B53:
approx. 12.5g
