PAGING GATEWAY M400

Bridges Smartphones, Computer and Tablet with Analog and IP Paging Systems
The Barix Paging Gateway allows to page from mobile phones and from any computer or tablet on the local network. It easily integrates with most existing analog paging systems. The web app provides a simple to use interface that allows paging into any paging system, even fully analog ones (no application needs to be installed).

Access protection makes sure, only persons allowed to page, can use the system. The Paging Gateway can also be used as a zone-based paging station. The user selects the zones he/she wants to page to and the fully IP based IC paging solution routes the paging to the right speakers or zone amplifiers.

• L-R Line Out on RCA Connectors (unbalanced)
• Multi-level message priority
• G.711 over RTP

Paging Gateway M400 enables paging from smartphone into almost any existing analog Public Address System.

Paging Gateway M400 integrates into Barix fully IP-based IC Paging solution for zone-based paging from web browsers and smartphone.

Specifications

OPERATION SYSTEM

• Embedded Linux based on Yocto

NETWORK INTERFACES

• 1 x Ethernet (RJ45) Interface
• IPv4, IPv6 capable
• 10/100 fdx/hdx, auto negotiation
• TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
• BARP

CPU / MEMORY

• Barix IPAM400 Processor Module
• Quad-Core ARM Cortex™ -A7
• 2GB DDR3 SDRAM
• 16MB SPI Flash
• 8GB SD-Card Flash

AUDIO FORMATS

• G.711 (uLaw/aLaw), 8kHz and 24kHz

AUDIO INTERFACE

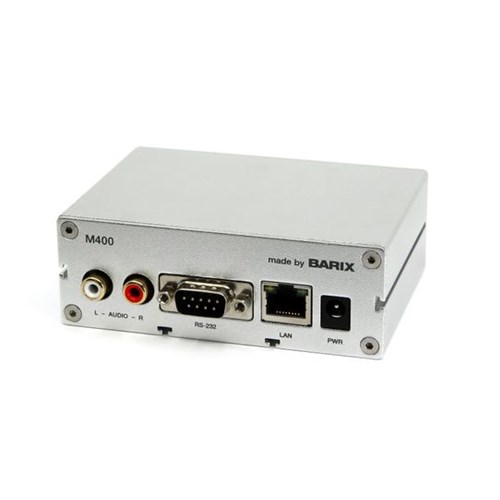

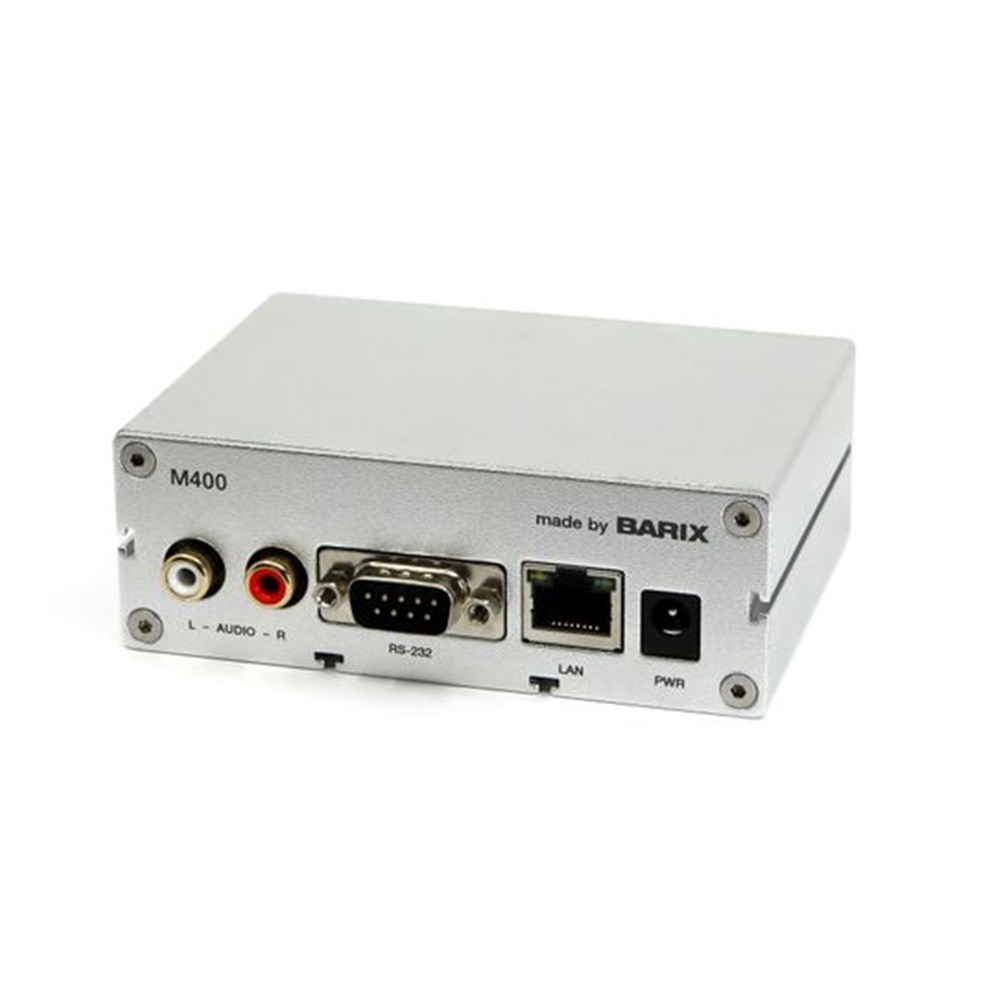

• unbalanced L-R Line level output on RCA connectors

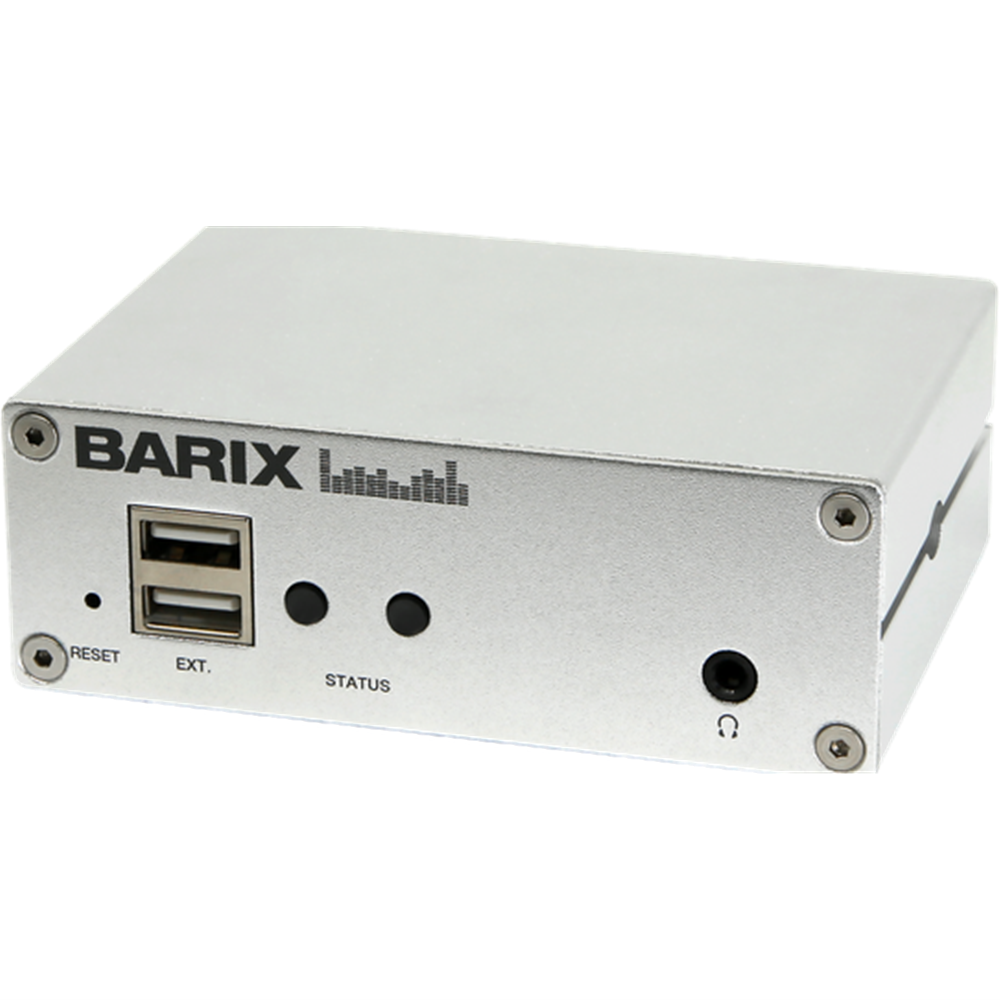

• Headphone connector on the front panel

USER INTERFACE

• Mobile Paging Web App
• Web interface for configuration
• 2 x Multicolor LED Status indicators
• Reset & Factory Defaults Button

POWER REQUIREMENTS

• 5VDC, 10W maximum on 6.5x1.5mm barrel connector (positive polarity)

MTBF

• > 200’000h

MEASUREMENT

• 108x38x78.7mm (4.25x1.5x3.1 inch

WEIGHT

• 250g

WARRANTY

• Two years
