BAR20089090

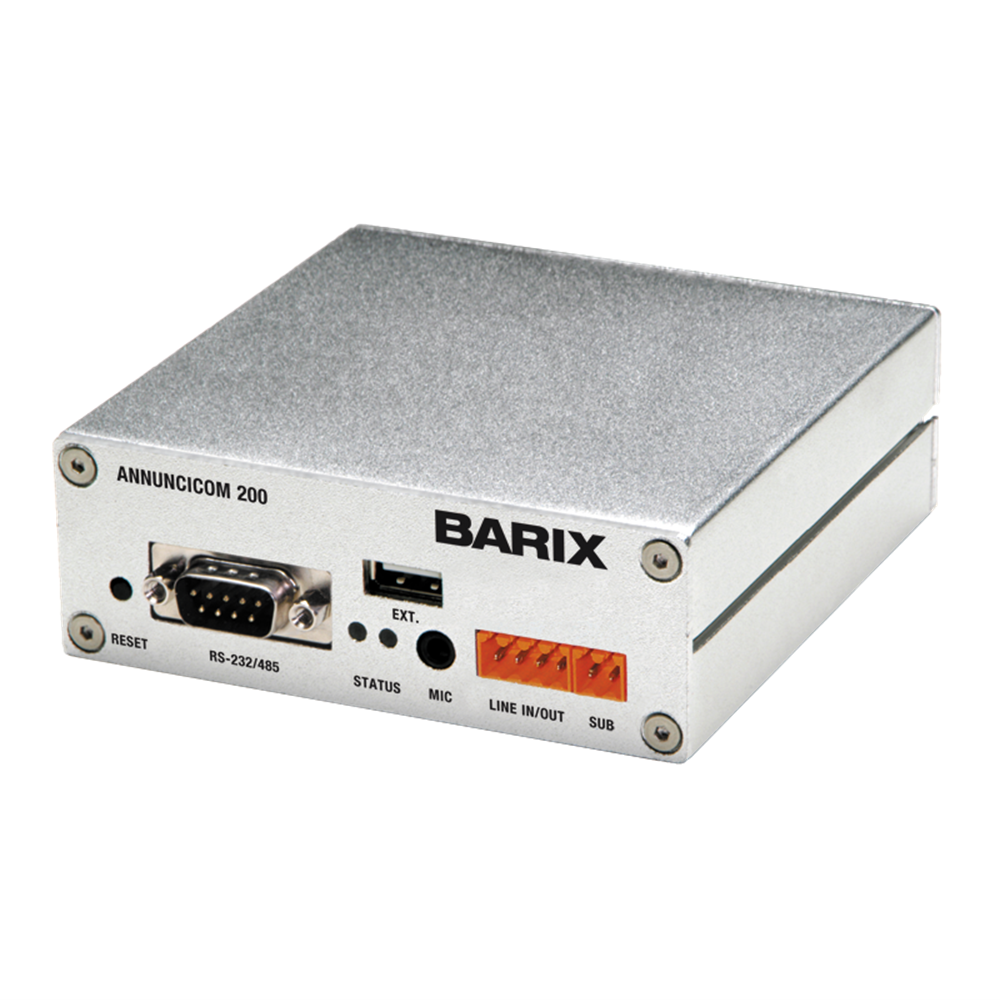

Barix Annuncicom 200 with PoE.

FUNCTIONALITY

IP Paging and Intercom device with mic/speaker and line level interfaces. 8W output power into 8 Ohm and contact closure inputs, relay output. Useable as paging gateway, small zone device and Intercom device.

APPLICATIONS

• VHF Radio Controller and interface to IP
• Microphone Encoder for IP Audio Surveillance
• Door Intercom Controller, VoIP based
• Help Point/SOS call box device
• Classroom VoIP device with built-in amplifier, talkback, serial port
• Paging and Audio Distribution with Amplifier control and monitoring
• Live IP Audio Encoder for Streaming Applications
• Generic, bidirectional full-duplex VoIP module for Paging and Intercom Applications
• SIP and IP Paging Zone Device
• Digital Annunciator, Message Player, Message Repeater

FEATURES

• MP3, G.711, G.722*, PCM Encoding
• MP3, G.711, G.722*, PCM Decoding
• Shoutcast/Icecast Source capability
• Audio Level Supervision with SNMP Trap generation
• IP Streaming via TCP, UDP, RTP, Multicast
• Microphone Input
• Line Level Input
• Line Level Output
• Amplified Output 2W (8 Ohm)
• Relay Output (1)
• Contact Closure Input (2)
• RS-232 Serial Port (1)
• RS-485 Serial Port (1)
• Isolated Power Supply Input (PoE or ext)
• Supply Voltage (16..30VDC or 48VDC)
• Aiphone Door Station Interface (IE/JE series)
• Designed in Switzerland and installed in tens of thousands of locations worldwide, the Barix Audio Devices are the established standard for VOIP and Audio over IP applications.
