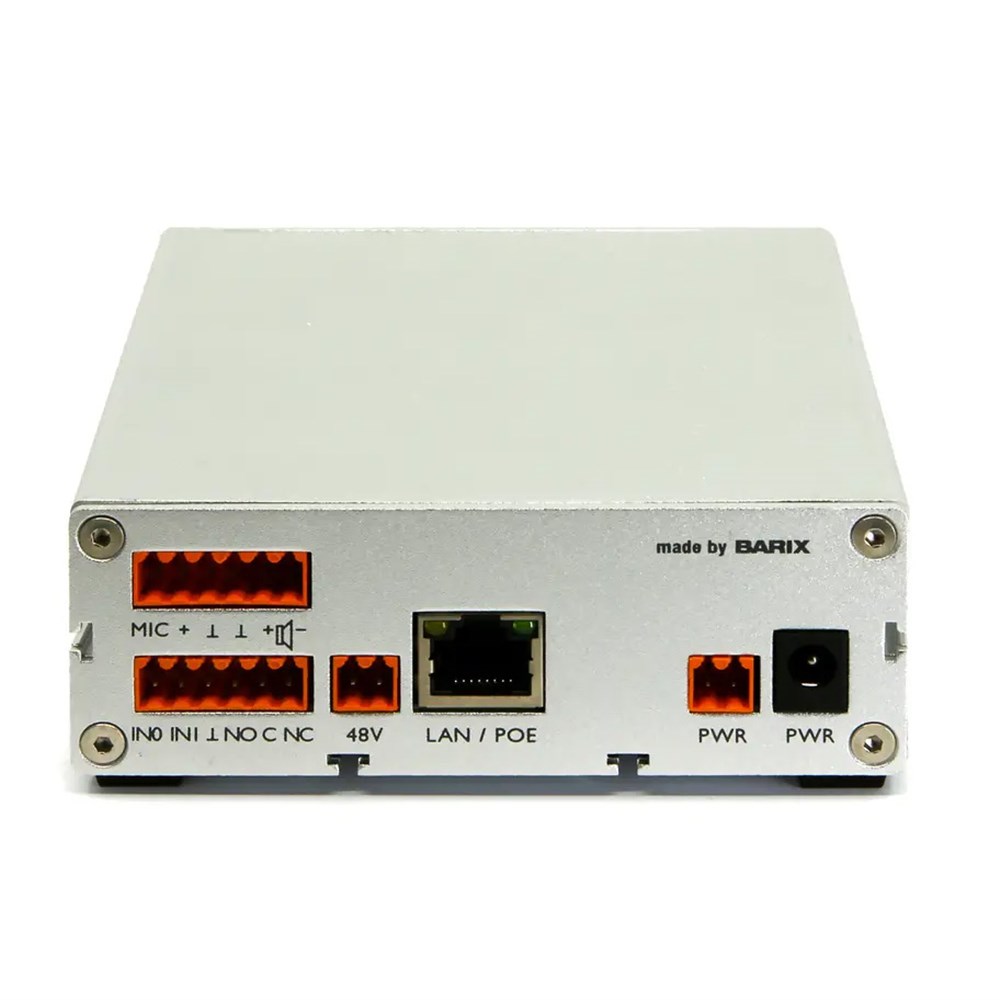

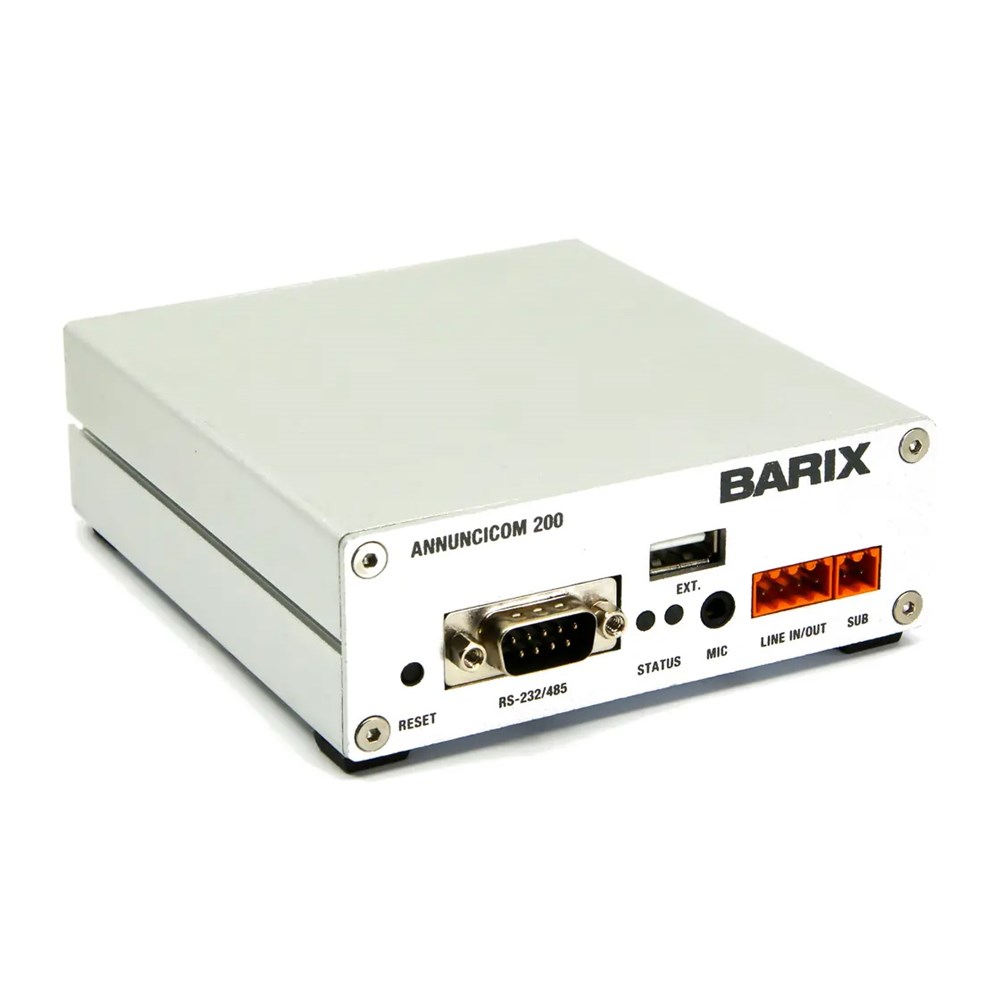

Barix Annuncicom 200 Rava Poe BAR20139136 Barix

Product Code: BX-BAR20139136

Brand
Barix
RRP $1,050.00


Unit of Measure
EACH



2 Year
Technical Specifications
Brands Barix
Product type IP Paging and Intercom
  • Details
  • Downloads

Annuncicom 200

Intercom / Paging device with contact closure inputs and relay output, 8W amplifier

FUNCTIONALITY

IP Paging and Intercom codec device with mic/speaker and line level interfaces. 8W output power into 8 Ohm and contact closure inputs, relay output. Useable as paging gateway, small zone device and Intercom device.

Applications

  • VHF Radio Controller and interface to IP
  • Microphone Encoder for IP Audio Surveillance
  • Door Intercom Controller, VoIP based
  • Help Point/SOS call box device
  • Classroom VoIP device with built-in amplifier, talkback, serial port
  • Paging and Audio Distribution with Amplifier control and monitoring
  • Live IP Audio Encoder for Streaming Applications
  • Generic, bidirectional full-duplex VoIP module for Paging and Intercom Applications
  • SIP and IP Paging Zone Device
  • Digital Annunciator, Message Player, Message Repeater

FEATURES

  • MP3, G.711, G.722*, PCM Encoding
  • MP3, G.711, G.722*, PCM Decoding
  • Shoutcast/Icecast Source capability
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Microphone Input
  • Line Level Input
  • Line Level Output
  • Amplified Output 8W (8 Ohm)
  • Relay Output (1)
  • Contact Closure Input (2)
  • RS-232 Serial Port (1)
  • RS-485 Serial Port (1)
  • Isolated Power Supply Input (PoE or ext)

Technical Specifications


Electrical:
  • 16 to 30 VDC, 16 to 24 VAC, 12 Watt max. on screw terminal block and 2.1mm barrel connector
  • 802.3af PoE 48 VDC, 12 Watt max. on RJ-45 connector and on screw terminal block
Ethernet:
  • 10/100Mbps auto,
  • RJ-45 connector with integrated Link/Activity LED
  • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast capable
Microphone Input:
  • On detachable screw terminal block and 3.5 mm (1/8") Jack 3 pin TRS, with bias power 2.7VDC
Aiphone sub interface:
  • For Aiphone „IE" door stations, on screw terminal block
Analog Line Input (mono):
  • Line level input, 2k Ohm input impedance on on screw terminal block, 2.2 VPP max, adjustable in sensitivity
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 87 dB, SNR -87 dB, THD <0.01% (-3dBFS)**
RS-232 and RS-485 Interfaces:
  • On 9-pin Sub-D connector
  • 300..230'400 Baud asynchronous, tunneling or local control
Analog Line Output (mono):
  • Line level output, 40..60 Ohm output impedance on screw terminal block, output level software controllable
  • Full scale output voltage: 3 dBu, 3 VPP
  • Frequency response 20 Hz .. 20 kHz (-3dB)**
  • Dynamic range 94 dB, SNR -94 dB, THD <0.03 % (-3dBFS)**
Speaker out
  • On detachable screw terminal block
  • Suggested speaker impedance 8 to 16 Ohm
  • 8 Watt max @ 8 Ohm
  • Frequency response 20 Hz .. 20 kHz (-3dB)*,
  • Dynamic range 80dB, SNR -80dB, THD <0.15% (-3dBFS)*MTBF
Mechanical
  • Aluminum case, 420 g
  • Dimensions 108 x 38 x 125 mm (4.25 x 1.5 x 4.92 inch)
  • rack and wall mountable using accessories
Audio formats
  • MP3 VBR, CBR*
  • MP3, encoding/decoding up to 192/320 kbps
  • PCM 16 bit and 8 bit (uLaw, aLaw) @ 8..48 kHz
  • PCM, G.711, G.722*, encoding/decoding
Model comparison
  • Model 60 (48 VDC) , PoE, 5 Watt
  • Model 100 (9..30 VDC 12..24 VAC) USB 2 Watt
  • Model 155 (24..48 VDC) 5.5 Watt
  • Model 200 (16..30 VDC, 48VDC, 16..24 VAC) PoE, USB, Aiphone, 8 Watt
  • Model 1000 (24..48 VDC)
Discrete I/O
  • On detachable screw terminal block
  • 1 relay output with normally closed and open contacts, 30V 0.5A (AC & DC)
  • 2 discrete / dry contact inputs
MTBF
  • calculation min. 370 000h (according to MIL217F at 25°C)
  • * Hardware revision 2 only
  • ** depends on used codec, best results @48kHz PCM
