Paging Systems

Barix Annuncicom 100 BAR20069064 Barix

Product Code: BX-BAR20069064

Brand
Barix
RRP $1,155.00


Unit of Measure
EACH



2 Year
Technical Specifications
Brands Barix
Product type IP Paging and Intercom
  • Details
  • Downloads

BAR20069064

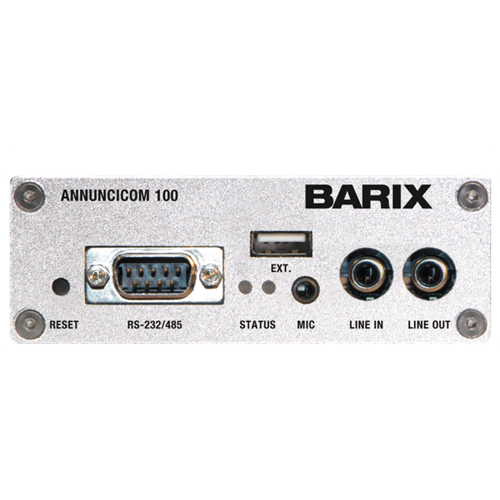

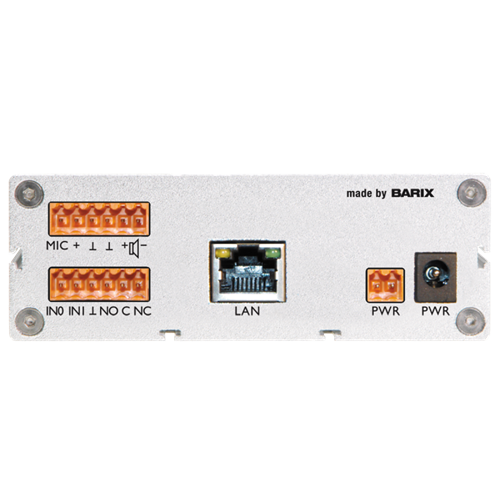

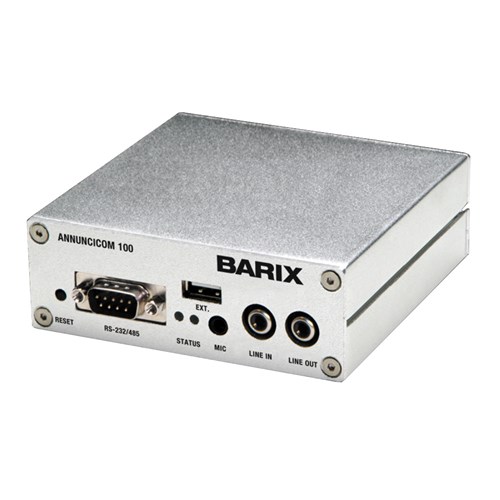

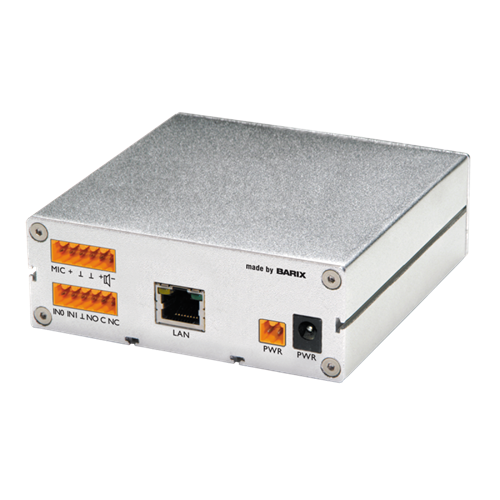

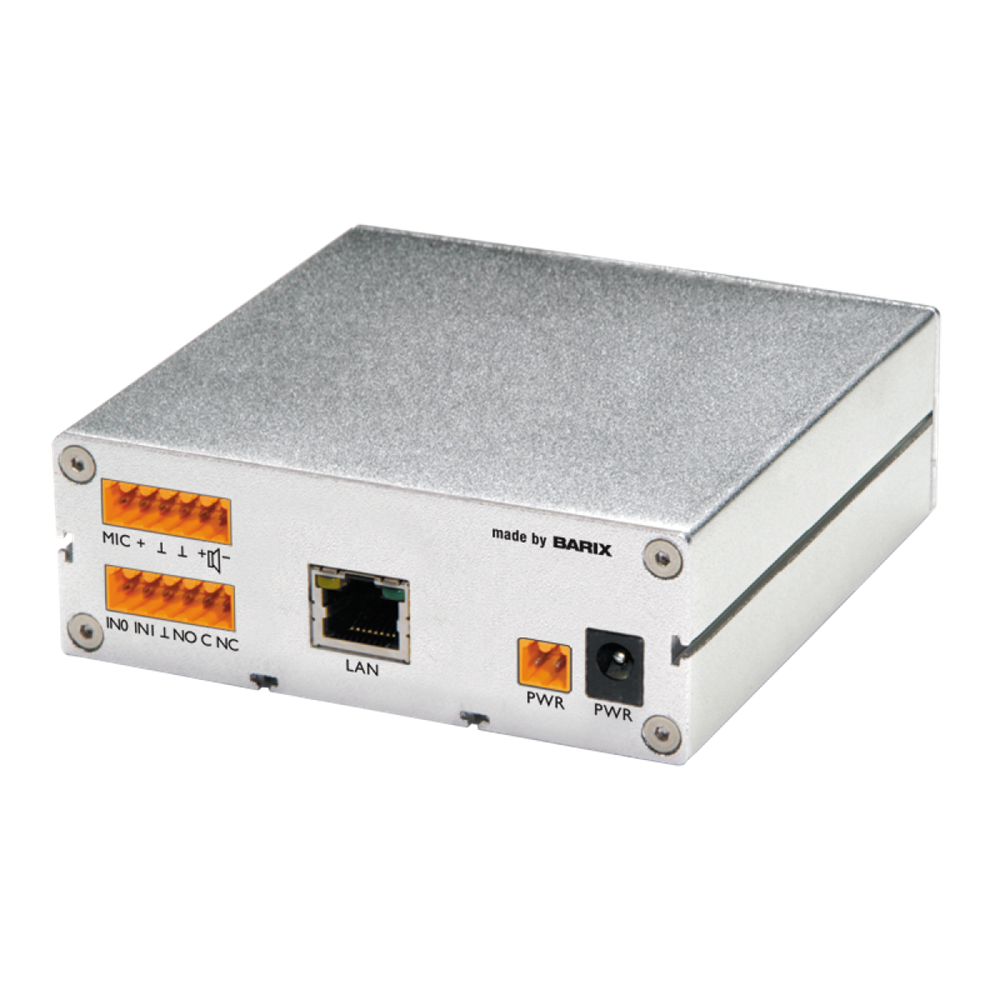

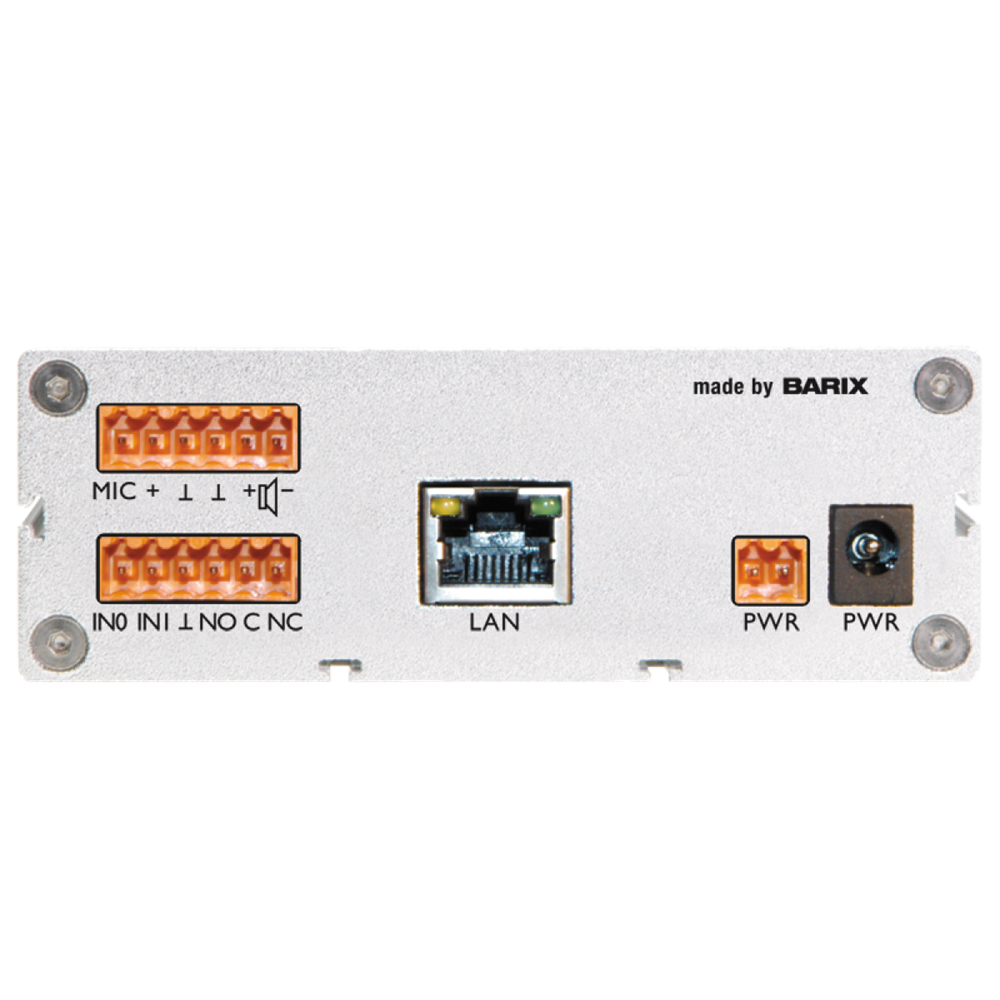

Barix Annuncicom 100 network audio encoder/decoder.


FUNCTIONALITY


IP Paging and Intercom device with mic/speaker and line level interfaces. 2W output power into 8 Ohm, contact closure inputs and relay output. Useable as paging gateway, small zone device and Intercom device.


APPLICATIONS


• VHF Radio Controller and interface to IP
• Microphone Encoder for IP Audio Surveillance
• Door Intercom Controller, VoIP based
• Help Point/SOS call box device
• Classroom VoIP device with built-in amplifier, talkback, serial port
• Paging and Audio Distribution with Amplifier control and monitoring
• Generic, bidirectional full-duplex VoIP module for Paging and Intercom Applications
• Live IP Audio Encoder for Streaming Applications
• Digital Annunciator, Message Player, Message Repeater
• SIP and IP Paging Zone Device
FEATURES
• MP3, G.711, G.722*, PCM Encoding
• MP3, G.711, G.722*, PCM Decoding
• Shoutcast/Icecast Source capability
• Audio Level Supervision with SNMP Trap generation
• IP Streaming via TCP, UDP, RTP, Multicast
• Microphone Input
• Line Level Input
• Line Level Output
• Amplified Output 2W (8Ohm)
• Relay Output (1)
• Contact Closure Input (2)
• RS-232 Serial Port (1)
• RS-485 Serial Port (1)
• Supply Voltage (16..30VDC or 48VDC)
• Designed in Switzerland and installed in tens of thousands of locations worldwide, the Barix Audio Devices are the established standard for VOIP and Audio over IP applications alike.

Product Documents
