  • BAR20239425 Barionet UX8 USB connected and powered I/O Extension 8 input to 8 output

BAR20239425 Barionet UX8 USB connected and powered I/O Extension 8 input to 8 output

Product Code: BX-BAR20239425

Brand
Barix
$640.00 inc GST
RRP $640.00

Out of Stock
Increase value Decrease value
Unit of Measure
EACH


2 Year
Technical Specifications
Brands Barix
Product type I/O device
  • Details
  • Downloads
  • Ordering

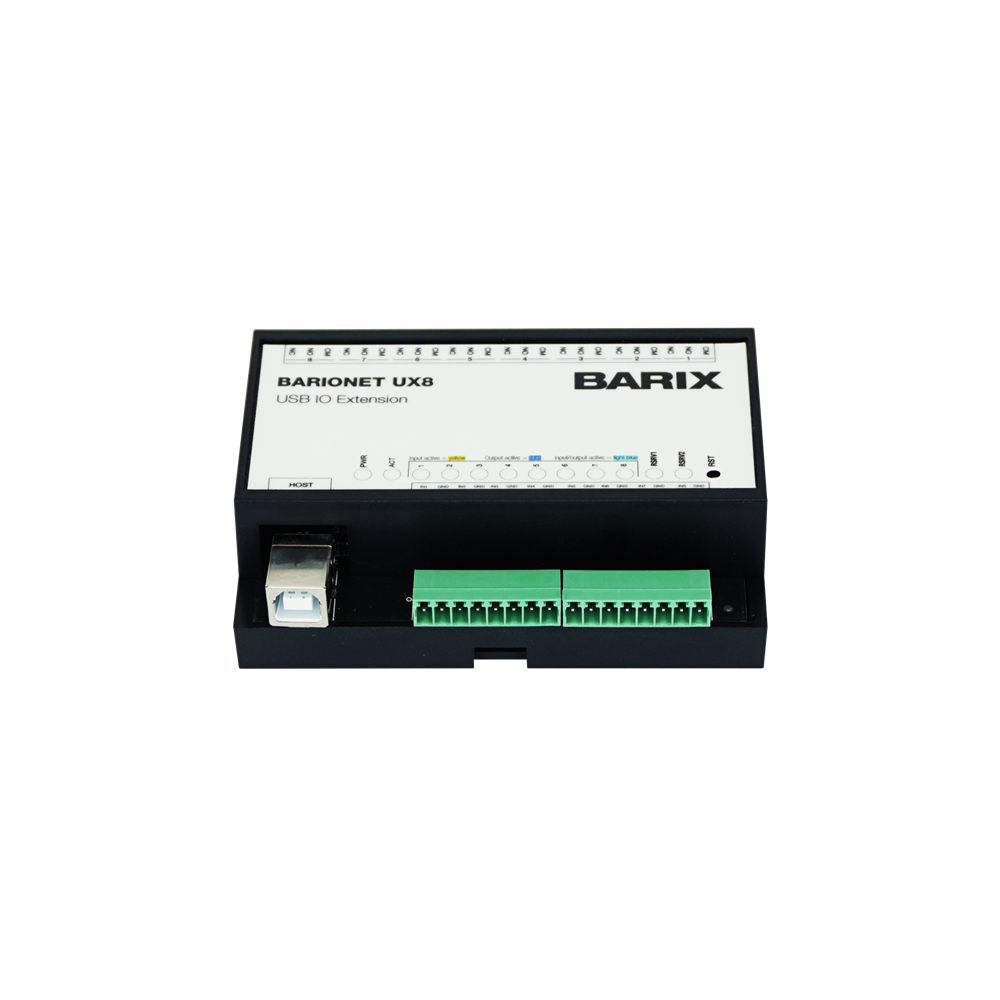

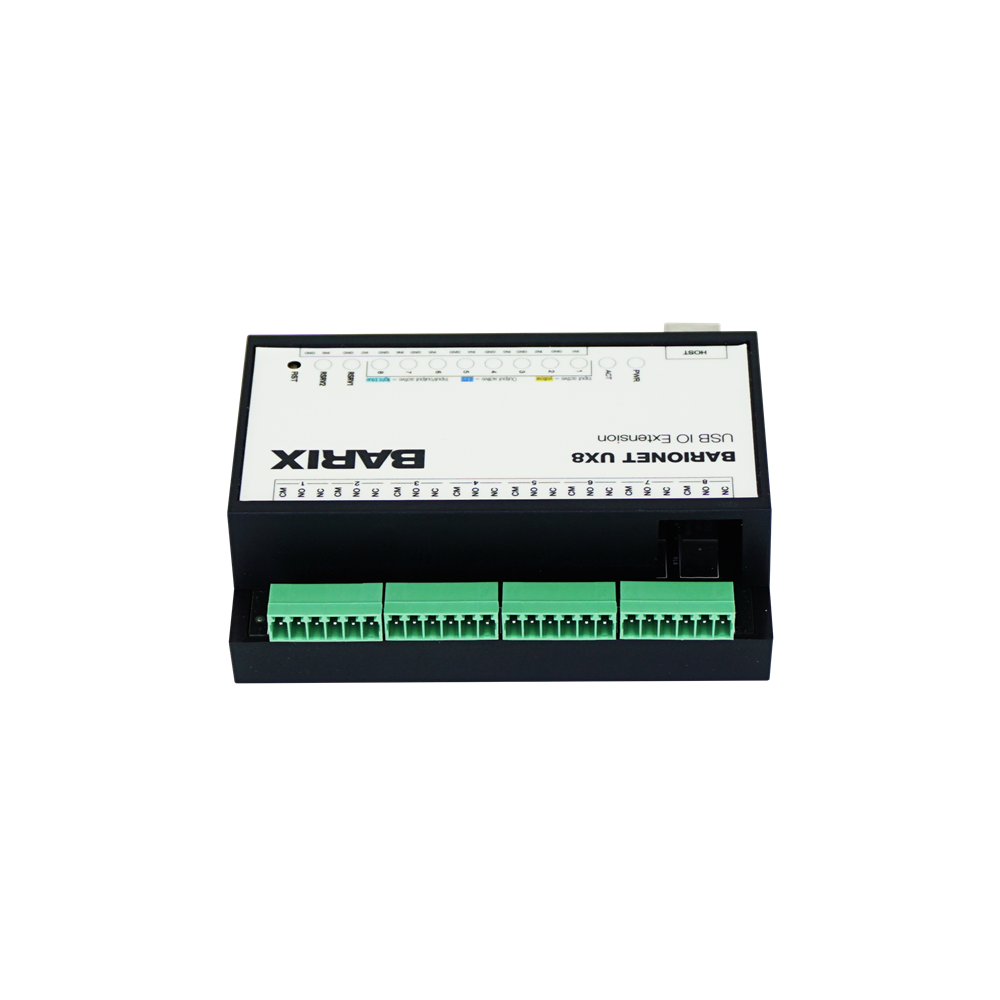

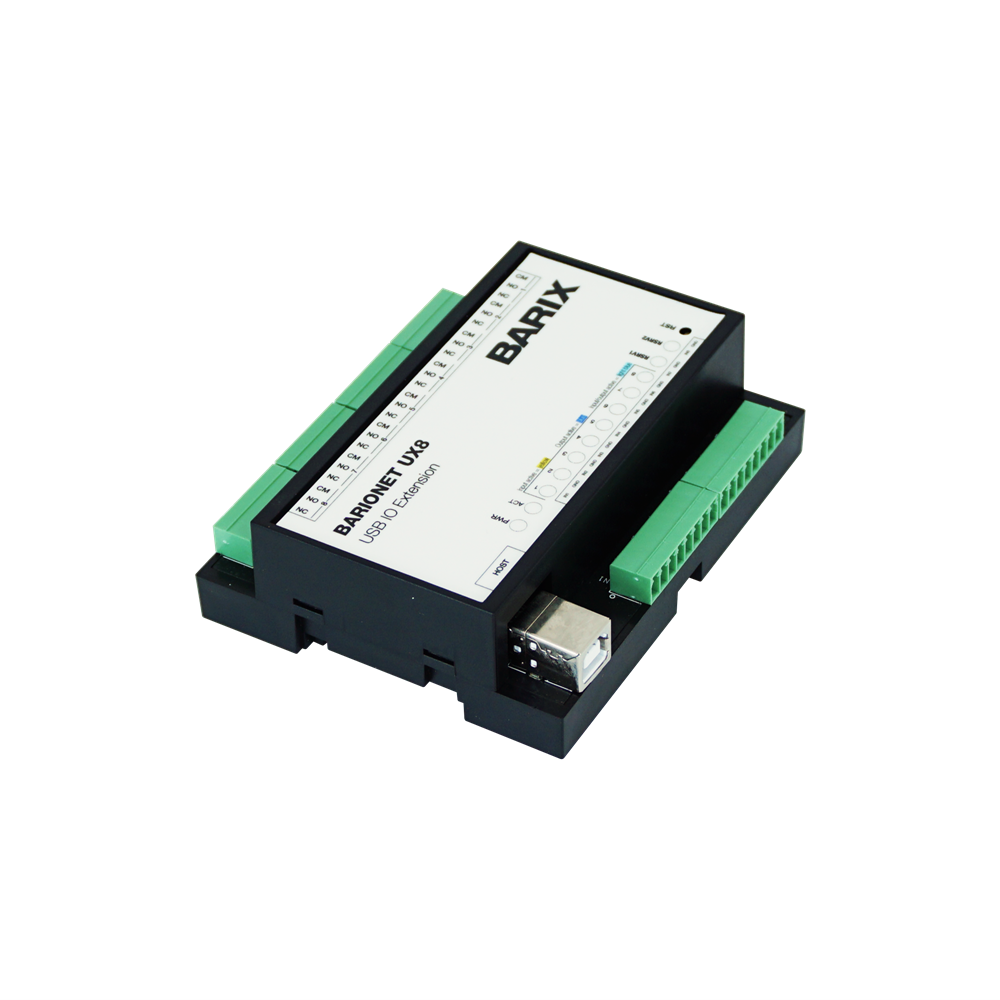

Barionet UX8


USB connected and powered IO Extension.

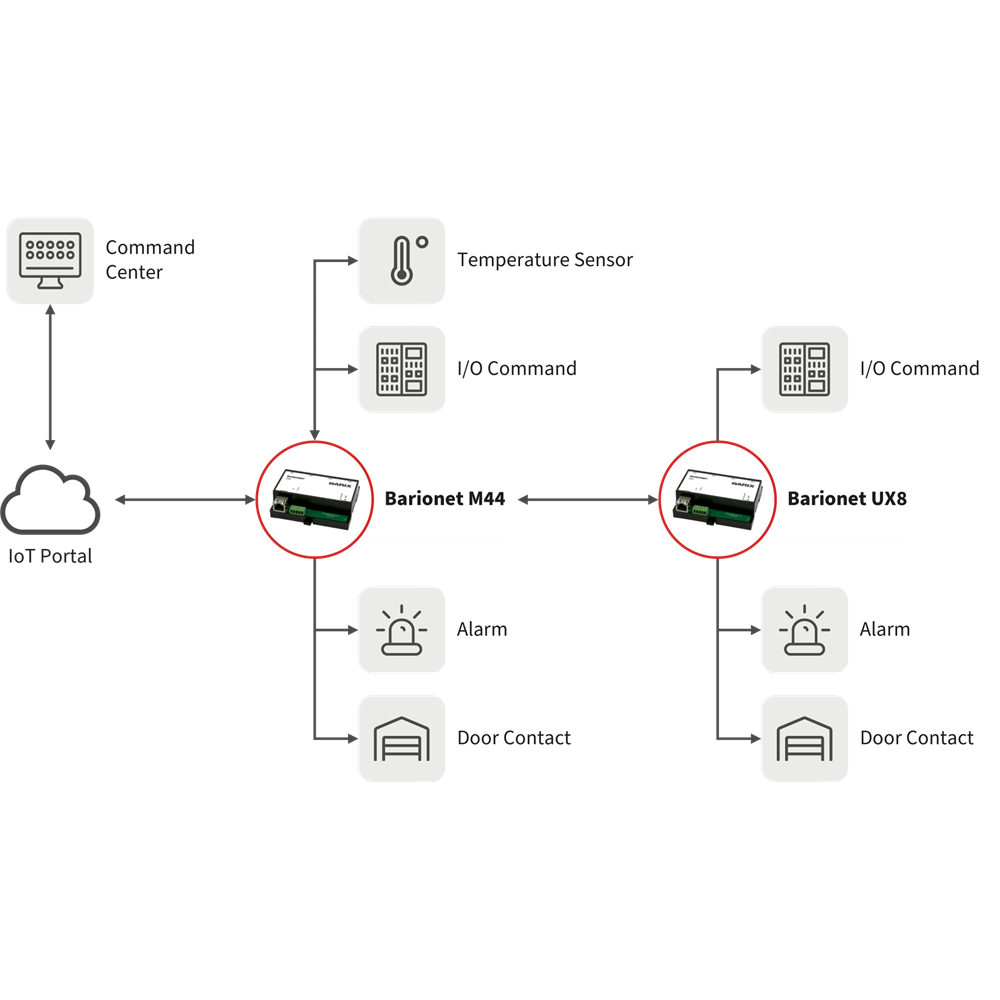

The UX8 is a USB connected and powered IO Extension for IPAM based Barionet devices. It provides a simple way to increase the number of contact closures with 8x Dry Input Contact and 8x Relay outputs with NO and NC positions. The Barionet UX8 is immediately identified by the head-end Barionet device to which it is connected to and seamlessly extends its IO capabilities. The IOs provided by UX8 appear as part of the file system just like the built-in IOs of the head end Barionet unit. A Barionet head-end unit can support up to 2 UX8 extensions.

Specifications

  • Operation System
    • Extension to the head unit’s Linux file system
  • Host Interface
    • 1 x USB Type B
  • I/O Interface
    • 8 x Relay Outputs (30VDC, 1A) NO and NC
    • 8x Dry contact inputs (0 -15V)
  • Compatibility
    • Compatible with Barionet M series
    • NOT compatible with Barionet 50, 100, 400, 1000
  • Power Requirements
    • 5V on USB: 2.5W (max)
  • LEDs
    • Power
    • (8x) Input contact closures
    • (2x) Relay Outputs (#1 and #2)
  • Buttons
    • Reset button to perform HW reset of the MCU board on
    • UX8
    • DIP Switch used to set the unit’s address to the head end
    • Barionet
  • Measurement
    4.05” x 3.35” x 1.22” / 105mm x 85mm x 31mm
  • Weight
    • 150g
  • Warranty
    • Two years
  • Package Content
    • Barix UX8 device
    • 4x 6-pin female terminal block
    • 2x 8-pin female terminal block
    • Rail spring adaptor
    • USB A to USB B cable
    • Sticker with Mac Address and password inf

Product Documents
