CL01

The ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting!

PTZ Camera Controller

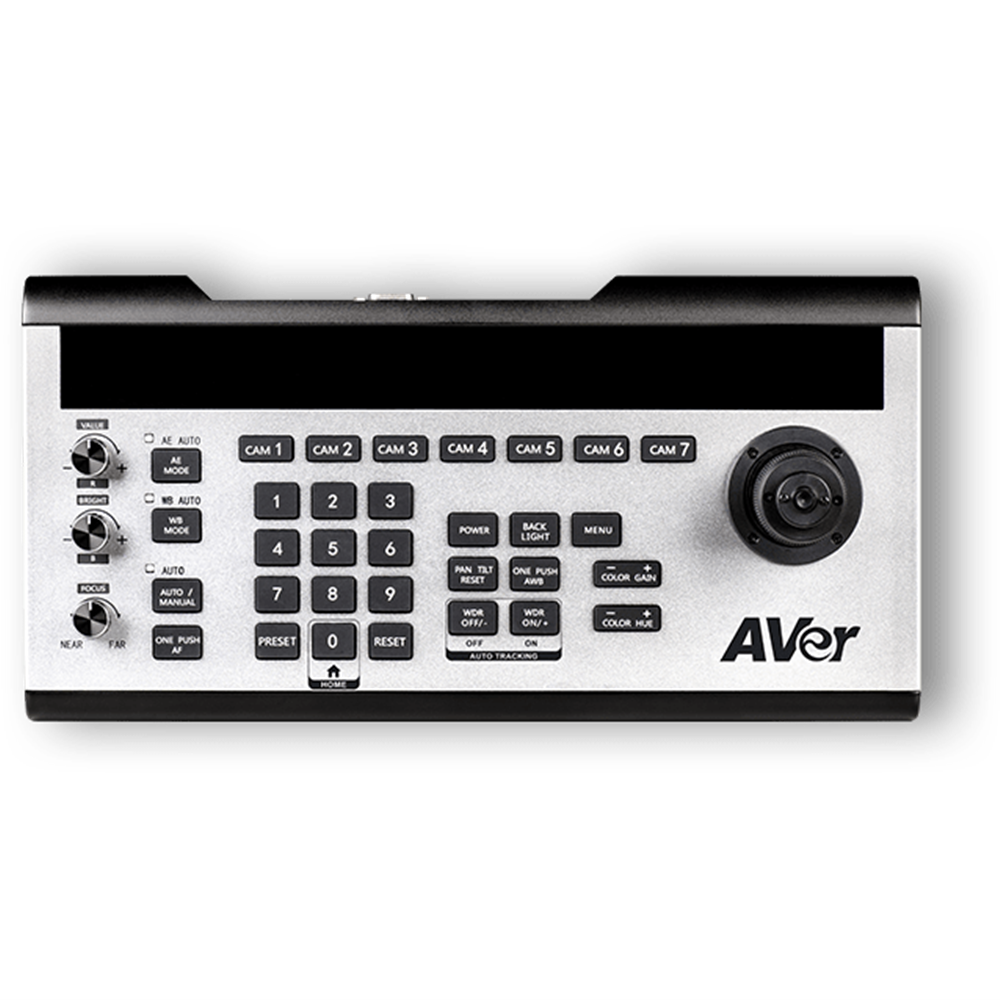

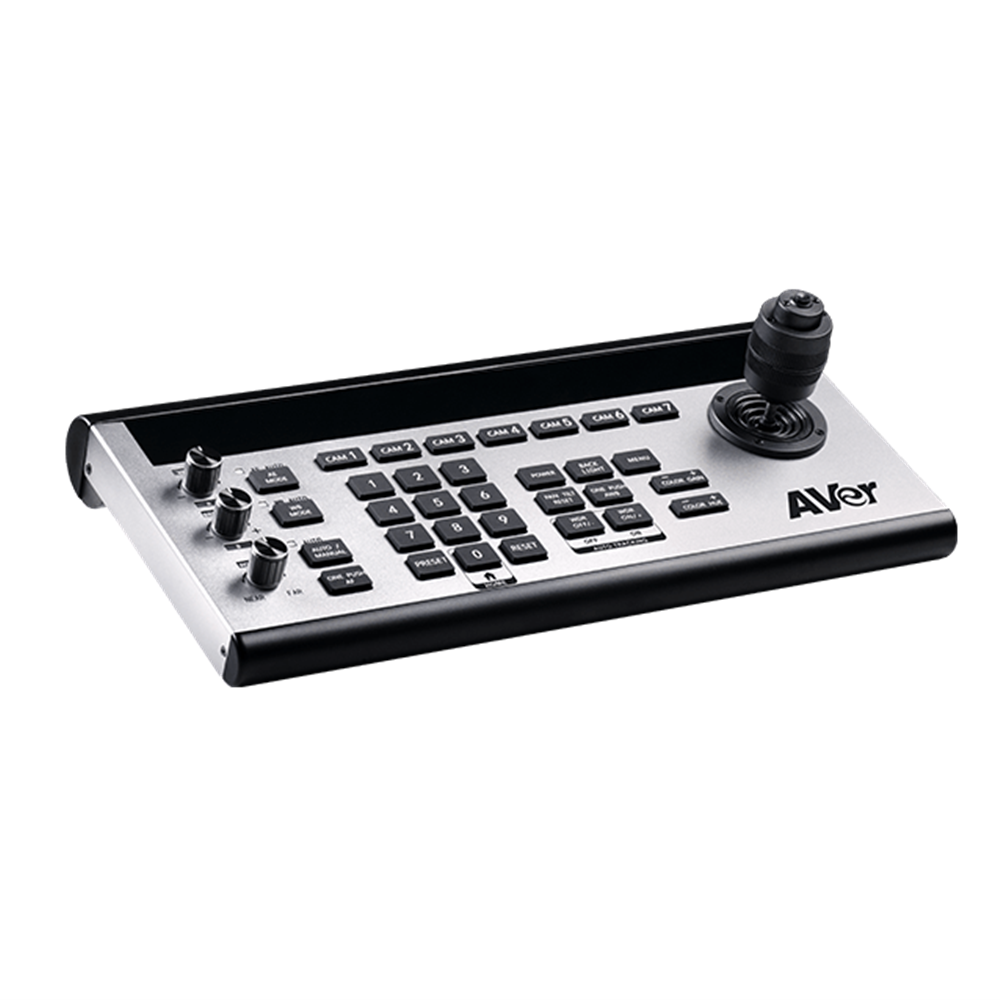

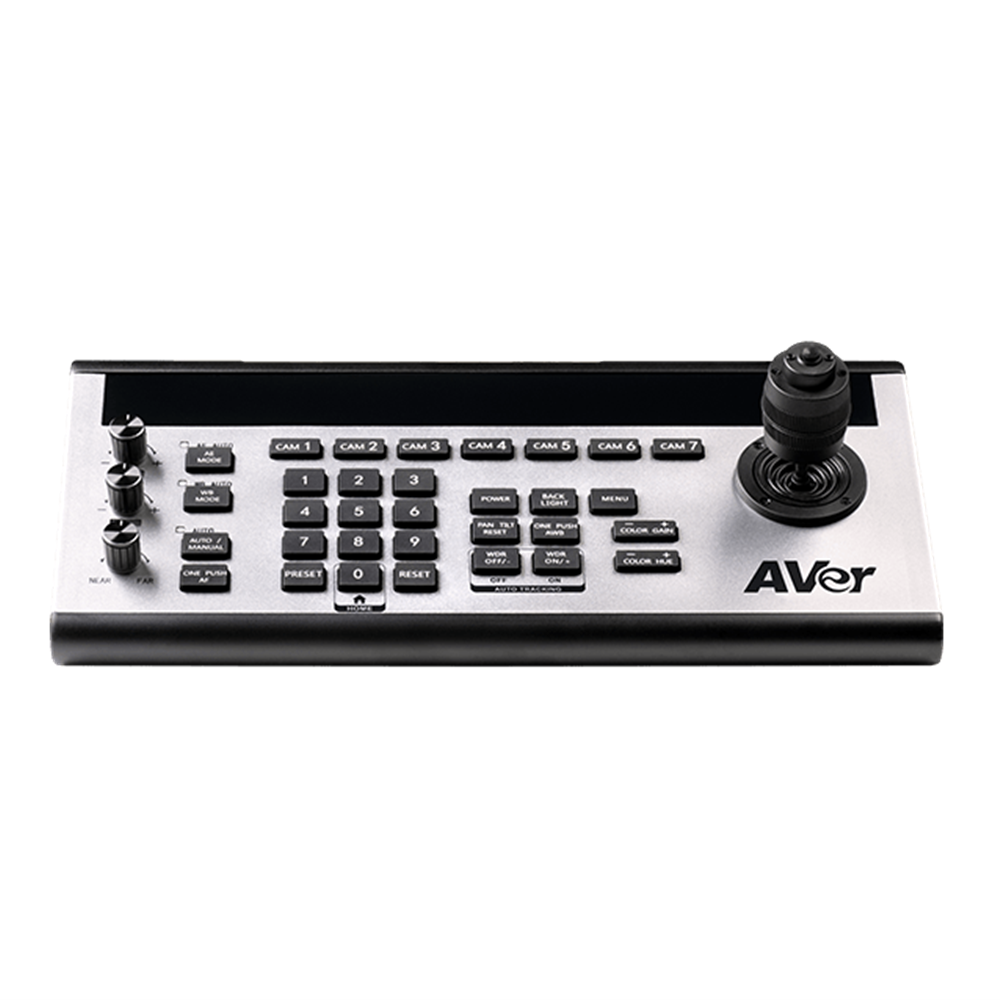

The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.

Specs

I/O Interface

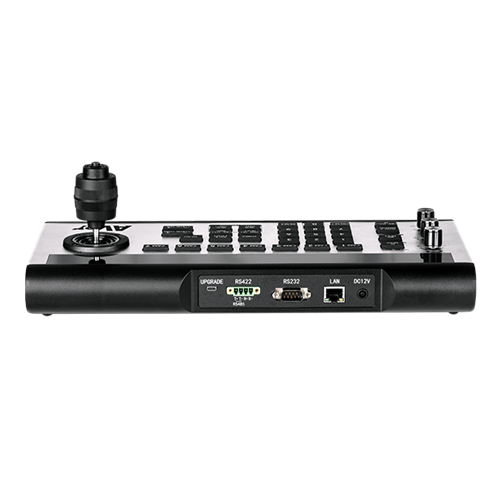

• Communication: RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades
• Baud Rate: 2400, 4800, 9600, 19200, 38400 bps

User Interface

• Display: OLED display screen
• Camera Shortcut Channel: 7
• Rotation Button: 3
• Joystick: 1

Camera Control

• IP Address: Default: 192.168.1.162 /163 /164 /165 /166 /167 /168 (from Cam 1 to Cam 7)
• UDP Port: 08090
• Cam ID: 1 to 7 and more (255 max.)
• Control Protocol: VISCA, SONY VISCA , Pelco D/P, UDP, IP (VISCA over IP)

System

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Dimensions: 173 mm (W) x 99 mm (H) x 350 mm (D)
• Net Weight: 2.5 kg
• Power Source:
  • DC 12V/2A
  • AC 100 – 240V
• Power Consumption: 24 W
• Application: Indoor
• Warranty: 3 years
• Package Content:
  • User manual
  • 4-pin RS485 terminal
  • power adapter
