  • ABB SYSTEM ACCESS POINT 2.0 SAP/S.3

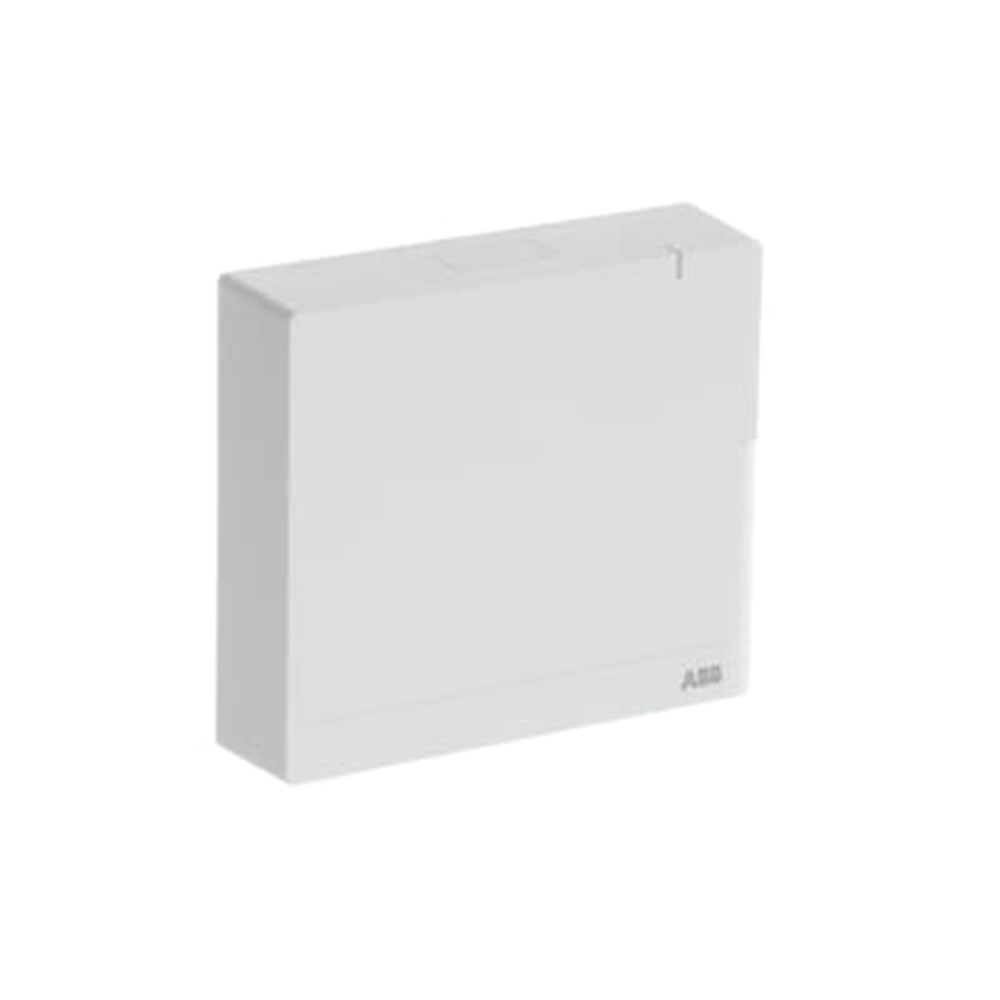

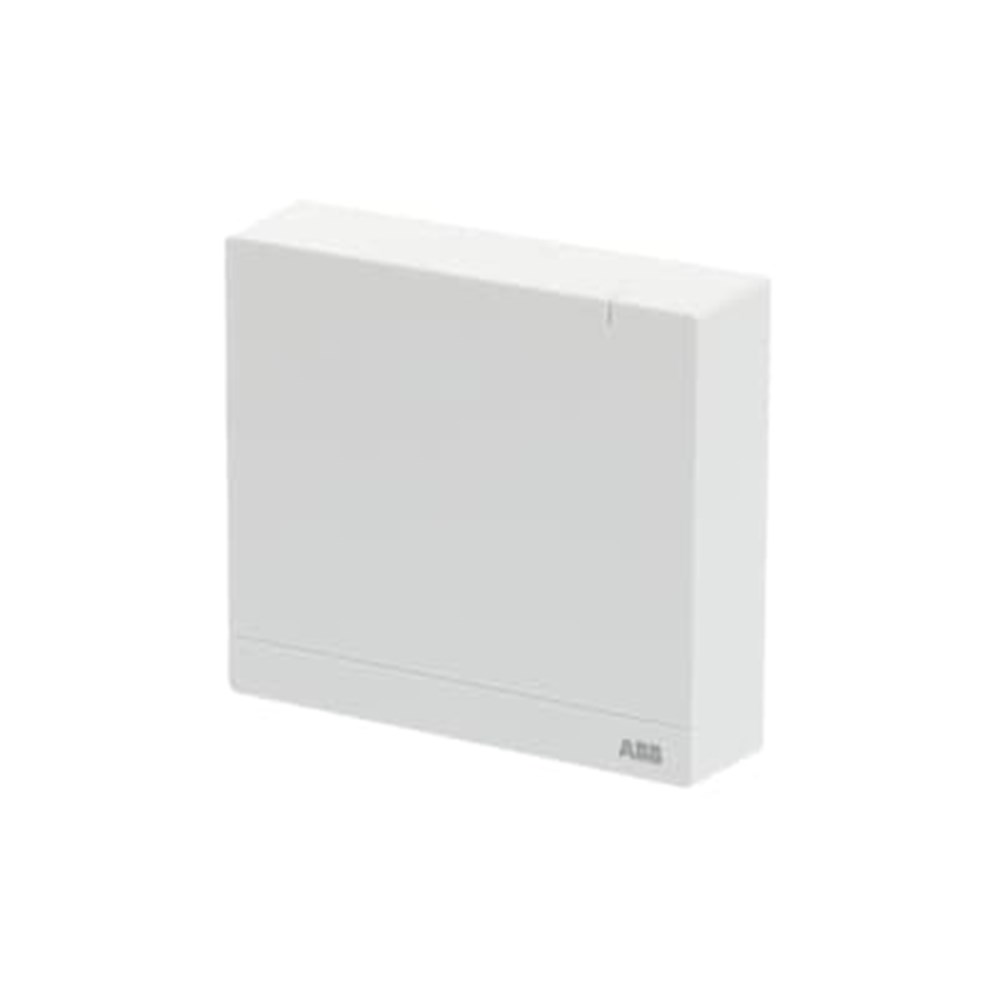

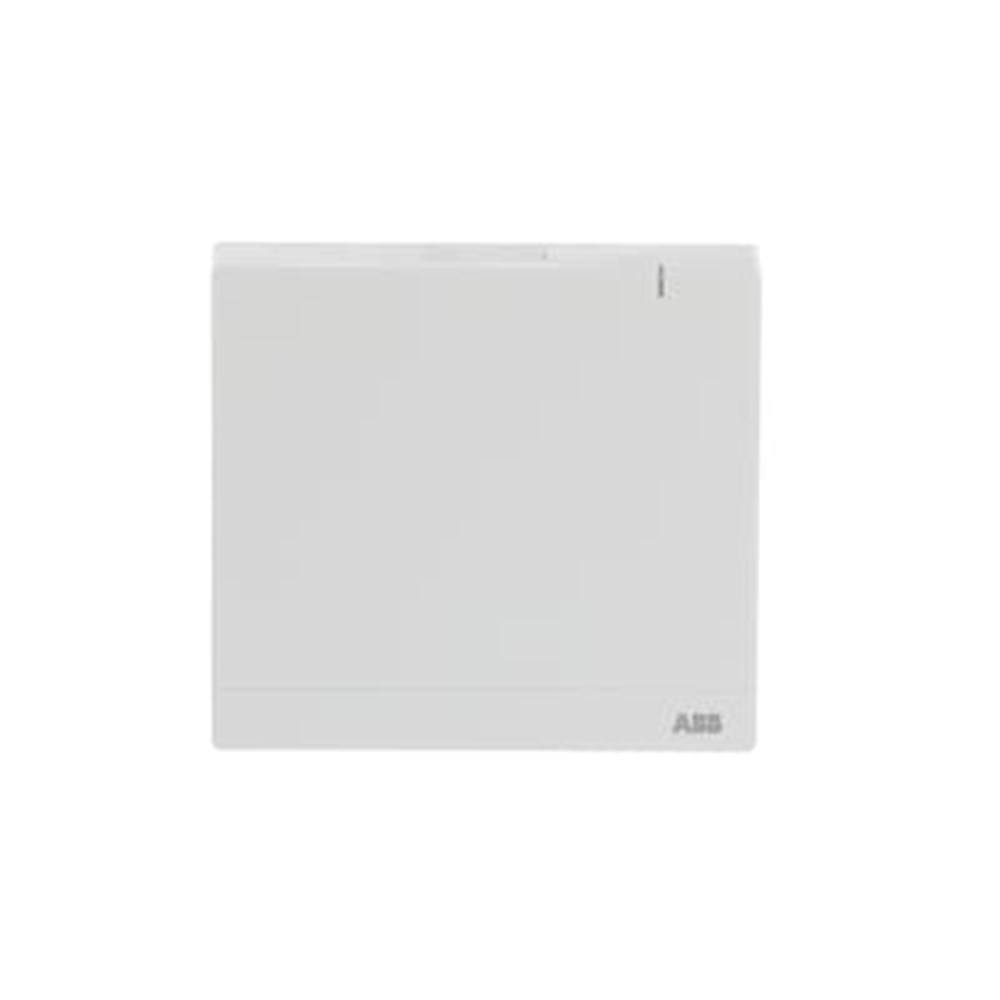

ABB SYSTEM ACCESS POINT 2.0 SAP/S.3

Product Code: AB-SAP/S.3

Brand
ABB FREE@HOME
RRP $1,668.00


Unit of Measure
EACH


Unspecified
Technical Specifications
Brands ABB-free@home
  • Details
  • Downloads
  • Ordering

For commissioning and remote control of the ABB-free@home® system. Support for up to 150 free@home participants (independent of whether wireless or wired). With integrated free@home wireless antenna. With integrated free@home bus connection. Easy to mount thanks to the external power adapter (included in the scope of delivery). Optional supply via the yellow/white twisted pair of the bus line (24 V). Allows the execution of astro and time programs. Commissioning and remote control is executed via the web interface or app. No additional commissioning software is required. Easy commissioning with WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. Suitable as table device. Suitable for wall mounting. 2 x USB ports for future extension of functions. 2.4 GHz and 5 GHz WLAN 1 GHz dual core processor 512 MB working storage Scope of delivery: Mounting plate, power adapter, screws and dowels The bus connection is provided via the enclosed bus terminal.

Installation
  • Mounting Type: Surface Mounted
  • Modular Components Included: Complete Device
Environmental
  • Ambient Air Temperature: Operation -5 ... +45 °C
  • Degree of Protection: IP20
Technical
  • Compatible Bus Systems: free@home (TP), free@home wireless
  • Product Range: free@home, free@home Wireless
  • Transmission Standard: Wireless, Wireless LAN, Ethernet, Twisted Pair Wiring
Electrical
  • Rated Voltage (Ur): 230 V
  • Rated Frequency (f): 50/60 Hz
Dimensions
  • Product Net Width: 117 mm
  • Product Net Height: 30 mm
  • Product Net Depth / Length: 106 mm
  • Product Net Weight: 345 g

Product Documents
