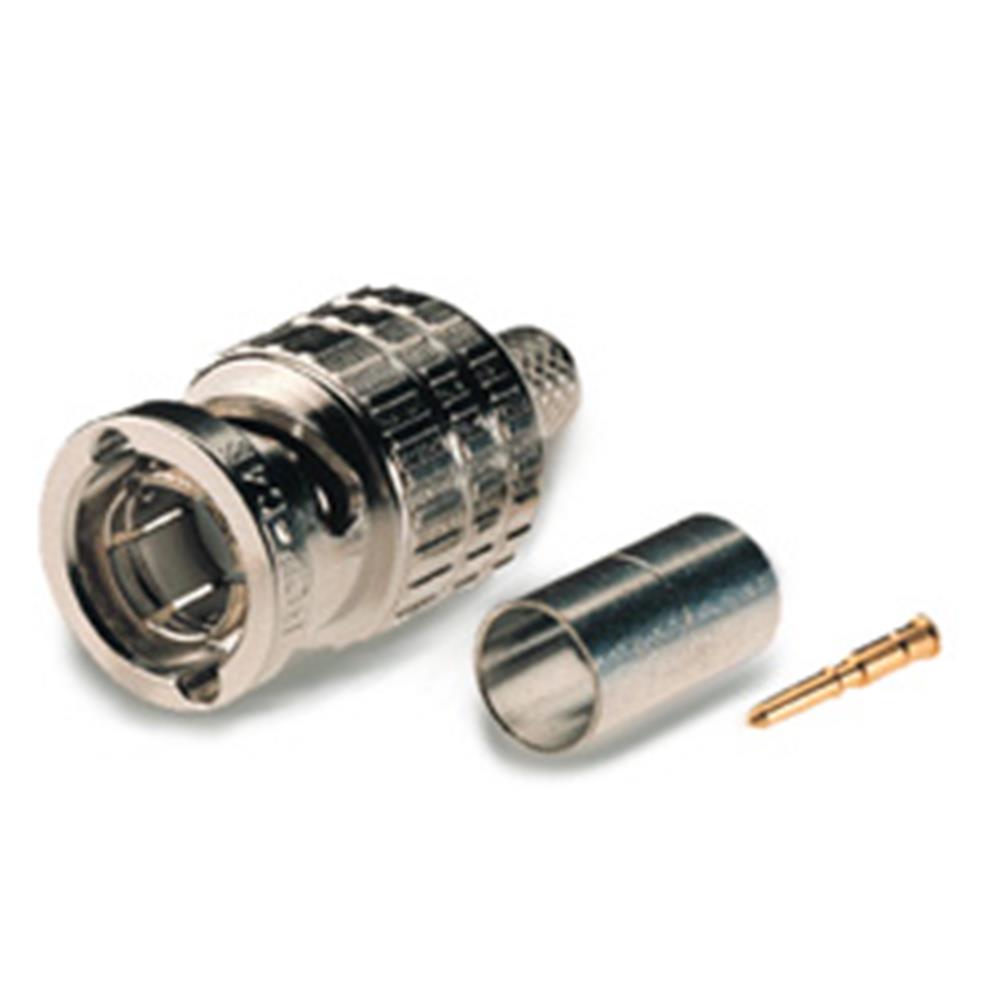

75 ohm BNC Crimp Plugs (BCP-A Series)

SMPTE 424M and 292M Compliant.
Serial Digital Video.
HDTV Upgrades.
NTSC Analog
Test Equipment.
Satellite Headends.
TELCOM.
True 75 ohm construction Crimp Pin and Sleeve.
High performance of 1.1 or less VSWR up to 2GHz. (VSWR 1.1 or less up to 1GHz for BCP-C25, BCP-C25F).
Mechanically mates with common 50 ohm BNC.
Elongated Body for better finger grip.
Superior cable pull strength.
Gold plated center pins 'snap lock' in place.
Beryllium copper outer contact.
Easy Assembly using Canare Strip and Crimp Tools.
Operating temperature -20 to +60 degrees Celsius.

Model	Suitable Cable Canare	Suitable Cable Others	Center Pin	Sleeve	Boot	Die Set
BCP-A25	L-2.5C2V	-	BN1018A	BN7029C	CB02	TCD-35CA
BCP-A25F	L-2.5CFB	1855A 8218 1417B 1418B	B11014E	BN7029C	CB02	TCD-35CA
BCP-A3	L-3C2VS L-3C2V V*-3C	-	B11014E	BN7003A	CB03	TCD-35CA
BCP-A31	L-3C2W	-	B11014E	BN7011	CB04	TCD-31C
BCP-A32	-	1506A 1824A 1825A 1826A 643948	B11016E	BN7026A	CB03	TCD-35CA
BCP-A3F	L-3CFB V*-3CFB	-	B11015E	BN7003A	CB03	TCD-35CA
BCP-A4	LV-61S	8241 8279 RG-59B/U	B11015E	BN7015A	CB04	TCD-4CA TCD-451CA
BCP-A42	-	1505F	B11016E	BN7011	CB04	TCD-31C
BCP-A4F	L-4CHD L-4CFB V*-4CFB	1505A 1505ANH 8212 8241F 9167 9259 9659 VPM2000 HD PRO 0.8/3.7 AF	B11016E	BN7015A	CB04	TCD-4CA TCD-451CA
BCP-A5	L-5C2VS L-5C2V V*-5C	-	B11016E	BN7016	CB05A	TCD-35CA
BCP-A52	L-5C2W	-	B11016E	BN7014	-	TCD-451CA
BCP-A55	-	1695A VSD2001TS	B11020D	BN7045A	CB04	TCD-35CA
BCP-A5F	L-5CFB V*-5CFB	-	B11020D	B75004A	CB05A	TCD-35CA
BCP-A77	LV-77S	8281F	B11016E	B75004A	CB05A	TCD-5CF - TCD-55FA
BCP-VA3	V*-3C	-	B11014E	BN7052A	CB03	TCD-35CA
BCP-VA5	V*-5C	-	B11016E	BN7045A	CB05A	TCD-35CA
