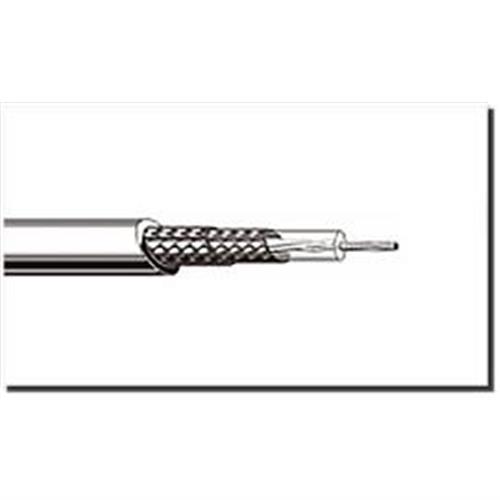

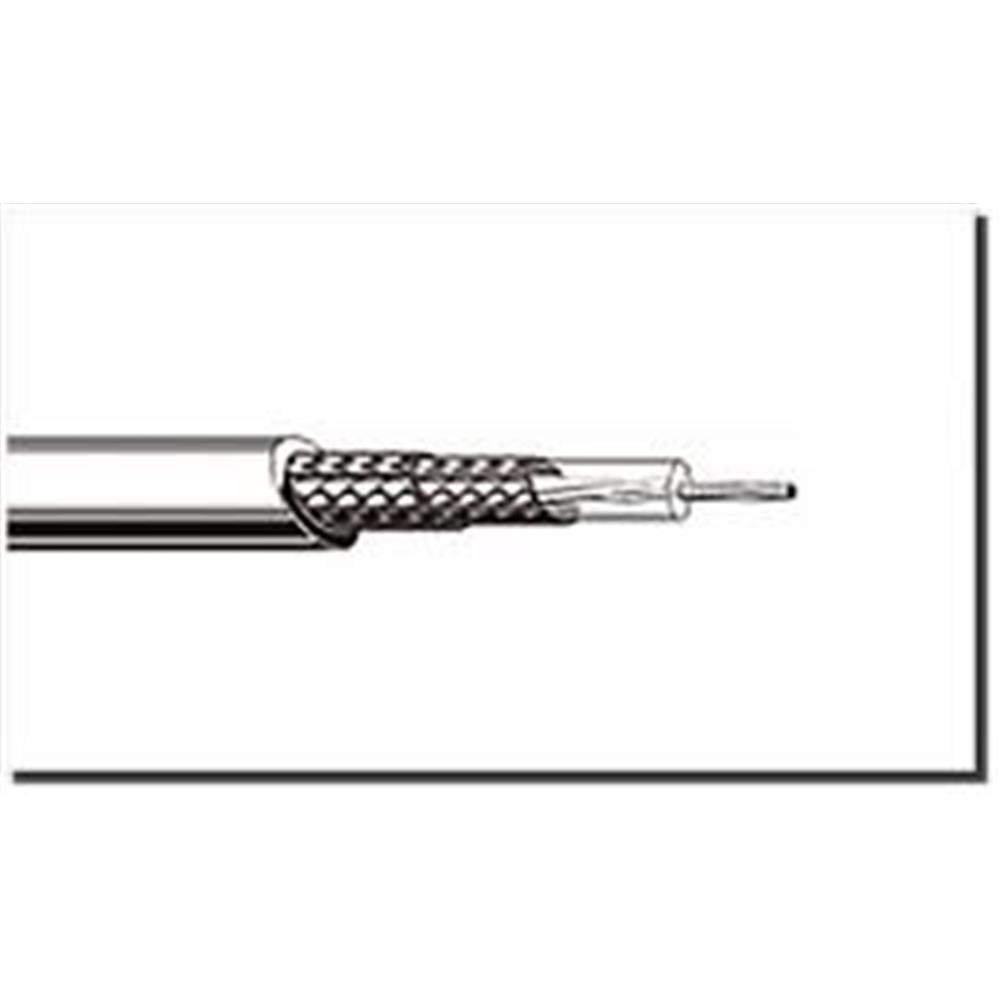

Name: 50 OHM COAXIAL CABLE, 8MM OD GREY, 100M
Price: 609 NZD

This is a Special Order Item

MECHANICAL SPECIFICATIONS
Model	Std. Lng. ft. (m)	Nom. O.D. in. (mm)	Wt Std. Lng. lbs (kgs)/100m	Inner Cond Conductor Comp. (AWG) Q'ty/mm	Inner Cond O.D. in. (mm)	Insulation O.D. in. (mm)
*L-3D2V	-	0.21 (5.3)	9.92 (4.5)	0.56(20) 7/0.32A	0.04 (0.96)	0.12 (3.00)
*L-5D2V		0.29 (7.3)	17.42 (7.9)	0.54(15) 1/0.80A	0.06 (1.40)	0.19 (4.80)
*L-5DFB		0.30 (7.6)	18.73 (8.5)	2.55(13) 1/1.80A	0.07 (1.80)	0.20 (5.00)
*L-3D2W		0.25 (6.4)	16.09 (7.3)	0.56(20) 7/0.32A	0.04 (0.96)	0.12 (3.00)
*L-5D2W		0.31 (8.0)	24.25 (11.0)	1.54(15) 1/1.40A	0.06 (1.40)	0.19 (4.80)

(contd.) MECHANICAL SPECIFICATIONS
Model	Outer Conductors Shield Coverage & Comp.	Inner Cond. Resistance ohm/328ft (ohm/100m)	Outer Cond. Resistance ohm/328ft (ohm/100m)	Static Capacity (pF/m)	Characteristic Impendence ohm	Attenuation dB/100m(328ft) 10MHz)
*L-3D2V	0.14A/5/24 (98% or more)	3.3	1.2	100	50	4.5
*L-5D2V	0.14A/7/24 (95% or more)	1.2	0.8	100	50	2.5
*L-5DFB	0.14A/6/24 (90% or more)	0.7	1.1	84	50	2.5
*L-3D2W	0.14TA/5/24 (98% or more) 0.14TA/5/24 (96% or more)	3.3	0.6	100	50	4.5
*L-5D2W	0.14TA/7/24 (95% or more) 0.14TA/7/24 (96% or more)	1.2	0.4	100	50	2.5

Brands	Canare
Bulk Cable Type	Coax
