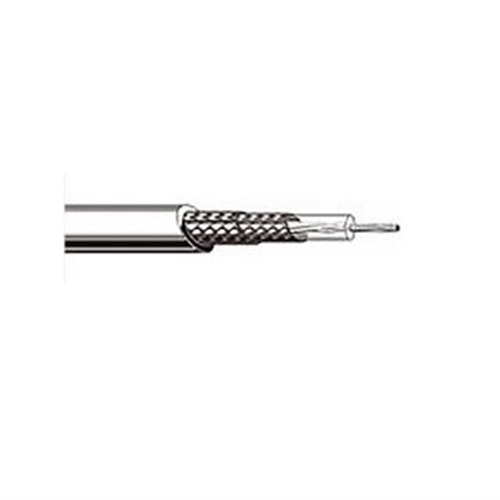

CO-AX ANTENNA CABLE 50ohm 100 METER ROLL

Product Code: CA-L-3D2W-GY100

Brand
Canare
RRP $650.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Coax
  • Details
  • Downloads
MECHANICAL SPECIFICATIONS
Model Std. Lng.

ft.
(m)
Nom.
O.D.
in.
(mm)
Wt
Std. Lng.

lbs
(kgs)/100m
Inner Cond
Conductor
Comp.
(AWG)
Q'ty/mm
Inner
Cond
O.D.
in.
(mm)
Insulation
O.D.

in.
(mm)
*L-3D2V - 0.21
(5.3)
9.92
(4.5)
0.56(20)
7/0.32A
0.04
(0.96)
0.12
(3.00)
*L-5D2V 0.29
(7.3)
17.42
(7.9)
0.54(15)
1/0.80A
0.06
(1.40)
0.19
(4.80)
*L-5DFB 0.30
(7.6)
18.73
(8.5)
2.55(13)
1/1.80A
0.07
(1.80)
0.20
(5.00)

*L-3D2W

0.25
(6.4)
16.09
(7.3)
0.56(20)
7/0.32A
0.04
(0.96)
0.12
(3.00)
*L-5D2W 0.31
(8.0)
24.25
(11.0)
1.54(15)
1/1.40A
0.06
(1.40)
0.19
(4.80)

(contd.) MECHANICAL SPECIFICATIONS
Model Outer Conductors
Shield Coverage
 & Comp.
Inner
Cond.
Resistance
ohm/328ft
(ohm/100m)
Outer
Cond.
Resistance
ohm/328ft
(ohm/100m)
Static
 Capacity

(pF/m)
Characteristic
Impendence
ohm
Attenuation
dB/100m(328ft)
10MHz)

*L-3D2V
0.14A/5/24 (98% or more) 3.3 1.2 100 50 4.5

*L-5D2V
0.14A/7/24 (95% or more) 1.2 0.8 100 50 2.5

*L-5DFB
0.14A/6/24 (90% or more) 0.7 1.1 84 50 2.5


*L-3D2W

0.14TA/5/24 (98% or more)
0.14TA/5/24 (96% or more)
3.3 0.6 100 50 4.5

*L-5D2W
0.14TA/7/24 (95% or more)
0.14TA/7/24 (96% or more)
1.2 0.4 100 50 2.5
