NetworkHD™ 600 Series 4K60 4:4:4 10Gb SDVoE Fiber Transceiver

SKU: NHD-600-TRXF

The NHD-600-TRXF is a SDVoE fiber transceiver capable of lossless & latency-free 4K60 over a 10Gb network. The TRXF allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. The SFP+ connector supports up to 300m (984ft), 10Gbps transmission distance for extremely long reach commercial applications. 3 x High-Speed USB 2.0 ports allow extension for keyboard & mouse applications and even compatibility with webcams, touchscreens, and media storage.

Highlights

• TRANSCEIVER
  One model to rule them all! As a transceiver the TRX can transmit and receive up to 4K60 video simultaneously. Additional settings also allow you to choose whether it is a TX, RX or TRX.
• USB
  Got USB? The TRXF is equipped with 3 x High-Speed USB 2.0 ports for extension of webcams, touchscreens, data storage and more. Genlock mode allows for a lag-free experience.
• FIBER
  Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.
• VIDEO WALL & MULTIVIEW
  Up to an 8×8 video wall can be processed with bezel and gap correction along with the ability to process multiview PiP up to 16 windows.

Features

• Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
• Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 color spaces
• Equipped with an SFP+ connector, transmit or receive 4K60 video up to 300m (984ft) with zero latency and lossless video using multi-mode fiber.
• Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
• HDCP 2.2 and HDCP 1.x support
• 3x USB 2.0 ports for extension of keyboard/mouse, webcams, touchscreens & media storage
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Secondary video stream with alternate scaling options can be used for multiview source content
• Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
• Video wall processing including display bezel compensation
• Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
• Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
• Auxiliary 1GbE channel for network connectivity of attached source devices
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods
• *Preview streams not supported

Specifications

AUDIO AND VIDEO

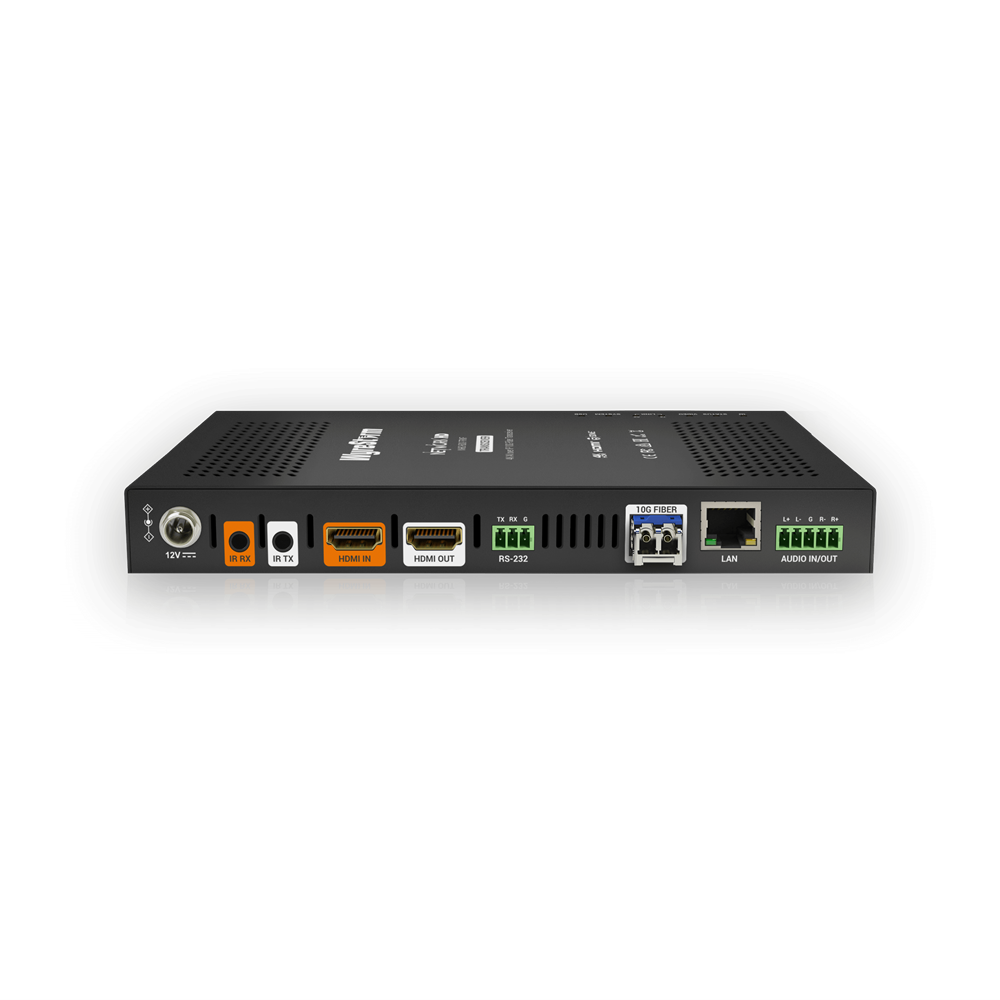

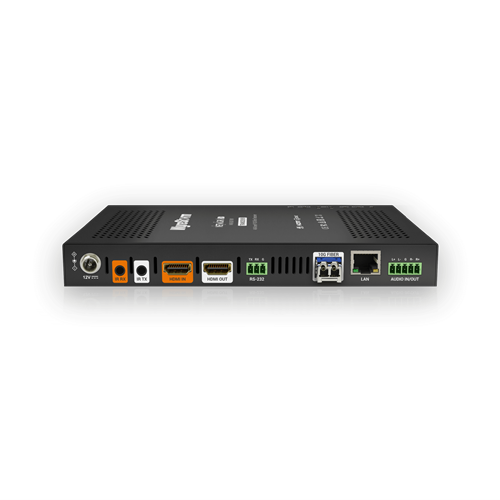

• Inputs/Outputs
  • 1 x HDMI 2.0 input
  • 1 x HDMI 2.0 output
  • 1 x 5-pin balanced analog audio in/out
  • 1x 10Gb/s SFP+ GBIC
  • 10GBASE-SR: 300m using OM3 multi-mode
  • 10GBASE-LR: 10km using OM3 single-mode
• Output Video Encoding
  • SDVoE Pixel Pipeline
• Encoding Data Rate
  • 1080p@60Hz 8bit – 3.4Gbps
  • 4K UHD@30Hz 4:4:4 8bit – 6.4Gbps
  • 4K UHD@60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
• End to End Latency (Max)
  • Genlock Mode: Uncompressed = 30us, Compressed <120us
  • Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
• Video Resolutions (Max)
  • 4096x2160p @ 60Hz 8bit 4:4:4 or RGB
  • 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
  • 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
  • 1920x1080p @60Hz 12bit
• Supported Standards
  • RGB | DCI
• Maximum Pixel Clock
  • 600 MHz
• 3D
  • HDMI 1.4b 3D: TnB, SbS, F.P

COMMUNICATION AND CONTROL

• HDMI
  • HDCP 2.2 & 1.x compliant
• Ethernet
  • 1 x 1GbE LAN 8-pin RJ45
• RS-232
  • 1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
• Infrared
  • 1 x IR TX 3.5mm TS Mono Jack | API Programmable
  • 1 x IR RX 3.5mm TRS Stereo Jack | API Programmable

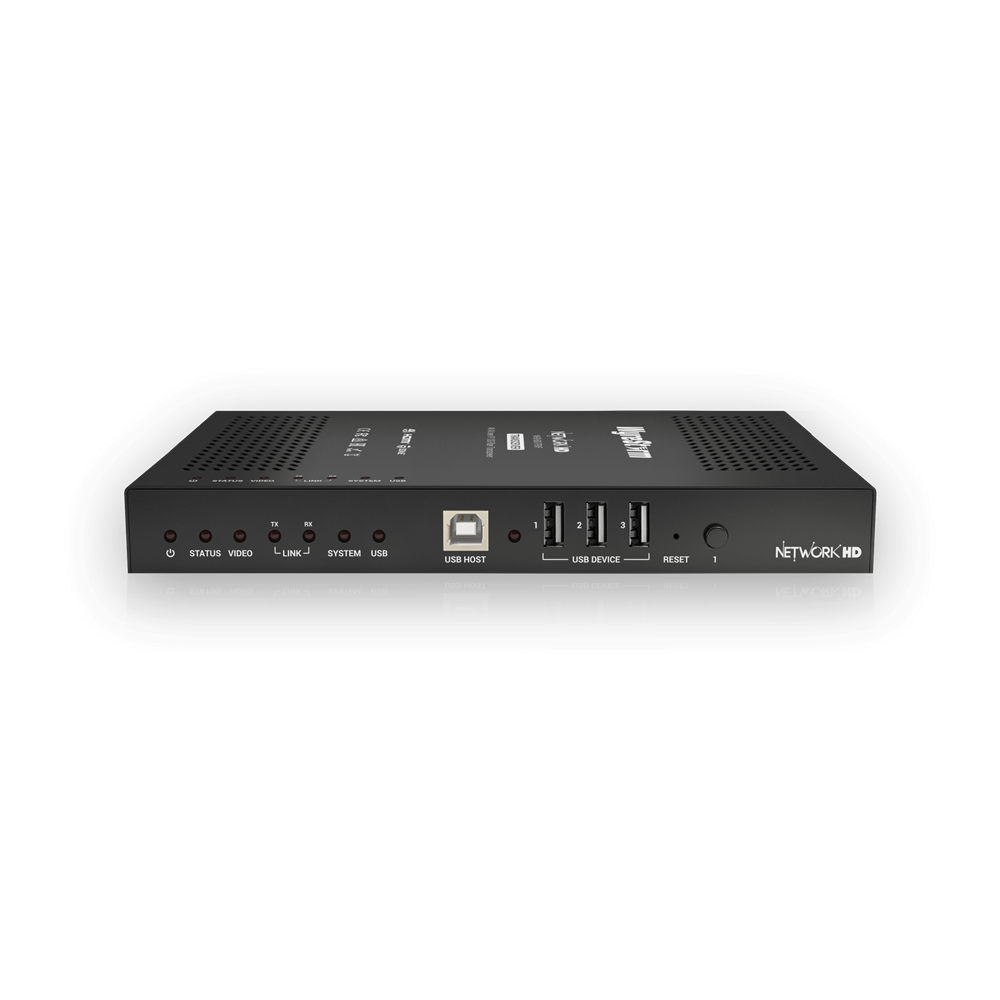

• USB
  • 3 x USB 2.0 Type A
  • 1 x USB 2.0 Type B Host
  • USB Bandwidth: 480Mbps

POWER

• Power Supply
  • 12V 2A DC PSU
• Max Power Consumption
  • Max: 24w
• Average:
  • 10w

ENVIRONMENTAL

• Operating Temperature
  •  +32°F ~ +104°F (0°C ~ +45°C) | 10% ~ 90% non-condensing
• StorageTemperature
  •  -4°F to ~ 140°F (-20°C ~ +70°C) | 10% ~ 90% non-condensing
• Maximum BTU
  • 34 BTU/hr

DIMENSIONS & WEIGHT

• Length x Width x Height
  •  140mm x 215mm x 25mm
• Weight
  • 1.75lbs

REGULATORY

• Safety and Emission
  •  CE | FCC | RoHS | EAC | RCM
