4K HDR 4:4:4 60Hz HDBaseT3.0 Receiver with USB Device Inputs, Audio De-embed & PoH 100m/328ft over Cat6

SKU: RX3-100

Introducing the RX3-100, an uncompressed 18G HDBaseT 3.0 receiver that achieves signal transmission up to 100m/328ft at 4K@60Hz via Cat.6A cable. With HDBaseT 3.0, experience USB data transfers of up to 300Mbps, nearly doubling HDBaseT 2.0’s capability of 190Mbps. This heightened capacity supports high-speed connections to 4K webcams, whiteboards, and data drives. The RX3-100 seamlessly pairs with any of WyreStorm’s HDBaseT 3.0 transmitter options, such as the SW-120-TX3 and SW-120-TX3-Ux for a powerful switching extender solution!

UNCOMPRESSED SIGNAL TRANSMISSION
HDBaseT 3.0 technology is here, sporting the very latest in high-speed transmissions with the increased bandwidth from 10Gbps to an outstanding 18Gbps over a dedicated category cable.

USB 2.0 PASSTHROUGH

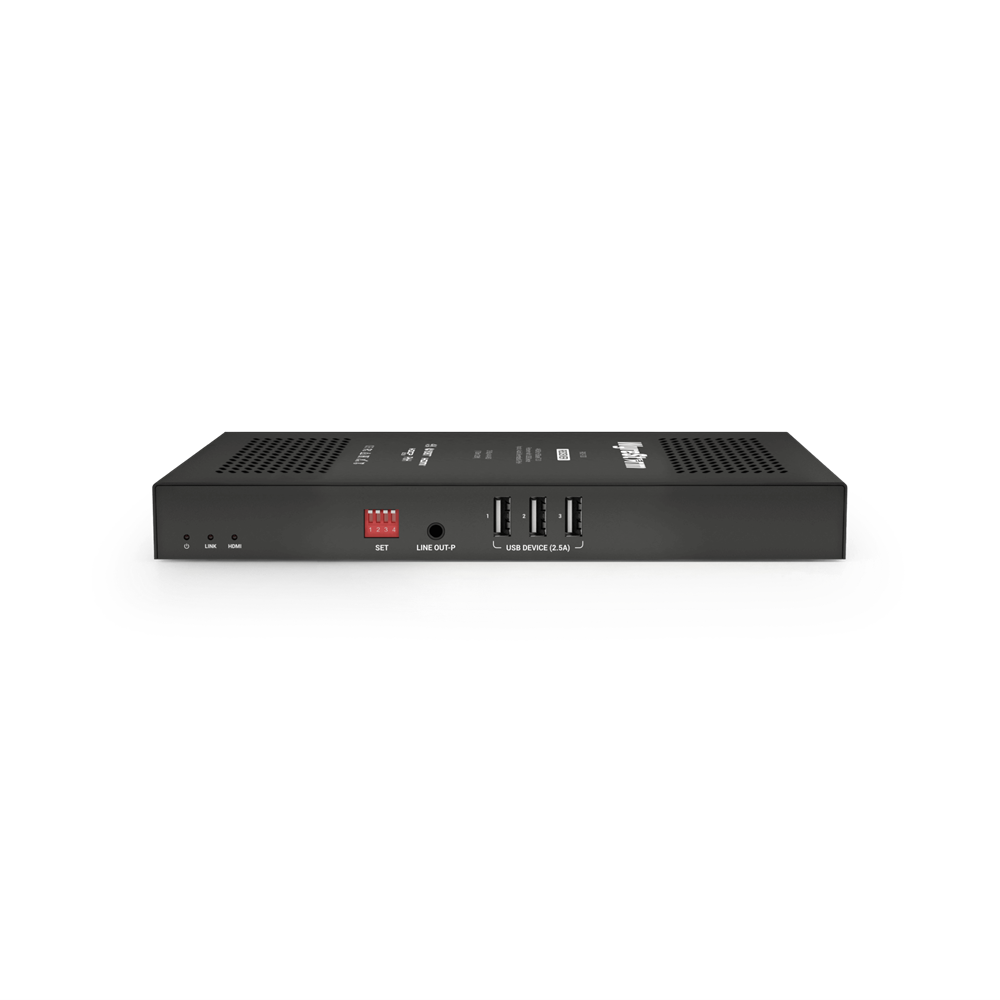

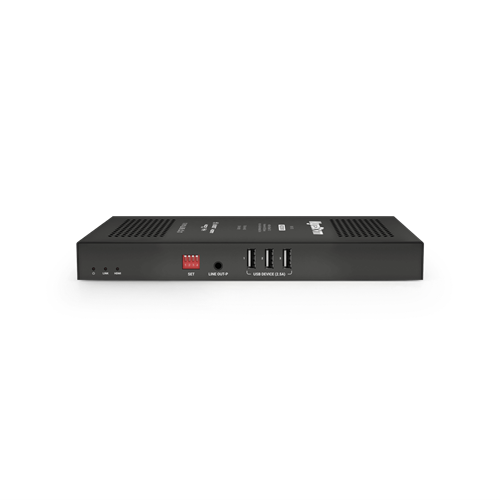

The main feature of the RX3-100 is the 3 device ports, which are capable of USB 2.0 pass-through, which offers not only KVM functionality for extension of a keyboard/mouse or touchscreen, but also full data transfer capabilities of 300Mbps for 4K UHD webcams and high-speed data drives.

AUDIO DE-EMBED AND PASSTHROUGH
The RX3-100 offers both audio de-embed from the source HDMI and independent audio pass-through lane from line-in audio from the TX simultaneously.

BIDRECTIONAL CONTROL & POH
The RX-100 boasts bidirectional PoH, which can power or be powered by a transmitters such as the SW-120-TX3-Ux or SW-120-TX3, while also passing bidirectional RS-232 control to either the display or back to the head-end. If RS-232 isn’t an option, it also supports CEC signals from the transmitter

Additional Features

• HDBaseT 3.0 Receiver supporting:
• Uncompressed content up to 4K@60Hz 4:4:4 8bit
• HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD Multichannel audio up to DTS:X and Dolby Atmos via HDMI
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• USB 2.0 passthrough offering 300Mbps transfer and HID extension
• Features 3x USB device ports
• Supports independent lane analog audio pass-through from transmitter to receiver
• Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)

Technical Specifications

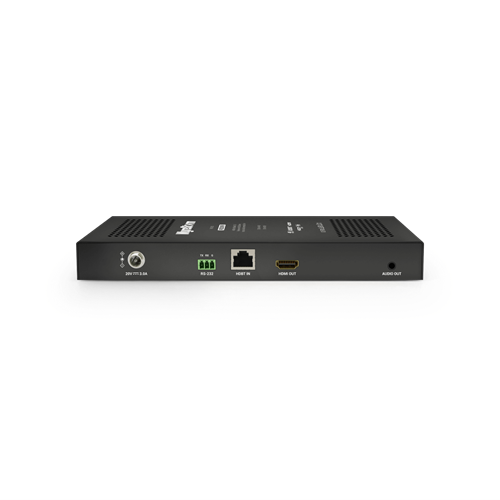

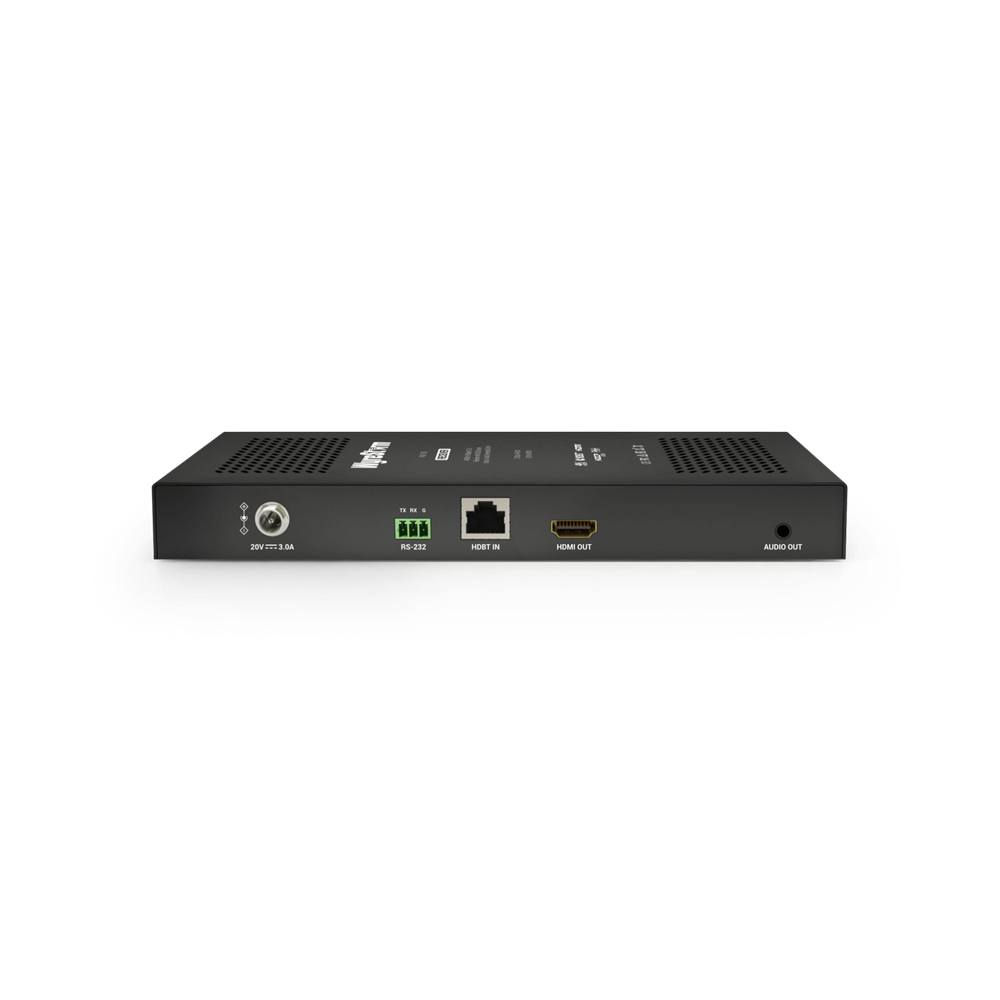

• Inputs
  • 1x HDBT In: 8-pin RJ45
  • 3x Type A (Device)
  • 1x RS-232: 3-pin Phoenix
• Outputs
  • 1x HDMI Out: 19-pin Type A Female
  • 1x Audio Out 3.5mm (1/8in) TRS Stereo | 1x Line Out 2ch audio over HDBaseT | 1-way from TX
• Max Pixel Clock: 600MHz
• Video Resolution (Max):
  • 1920x1080p @60Hz 12bit
  • 3840×2160 @60Hz 4:4:4 8bit
• Supported Standards: DCI | RGB | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Audio Formats: HDMI Out: 2ch Analog/PCM | Multichannel: LPCM up to DTS-X and Dolby Atmos, Audio Out/De-embed: 2ch Analog/PCM

COMMUNICATION & CONTROL

• HDMI: HDMI | HDCP 2.3 | EDID | CEC Pass-through
• HDBaseT: HDMI | USB | HDCP 2.3 | EDID | 2-way PoH | Bidirectional RS-232 | CEC
• USB: 3x Type A (Device) | Maximum uplink speed: 300Mbps
• RS-232: 1x RS-232: 3-pin Phoenix

POWER

• Power Supply: 20V DC 3A
• Max Power Consumption: 10.92W

In the Box

• 1x RX3-100 HDBaseT 3.0 Receiver
• 1x 3-pin Terminal Block
• 4x Wall Mounting Brackets
• 4x Mounting Screws
• 1x 20V 3A PSU*
• 1x Quickstart Guide
• *Does not support USB-C charging on TX
