8×4 Seamless Matrix Switch for Presentation Systems with USB-C, HDMI, Audio DSP, and Dante

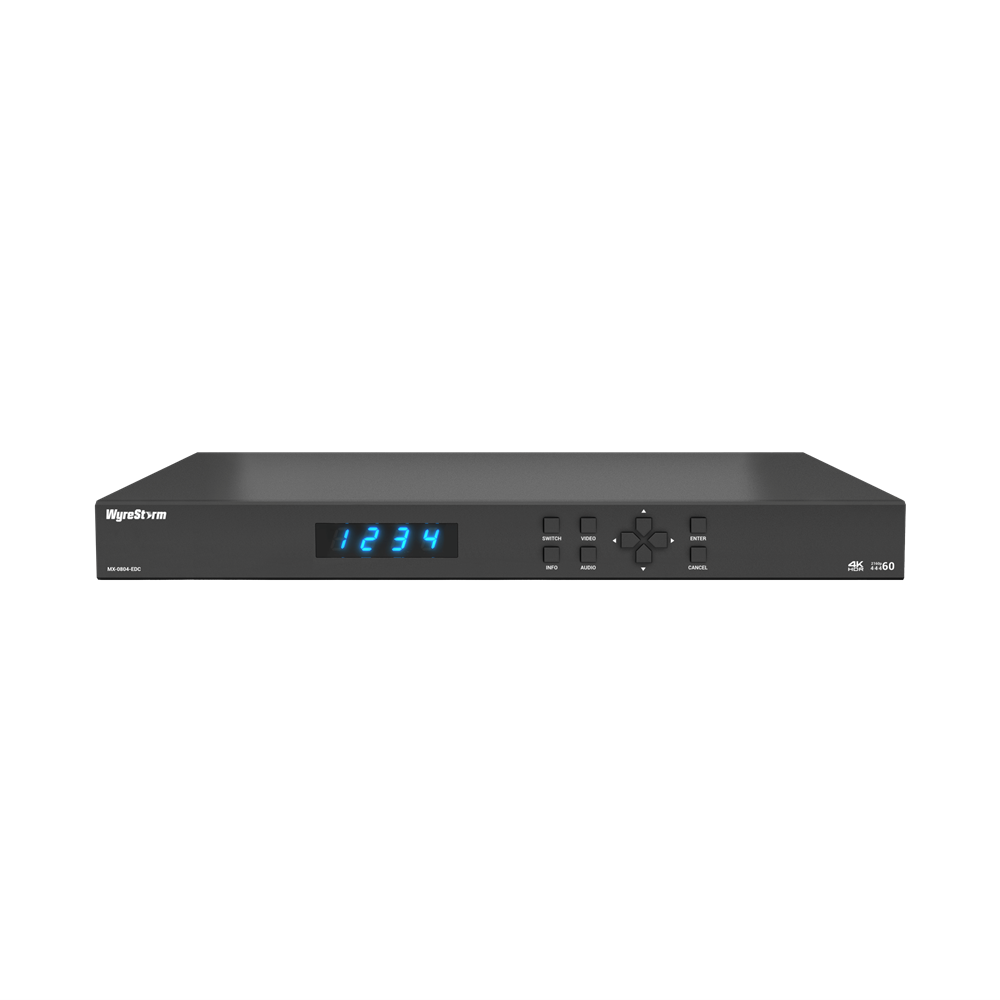

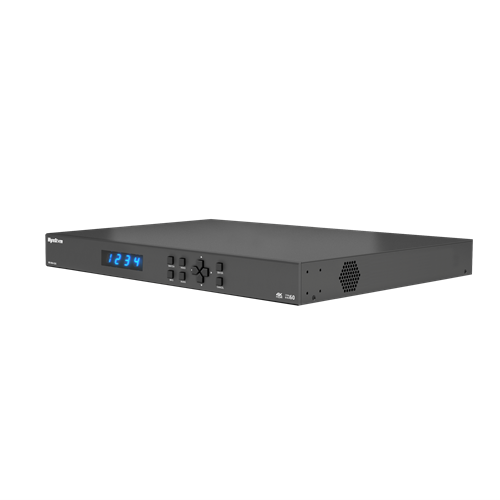

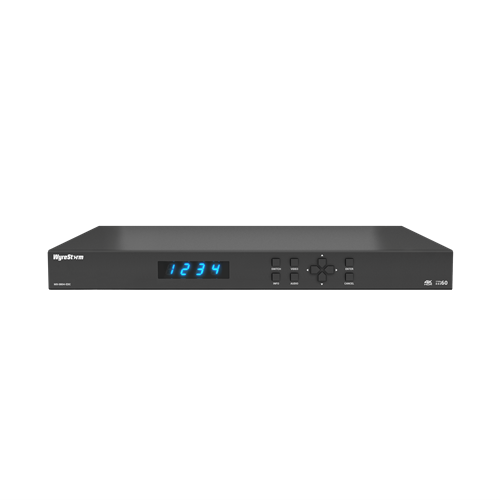

Discover the MX-0804-EDC, a compact 1RU 8×4 fast switching matrix designed to redefine connectivity in professional environments. Perfect for high-education classrooms and corporate meeting rooms, this cutting-edge matrix brings seamless transitions, versatile audio options, and intuitive control at your fingertips.

4K60Hz SEAMLESS SWITCHING
Effortlessly transition between video inputs with crystal-clear visuals. The built-in 4K60 scaler ensures a smooth, uninterrupted visual experience, making it ideal for presentations and entertainment.

FULL-FEATURED USB-C INPUT
Stay connected and charged with the fully-featured USB-C input supporting 4K@60Hz, USB 3.1 gen1, 1G network, and PD 3.0 charging up to 60 watts. Streamline your connectivity and charging needs in one port.

VERSATILE AUDIO CONNECTIONS AND DSP
Immerse yourself in high-quality audio with analog microphone inputs, Dante 4×4 digital I/O, USB audio, and line audio outputs. The integrated DSP optimizes sound quality, offering independent mixers and ducking for a customized auditory experience.

BUILT-IN POWER AMPLIFIER FOR DIRECT SPEAKER DRIVE
The matrix features a built-in power amplifier capable of directly driving a pair of stereo speakers (25 Watts per channel @ 4Ω or 8Ω).

Streamlined audio setup with the ability to power stereo speakers directly from the matrix. The internal amplifier synergizes seamlessly with the onboard DSP, ensuring optimal audio quality for a rich and immersive auditory experience.

Technical Specifications

AUDIO & VIDEO

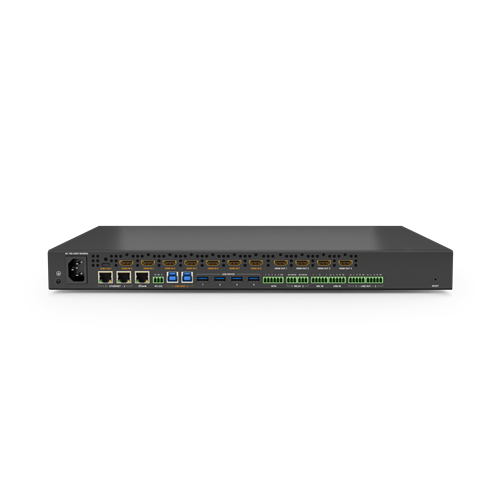

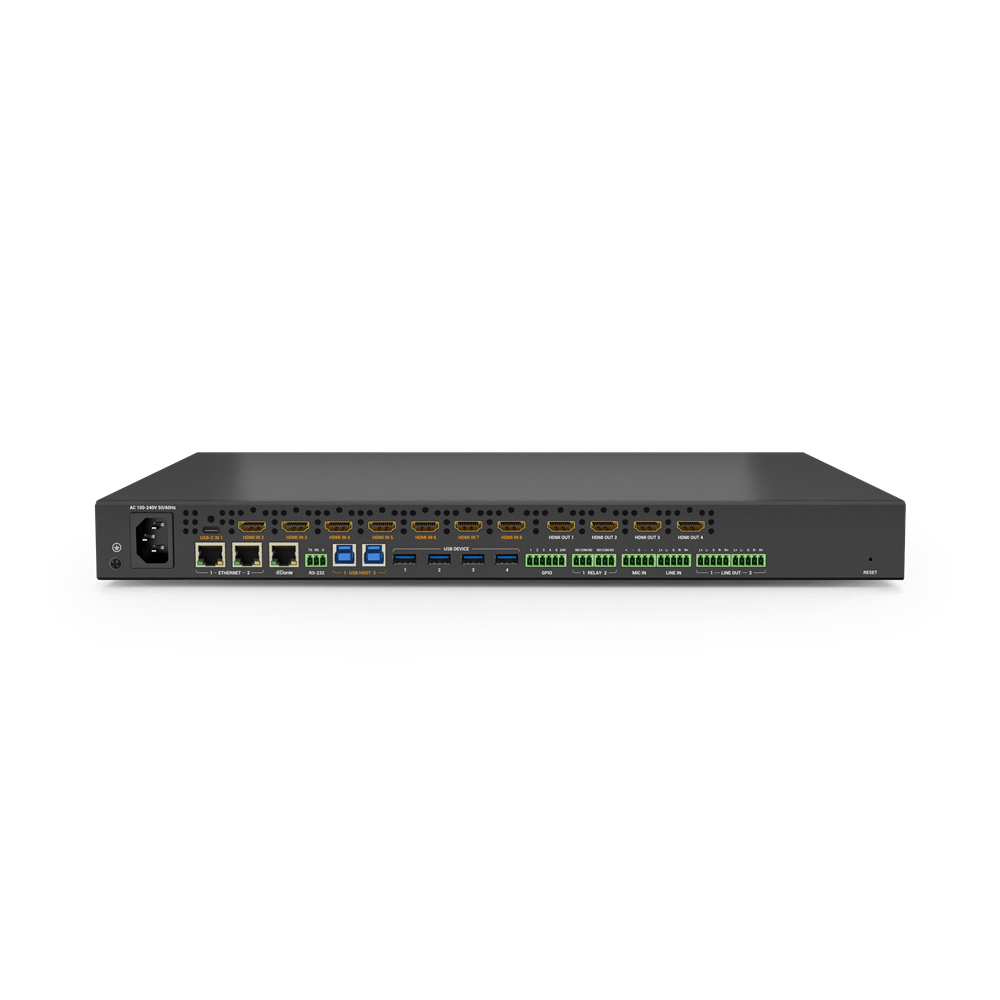

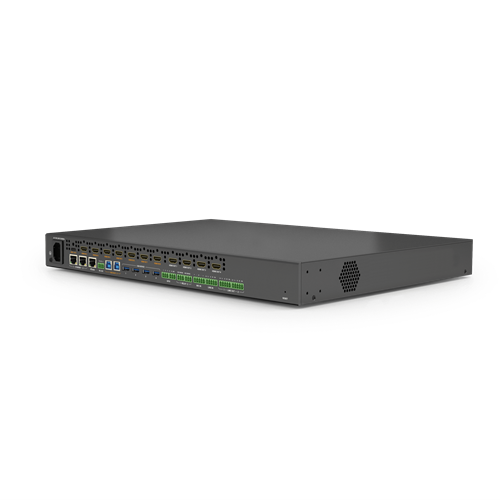

• Inputs
  • 1x USB-C In with Alt-Mode
  • 7x HDMI In: 19-pin type A
  • 2x USB-B Host
  • 2x Mic in
  • 1x Line-In
• Outputs
  • 4x HDMI Out: 19-pin type A
  • 4x USB-A Device
  • 1x GPIO Phoenix Port
  • 2x Relay Phoenix Port
  • 2x Line-Out
• Audio Formats
  • PCM 2ch Analog | Dante 4×4
• Video Resolution (Max)
  • 1920x1080p @60Hz
  • 3840x2160p @60Hz 4:2:0
  • 3840×2160 @60Hz 4:4:4
• Max Pixel Clock
  • 600MHz

COMMUNICATION & CONTROL

• HDMI
  • HDMI 2.0 | HDCP 2.3 | EDID | CEC
• Dante Ultimo 4×4
  • 1x 1GbE RJ-45
• RS-232
  • 1x RS-232: 3-pin Phoenix Female | Matrix Control | Telnet commands supported
• HDCP
  • Pass-Through, 2.3 Supported
• Ethernet
  • 2x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control and Ethernet (Sygma)

POWER

• Power Supply
  • 100~240V AC 50/60Hz
• Max Power Consumption
  • 7.8W
• Power-over-HDBaseT (PoH)
  • Supported, 1-way from RX
• Local Power Supply Input
  • 4-pin Phoenix

ENVIRONMENTAL

• Operating Temperature
  • 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
• Storage Temperature
  • -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

DIMENSIONS & WEIGHT

• Rack Units/Wall Box
  • 1U
• Height
  • 43mm/1.7in
• Width
  • 440mm/17.33in
• Depth
  • 330mm/12.99in
• Weight
  • 3.8kg/8.38lbs

REGULATORY

• Supported Standards
  • DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020

Additional Features

• Multi-format video connections include USB-C and HDMI
• Sygma Cloud Monitoring Ready
• Each output supports fast switching and is equipped with a full 480p-2160p scaler
• USB-C input supports up to 4K60 video, USB3.0/USB2.0, 1G network, and PD3.0 USB host charging up to 60 watts
• HDBaseT outputs support 3.0 specification for uncompressed A/V, USB and control
• Equipped with a full DSP including Dante 4×4, mic inputs, balanced audio outputs and two 4-channel amplifier

In the Box

• 1x MX-0804-EDC Matrix
• 1x AC Power Cord (US/UK/EU/AU)
• 1x 2m USB-C Cable
• 2x 1-Pin Terminal Block
• 1x MX-0804-EDC Matrix
• 1x AC Power Cord (US/UK/EU/AU)
• 1x 2m USB-C Cable
• 3x 3-Pin Terminal Block
• 4x 5-Pin Terminal Block
• 1x 6-Pin Terminal Block
• 2x Mounting Brackets with screws
• 1x Quickstart Guide
