100m 4K 60 4:4:4 HDBaseT 3.0 Extender with eARC

SKU: EX3-100-EARC

Extend 18Gbps A/V signals up to 100 meters over Cat6a with the EX3-100-EARC. This extender uses HDBaseT 3.0 technology, to send 4K HDR and Dolby Vision content at 60Hz. Compatible with eARC, you can transmit audio signals such as Dolby TrueHD/Atmos and DTS-HD MA 7.1 signals from a smart TV back to an eARC enabled AVR or soundbar. Flexible control passthrough options including IR, RS-232 and LAN allow you control a display and get devices connected over long distances.

EXTEND HDMI 2.0
Supporting the full HDMI 2.0 specification, extend your high bandwidth content such as 4K HDR and Dolby Vision up to 100 meters.

EARC
Equipped with eARC capability, send high-bitrate audio formats such as Dolby Atmos or DTS:X from an eARC display back to an AVR or soundbar through native HDMI. Let’s not forget backwards compatibility with standard ARC as well.

BI-DIRECTIONAL CONTROL
Extend your IR and RS-232 control signals to control your display and other AV equipment. The ethernet passthrough supports full 1Gbps speeds.

POWER OVER HDBASET
Supports bi-direction PoH for ultimate flexibility in your installations.

Technical Specifications

AUDIO AND VIDEO

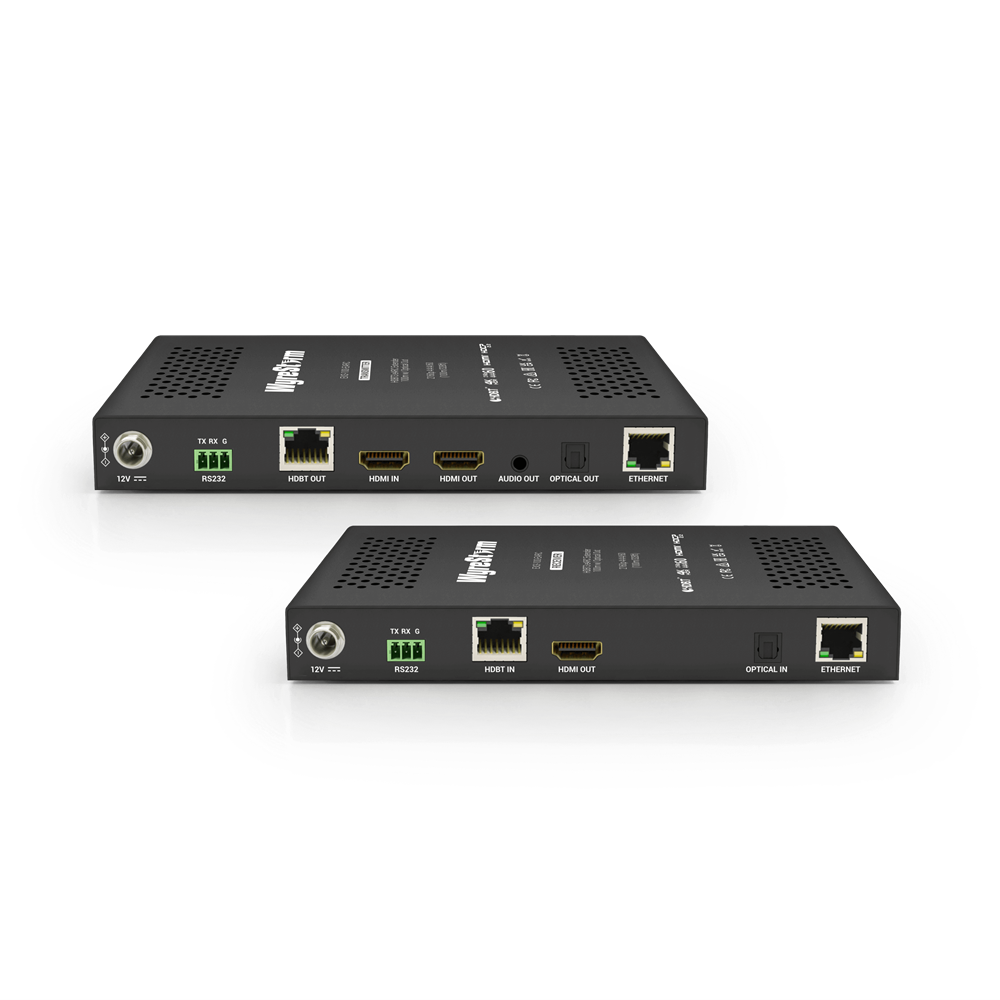

• Inputs
  • Transmitter: 1x HDMI

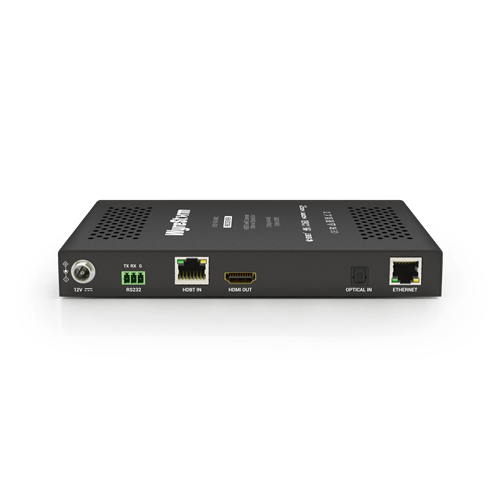

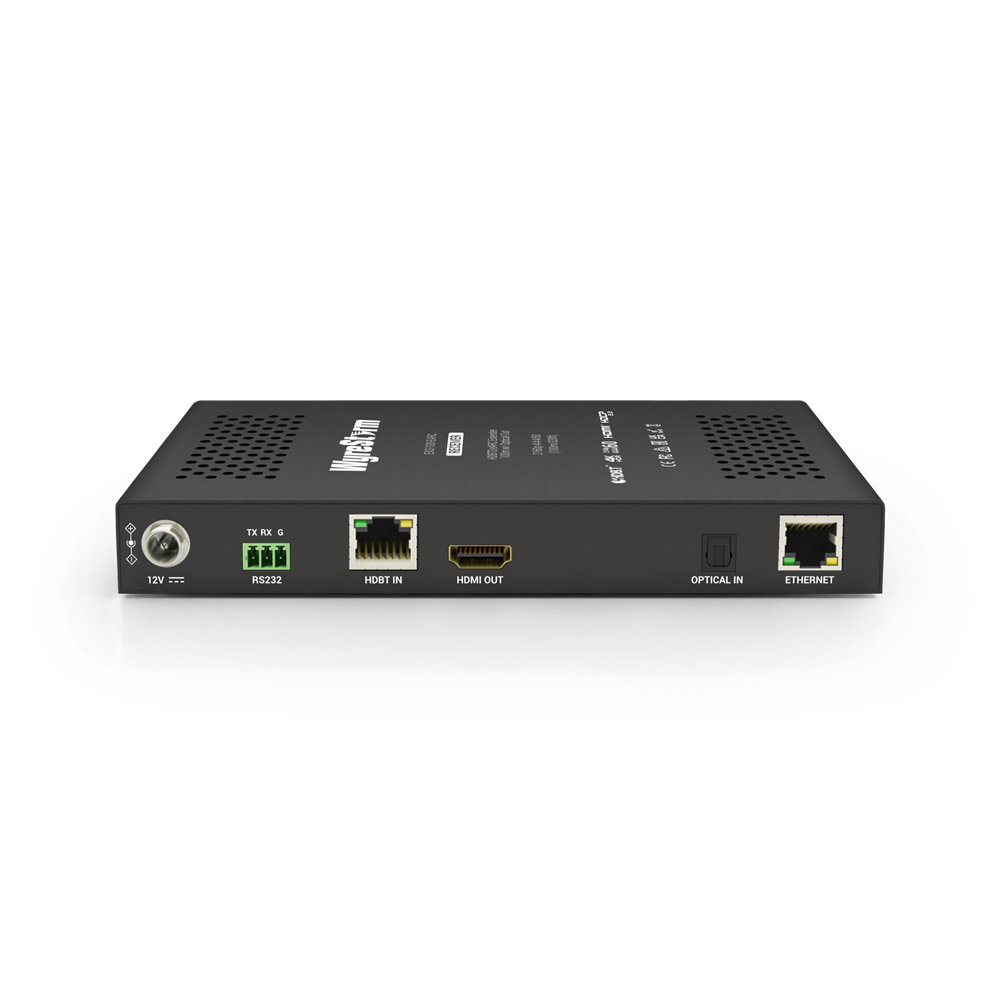

  • Receiver: 1x HDBaseT IN, 1x Optical IN
• Outputs

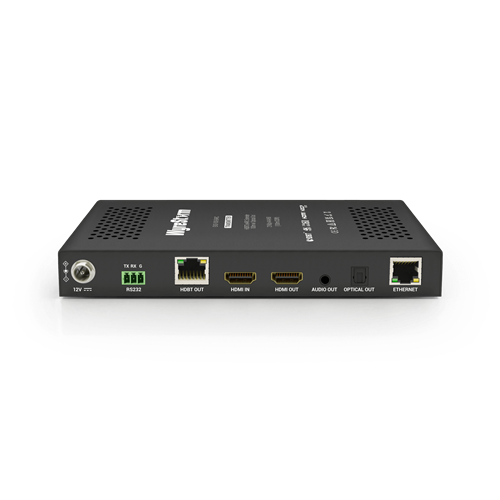

  • Transmitter: 1x HDBaseT OUT, 1x HDMI Loop Out, 1x Optical Out
  • Receiver: 1x HDMI
• Video Resolutions (Max)

• Video Resolutions	Cat6	Cat6a/7
  1920x1080p @ 60Hz	70m	100m
  3840×2160 @60Hz 4:4:4 12bit (HDR/DV)	70m	100m

• Output Video Encoding
  • Encoding Data Rate: 10.2Gbps
  • End to End Latency: 10μs (microseconds)
• Ethernet
  • Ethernet Pass-through of up to 1Gb
• Audio Formats
  • HDMI In: 2ch Analog/PCM
  • Multichannel: LPCM up to DTS-X , DTS-HD Master Audio, Dolby Atmos
  • eARC: 2ch Analog/PCM
  • Multichannel: LPCM up to DTS-X and Dolby Atmos
• Supported Standards
  • DCI | RGB | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock
  • 600MHz

COMMUNICATION & CONTROL

• HDMI: HDMI | HDCP 2.2 | EDID | CEC Pass-through
• HDBaseT: HDMI | HDCP 2.2 | EDID | RS-232 Pass-through | IR Pass-Through| 2- WAY PoH | CEC Pass-Through

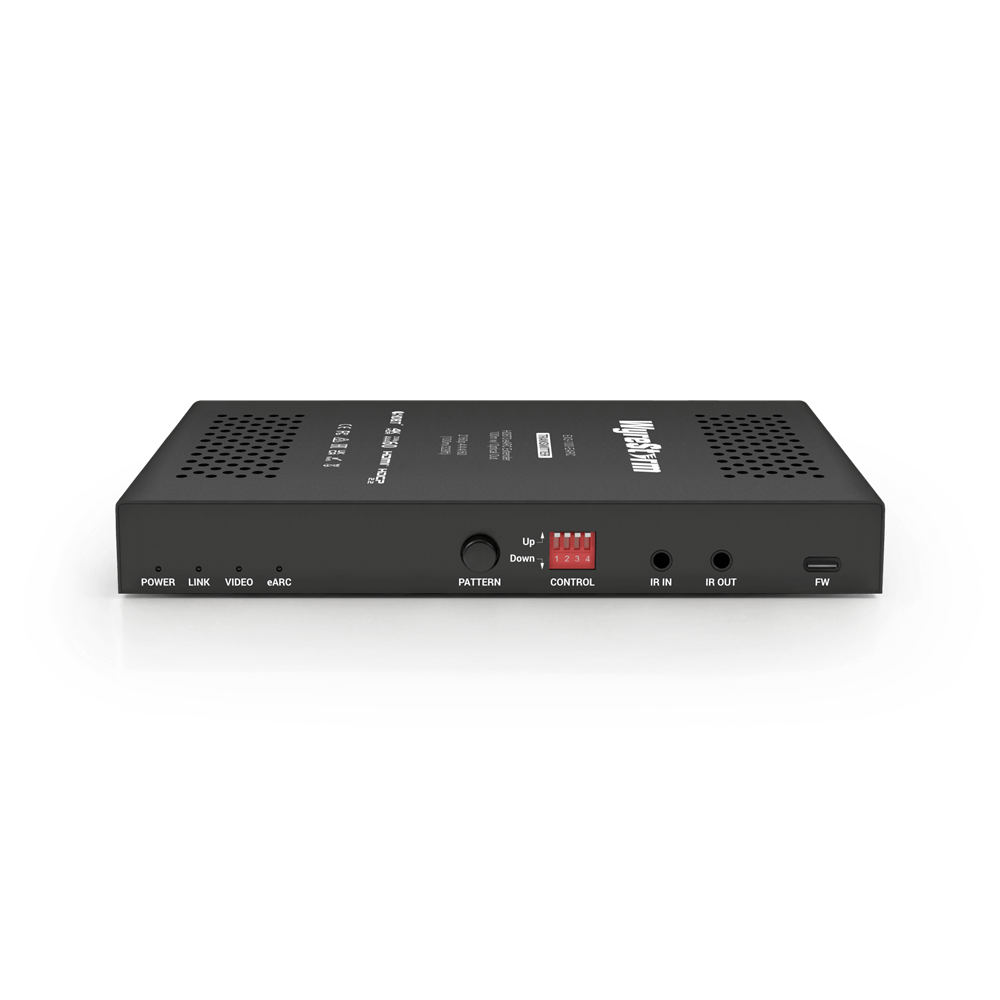

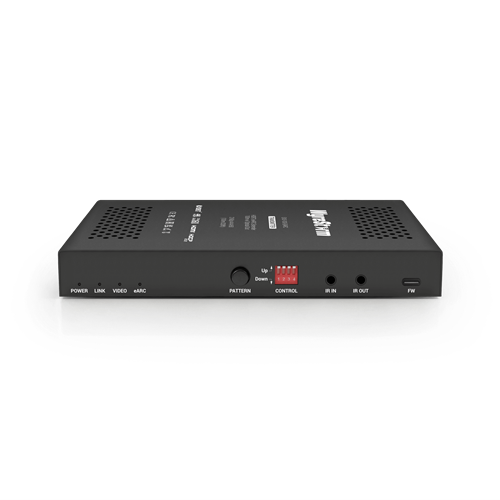

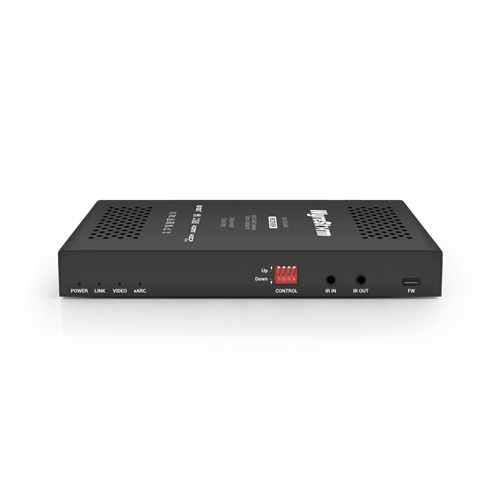

  • IR
  • 1x IR RX: 3.5mm (1/8in) TRS Stereo
  • 1x IR TX: 3.5mm (1/8in) TS Mono (Transmitter & Receiver)
• RS-232: 1x RS-232: 3-pin Phoenix (Transmitter and Receiver)

POWER

• Power Supply: 12V DC ?A

ENVIRONMENTAL

• Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing

DIMENSIONS & WEIGHT

• Length x Width x Height: 190mm x 115mm x 23mm

REGULATORY

• Safety and Emission: CE | FCC | RoHS | RCM | EAC | UKCA
