The NHD-600-TRX is a SDVoE transceiver capable of lossless & latency-free 4K60 over a 10GbE network. The TRX allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. 3 x USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating center. A cutting-edge architecture provides an efficient, small footprint and support for PoE+.

• Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
• Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 color spaces
• Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
• HDCP 2.2 and HDCP 1.x support
• 802.3at PoE+ compliant
• 3x USB 1.1 HID ports for extension of keyboard & mouse applications
• Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
• Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
• Genlock scaler mode for zero end-to-end latency
• Supports seamless AV source switching via Fast Switch mode
• Secondary video stream with alternate scaling options can be used for multiview source content
• Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
• Video wall processing including display bezel compensation
• Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
• Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
• Auxiliary 1GbE channel for network connectivity of attached source devices
• Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
• Compatible with NHD-000-RACK4 for easy rack mounting
• Secure A/V transmissions using AES encryption methods

Specifications

AUDIO AND VIDEO

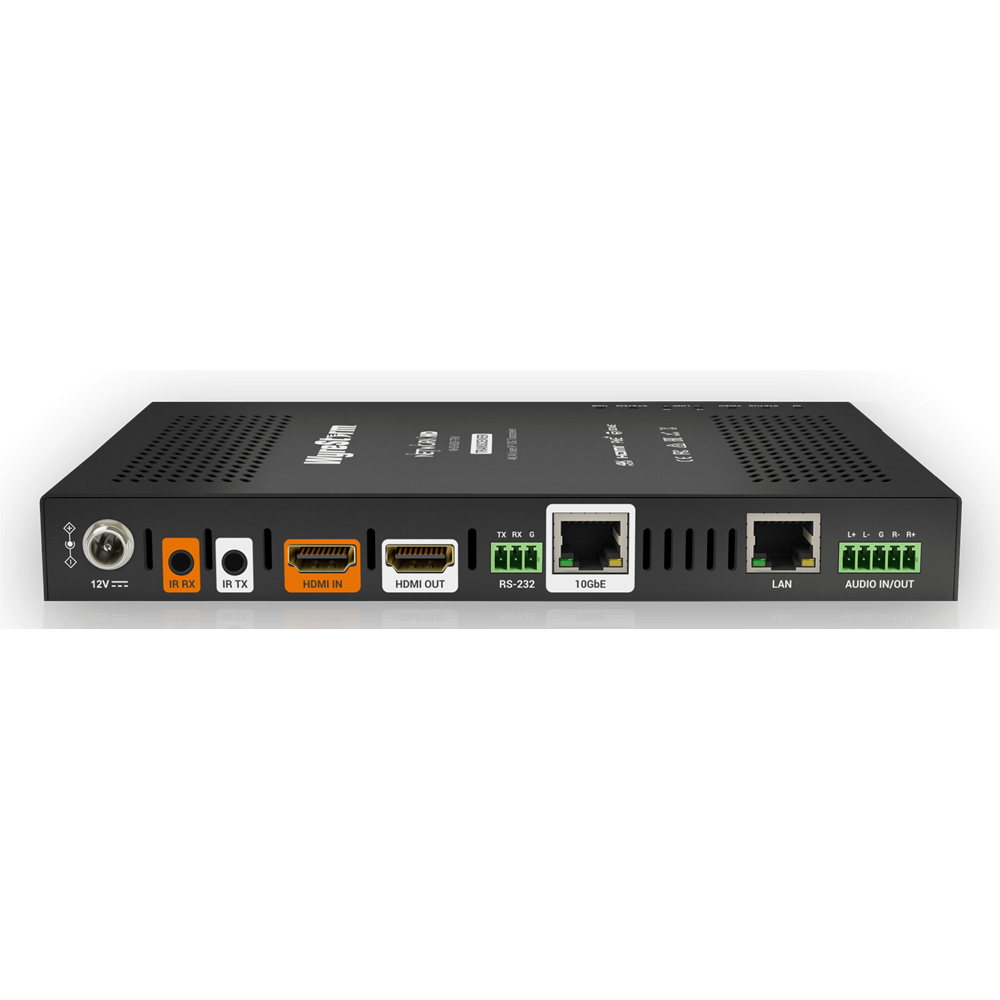

1. Inputs/Outputs:
   • 1 x HDMI 2.0 input
   • 1 x HDMI 2.0 output
   • 1 x 5-pin balanced analog audio in/out
   • 1 x 10GbE 8-pin RJ45
2. Output Video Encoding: SDVoE Pixel Pipeline
3. Encoding Data Rate:
   • 1080p@60Hz 12bit – 3.4Gbps
   • 4K UHD@30Hz 4:4:4 8bit – 6.6Gbps
   • 4K UHD@60Hz 4:4:4 8bit – 9Gbps (with light compression)
4. End to End Latency (Max):
   • Genlock Mode: Uncompressed = 30us, Compressed <120us
   • Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
5. Video Resolutions (Max):
   • 4096x2160p @ 60Hz 8bit 4:4:4 or RGB
   • 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
   • 3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
   • 1920x1080p @60Hz 12bit
6. Supported Standards:    RGB | DCI
7. Maximum Pixel Clock:    600 MHz
8. 3D:    HDMI 1.4b 3D: TnB, SbS, F.P

COMMUNICATION AND CONTROL

1. HDMI:    HDCP 2.2 & 1.x compliant
2. Ethernet:    1 x 1GbE LAN 8-pin RJ45
3. RS-232:    1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
4. Infrared:
   1. 1 x IR TX 3.5mm TS Mono Jack | API Programmable
   2. 1 x IR RX 3.5mm TRS Stereo Jack | API Programmable
5. USB:

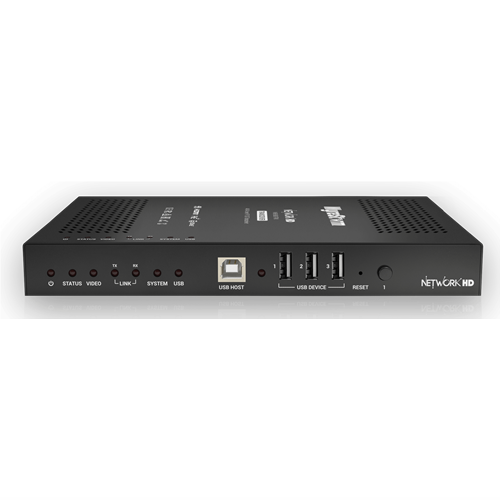

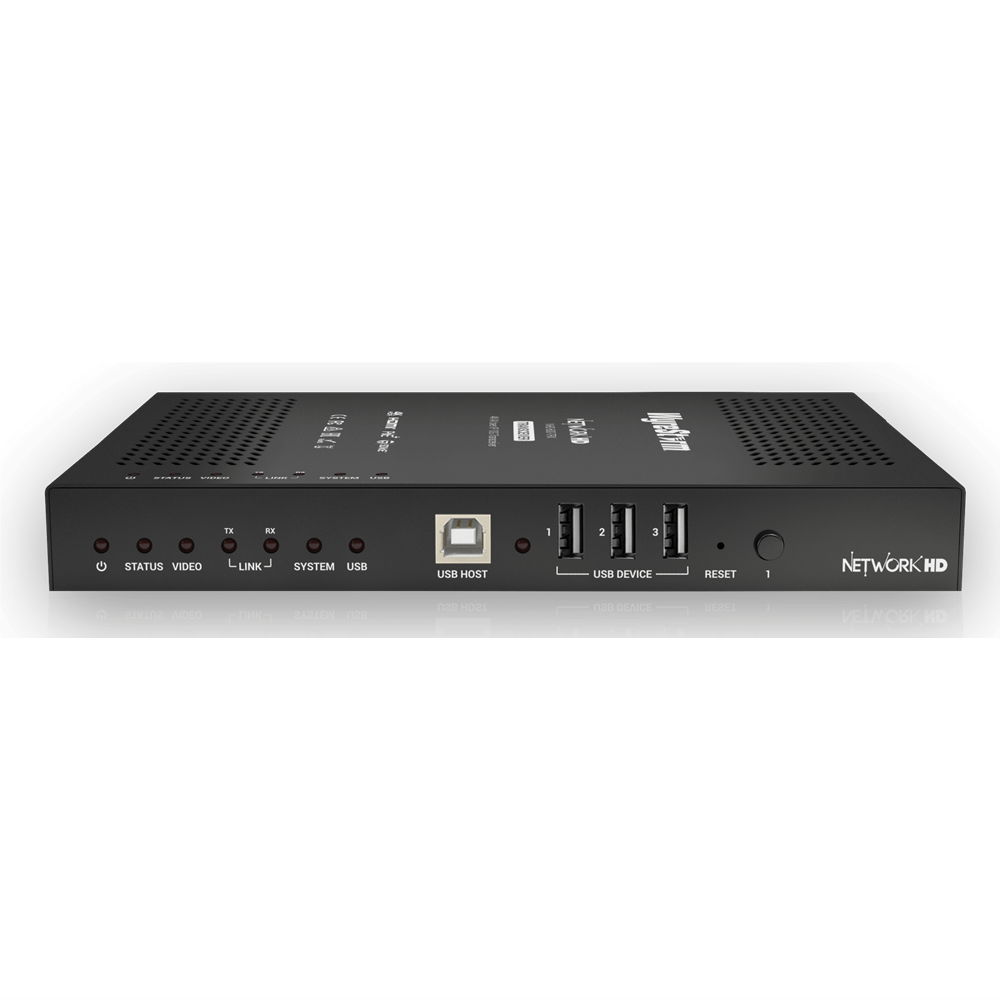

   1. 3 x USB 1.1 Type A
   2. 1 x USB 1.1 Type B Host

POWER

• Power Supply    12V 2A DC PSU | 802.3at PoE+ compliant
• Max Power Consumption    Max: 24w
• Average: 10w

ENVIRONMENTAL

• Operating Temperature    +32°F ~ +104°F (0°C ~ +45°C) | 10% ~ 90% non-condensing
• StorageTemperature    -4°F to ~ 140°F (-20°C ~ +70°C) | 10% ~ 90% non-condensing
• Maximum BTU    34 BTU/hr
• DIMENSIONS & WEIGHT
• Length x Width x Height    140mm x 215mm x 25mm
• Weight    1.75lbs
