4K UHD HDBT receiver bidirectional IR,RS232 and POH 4K:35M 1080P:70M

Product Code: WY-RX35POH

Brand
Wyrestorm
RRP $659.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads

HDBaseT™ 4K UHD Receiver with Bidirectional IR, RS-232 and PoH (4K: 35m/115ft | 1080p: 70m/230ft)

RX-35-POH

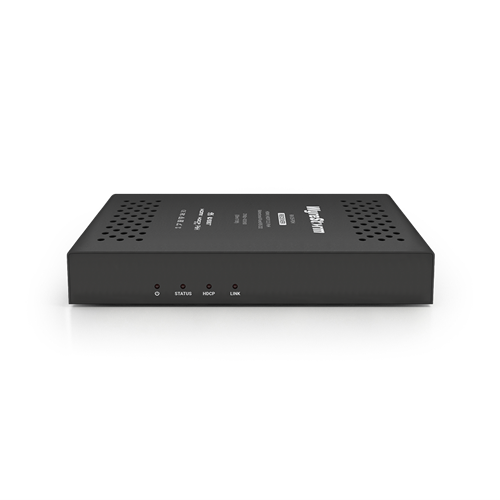

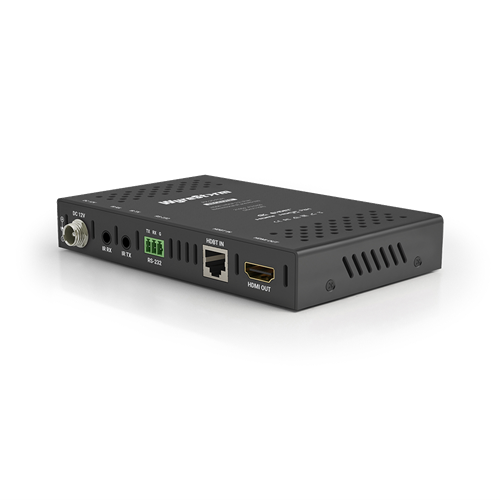

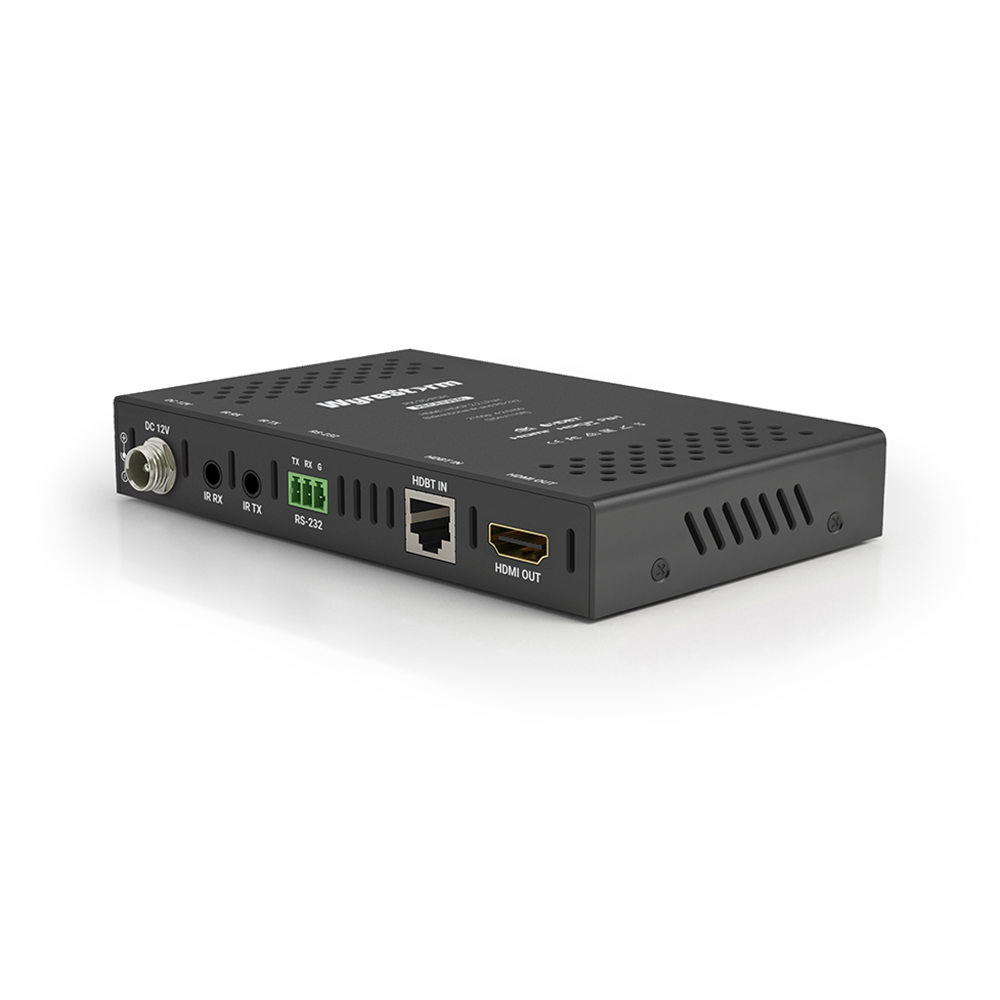

Compact Class B HDBaseT receiver supporting 4K HDR transmissions up to 35 meters from a compatible HDBaseT matrix or presentation switcher. 2-way PoH allows the RX-35-POH to power over category cable from a PoH matrix or switcher and also allows for the receiver to power in-wall HDBaseT transmitters.

CLASS B HDBASET™

Small in size but not in specification, the RX-35-POH is no different to the modern H2 family of products, supporting pixel-perfect 4K UHD 4:2:0 10-bit @24Hz at distances up to 35m/115ft or 1080p to 35m/115ft.

CONTROL OPTIONS

Supports 3 methods of control pass-through. Being a pure HDBaseT™ device, the RX-35-POH can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.

POH

The RX-35-POH can be powered by a PoH compatible matrix or presentation switcher meaning one less thing to think about when specifying & installing a WyreStorm system.

FULLY COMPLIANT WITH HDCP 2.2 ENCRYPTION

As with all of our HDBaseT Receivers, remaining relevant & legal is key to their operation. The RX-35-POH is compliant with the strict anti-piracy algorithms that prevent the unauthorized distribution of content, meaning a trouble-free installation.


Features

  • Receives 4K UHD HDBaseT transmissions up to 35m/115ft
  • Compatible with 4K HDR source content
  • Compatible with HDCP 2.2 protected content
  • 2-way PoH enabled for convenient PSU-free installation
  • RS-232 and IR passthrough for control of peripheral equipment


SPECIFICATIONS

Audio and Video

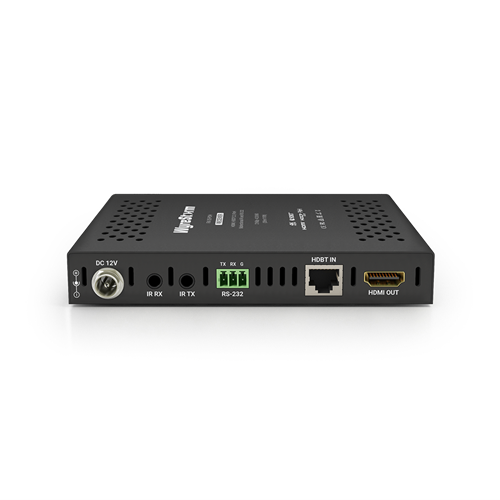

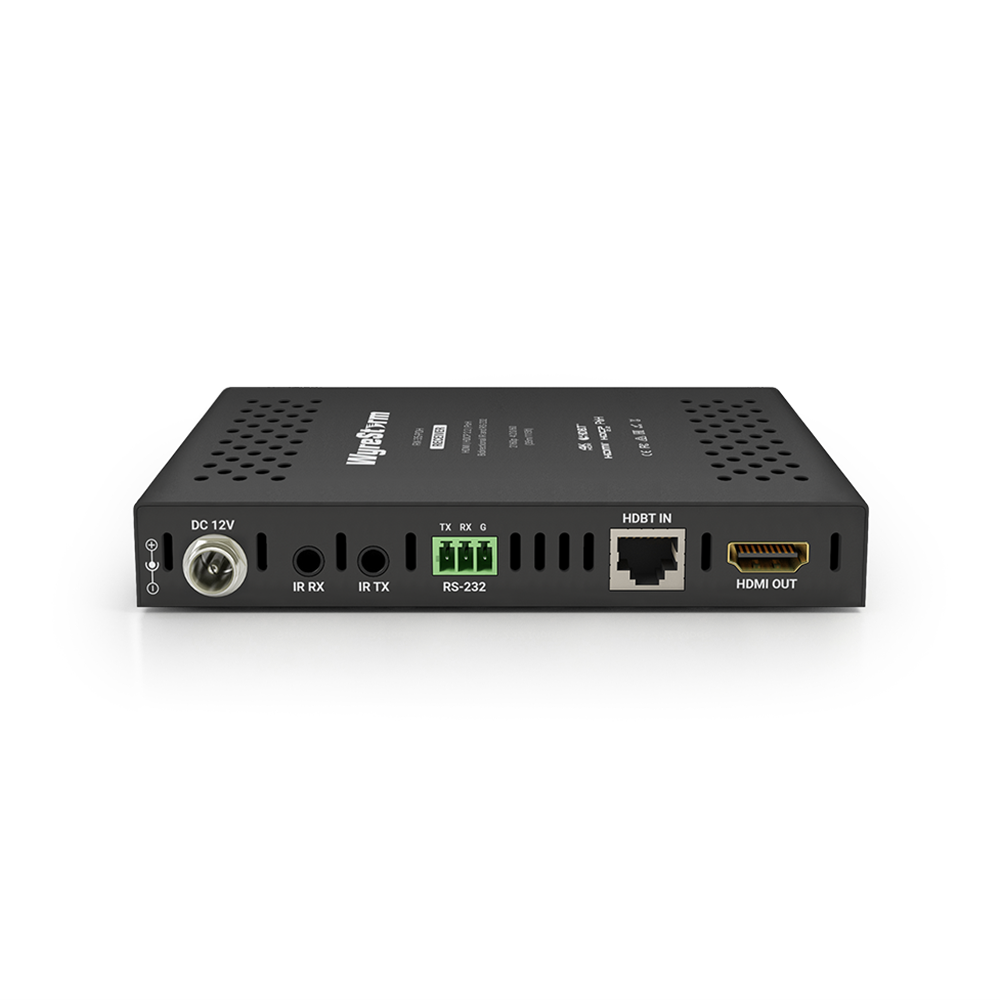

  • Inputs: 1x HDBaseT In 8-pin RJ-45 female
  • Outputs: 1x HDMI 19-pin type A
  • Output Video Encoding: HDBaseT Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency (Max): 10μs (micro seconds)
  • Audio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max):
  • Video Resolutions
    1920x1080p @60Hz 16bit
    3840x2160p @60Hz 10bit 4:2:0 HDR
    4096x2160p @60Hz 8bit 4:2:0
    HDMI
    7m/23ft
    5m/16ft
    5m/16ft
    Cat6
    70m/230ft
    35m/115ft
    35m/115ft
    Cat6a/7
    70m/230ft
    35m/115ft
    35m/115ft
  • Supported Standards: DCI | RGB | HDR10/10+ | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: HDMI: 297Mhz | HDBaseT: 297MHz
Communication and Control
  • HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • HDBaseT: HDCP 2.2 | EDID | PoH 2-way | Bidirectional IR, RS-232
  • IR: 1x IR TX 3.5mm (1/8in) Mono | 1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT™
  • RS-232: 1x 3-pin Phoenix Connector | Bidirectional over HDBaseT™
Power
  • Power Supply: 12V DC (Optional)
  • PoH: 2-way
  • Max Power Consumption: 7.2W
Environmental
  • Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
  • Storage Temperature: -4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing
  • Maximum BTU: 24.6 BTU/hr
Dimensions & Weight
  • Rack Units/Wall Box: <1U
  • Height: 21mm/0.82in
  • Width: 140mm/5.5in
  • Depth: 80mm/3.14in
  • Weight: 0.29kg/0.65lbs
Regulatory
  • Safety and Emission: CE | FCC | RoHS | RCM | EAC | RCM
