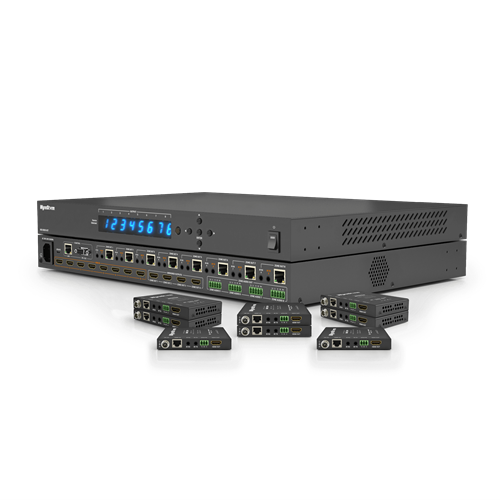

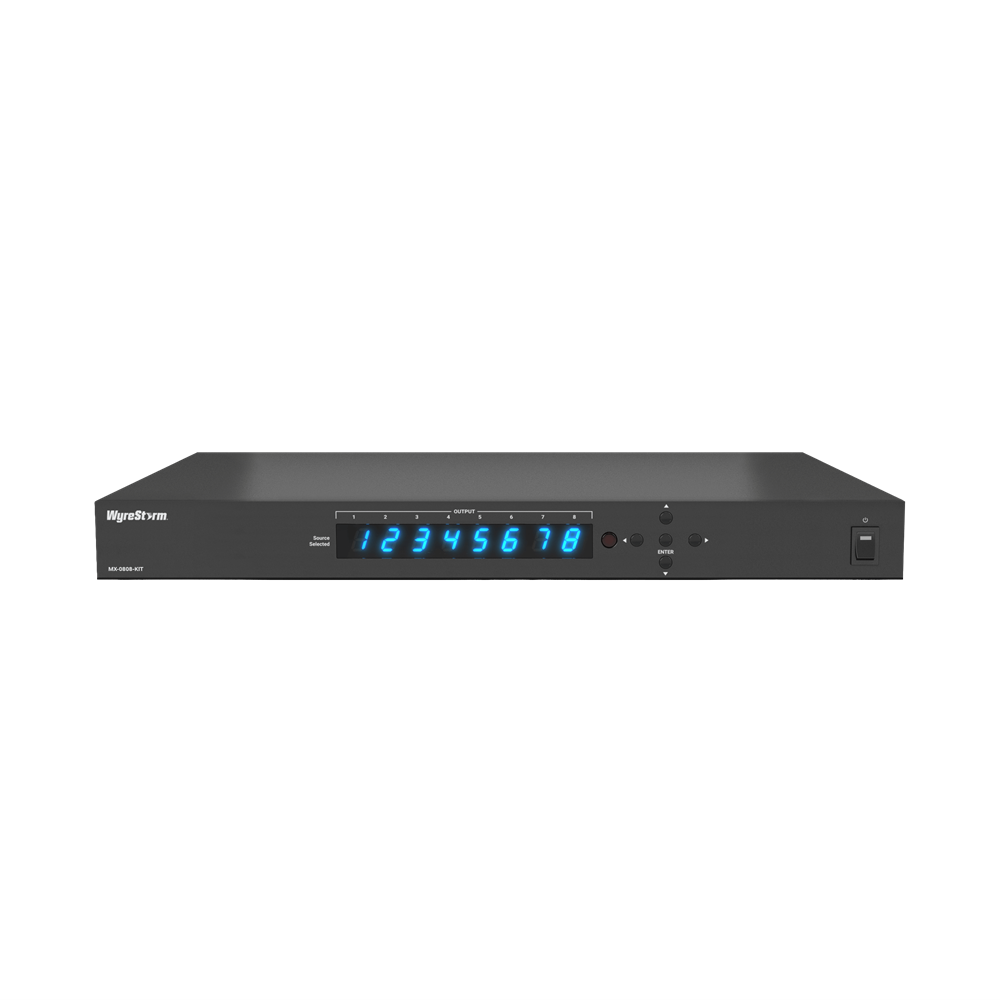

8×8 4K UHD HDBaseT™ Matrix Kit

The MX-0808-KIT v2 gets a make over, sharing many of the same powerful features of version 1, but with a vision of lite commercial installations in mind. Offering the same transmissions of 4K UHD up to 35m/115ft, but now up to 8 HDBaseT outputs with included receivers. Additionally, version 2 is equipped with 4 mirrored outputs, which can be paired with any of our HAOC hybrid optical HDMI cables to connect to 4 additional screens. Also new and fitting are 4 balanced analog audio outputs 2ch support to connect to ceiling/over–hanging speakers or to an audio amplifier. Lastly, still enjoy the same great features of version 1, including CEC triggering, A/V mute and standby mode to extend the life of the matrix during downtime.

TAILORED FOR COMPACT VENUES

In the modern House of Worship venues, video distribution to a few screens or large displays paired with just as powerful 2 channel audio distribution is common place. The MX-0808-KIT v2 ensures a workhorse AV matrix distribution system for up to 8 endpoints, all while keeping longevity and system health in mind with the Standby Mode, allowing for distribution to save on energy when not in use.

4K UHD and HDR SUPPORT

Small in price yet big on specification, this 8x8 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included receivers up to 35m/115ft.

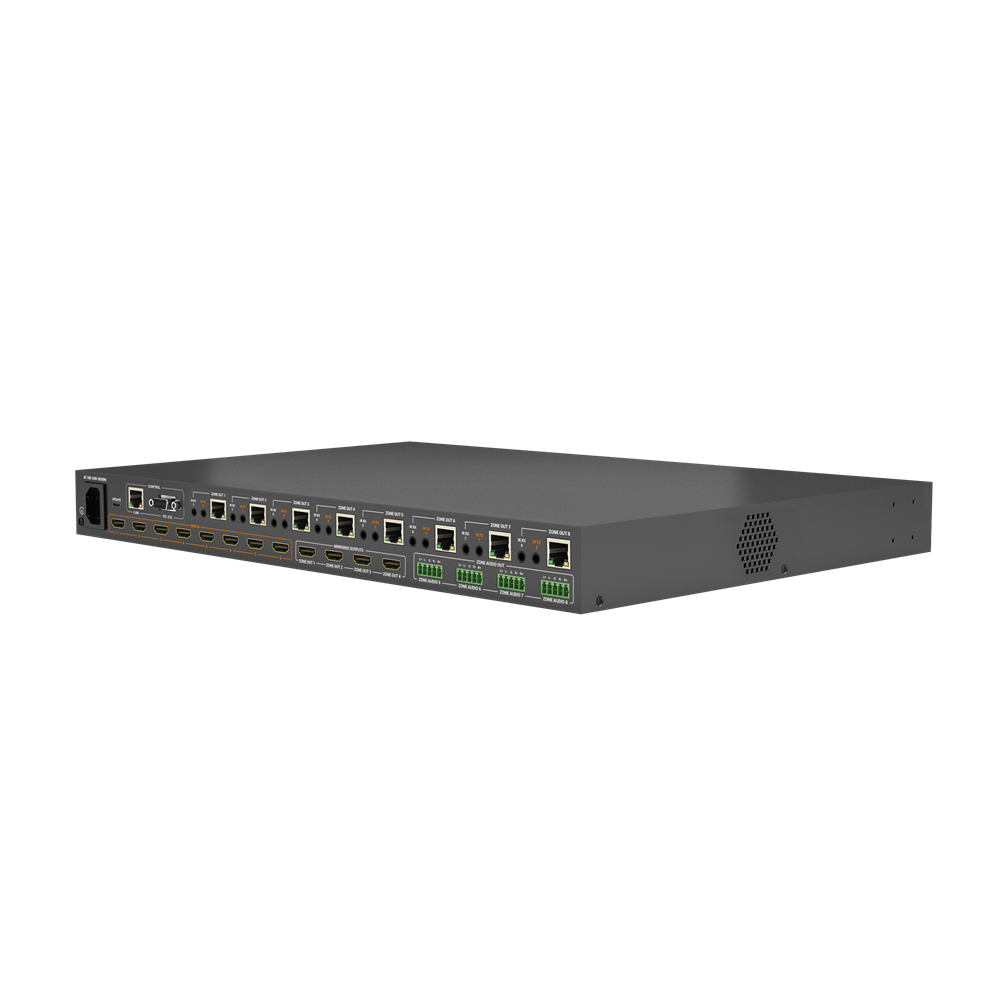

BALANCED AUDIO DE-EMBED

Equipped with 4 balanced analog audio breakouts that follow the last 4 HDBaseT outputs. This gives the commercial integrator confidence to connect to long-run audio cabling without fear of audio interference.

A/V MUTE

Certain applications in the hospitality, education and commercial markets don’t always require a source to be routed through to an output. The 8×8 kit makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.

CEC TRIGGERING

Working automatically on signal presence or triggered via the API, this 8x8 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.

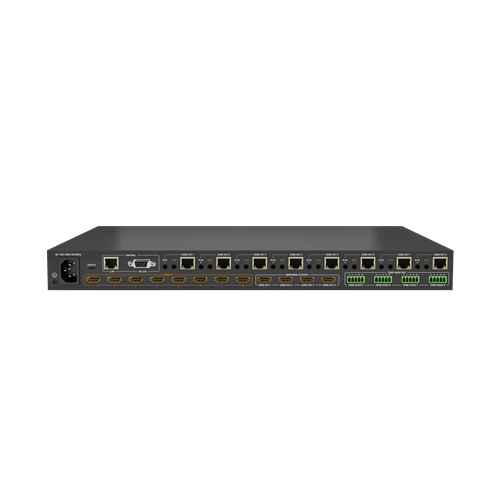

Specifications

• Inputs
  • Matrix
    • 8x HDMI: 19-pin type A
  • Receivers
    • 1x HDBT: 8-pin RJ-45 Female
• Outputs
  • Matrix
    • 8x HDBT: 8-pin RJ-45 Female
    • 4x 5-pin Balanced Analog Audio
  • Receivers
    • 1x HDMI: 19-pin type A
• Output Video Encoding: HDBaseT Class B
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10μs (micro seconds)
• Audio Formats: HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X Analog Output: 2ch PCM
• Video Resolutions (Max):
  • 1920x1080p @60Hz 16bit
  • 3840x2160p 10bit 4:2:0 HDR
  • 3840x2160p @30Hz 8bit 4:4:4
  • 3840x2160p @60Hz 8bit 4:2:0
• Supported Standards: DCI | RGB | HDR10 | HLG | BT.2020
• Maximum Pixel Clock: HDBaseT: 340MHz

• HDMI: HDMI 1.4 | HDCP 2.2 | EDID | CEC
• HDBaseT: HDMI 1.4 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
• CEC: CEC power triggering for connected screens – Requires CEC compatibility
• IR
  • Matrix
    • 8x IR RX: 3.5mm (1/8in)
    • 8x IR TX: 3.5mm (1/8in)
  • Receivers
    • 1x IR TX: 3.5mm (1/8in)
    • 1x IR RX: 3.5mm (1/8in)
• RS-232:
  • Matrix
    • 1x RS-232: DB9 Female (API)
  • Receivers
    • 1x RS-232: 3-pin Terminal Block
• Ethernet: 1x LAN: 10/100BaseT RJ-45

• Power Supply:
  • Matrix
    • 100~240V AC 50/60Hz
  • Receivers
    • 18V DC (Optional)
• PoH: 1-way Matrix to Receiver
• Max Power Consumption
  • Matrix
    • 105.4W
  • Receivers
    • 4.5W with External PSU5W via PoH

Additional Features

• True 8×8 matrix with 8 HDBaseT zones and 4 mirrored HDMI outputs
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to copy EDID from connected devices
• Independent user control interface with separate password-protected installer settings
• Personalize switching interface with source and output labelling
• Hide unused I/O for cleaner appearance and navigation
• API triggered standby mode puts unit into low power state during downtime
• 2-way IR for far-end device control from control system or source control from a zone.
• US, UK, EU & AU Power cables included
• Compact 1U chassis with adjustable depth rack mounting brackets included
