WyreStorm

4K UHD 4x4 HDBaseT Matrix Sw 3 HDBT, 1 HDMI 4K'35m, 1080p 70m

Product Code: WY-MX0404KIT

Brand
Wyrestorm
RRP $3,569.00


Unit of Measure
EACH



2 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
Input/output type HDMI
Product type AV matrixes
Product type Extenders
  • Details
  • Downloads

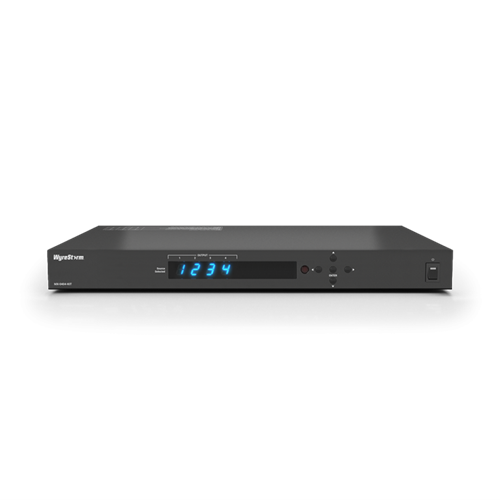

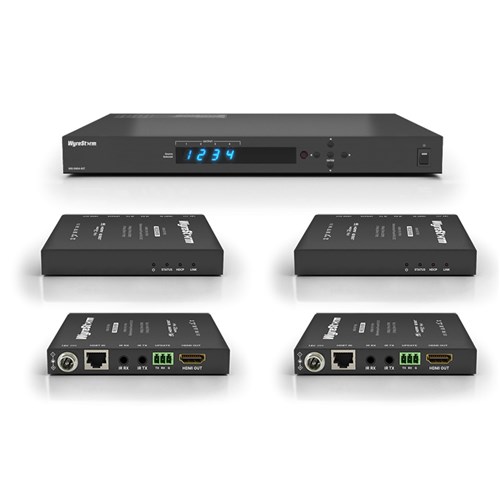

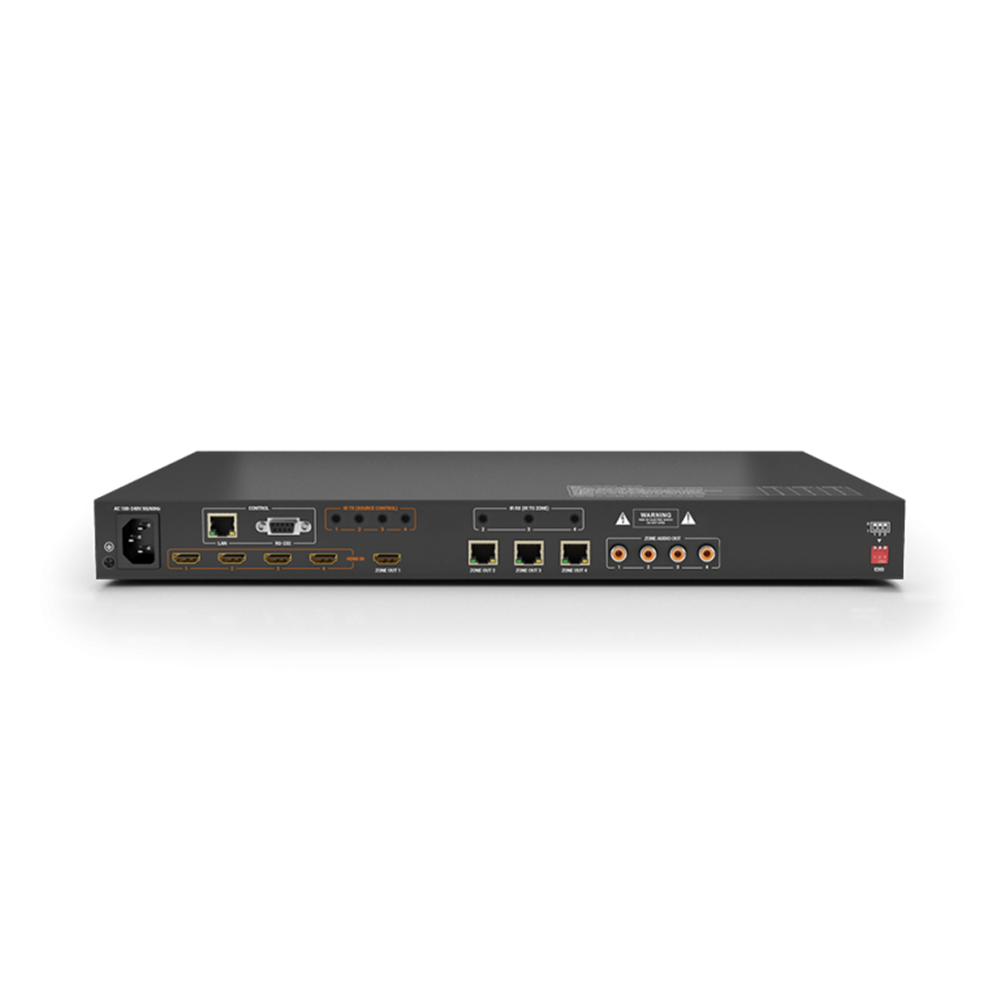

4K 4×4 HDBaseT™ Matrix with Receivers

An established leader in AV matrix solutions, WyreStorm packs a wealth of experience into this powerful yet compact 1U chassis. Offering transmission of HDMI content up to 4K UHD & HDR content to 35m/115ft, pairing HDBaseT with WyreStorm’s powerful crosspoint HDMI switching chipset. The MX-0404-KIT has 3 HDBaseT zone outputs with PoH and a single switched HDMI output which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fiber. The MX-0404-KIT doesn’t stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation.

  • 4K UHD AND HDR SUPPORT
    Small in price yet big on specification, the 4×4 kit can handle current video content up to 4K/60 4:2:0 covering a majority of current source devices, even supporting 10-bit HDR content at up to 30Hz and multi-channel audio. Powerful HDBaseT technology sends this, IR control and PoH for the included recievers up to 35m/115ft.
  • DE-EMBEDDED AUDIO
    With audio functionality to match its video capability, the 4×4 kit has the ability to extract audio signals from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR’s or downmix to stereo using the EXP-CON-DAC-D.
  • CEC TRIGGERING
    Working automatically on signal presence or triggered via the API, this 4×4 kit can send power trigger commands to all compatible connected screens or projectors meaning an integrated autonomous control solution.
  • A/V MUTE FUNCTION
    Certain applications in the residential, education and commercial markets don’t always require a source to be routed through to an output. The 4×4 kit makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.

Features

  • 4K UHD HDBaseT™ 4×4 Matrix Switcher, supporting:
    • Content up to 4K/60 4:2:0 8-bit or 4K/30 4:2:0 10-bit
    • The latest HDR standards, including 30Hz HDR-10 & Dolby Vision
    • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • True 4×4 matrix with 3 HDBaseT zones and 1 switched HDMI output
    • HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
  • HDBaseT enables 60Hz 4K UHD content (8-bit) to be sent over HDBaseT to 35m/115ft
  • Compatible with DVI-I and DP++ v1.3 signals from compatible devices
  • 4 audio outputs allow audio to be independently de-embedded from outputs via S/PDIF coaxial
  • Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
  • A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
  • SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
  • Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
  • Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
  • WebUI includes full EDID management to read, copy, store or import EDID from connected devices
  • Assign a different EDID to each connected source device
  • API triggered standby mode puts unit into low power state during downtime
  • Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
  • 3.5mm jack input for receiving local IR commands out of line-of-sight
  • Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
  • 2-way IR for far-end device control from control system or source control from a zone.
  • Compact 1U chassis with adjustable depth rack mounting brackets included
  • US, UK, EU & AU Power cables included
  • Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
  • Transmit content from HDMI output 1 up to 50m/164ft using a WyreStorm HAOC HDMI cable

Specifications

AUDIO AND VIDEO

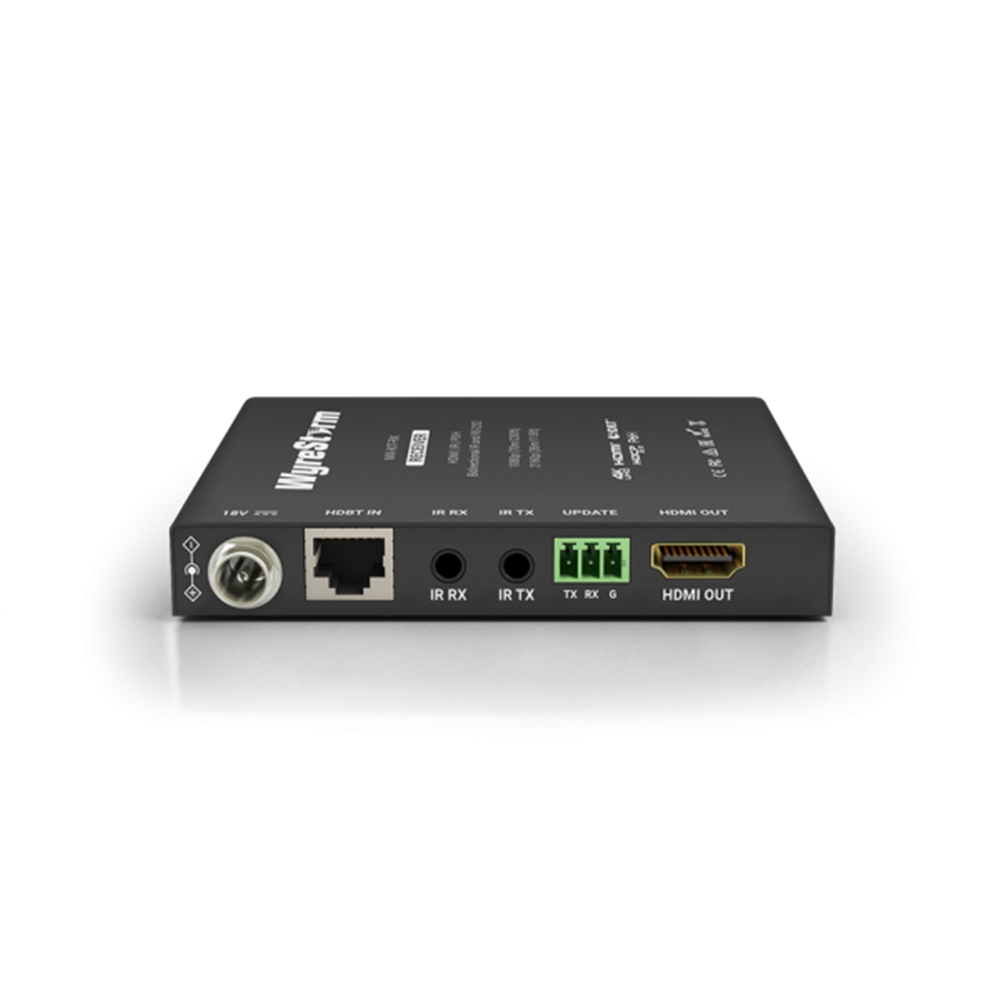

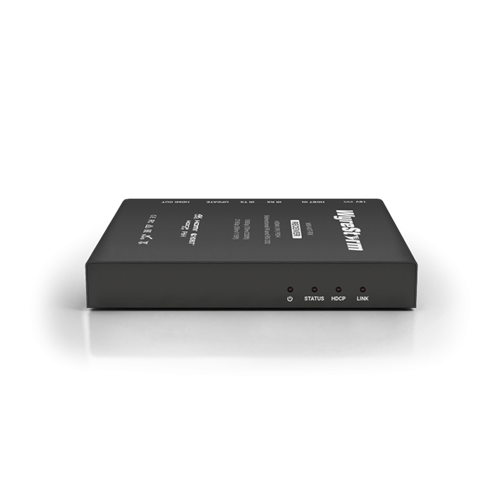

  Matrix Receivers
Inputs 4x HDMI In: 19-pin type A 1x HDBT In: 8-pin RJ-45 Female
Outputs

4x S/PDIF Out: RCA Female

3x HDBT Out: 8-pin RJ-45 Female

1x HDMI Out: 19-pin type A

1x HDMI Out: 19-pin type A
Output Video Encoding HDBaseT™ Class B
Encoding Data Rate 9.2Gbps
End to End Latency 10μs (micro seconds)
Audio Formats

HDMI/HDBaseT: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X

S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch

Analog: 2ch Analog

Supported Standards DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Video Resolutions (Max) Video Resolutions

1920x1080p @60Hz 12bit

1920x1080p @60Hz 16bit

3840x2160p @24Hz 10bit 4:2:0 HDR

3840x2160p @30Hz 8bit 4:4:4

3840x2160p @60Hz 8bit 4:2:0

HDMI

15m/49ft

7m/23ft

15m/49ft

7m/23ft

7m/23ft

Cat6

60m/197ft

35m/115ft

60m/197ft

35m/115ft

35m/115ft

Cat6a/7

70m/230ft

40m/131ft

70m/230ft

40m/131ft

40m/131ft

Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.

Supported Standards DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock HDBaseT: 340MHz

COMMUNICATION AND CONTROL

HDMI HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
HDBaseT HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
CEC CEC power triggering for connected screens – Requires CEC compatibility
IR

3x IR RX: 3.5mm (1/8in) TRS Stereo

4x IR TX: 3.5mm (1/8in) TS Mono

Bidirectional over HDBaseT

1x IR TX: 3.5mm (1/8in) TS Mono

1x IR RX: 3.5mm (1/8in) TRS Stereo

Bidirectional over HDBaseT

RS-232 1x RS-232: 9-pin DB9 Female (matrix only) 1x RS-232: 3-pin Terminal Block – 3.5mm (update only)
Ethernet 1x LAN: 8-pin RJ-45 Female N/A

POWER

Power Supply 100~240V AC 50/60Hz 18V DC (Optional)
PoH 1-way Matrix to Receiver
Max Power Consumption

48.2W

4.5W with External PSU5W via PoH

ENVIRONMENTAL

Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing
StorageTemperature -4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90%, non-condensing
Maximum BTU 164 BTU/hr 15.4 BTU/hr with External PSU17 BTU/hr via PoH

DIMENSIONS & WEIGHT

Rack Units 1U <1U
Height 43.5mm/1.72in 15.2mm/0.6in
Width 440mm/17.33in 136.4mm/5.38in
Depth 300mm/11.82in 74.2mm/2.93in
Weight 4.06kg/8.93lbs 0.24kg/0.53lbs

REGULATORY

Safety and Emission CE | FCC | RoHS | RCM | EAC
