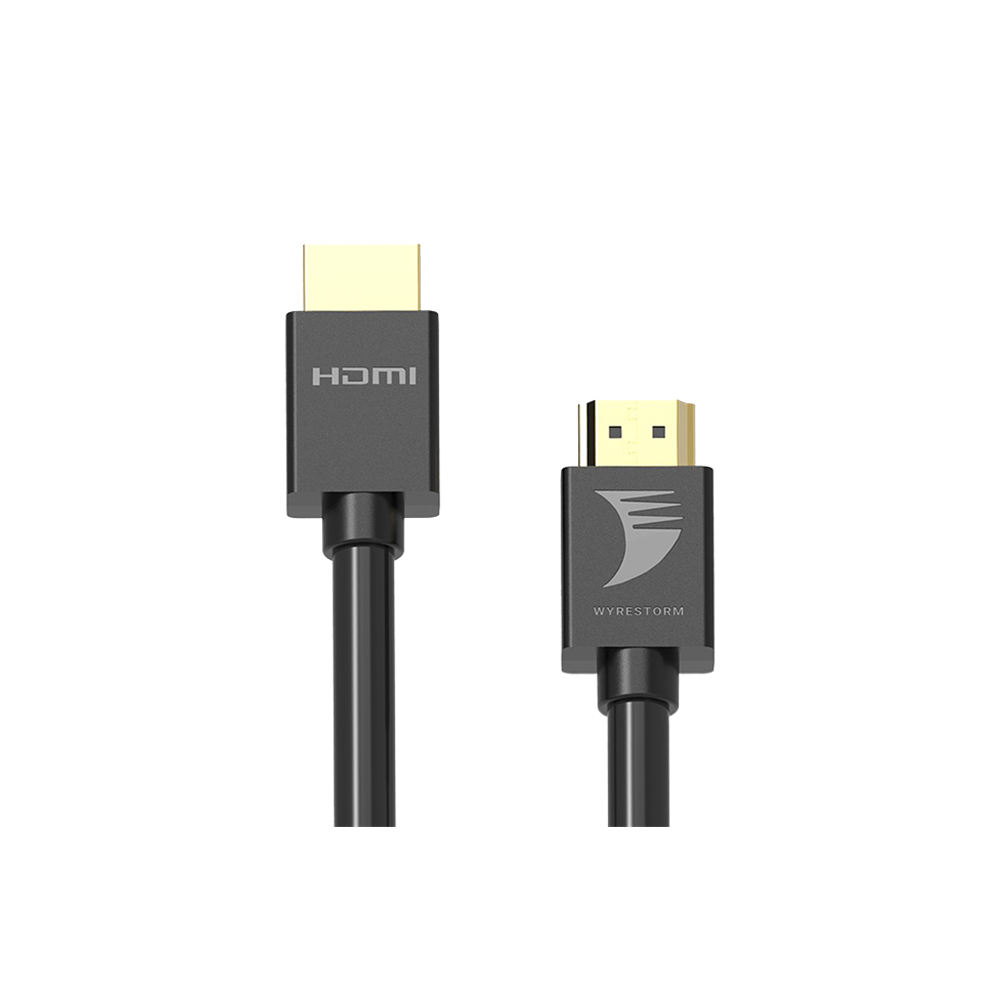

4K HDR 4:4:4 60Hz HDMI Cable with CL3 Rating (5m/16.4ft)

SKU: EXP-HDMI-H2-5M

WyreStorm HDMI cables are designed to meet the high bandwidth requirements demanded by the latest 4K UHD devices in commercial and residential applications. Our cables are tested to ensure continued compatibility with all 4K UHD and HD devices and provide a lifetime of perfect device connectivity.

UNCOMPRESSED 18GBPS
WyreStorm H2 Essentials H2 cables are the ideal choice for the highest, most reliable and affordable connection of 4K UHD with HDR device, ranging from 0.5m/1.6ft to 5m/15ft. HDCP 2.2 compliant and CEC/ARC compatible.

VARIETY OF SIZES
WyreStorm Essential H2 HDMI cables come in a variety of sizes, including 0.5m, 1.0m, 2.0, 3.0 and 5.0m, all with an unlimited warranty against manufacturing defects.

DURABLE CONSTRUCTION
WyreStorm HDMI cables contain 99.999% oxygen-free gold-plated, copper conductors, which protect against oxidation for excellent conductivity. Also, they’re constructed with a flexible, durable foil-insulated material, making them highly resistant to kinks and strain, increasing product life.

TESTED AND VERIFIED
Don’t sacrifice signal distribution quality by risking unknown brands that may be inferior. WyreStorm has done the hard part for you because all of our Essentials HDMI cables have been through our grueling testing process. Furthermore, all of our H2 cables are compatible with the latest 4K HDR 18Gbps content to ensure continued compatibility with current & future sources alike.

LIMITED LIFETIME WARRANTY
This WyreStorm Pro AV product comes with a Limited Lifetime Warranty

Features

• High Speed HDMI Performance: 18Gbps 4K/60 4:4:4 with 10-bit HDR at 60Hz
• Flexible, durable cable jacket with kink protection
• Compatible with all current and emerging HDR standards at up to 60Hz:-HLG (Hybrid Log Gamma)-HDR-10 and HDR-10+Dolby VisionPQ (Perceptual Quantizer)SL-HDR-1
• ARC and CEC compatible for true native HDMI communication
• 99% oxygen free solid copper core
• HDMI v2.0, v1.4 & v1.3 support
• Support of passive HDMI communication standards such as ALLM and VRR
• Available in 0.5m, 1m, 2m, 3m and 5m lengths

Specifications

AUDIO AND VIDEO

• Inputs:    1x HDMI: 19-pin type A Male
• Outputs:    1x HDMI: 19-pin type A Male
• Output Video Encoding:    Uncompressed
• Encoding Data Rate:    18Gbps
• End to End Latency:    Zero
• Audio Formats:    2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
• Video Resolutions (Max):
  • 1920x1080p @240Hz 8bit RGB
  • 2560x1440p @120Hz 8bit RGB
  • 4096x2160p @60Hz 10bit HDR 4:2:0
  • 4096x2160p @60Hz 12bit HDR 4:2:2
  • 4096x2160p @60Hz 10bit HDR 4:4:4
  • 4096x2160p @60Hz 10bit RGB
• Supported Standards:    DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock:    600MHz

COMMUNICATION AND CONTROL

• HDMI:    TMDS | HDCP 2.2 | EDID
• Supported Features:    Ethernet | Audio Return Channel (ARC) | CEC Auto Low Latency Mode (ALLM) | Variable Refresh Rate (VRR)

ENVIRONMENTAL

• Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
• Storage Temperature:    -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
• Maximum BTU:    N/A

DIMENSIONS & WEIGHT (CONNECTOR HOUSING)

• Cable Length:    5.0m/16ft
• Weight:    0.35kg/0.77lbs

REGULATORY

• Safety and Emission    CE | FCC | RoHS
