4K HDR 4:4:4 60Hz HDMI 8x8 Matrix Switcher with Audio Outputs, CEC Power Triggering and A/V Mute Function

MX-0808-H2A
Compact and fully-featured, the MX-0808-H2A matrix supports 18Gbps throughput to the full video capability of HDMI 2.0; it handles distribution of 4:4:4/60 and HDR content, supporting the latest broadcast standards and next generation 4K HDR source content.

Further features, such as audio de-embed and A/V mute, enhance the offering and with CEC power triggering for compatible connected screens. The MX-0808-H2A is the perfect match for WyreStorm’s range of hybrid optical HDMI cables.

HDMI 2.0 MAXED OUT!
Sporting an 18Gbps HDMI backplane, the MX-0808-H2A can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz, along with multichannel audio up to DTS:X and Dolby Atmos.

AUDIO DE-EMBED
With audio functionality to match its video capability, the 8x8 H2A has the ability to extract audio signals either from source devices or at the HDMI output, following the zone. Having S/PDIF and analog connectivity means having the flexibility to use multi-channel 5.1 or stereo audio signals.

CEC TRIGGERING
Working automatically on source signal presence or triggered via the API, the MX-0808-H2A can send power commands to all connected screens or projectors compatible with CEC meaning an integrated autonomous control solution.

A/V MUTE FUNCTION
Certain applications in the residential, education and commercial markets don’t always require a source to be routed through to the output. The MX-0808-H2A makes it possible to “mute” the video output as well as the audio, meaning that the HDMI signals to the zones can be independently switched off via the API.

FEATURES

• 8x8 HDMI 4K matrix switcher supporting:
• Content up to 4K/60 4:4:4 & RGB 8-bit
• The latest HDR standards, including HDR-10, HLG and Dolby Vision™ at 60Hz
• HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
• HD multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• SmartEDID™ feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• Assign a different EDID to each connected source device
• API triggered standby mode puts unit into low power state during downtime

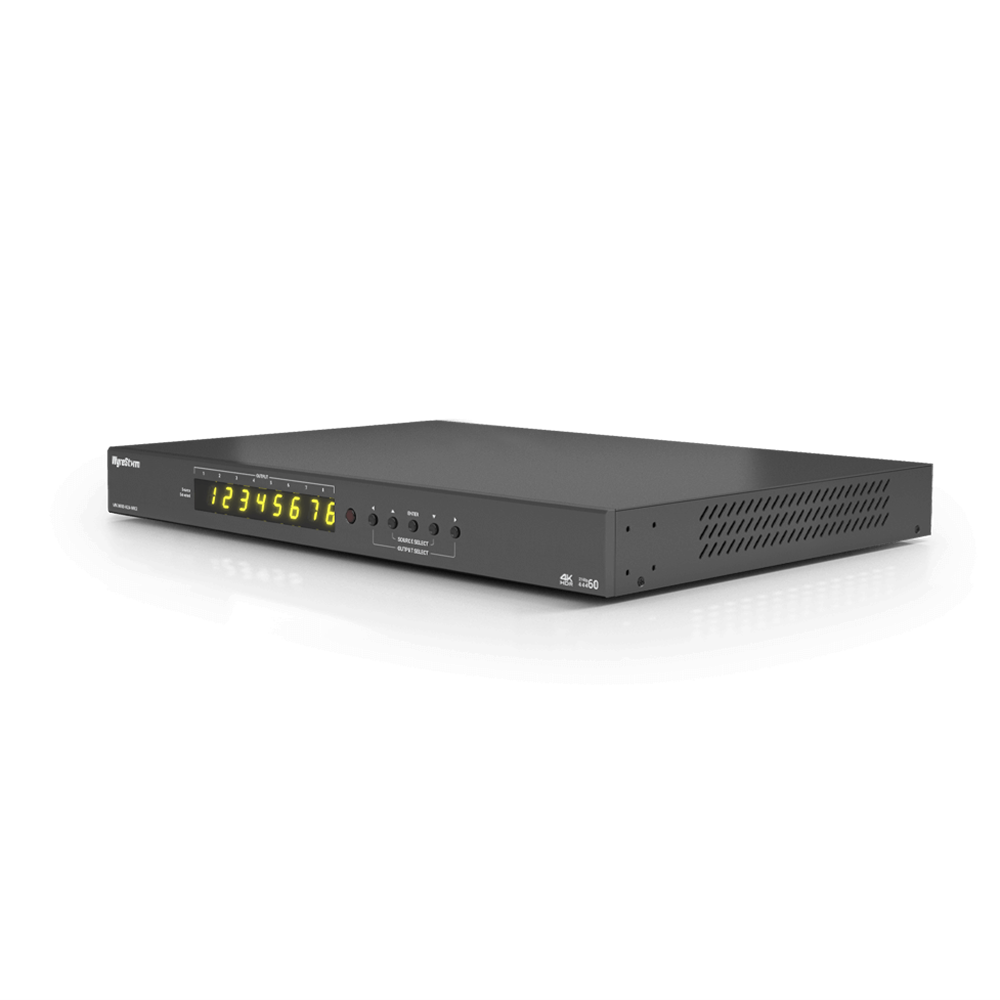

• Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• 3.5mm jack input for receiving local IR commands out of line-of-sight
• Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
• Option for end-user WebUI switching interface
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
• Assignable audio outputs allow audio to be de-embedded from sources or outputs via mirrored stereo phoenix and S/PDIF ports

SPECIFICATIONS

• Audio and Video

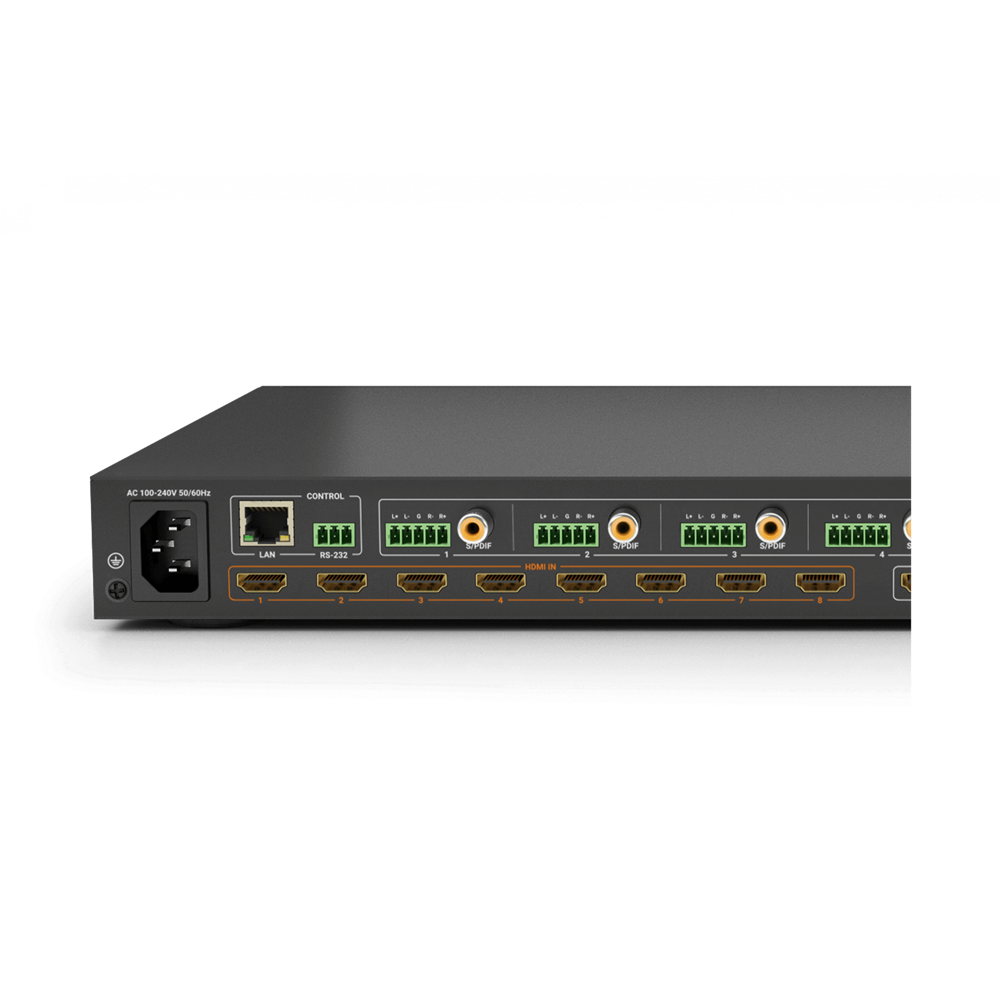

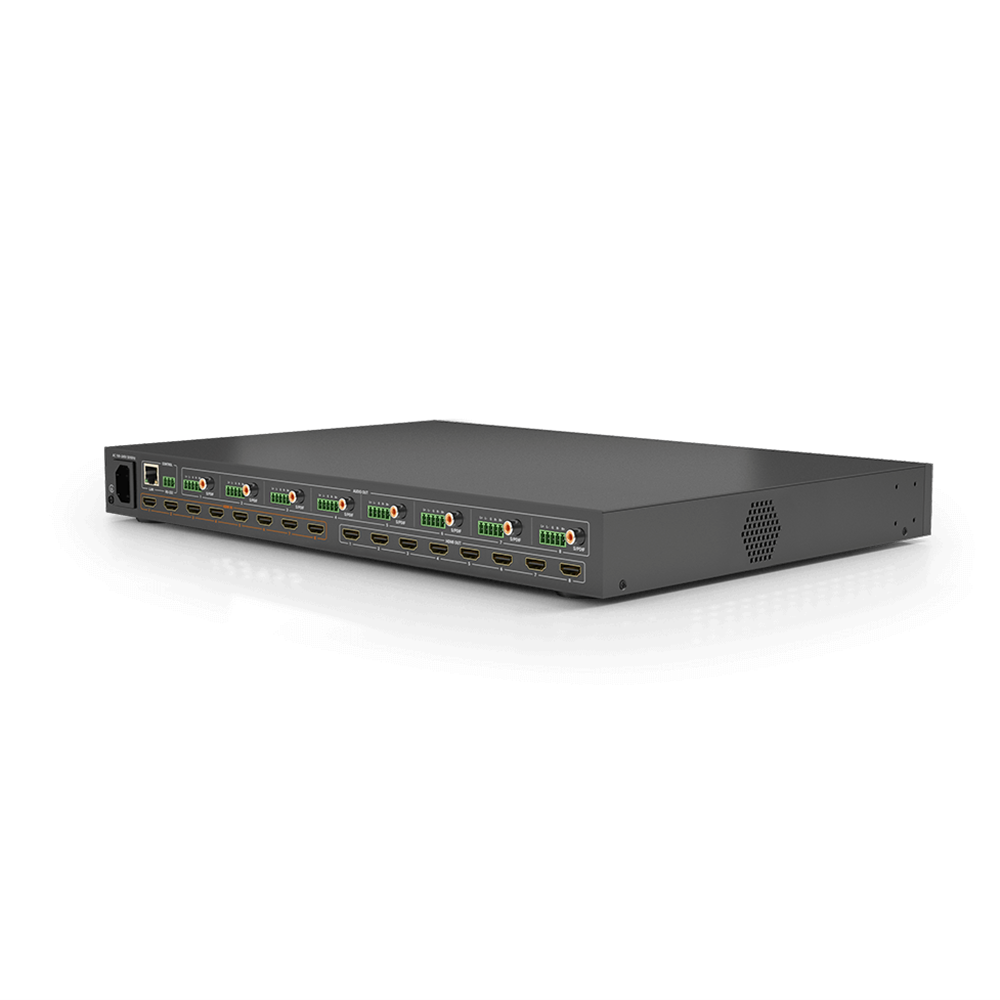

• Inputs: 8x HDMI in: 19-pin type A
• Outputs:

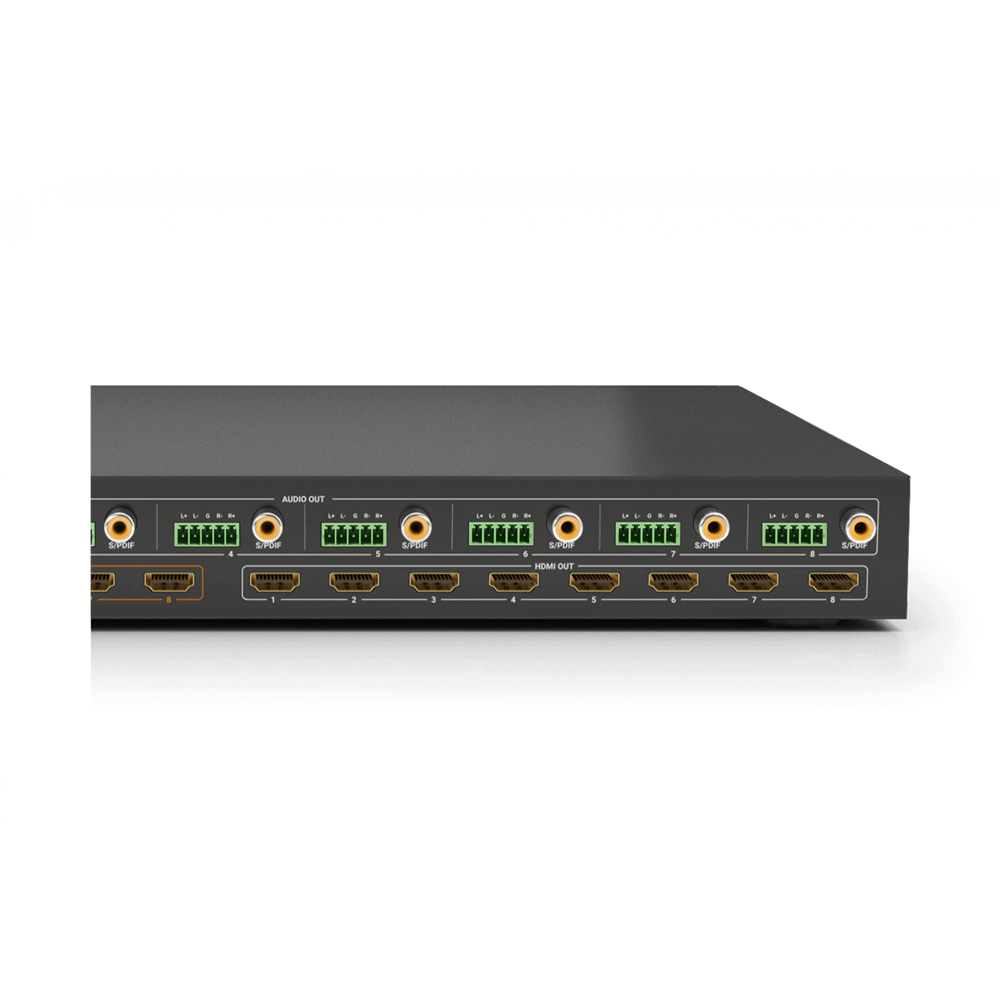

  • 8x HDMI Out: 19-pin type A
  • 8x Audio Out: RCA Female Stereo (L/R)
  • 8x S/PDIF Out: RCA Female
• Audio Formats: 2ch PCM | Multi Channel Up to 5.1 DTS and Dolby Digital

• Video Resolutions (Max)	Video Resolutions	HDMI
  	1920x1080p @60Hz 12bit	15m/49ft
  	1920x1080p @120Hz 12bit	7m/23ft
  	3840x2160p @24Hz 10bit 4:2:0 HDR	15m/49ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	5m/16ft
  	3840x2160p @60Hz 12bit 4:2:2 HDR	5m/16ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/23ft
  	4096x2160p @60Hz 8bit 4:4:4	5m/16ft

• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: 600MHz

• HDMI: HDMI 2.0 | HDCP 2.2 | EDID
• Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included)
• CEC: CEC power triggering | Requires CEC compatibility
• IR: 1x Front Panel IR Sensor | Handheld IR Remote Included | 1x IR Ext 3.5mm (1/8in) TRS Stereo
• RS-232: 1x RS-232: 9-pin DB9 Female | Matrix Control | Telnet commands supported
• Ethernet: 1x LAN: 8-pin RJ-45 Female | 10/100 Mbps auto-negotiating | Built-in Web UI | IP Control

• Power Supply: 100~240V AC 50/60Hz
• Max Power Consumption: 60W

• Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
• StorageTemperature: -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
• Maximum BTU: 205 BTU/hr

• Rack: Units/Wall Box 1U
• Height: 43.5mm/1.72in
• Width: 440mm/17.33in
• Depth: 300mm/11.82in
• Weight: 3.66kg/8.07lbs

• Safety and Emission CE | FCC | RoHS
