4K UHD HDBaseT 1-Gang In Wall Transmitter with PoH (4K: 35m/115ft | 1080p: 70m/230ftt)

TX-35-IW

The TX-35-IW provides simple transmission of remote HDMI sources. Pair with the RX-35-POH for simple yet effective signal extension of 4K UHD content. The TX-35-IW uses standardized HDBaseT and PoH technology, meaning that it is compatible with many WyreStorm models including presentation receivers or the H2XC series of matrix switchers. The TX-35-IW is great for remote input applications including education environments such as training rooms or huddle spaces. It can be remotely powered from a compatible HDBaseT receiver and features IR and RS-232 control signal passthrough.

SMALL FOOTPRINT
Powerful HDBaseT technology in the smallest footprint possible. Install the TX-35-IW into standard 1-Gang US sized wall boxes. Keep your installations looking professional and tidy.

COST EFFECTIVE
Retaining core functionality, the TX-35-IW has the capability you need and gets rid of those you don’t. Easily transmit HDMI content, control signals and power over a single category cable.

POH
The TX-35-IW features PoH technology which allows it to be powered from a compatible HDBaseT receiver. Eliminate the need for bulky DC power supplies and remotely power the TX over category cable.

VERSATILITY
Using standard technologies such as HDBaseT and PoH makes the TX-35-IW compatible with a myriad of WyreStorm receivers such as the SW-515-RX, or even as a remote input into the MX-H2XC for larger deployments.

Features

• Reliable HDMI extension of 4K and HD sources from a 1-Gang US decora wall plate using HDBaseT transmission technology
• Class B HDBaseT™ supporting 4K transmissions up to 35m (115ft)
• PoH enables unit to be powered remotely from a compatible WyreStorm HDBaseT receiver (RX-35-POH recommended)
• Additional 12v DC phoenix connection for local power when used with a non-PoH receiver (12v 1a PSU sold separately)

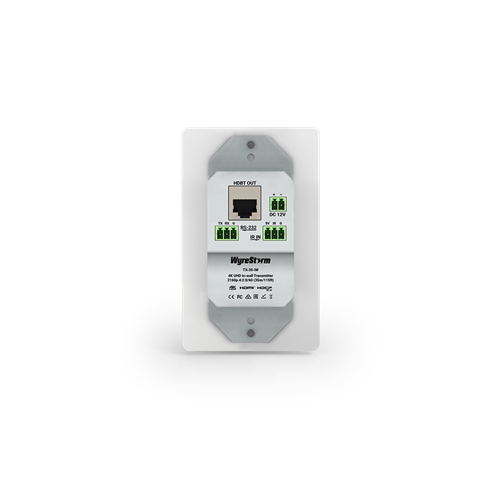

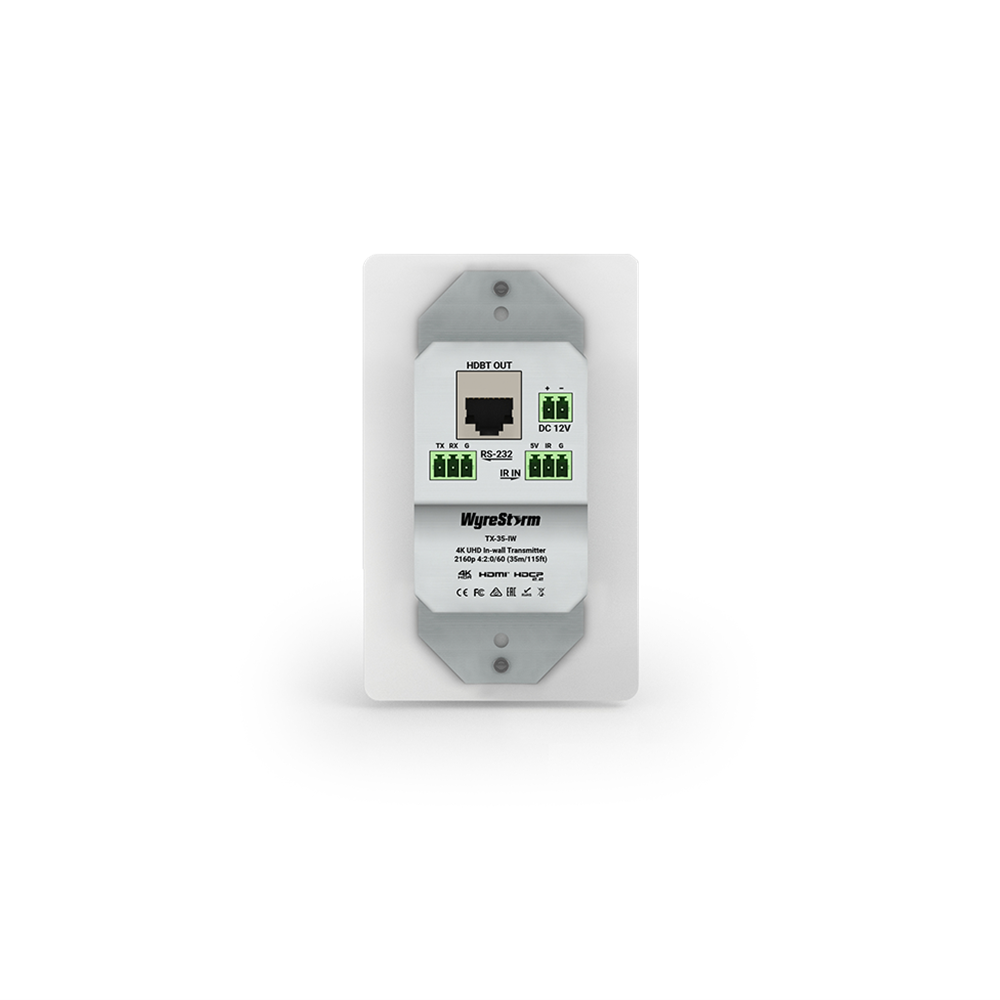

• Built-in front panel IR receiver window and rear facing 3-pin phoenix connection for easy TV/projector control
• Bi-directional RS-232 passthrough via rear facing 3-pin phoenix connection
• Automatic EDID management
• HDCP 2.2 compatible

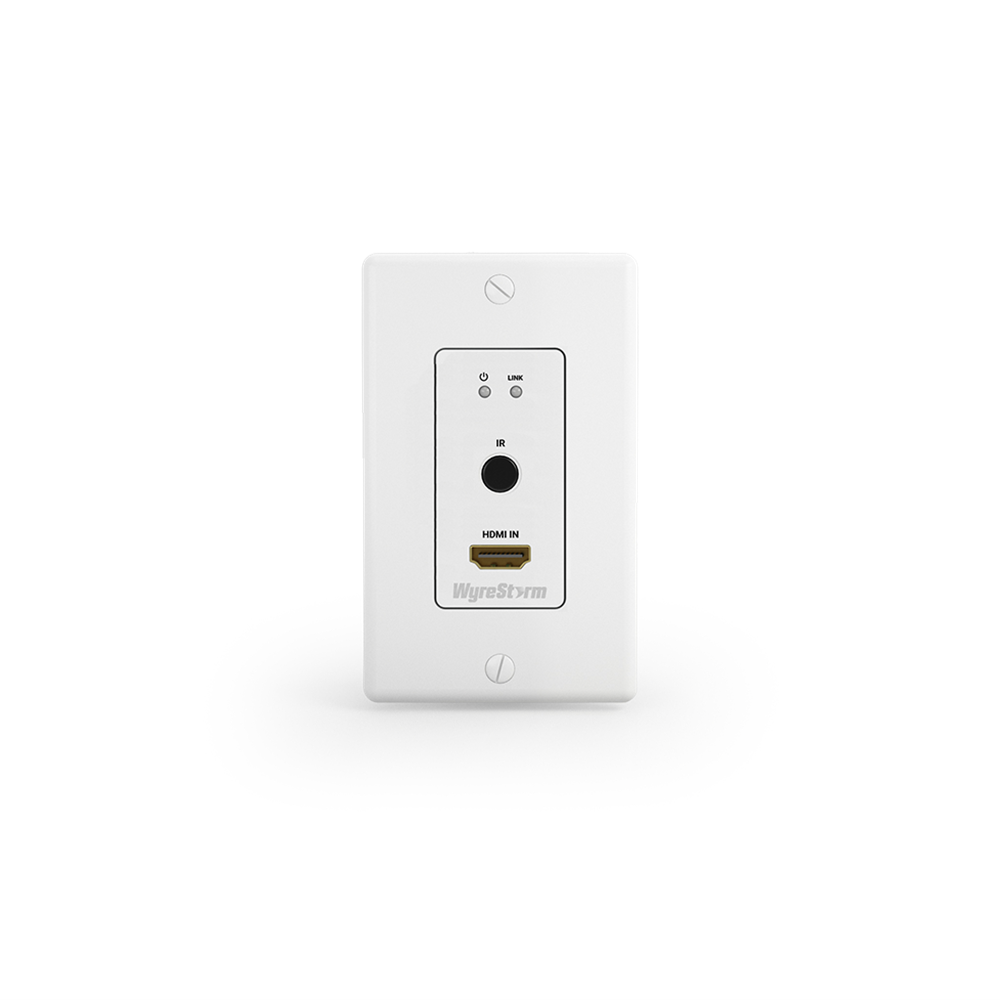

• Front panel LED indication for HDCP presence and transmission link between devices
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation

SPECIFICATIONS

• HDMI (v1.4): TMDS
• Inputs:
  • 1x HDMI In: 19-pin HDMI Type A
  • 1x VGA In: 15-pin DE-15 Female
  • 1x Audio In: 3.5mm (1/8in) TRS Stereo (VGA only)
• Outputs: 1x 8-pin RJ-45 (Transmission to RX)
• Maximum Pixel Clock: HDMI & HDBaseT: 297MHz
• Video Resolutions (Max)

• Video Resolutions 1920x1080p @60Hz 3840x2160p @30Hz 8bit 4:4:4 3840x2160p @60Hz 8bit 4:2:0 4096x2160p @60Hz 8bit 4:2:0

  HDMI 15m/49ft 7m/23ft 5m/16ft 5m/16ft

  Cat6 70m/230ft 35m/115ft 35m/115ft 35m/115ft

  Cat6a/7 70m/230ft 35m/115ft 35m/115ft 35m/115ft

• Supported Standards: DCI | RGB
• Audio Formats:
  • 2ch PCM
  • Multichannel LPCM
  • DTS-X
  • Dolby Atmos
• Maximum Sampling Rate: 192KHz
• Audio Return Channel (ARC): Not Supported

• HDMI: HDCP 2.2 | EDID | DVI/D supported with adapter
• EDID: Pass-Through, from RX
• IR: Passthrough; Front panel window, Rear 3-pin phoenix
• RS-232: 1x 3-pin Phoenix, Bi-directional passthrough
• Consumer Electronics Control (CEC): Not Supported
• Auto Low Latency Mode (ALLM): Not Supported
• Variable Refresh Rate (VRR): Not Supported

• Power Supply: PoH; 12V DC 1A (sold separately)
• Power-over-HDBaseT (PoH): Supported, 1-way from RX
• Local Power Supply Input: 2-pin Phoenix
• Max Power Consumption: 7.8W

• Operating Temperature:
  • 32°F ~ 113°F (0°C ~ 45°C)
  • 10% ~ 90%, non-condensing
• StorageTemperature:
  • -4°F to ~ 158°F (-20°C ~ +70°C)
  • 10% ~ 90%, non-condensing
• Maximum BTU: 2.29 BTU/hr

• Rack Units/Wall Box: In-wall, 1-gang
• Height: 105mm/4.13in
• Width: 45mm/1.77in
• Depth: 38mm/1.55in
• Weight: 0.18kg/0.40lbs

• Safety and Emission: CE | FCC | RoHS | RCM | EAC
