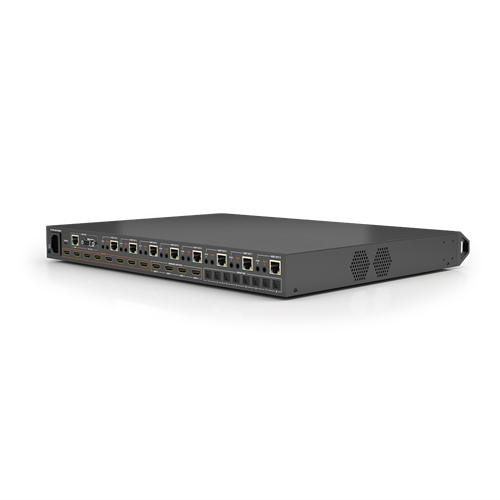

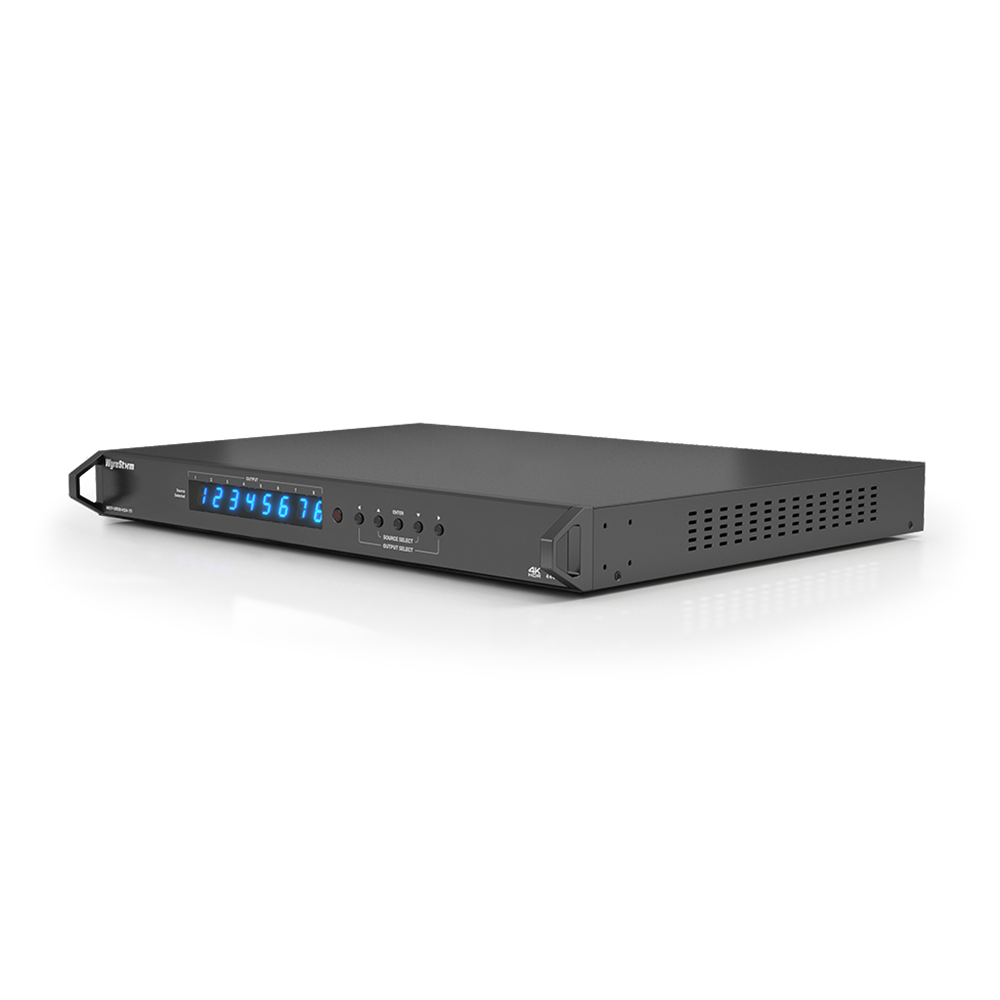

4K HDR 4:4:4 60Hz HDBaseT™ 8x8 Matrix Switch with Zone Audio De-Embed and 4 Mirrored HDMI Outputs (4K: 70m/230ft, 1080p: 100m/328ft)

MXV-0808-H2A-70
Offering transmission of 18Gbps HDMI content up to 70m/230ft by pairing Class A HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0808-H2A-70 brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses a lossless compression technology to ensure signal integrity.

With 8 Class A HDBaseT zone outputs & 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 12 connected screens, the 6x6 MXV-70 enhances the offering for the modern home or commercial installation.

HDMI 2.0 MAXED OUT!
Bringing our lossless compression technology from the flagship H2XC matrix platform, the 8x8 MXV-70 can handle both current & future video content technologies up to 4K/60 4:4:4 and high framerate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification is no longer limited to short range copper HDMI cables.

CLASS A PERFORMANCE
Aimed at larger footprint installations and in a significant step-up from the other MXV models in the range, the MXV-0808-H2A-70 doubles the transmission range and can transmit high-framerate HDR or 4:4:4/60 content up to 70m/230ft using superior Class A HDBaseT paired with the latest in compression technology.

DE-EMBEDDED AUDIO
With audio functionality to match its video capability, the 8x8 MXV-70 has the ability to extract audio signals from either source devices or from the output, following the zone. Having S/PDIF connectivity means having the flexibility to send multi-channel 5.1 audio to local AVR's or downmix to stereo using the EXP-CON-DAC-D.

MIRRORED HDMI OUTPUTS

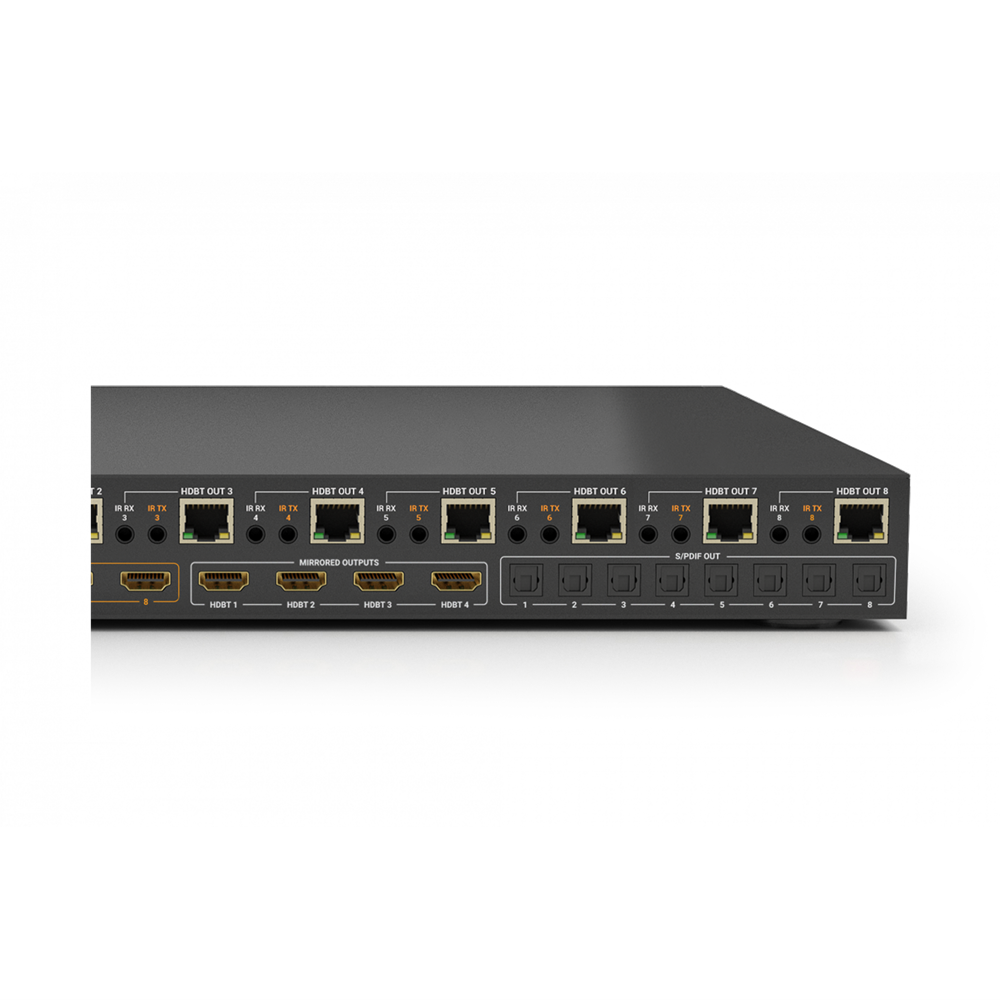

In addition to the audio breakout ports, the 8x8 MXV-70 also features four HDMI mirrored output ports which can be paired with any of WyreStorm’s HAOC hybrid optical HDMI cables for transmission up to 50m/164ft or any extender for transmission of HDBaseT or OM3 fiber.

Use with RXV-70-4K-G2 for 70m/230ft transmission of 2160p 4:4:4/60

• 4K HDR HDBaseT 8x8 Matrix Switch, supporting:
  • Content up to 4K/60 4:4:4 & RGB 8-bit
  • The latest HDR standards, including 60Hz HDR-10 & HLG and Dolby Vision™ at 30Hz
  • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
• Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 70m/230ft
• 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional slave screens, projectors or AVR’s
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• SmartEDID™ feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
• WebUI includes full EDID management to read, copy, store or import EDID from connected devices
• Assign a different EDID to each connected source device
• API triggered standby mode puts unit into low power state during downtime
• Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• 3.5mm jack input for receiving local IR commands out of line-of-sight
• Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
• 2-way IR for far-end device control from control system or source control from a zone
• Option for end-user WebUI switching interface
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables

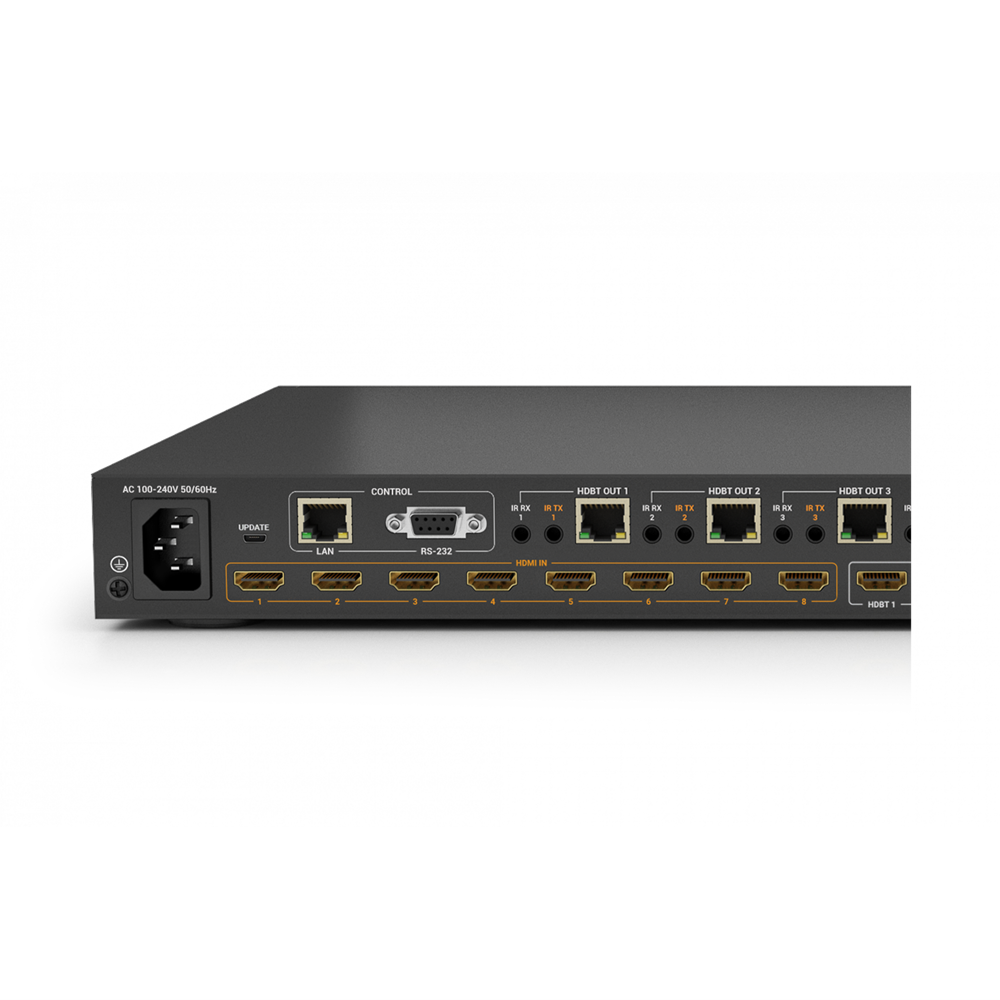

SPECIFICATIONS

• Inputs: 8x HDMI In: 19-pin type A
• Outputs:
  • 8x HDBT Out: 8-pin RJ-45 Female
  • 8x S/PDIF Out: TOSLINK (Digital Optical)
  • 4x HDMI Out: 19-pin type A
• Output Video Encoding: HDBaseT™ Class A
• Encoding Data Rate: 9.2Gbps
• End to End Latency: 10μs (micro seconds)
• Audio Formats:
  • Analog: 2ch Analog
  • S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
  • HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X

• Video Resolutions (Max)	Video Resolutions	HDMI	Cat6	Cat6a/7
  	1920x1080p @60Hz 12bit	15m/49ft	100m/328ft	100m/328ft
  	1920x1080p @120Hz 12bit	7m/23ft	70m/230ft	100m/328ft
  	3840x2160p @24Hz 10bit 4:2:0 HDR	15m/49ft	100m/328ft	100m/328ft
  	3840x2160p @30Hz 8bit 4:4:4	7m/23ft	70m/230ft	100m/328ft
  	3840x2160p @60Hz 10bit 4:2:0 HDR	5m/16ft	70m/230ft	100m/328ft
  	3840x2160p @60Hz 12bit 4:2:2 HDR	5m/16ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:2:0	7m/22ft	70m/230ft	100m/328ft
  	4096x2160p @60Hz 8bit 4:4:4	5m/16ft	70m/230ft	100m/328ft

• Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
• Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: HDMI: 600MHz | HDBaseT: 297MHz

• HDMI
  • HDMI 2.0 | HDCP 2.2 | EDID | CEC
  • Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included)
• HDBaseT:HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
• CEC: CEC power triggering via API | Requires CEC compatibility
• IR: 8x IR RX: 3.5mm (1/8in) TRS Stereo | 8x IR TX: 3.5mm (1/8in) TS Mono
• RS-232: 1x RS-232: 9-pin DB9 Female | Matrix Control | Telnet commands supported
• Ethernet: 1x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control

• Power Supply: 100~240V AC 50/60Hz
• Max Power Consumption: 169W

• Operating Temperature: 0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
• StorageTemperature: -20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
• Maximum BTU: 577 BTU/hr

• Rack Units: 1U
• Height: 43.5mm/1.72in
• Width: 440mm/17.33in
• Depth: 330mm/13in
• Weight: 4.95kg/10.89lbs

• Safety and Emission: CE | FCC | RoHS | RCM
