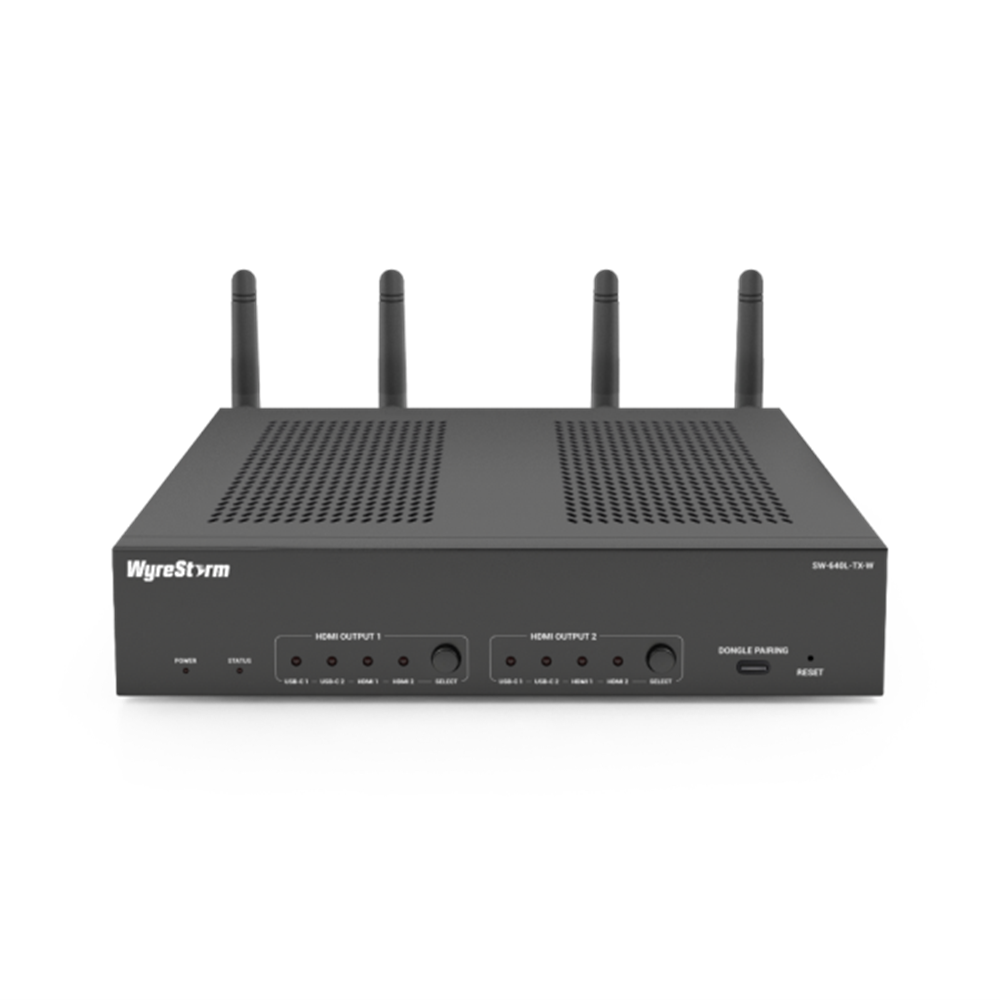

4-Input 4K Presentation Switcher with Matrix Outputs, USB 3.0, Multiview & Wireless Casting

The SW-640L-TX-W is an advanced presentation switcher, tailored to meet the dynamic requirements of modern meeting spaces and conference rooms. This upgraded model boasts significant enhancements. Key improvements include two USB-C inputs with 60W PD and MST support for receiving dual video signals. The switcher now features an upgraded USB 3.0 switcher, further enriched by the support for a wireless host through the APO-DG2. This addition allows for more flexible and convenient connections.

• WIRELESS CASTING
  Wirelessly screenshare from your laptop, phone, or tablet by using Apple Airplay or Miracast. Up to 4 wireless devices can be connected at the same time and shown on connected screens in a picture-in-picture layout.
• MULTIVIEW
  Display up to 4 source devices at the same time, creating a supportive environment for collaboration between colleagues and teams.
• DUAL OUTPUT
  Dual switching outputs promote connectivity of multi-screen conference rooms. The HDMI outputs can be matrixed independently or mirror content.
• USB
  A built-in USB 3.0 hub on the switcher allows local connection of peripherals devices such as a conference speakerphone.

Additional Features

• Automatic or manual switching of 4 connected sources (2 HDMI & 2 USB-C) with assignable USB host connection
• 60W PD on the USB C Ports
• Supports input resolutions up to 4K30 4:4:4 via USB-C or HDMI
• Wireless screensharing via Apple Airplay or Miracast
• Dual output via HDMI
• Multiview processing up to 4 simultaneous sources
• Analog audio output allows extraction of Audio.
• Compatible with all major conference software including Zoom, Microsoft Teams, Cisco WebEx and more
• Built-in USB 3.0 hub for connection of peripheral devices such as speakerphones or cameras
• Seamless switching in both single view and Multiview modes
• USB-C input supports alt-mode for both A/V (MST Supported), Ethernet, and Data communication over a single cable
• API uses Telnet over TLS for secure and encrypted communication
• Integrated webserver for control and configuration via HTTPS
• Easily mountable under a table or desk with included mounting brackets
• Built-in wireless access point for secure and isolated communication to screensharing devices
• Wireless access point supports custom SSID, password and screensharing access PIN
• Integrated ‘Guide Screen’ used to provide end-users with simple instructions to get connected
• Custom ‘Guide Screen’ can be uploaded to include company information, logos, or specific connection information
• Relay and PA Sensor

Specifications

AUDIO AND VIDEO

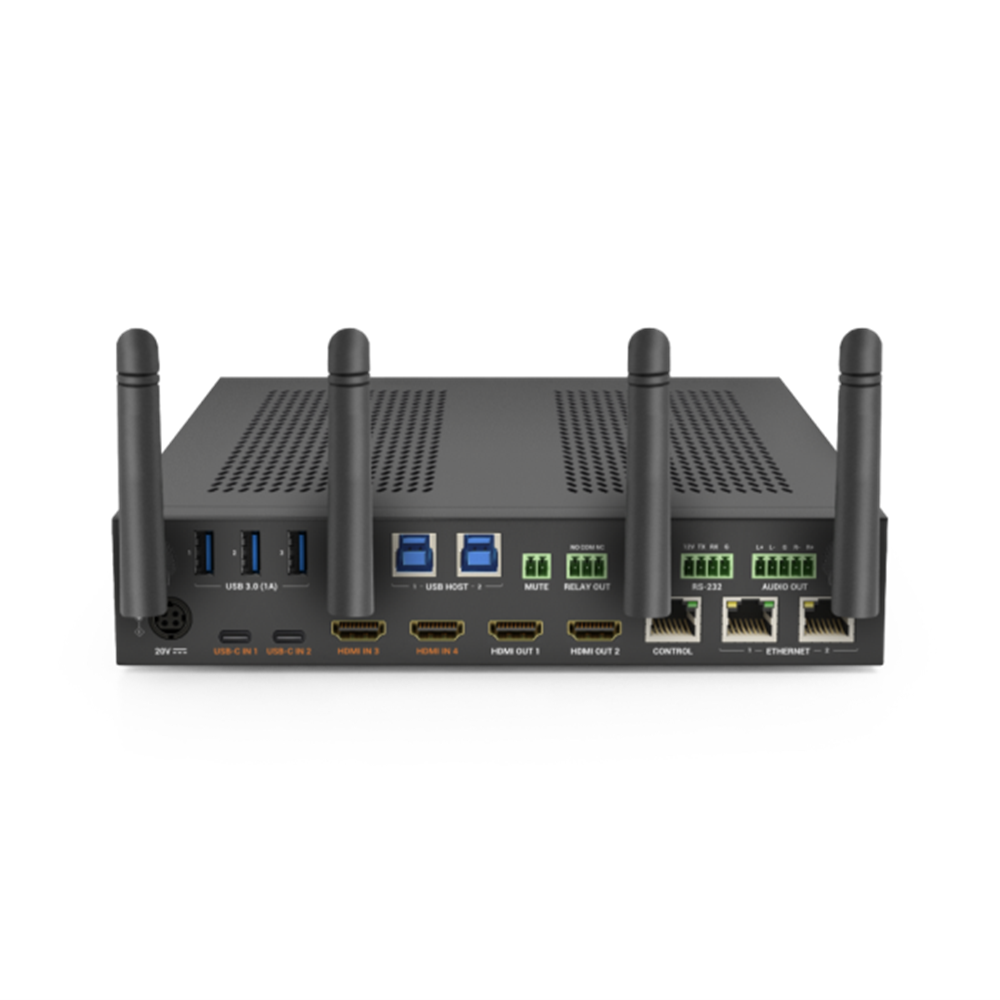

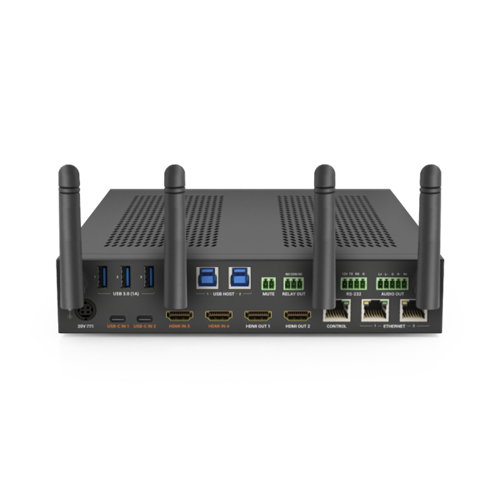

• Inputs
  • 2x HDMI In: 19-pin Type A
  • 2x USB-C
  • Wireless Video from Airplay or Miracast Source
  • APO-DG2 casting dongle (sold seperatley)
• Outputs

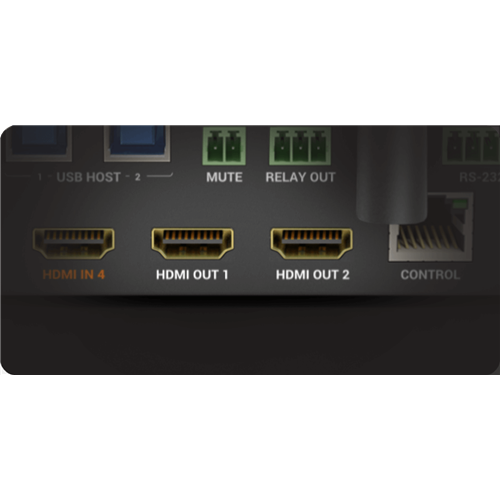

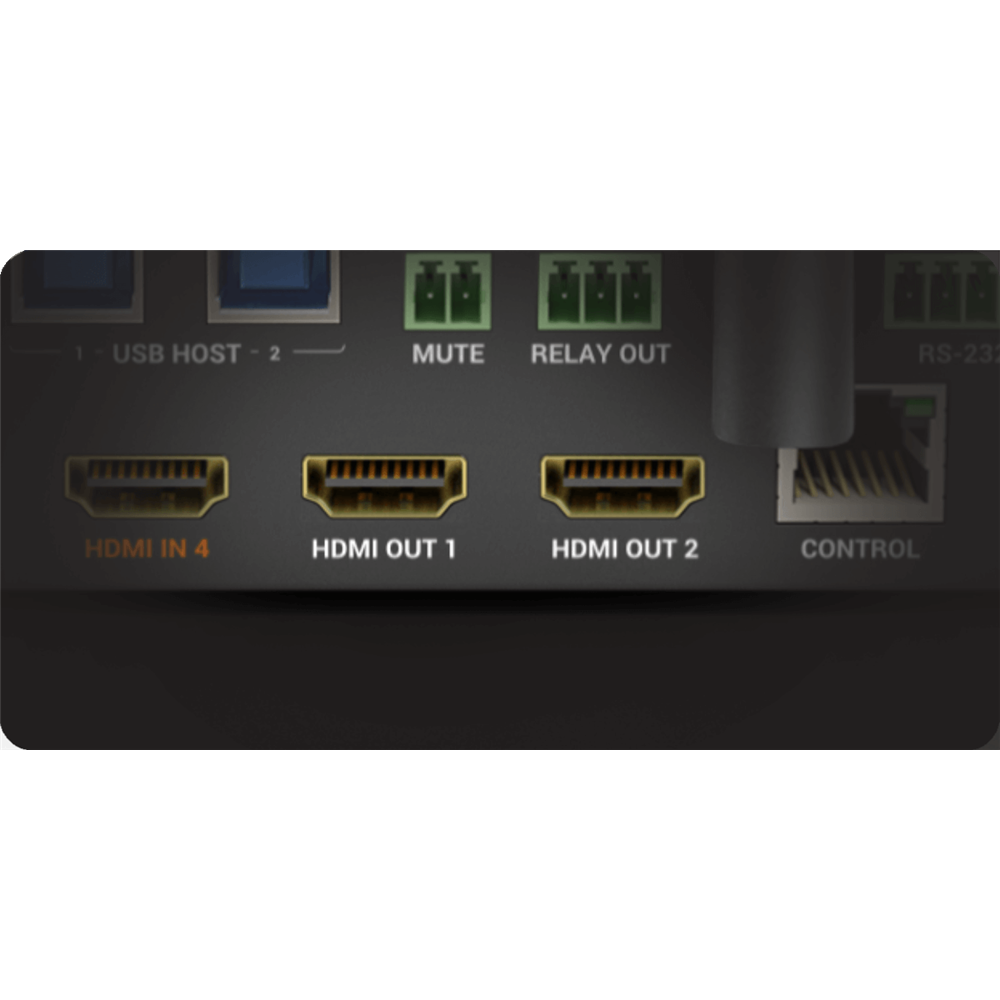

  • 2x HDMI Out: 19-pin Type A
  • 1x Analog Audio Out (5-pin Phoenix Male Connector)
• Audio Formats: 2ch PCM
• Output Video Encoding: HDMI
• Video Resolutions (Max):
  • HDMI Out 1 – 3840x2160p @60Hz 4:4:4
  • HDMI Out 2 – 3840x2160p @30Hz 4:4:4
• Supported Standards: DCI | RGB
• Maximum Pixel Clock: 300MHz

COMMUNICATION AND CONTROL

• HDMI
  • HDMI Out 1 – HDCP 2.2
  • HDMI In & HDMI Out 2 – HDCP 1.4
• USB
  • 3x USB 2.0 Type A device ports | 5v 10000mA per port
  • 2x USB 2.0 Type B host ports (assignable)
• RS-232: 1x 4-pin Phoenix (API control) | Provides 12V Power
• LAN: 3x 8-pin RJ-45 Ethernet Ports
• Wireless: 4x Wi-Fi Antennas | IEEE 802.11 a/b/g/n/ac | Dual-band 2.4 & 5GHz | WEP, TKIP, AES, WPA, WPA2

POWER

• Power Supply: 20V 10A

In the Box

• 1x SW-640L-TX-W
• 1x 20V 10A Power Supply (US/UK/EU/AU)
• 4x Plastic Mounting Brackets
• 1x 2-pin Phoenix Connector (for PA Sensor)
• 1x 3-pin Phoenix Connector (for Relay)
• 1x 4-pin Phoenix Connector (for RS-232)
• 1x 5-pin Phoenix Connector (for Audio Out)
• 4x Wi-Fi Antennas
• 1x Quickstart Guide
