Cables and Connectors

This is a Special Order Item

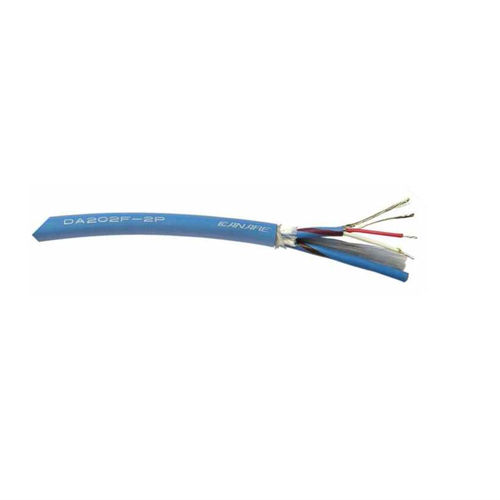

2-channel AES cable, 100m

Product Code: CA-DA202F-2P-100

Brand
Canare
RRP $1,260.00


Unit of Measure
R100


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type 2 Core
  • Details
  • Downloads

Multi Channel version of DA202. Available in 2, 4 and 8 channel pairs. 25 AWG conductors allow use with Punch Down Block Audio Patchbays. Integral Drain Wire for easy ground wiring. Maximum recommended Length: 180meters. Overall Jacket color: BLUE.

  • Twisted Pairs with Braid Shield
  • Special PE Filter Rods maintain constant 110 ohm impedance
  • AES/EBU Digital Audio
  • Audio Rack Wiring
  • Post Productions
  • Digital Mixing System
MECHANICAL SPECIFICATIONS
Model Sales Units
(m)		 Nom O.D.
Inch
(mm)		 Weight
Kg/100m		 Cross Sec Area(AWG) and Cond. Comp.
mm2/(AWG)
Q'ty/mm		 Twist Pitch Shield On Enrage(Braid) Unit O.D.
(mm)
DA202F-2P 100

200

500		 .30
(7.7)		 6.2 0.18(25)
7/0.18TA		 25 91% or more Spiral Shield 3.0
DA202F-4P .34
(8.8)		 10 0.18(25)
7/0.18TA		 25 91% or more Spiral Shield
DA202F-8P .45
(11.5)		 17 0.18(25)
7/0.18TA		 25 91% or more Spiral Shield



ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.

ohm/1000ft
(ohm/
100m)		 Shield
D.C.R.

ohm/1000ft
(ohm/
100m)		 Nom.
Cap.
***


pF/m		 Nom.
Cap.
†


pF/m		 Nom.
Imp.

ohm		 Nom.
Atten.
@3MHz

dB/100m		 Group
Delay
Time

nS/ft
(nS/m)		 X-Talk
Input
3.31V

mV/1000ft
(mV/
100m)
DA202F-P
Series		 <32.3
(<10.6)		 <7.0
(<2.3)		 - - 110 5.0 - -
***Capacitance between conductors.
†Capacitance between conductors to shield.


COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
DA202F-P
Series		 - - [+] - - - - - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, "- -"=n/a


Cross Section
Individual Channel


Cross Section Multichannel Bundle

Channel Color Code
Ch. No. 1 2 3 4 5 6 7 8
Spiral
Markers		 RED BLU YEL GRN BRN   -   BLK
BLU		 BLK
YEL
