4 Button Wall Control Panel with Rotary Encoder White WP4R-W for the ZONEMIX Solution Australian Monitor

Product Code: AJ-WP4R-W

Brand
Australian Monitor
RRP $299.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Australian Monitor
Accessory Type Controller
  • Details
  • Downloads

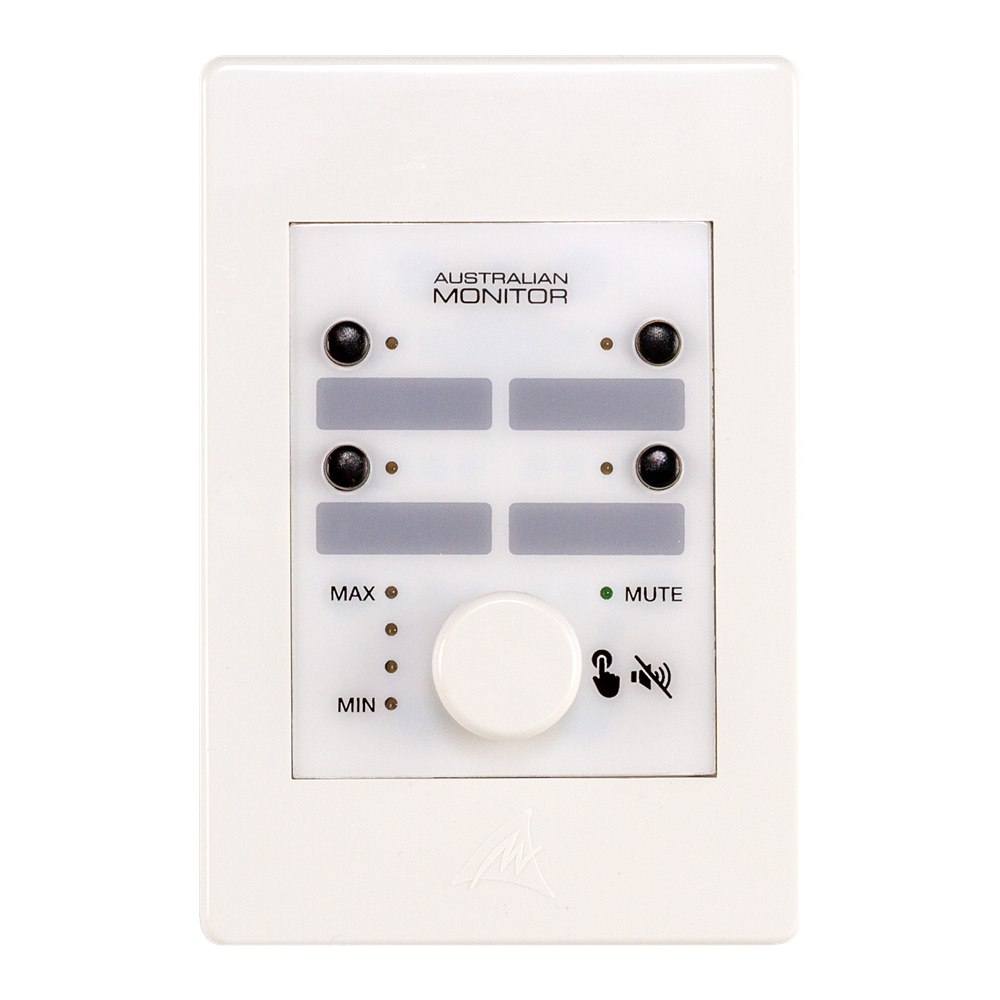

WP4R

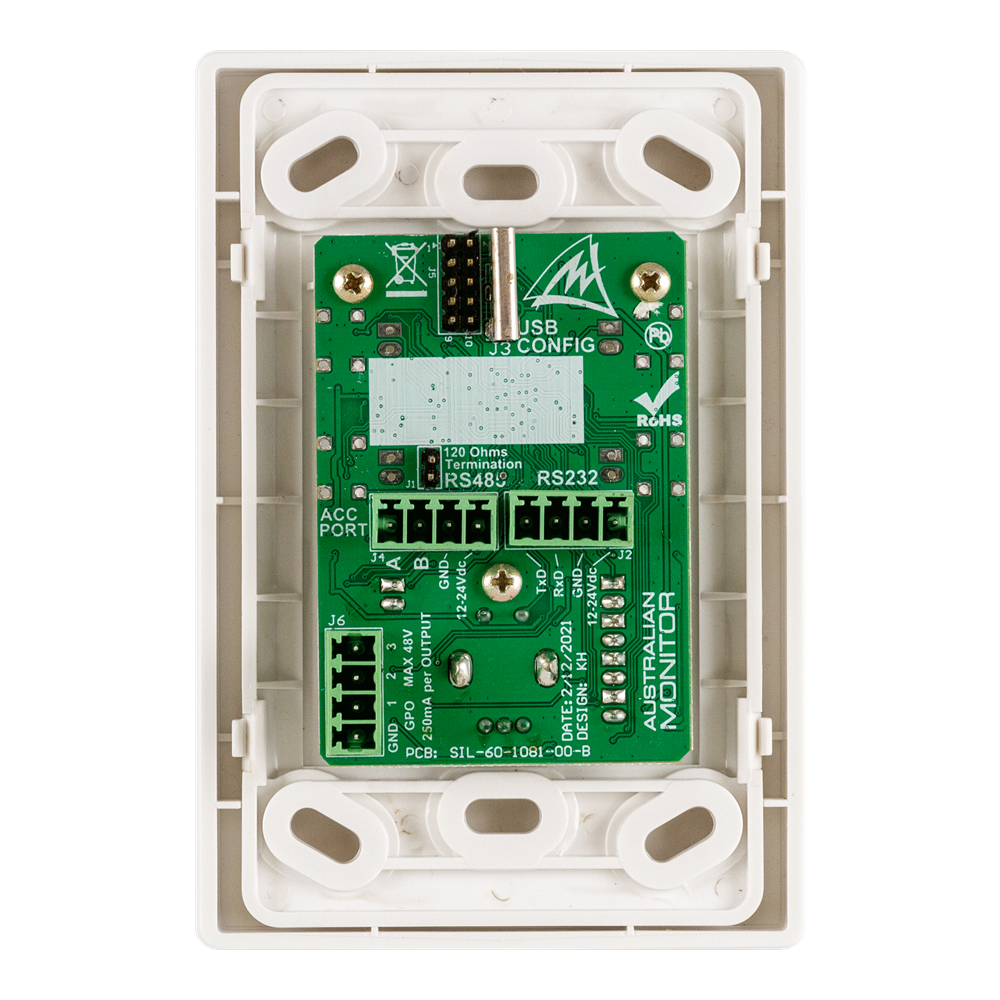

The WP4R has 4 programmable buttons and a rotary encoder which can be configured with the ZONEMIX PC application software. There are also 3 GPOs on the rear of the WP10 as well as USB-C, RS485 and RS232 connections for setup.

Options for each button include.

  • Enable or disable an input in the assigned zone
  • Volume up and down for the assigned zone
  • Recall of global or zone presets
  • Activate a paging message
  • Triggering of the 3 GPO's
  • Muting the assigned zone
  • Available in black or white

In addition to the standard black and white colour options, the WP4R is compatible with HPM VIVO™ cover plates providing up to 14 additional colour options; unique interior fitouts can be achieved where required, such as hotels, restaurants, bars and designer retail venues.
